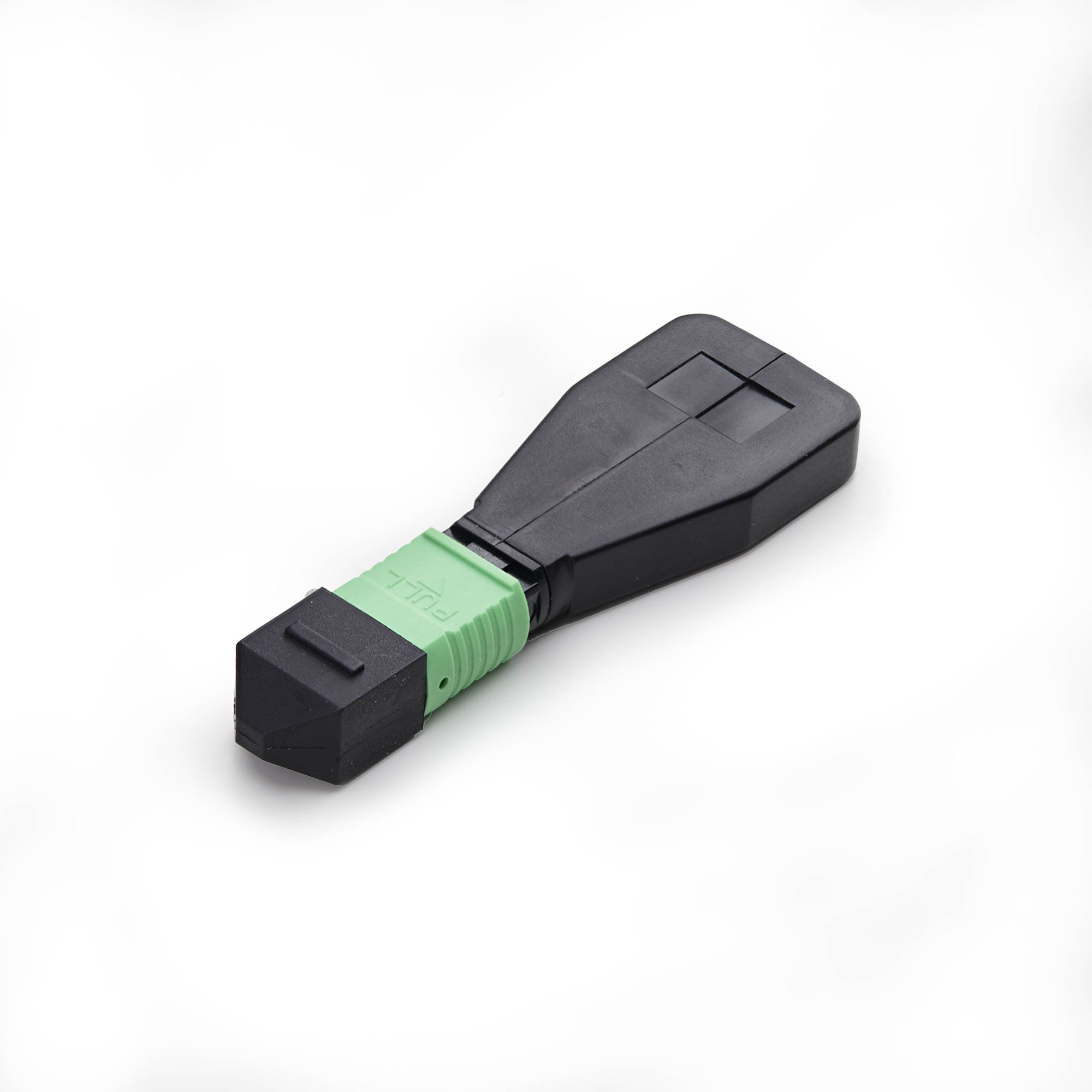

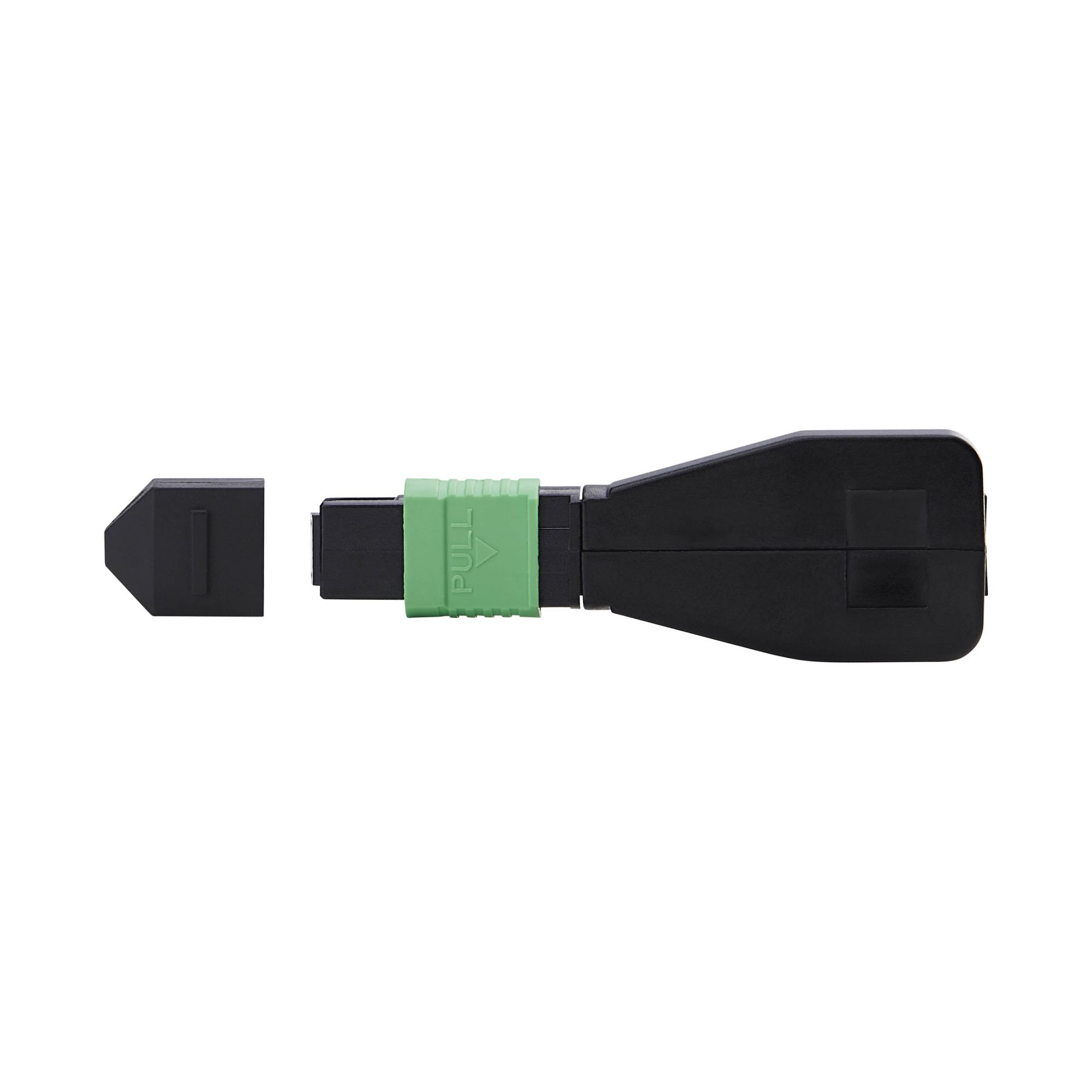

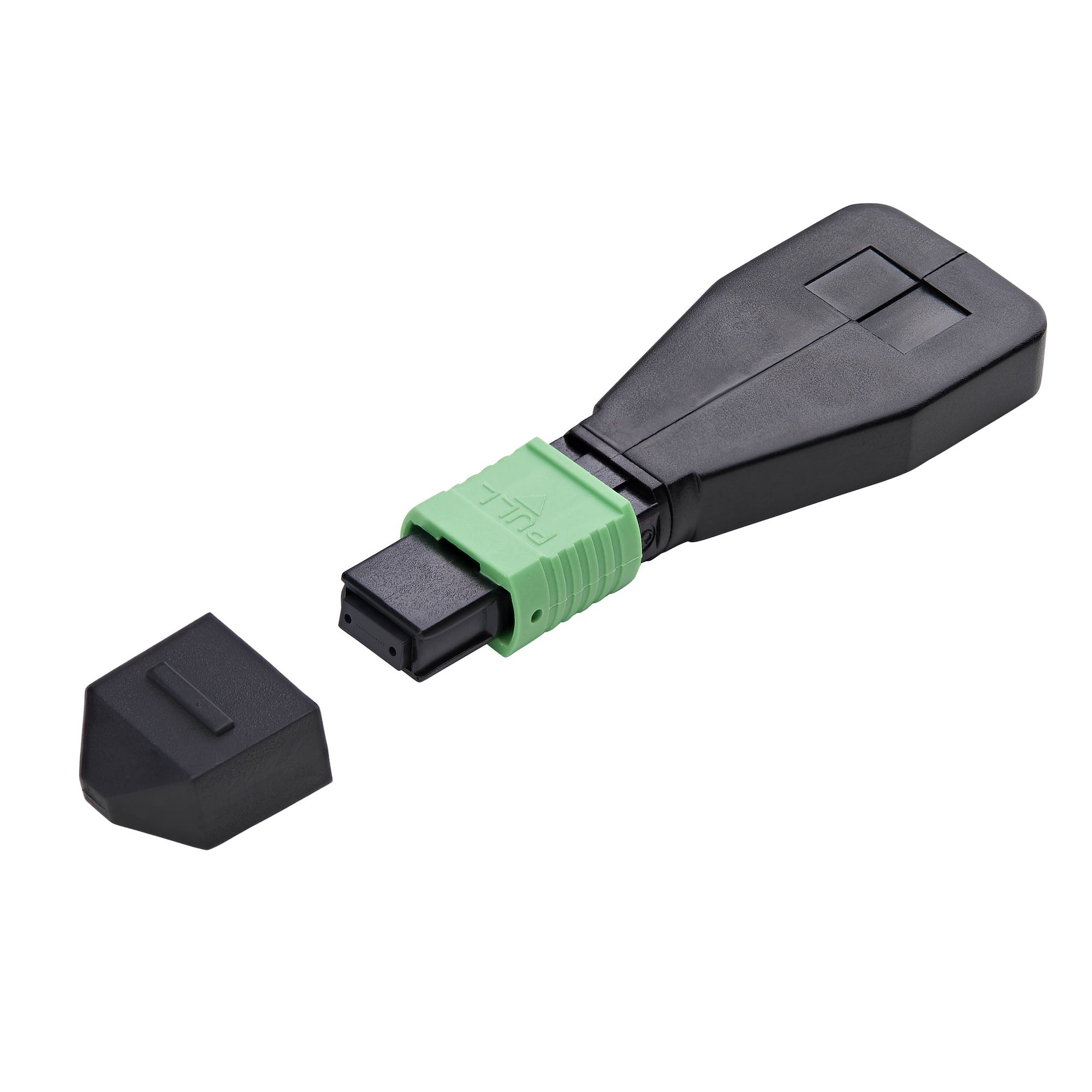

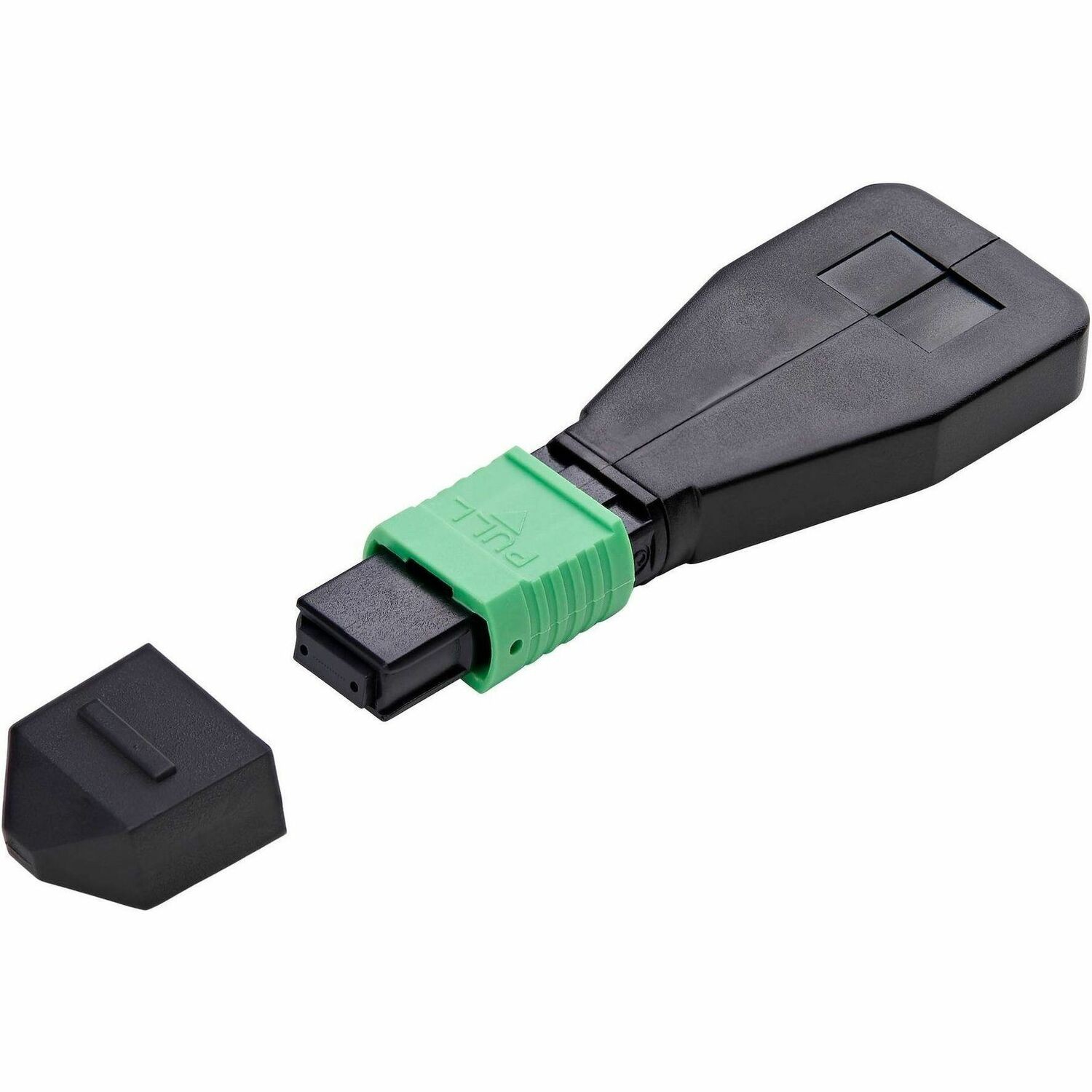

Single Mode MPO-8 Female fiber loopback adapter for testing signal continuity and port function in fiber optic networks. Features precision-aligned ceramic ferrules with low insertion loss for reliable diagnostics across OS1/OS2 cabling.
Specification
Fiber Type: Single Mode 9/125µm
Connector Type: MPO-8 Female
Fiber Count: 8 fibers
Compatible Cable: OS1/OS2
Insertion Loss: Below 0.35dB
Return Loss: Above 50dB
Repeatability: Within 0.2dB
Housing: ABS compact form factor
Ferrule Material: High-precision ceramic
Compliance: IEC and RoHS certified
Includes: Protective dust cap
