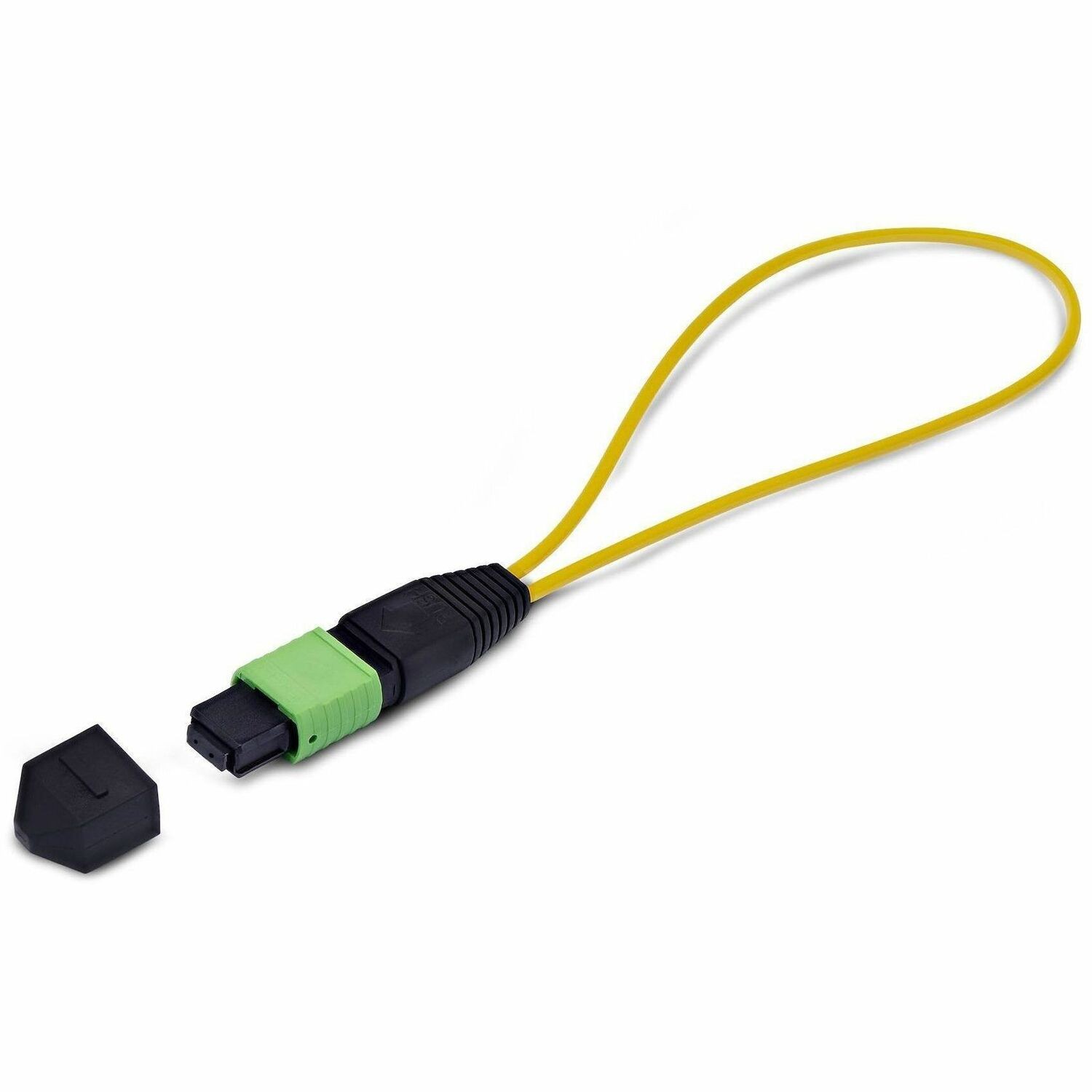

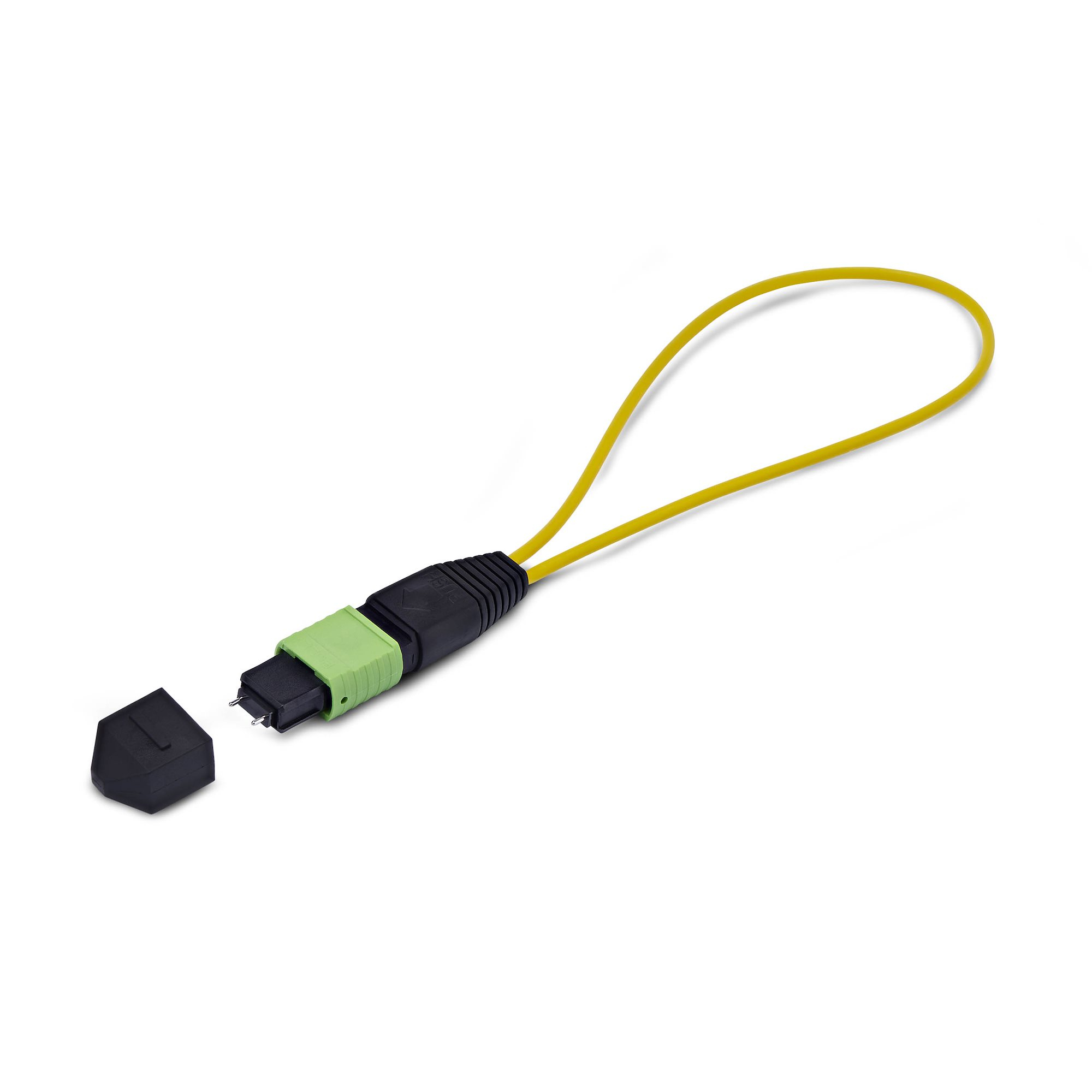

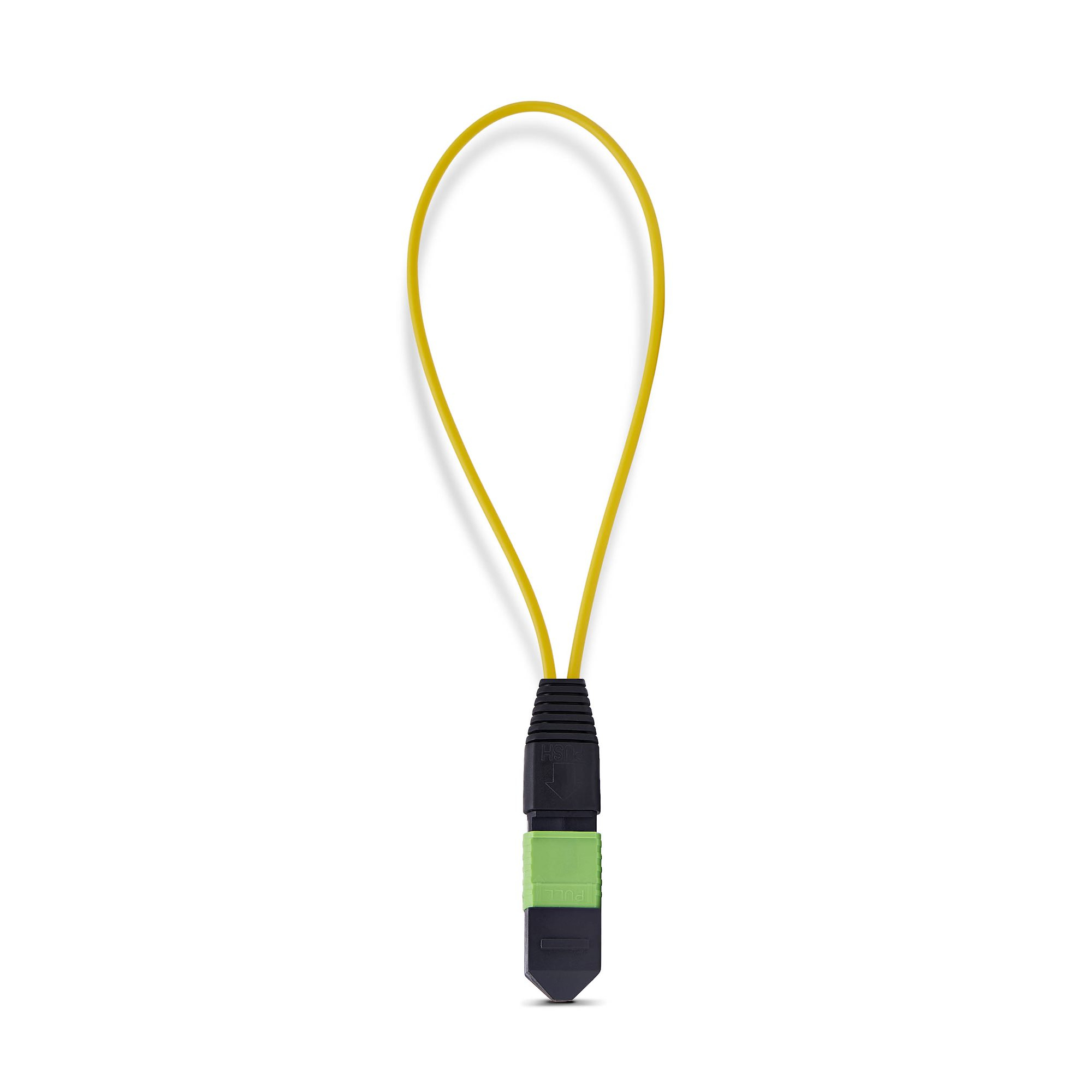

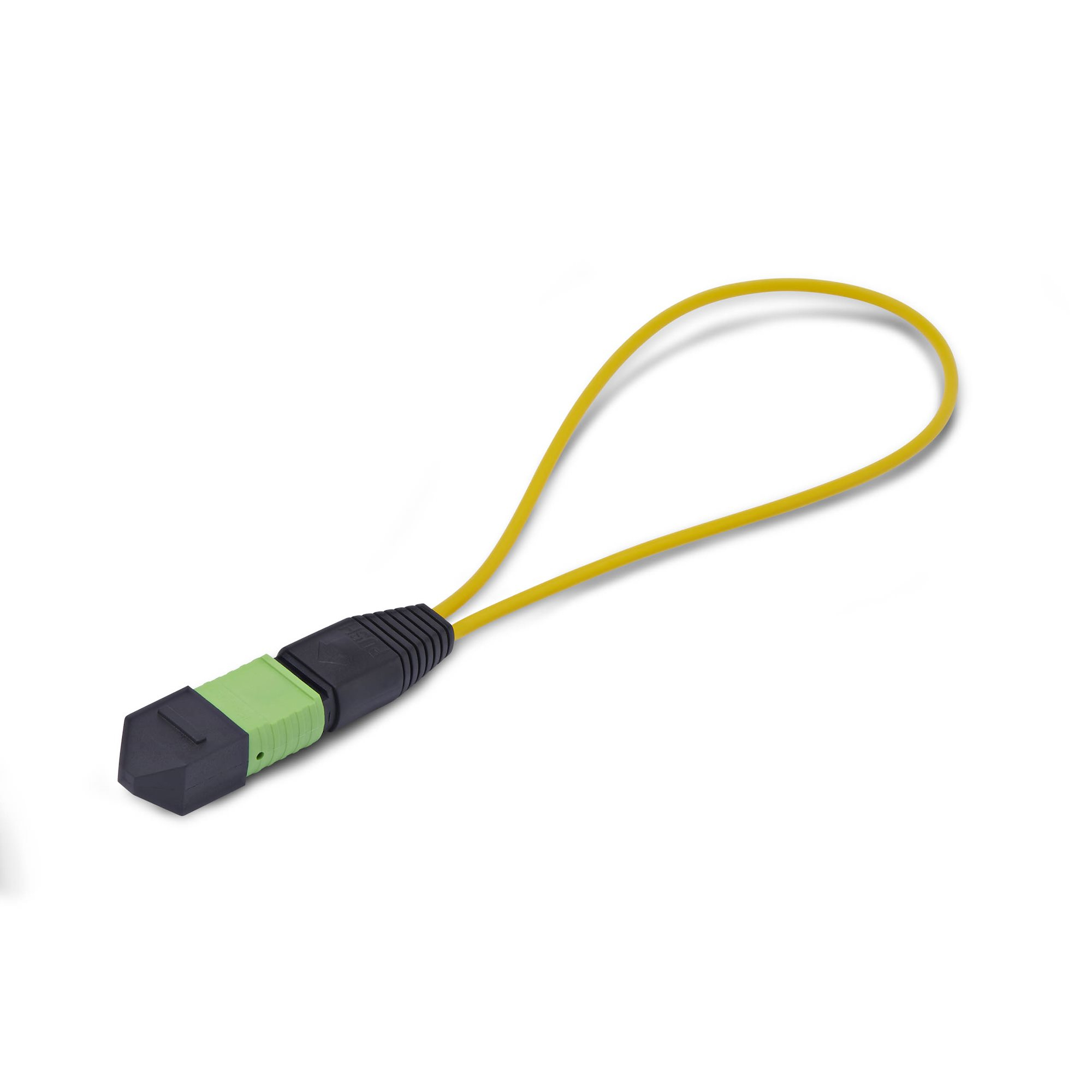

A single mode MPO loopback plug for verifying signal continuity, insertion loss, and port function in fiber optic networks. The MPO-12 male connector attaches directly to female MPO/MTP ports for high-density testing without disrupting adjacent connections.
Specification
Connector Type: MPO-12 Male
Fiber Type: Single Mode 9/125µm
Compatibility: OS1 and OS2 cabling
Standards: IEC and RoHS compliant
Configuration: 12-fiber fixed
Insertion Loss: Below 0.35dB
Return Loss: Above 50dB
Repeatability: Within 0.2dB
Housing: ABS plastic with ceramic ferrules
Includes: Protective dust cap
Warranty: 1 year
