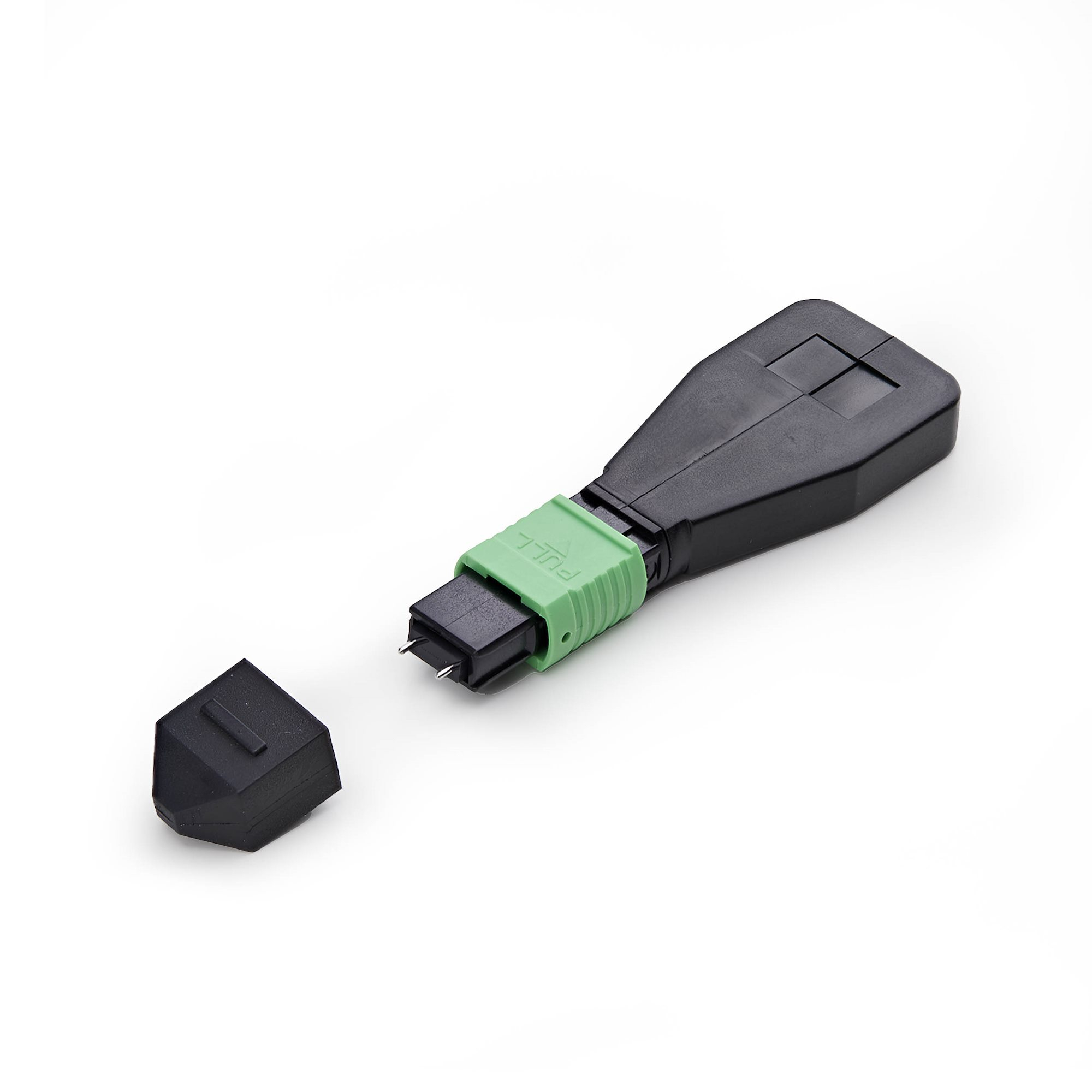

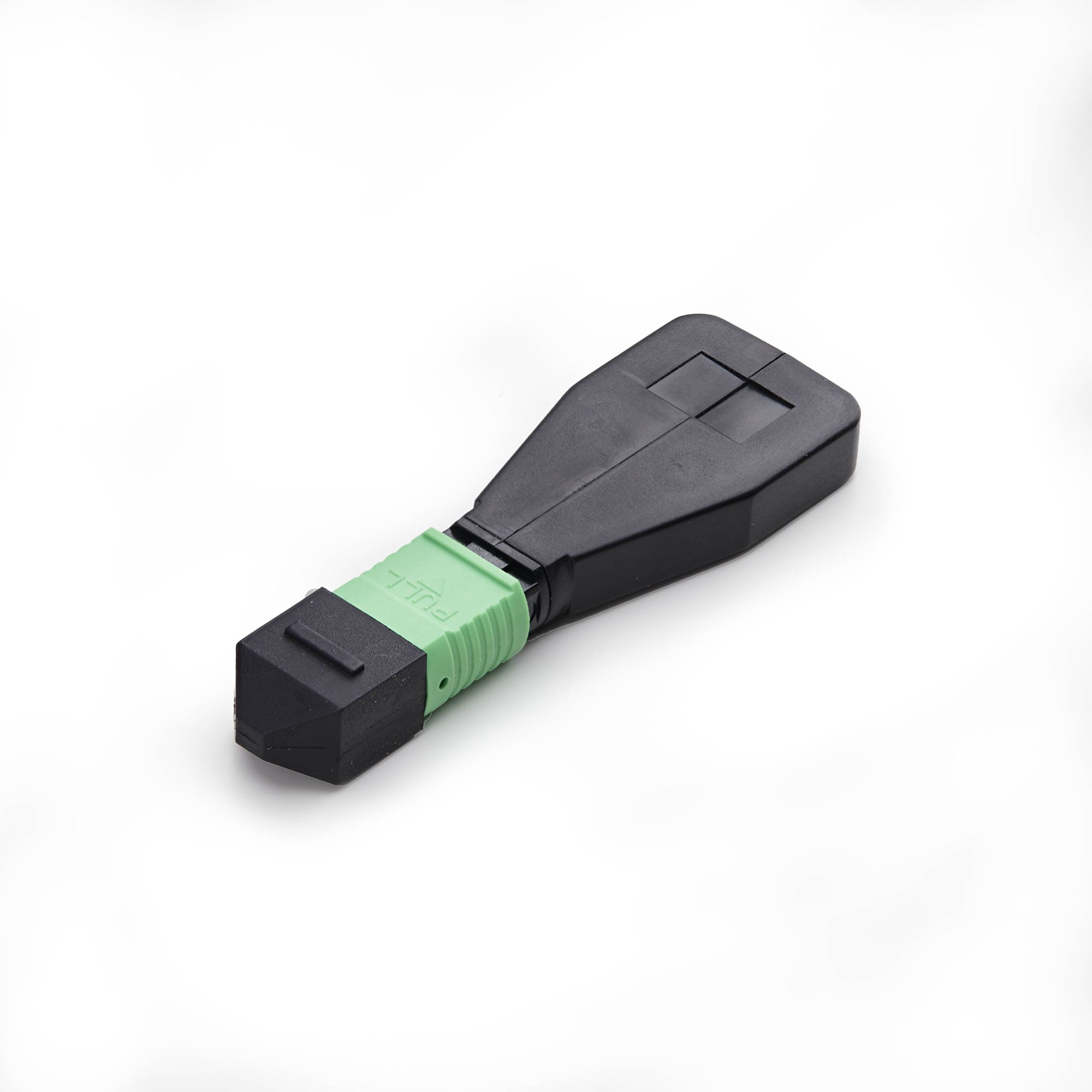

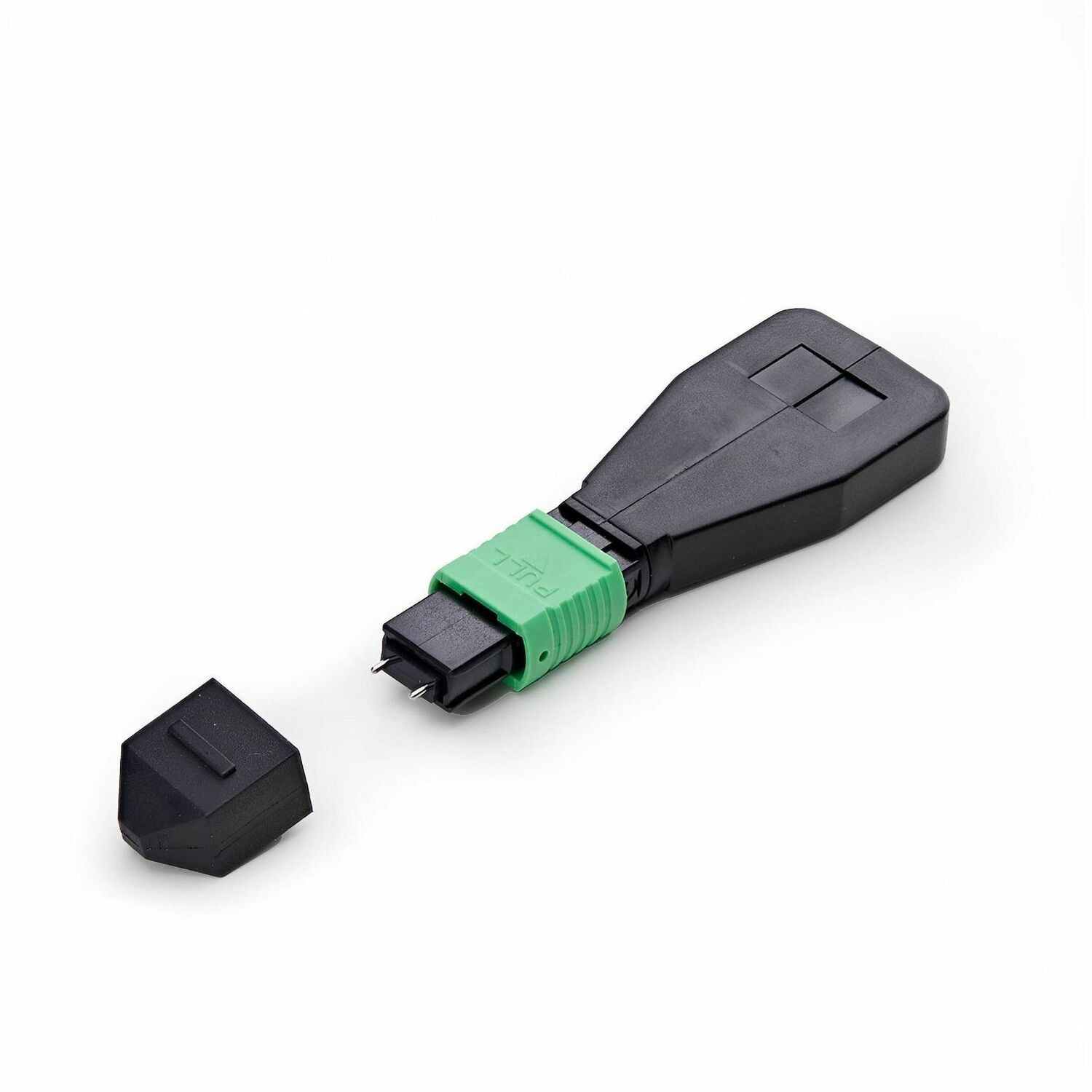

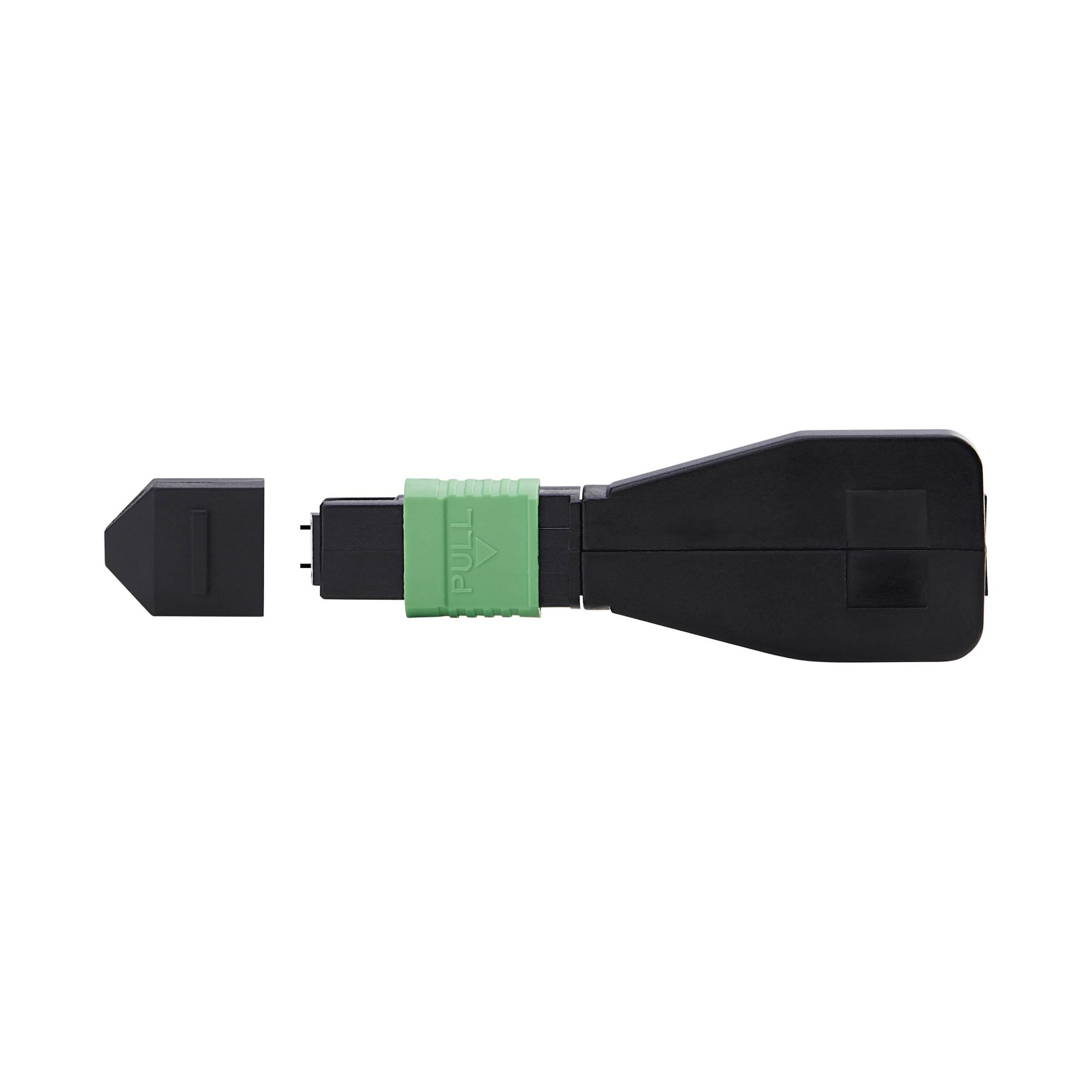

Single Mode MPO loopback plug for verifying signal continuity, insertion loss, and port function in fiber optic networks. Compatible with OS1 and OS2 cabling in point-to-point and structured installations.
Specification
Connector Type: MPO-8 Male
Fiber Type: Single Mode 9/125μm
Fiber Core Count: 8
Insertion Loss: Below 0.35dB
Return Loss: Above 50dB
Repeatability: Within 0.2dB
Housing Material: ABS
Ferrule Type: High-precision ceramic
Compliance: IEC and RoHS
Includes: Protective dust cap
Warranty: 2 years
