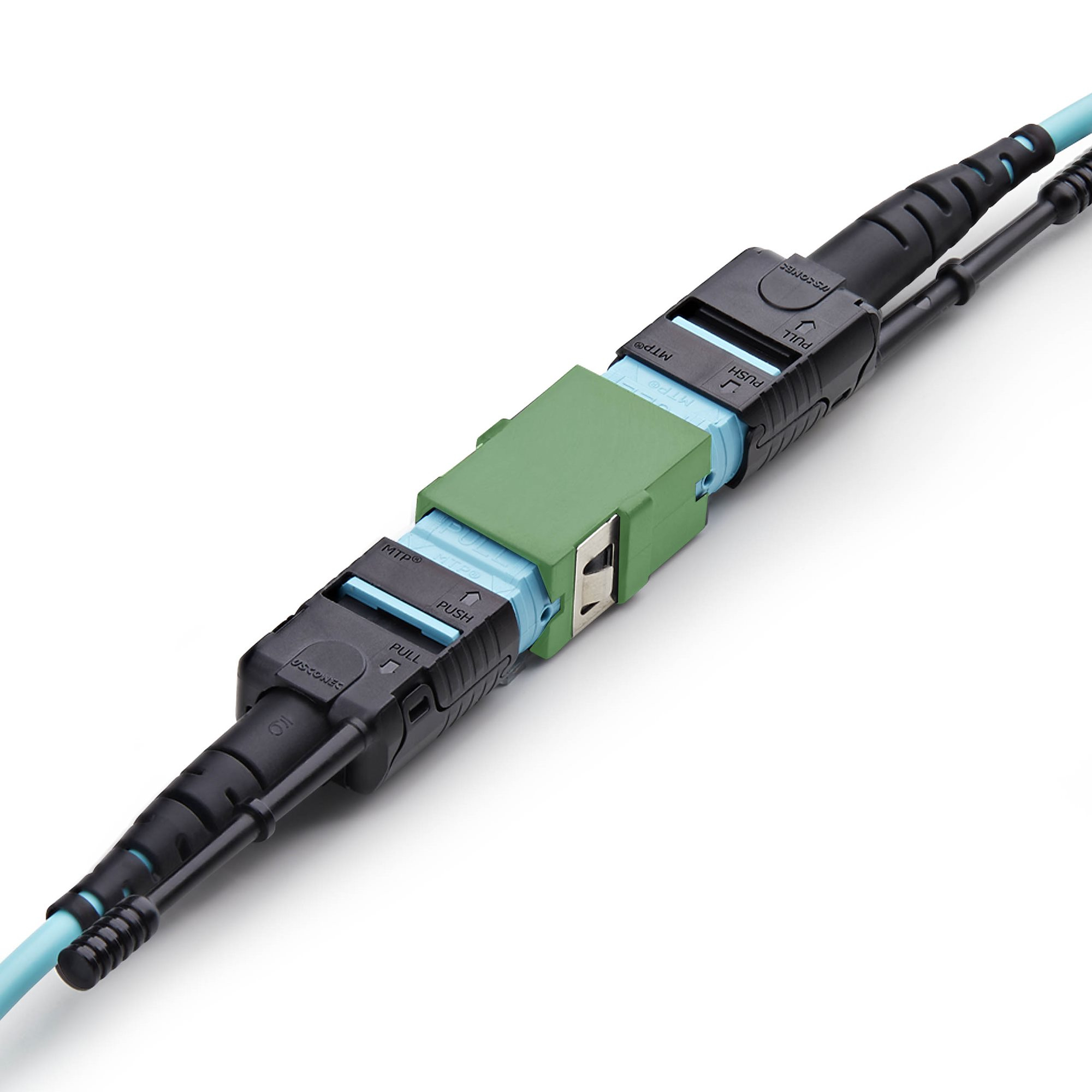

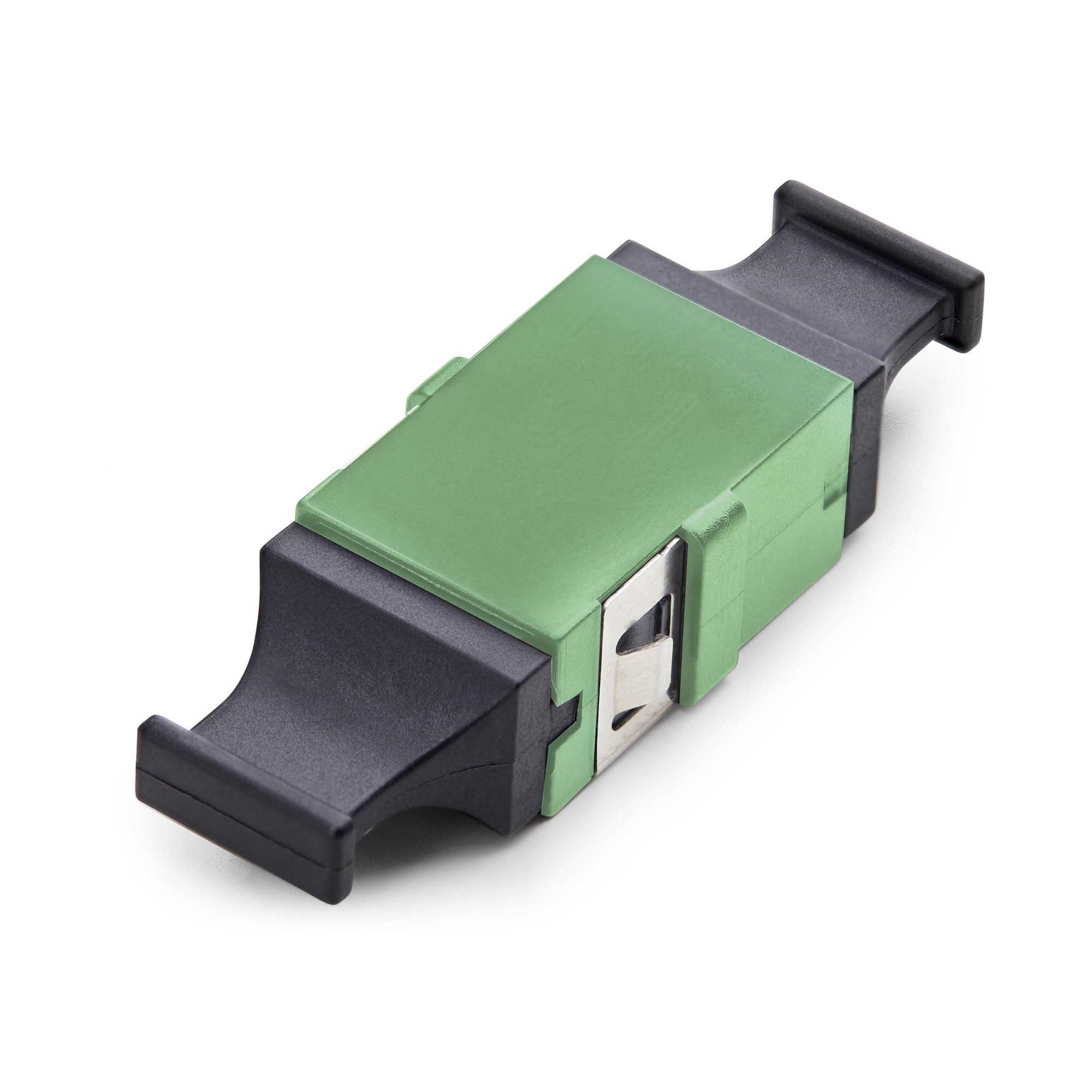

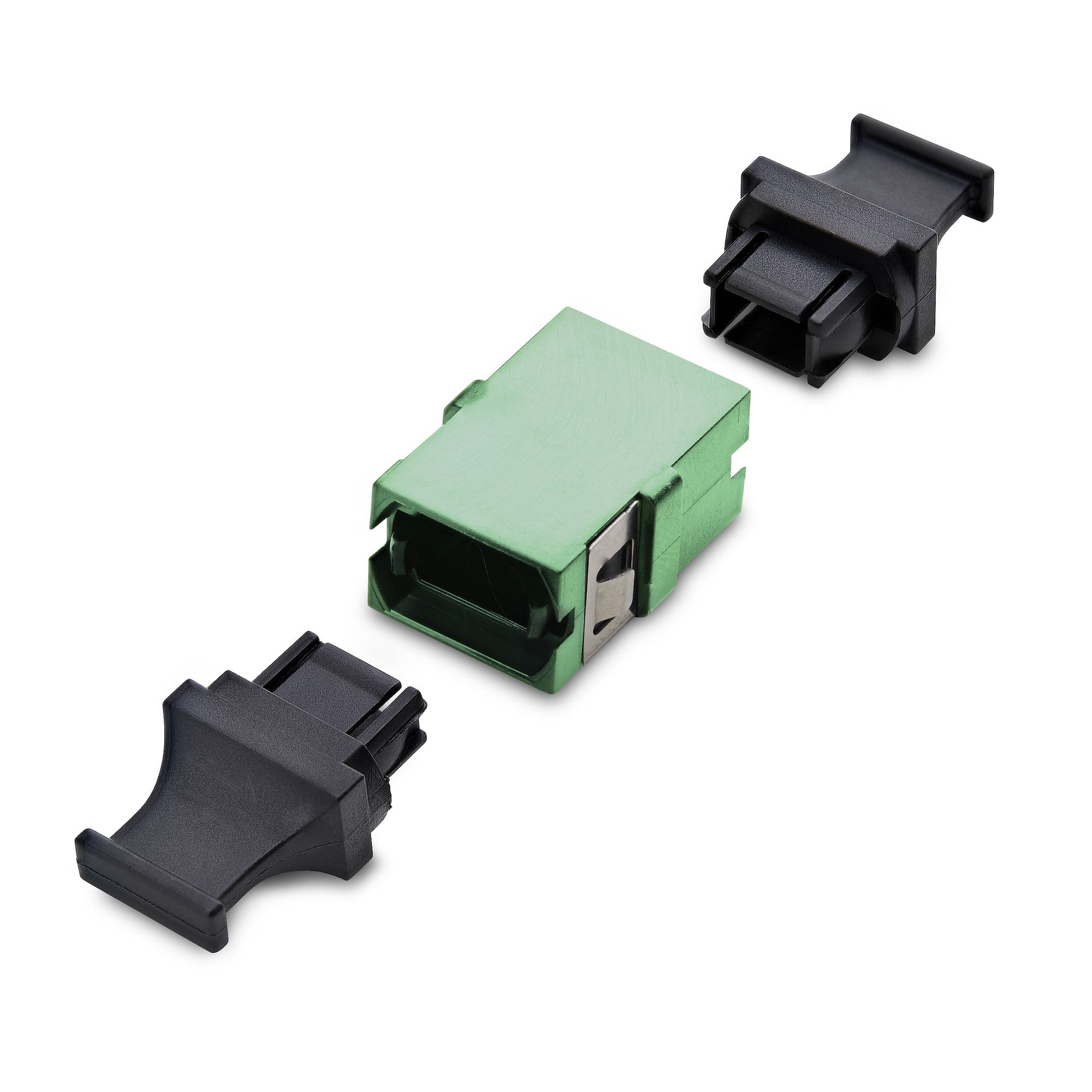

Single mode MPO/MTP fiber coupler with key up-key down configuration for patch panels and enclosures. Supports up to 100 Gbps data transmission with insertion loss of 0.2 dB, featuring toolless setup to simplify installation.
Connector type: MPO/MTP, Single-mode, OS1/OS2 fiber compatibility
Dimensions: Width 14.7 mm, Depth 44.5 mm, Height 9.4 mm, Weight 4 g
Colour: Green
Insertion loss: 0.2 dB
Operating temperature range: -40°C to 85°C
Durable ABS housing
Standards: OS1/OS2 and TIA-568.3-D compliant
