No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
No filter service required – the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget
Compact design – a large venue projector with a comparatively small footprint and light weight design.
Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending.
Frequency: Horizontal analog 0–0 kHz, digital 15/24–153 kHz; Vertical 24–120 Hz

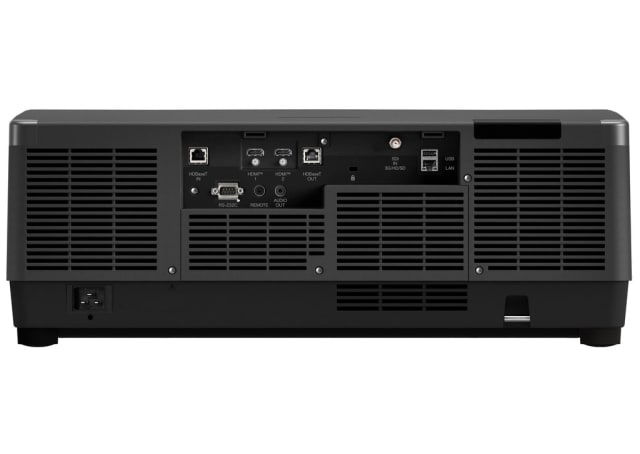

Connectivity
Digital Input: 1 x 3G-SDI; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Digital Output: 1 x HDBaseT supporting HDCP 2.2
Audio Input: 1 x HDBaseT audio support; 2 x HDMI audio support
Input Control: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232); Ethernet
Audio Output: 1 x 3.5 mm Stereo Mini Jack
LAN: 1 x RJ45
USB: 1 x Type A (USB 2.0 high speed)
Remote Control: Audio Control; Digital Zoom; Geometric Correction; ID Select; ID Set; Power (On/Off); Navigation; Shutter; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Electrical
Power Consumption: 990W Normal / 890W Silent Mode / 0.5W Network Stand-by / 2.0W Stand-by
Power Consumption (Additional): 700–800W, 0.8W (Network Stand-by) / 0.28W (Stand-by)
Environmental
Operating Temperature: 0ºC to 40ºC
Operating Humidity: 20% to 80%
Storage Temperature: -10ºC to 50ºC
Storage Humidity: 20% to 80%
Mechanical
Dimensions (W x H x D) [mm]: 599 x 208 x 490 (without lens and feet)
