No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
No filter service required – a completely sealed optical laser LCD engine allows a filter-free design. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget.
Super Silent operation – patented sealed light engine incorporating innovative fan design not only protects against dust ingress but dramatically reduces noise.
Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, tiling and camera based blending.
Specifications
General Information
Projection Technology: 3LCD Technology
Native Resolution: 1920 × 1200
Aspect Ratio: 16:10
Contrast Ratio (typ.): 3,000,000:1
Brightness: 9000 Lumen (approx. 80% in Eco Mode), with standard optional lens; compliant with ISO21118‑2012
Brightness (Boost Mode): 10000 Lumen
Light Source: Laser
Light Source Life: 20,000 hrs
Lens: 5 motorized lens options
Lens Adjustment: Motorized and manual (depending on lens)
Projection Factor: Depending on lens selection (standard option XP‑41ZL at 1.3–3.02:1)
Projection Distance: 0.7–50.9 m
Screen Size (diagonal): Min. 101.6 cm; Max. 1,270 cm
Zoom: Motorized and manual (depending on lens)
Frequency: Horizontal analog 15/24–100 kHz, digital 15/24–153 kHz; Vertical analog 48–120 Hz, digital 48–120 Hz

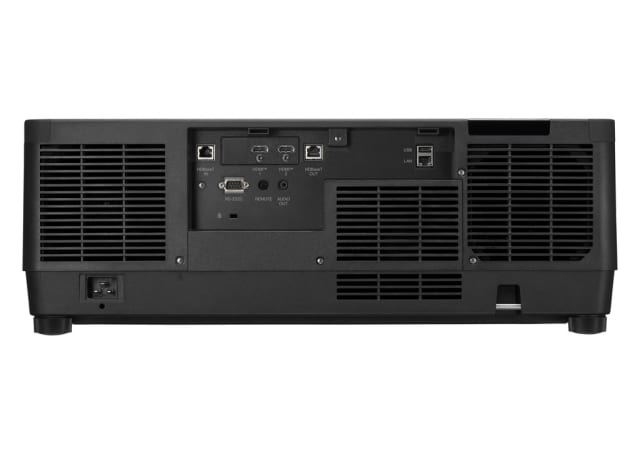

Connectivity
Digital Input: 1 × HDBaseT; 2 × HDMI (HDCP 2.2)
Digital Output: 1 × HDBaseT (HDCP 2.2)
Audio Input: 1 × HDBaseT audio; 2 × HDMI audio
Audio Output: 1 × 3.5 mm Stereo Mini Jack
Input Control: 1 × 3.5 mm Stereo Mini Jack (Wired Remote); 1 × RS‑232 (D‑Sub 9 pin); Ethernet
LAN: 1 × RJ45
USB: 1 × Type‑A (USB 2.0 high speed)
3D Sync Output: 1 × Mini DIN 3‑pin
Remote Control Functions: Audio Control; Digital Zoom; Geometric Correction; ID Select; ID Set; Power On/Off; Navigation; Shutter; Source Select; Test Picture; Zoom/Focus; Lens Shift
Electrical
Power Supply: 100–240 V AC; 50–60 Hz
Power Consumption: 725 W (Normal); 395 W (Eco); 0.8 W (Network Stand‑by); 0.28 W (Stand‑by)
Environmental
Operating Temperature: 0°C to 40°C
Operating Humidity: 20% to 80%
Storage Temperature: -10°C to 50°C
Storage Humidity: 20% to 80%
Mechanical
Dimensions (W × H × D): 599 × 208 × 490 mm (without lens and feet)
