No lamp replacement – up to 25,000 h maintenance free operation possible due to Laser Light Source.
No filter service required – the enhanced sealed optical laser LCD engine allows a filter-free design, IP5X rated against dust ingress. Brilliant colour brightness is maintained and servicing costs need no longer feature in your budget
Compact design – a large venue projector with a comparatively small footprint and light weight design.
Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast supporting HDR10 standard via HDMI interface.
Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, picture in picture, tiling and camera based blending.

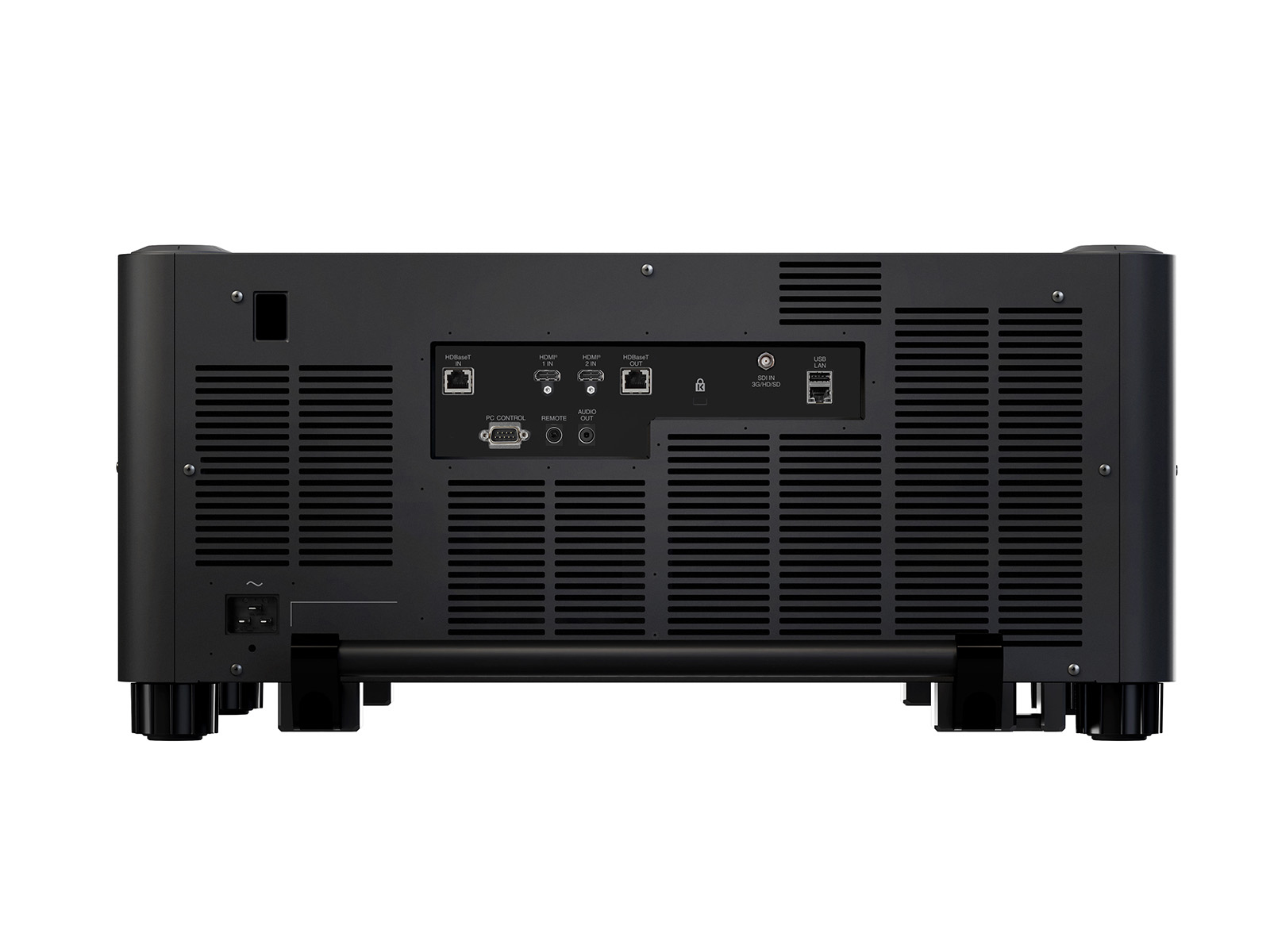

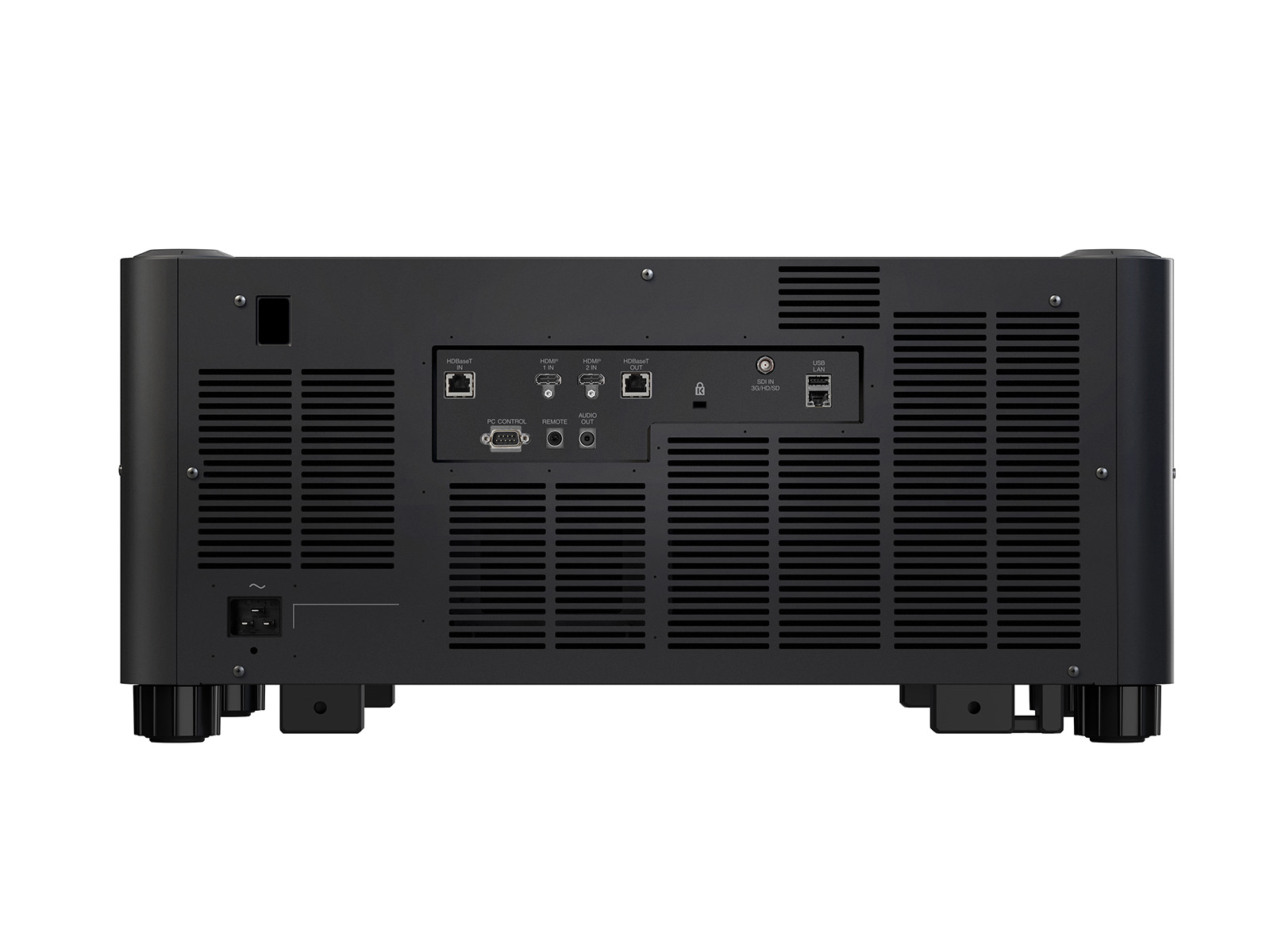

Digital Input: 1 x 3G‑SDI; 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
Digital Output: 1 x HDBaseT supporting HDCP 2.2
Audio Input: 1 x HDBaseT audio support; 2 x HDMI audio support
Audio Output: 1 x 3.5 mm Stereo Mini Jack (variable)
Input Control: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D‑Sub 9 pin (RS‑232); Ethernet
LAN: 1 x RJ45
USB: 1 x USB A (2A power delivery)
Remote Control: Audio Control; Digital Zoom; Geometric Correction; ID Select; ID Set; Power (On/Off); Navigation; Shutter; Source Select; Test Picture; Zoom/Focus and Lens Shift Control
Electrical
Power Supply: 100–240 V AC; 50–60 Hz
Power Consumption: 1530W Normal / 1400W Silent Mode / 2.0W Network Stand‑by / 0.5W Stand‑by
Environmental
Operating Temperature: 0ºC to 40ºC
Operating Humidity: 20% to 80%
Storage Temperature: -10ºC to 50ºC
Storage Humidity: 20% to 80%
Mechanical
Dimensions (W x H x D) [mm]: 650 x 262 x 549 (without lens and feet)
