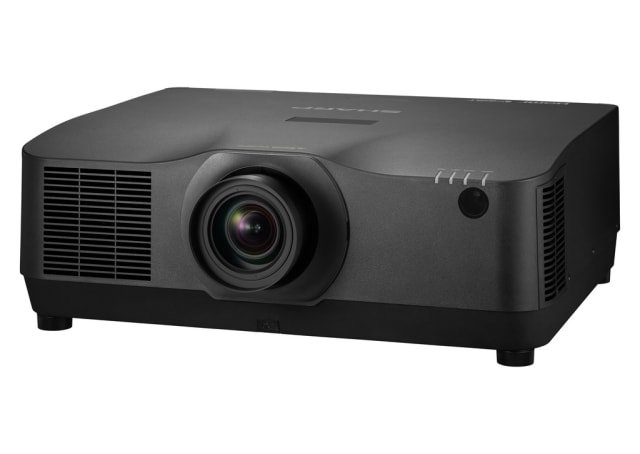

SHARP PROJECTOR (XP-A) WUXGA 1920 x 1200, 8000 Lumen, 5YR

Features

• Stunning colour accuracy and contrast – precise white point calibration, extended colour space, and 12‑bit colour processing deliver rich saturation and deep contrast for highly detailed visual content.
• Built for long‑term performance – a sealed optical engine rated IP5X against dust ingress ensures stable image quality and consistent brightness over time.
• Minimal servicing – filter‑less LCD design and laser light source eliminate lamp replacements, reducing service costs and enabling up to 20,000 hours of use.
• Fast and flexible installation – Sharp’s ProAssist software allows remote setup and adjustment, even when the projector is difficult to access.
• Designed for complex environments – wide lens shift, HDBaseT‑out, blending, and stacking capabilities provide maximum installation flexibility.

Specifications

General Information

• Projection Technology: 3LCD Technology
• Native Resolution: 1920 x 1200
• Aspect Ratio: 16:10
• Contrast Ratio (typ.): 3,000,000:1
• Brightness (Lumen): 7500 Lumen (approx. 80% in Eco Mode), with standard optional lens; compliant with ISO21118-2012
• Brightness (Boost Mode): 8200 Lumen
• Light Source: Laser
• Light Source Life: 20,000 hrs
• Lens: 5 motorized lens options
• Lens Adjustment: Motorized
• Lens Adjustment (Additional): Motorized and manual (depending on lens)
• Lens Shift: H: ±20, V: +10 / -50
• Keystone Correction: +/- 40° manual horizontal / +/- 40° manual vertical
• Projection Factor: depending on lens selection (std. option XP-41ZL at 1.3–3.02:1)
• Projection Distance (m): 0.7 – 50.9
• Screen Size (diagonal): Max. 1,270 cm; Min. 101.6 cm
• Zoom: Motorized and manual (depending on lens)
• Frequency: Horizontal analog 15/24–100 kHz, digital 15/24–153 kHz; Vertical analog 48–120 Hz, digital 48–120 Hz

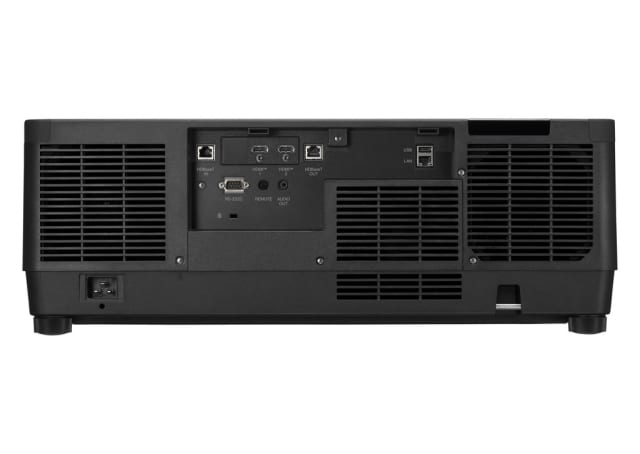

Connectivity

• Digital Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP 2.2
• Digital Output: 1 x HDBaseT supporting HDCP 2.2
• Audio Input: 1 x HDBaseT audio support; 2 x HDMI audio support
• Audio Output: 1 x 3.5 mm Stereo Mini Jack
• Input Control: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232); Ethernet
• LAN: 1 x RJ45
• USB: 1 x Type A (USB 2.0 high speed)
• 3D Sync Output: 1 x Mini DIN 3‑pin
• Remote Control: Audio Control; Digital Zoom; Geometric Correction; ID Select; ID Set; Power (On/OFF); Navigation; Shutter; Source Select; Test Picture; Zoom/Focus and Lens Shift Control

Electrical

• Power Supply: 100–240 V AC; 50–60 Hz
• Power Consumption: 615W (Normal) / 560W (Eco) / 0.8W (Network Stand-by) / 0.28W (Stand-by)

Environmental

• Operating Temperature: 0ºC to 40ºC
• Operating Humidity: 20% to 80%
• Storage Temperature: -10ºC to 50ºC
• Storage Humidity: 20% to 80%

Mechanical

• Dimensions (W x H x D) [mm]: 599 x 208 x 490 (without lens and feet)
• Weight [kg]: 24.1
• Fan Noise [dB(A)]: 28 / 34 (Eco / Normal)
• Colour Versions: Black

Optional Accessories

• Optional Accessories: 5 optional bayonet lenses; Cable Cover (XP‑13CV‑W, XP‑13CV‑B)

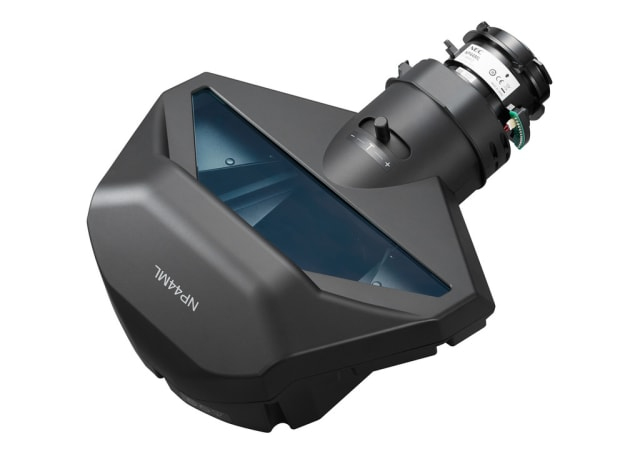

• Lenses (Motorized): XP‑40ZL/NP40ZL (0.79–1.11:1); XP‑41ZL/NP41ZL (1.3–3.02:1); XP‑43ZL/NP43ZL (2.99–5.93:1); XP‑44ML‑A/NP44ML‑PA4 (0.32:1); XP‑50ZL/NP50ZL (0.6–0.75:1)

Other Features

• Safety and Ergonomics: CE; EAC; ErP; RoHS; TUEV Type Approved
• Special Characteristics: 3D ready; 4K/60Hz interfaces; Active 3D; AMX Beacon; Built‑in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing; Crestron RoomView; DICOM simulation; Digital 3D Reform™; Direct Power‑Off; Edge Blending; Free Tilt; Geometric Correction; HDBaseT; HDBaseT‑out signal connection; HDR10 Support; High Altitude Mode; Hollywood Quality Video Processing; HTTP Browser Control; IP5X/IP6X rated; Keystone Correction (H=±40°, V=±40°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max / -0.1 max, horizontal ±0.3 max); Light Source Adjustment; Manual Wall Color Correction; Multi‑Screen Compensation; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security; PIP/Side‑by‑Side HDMI Input; PJ LINK; Portrait Setting; Rec2020→Rec709 colour conversion; RS‑232 Control; Seamless Switching; Stacking Function; Test Pattern; Timer Function; UHD player support; Up to 20,000 hrs Light Source Life; Virtual Remote for PC control
• Shipping Content (Accessories): IR Remote Control (RD‑480E); Power Cord; Projector; Quick Setup Guide
