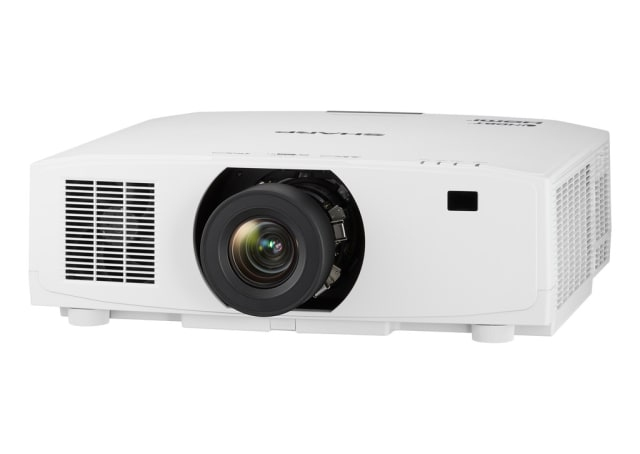

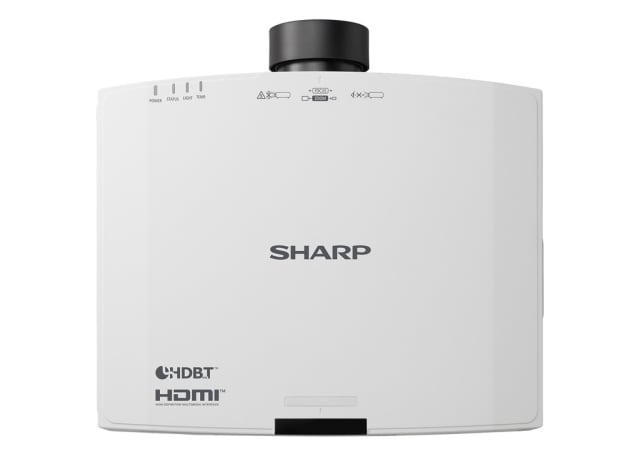

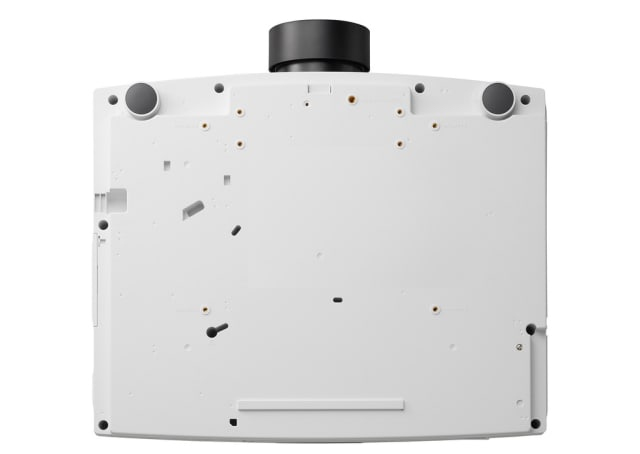

SHARP PROJECTOR (XP-V) WUXGA 1920 x 1200, 7100 Lumen, 5YR

Features

• No lamp replacement – up to 20,000 h maintenance free operation possible due to Laser Light Source.
• Get Great Performance – while not compromising on quality and ease of use.
• Low Noise Level – with 31dB, the silent technology will not disturb your meeting.
• Impress with vivid colour & contrast – brilliant white and wide colour space with high dynamic contrast.
• Incredible visualisation capabilities – impressive free tilt and portrait installation capability, unique geometric adjustment, tiling and camera based blending.

Specifications

General Information

• Projection Technology: 3LCD Technology
• Native Resolution: 1920x1200
• Aspect Ratio: 16:10
• Contrast Ratio (typ.): 3,000,000:1
• Brightness (Lumen): 7300 Lm Normal / 7600 Lm Center / 6600 Lm Silent Mode; compliant with ISO21118-2012
• Light Source: Laser
• Light Source Life: 20,000 hrs
• Lens: 5 motorized lens options
• Lens Adjustment: Motorized
• Lens shift: H:±20, V:+10,-50
• Keystone correction: +/- 30° manual horizontal / +/- 30° manual vertical
• Projection Factor: depending on lens selection (std. option XP-41ZL at 1.3-3.02:1)
• Projection Distance (m): 0.7 – 50.9m
• Screen Size (diagonal): Max. 1,270cm, Min. 101.6cm
• Zoom: Motorized and manual (depending on lens)
• Focus Adjustment: Motorized and manual (depending on lens)
• Frequency: Digital Frequency: Horizontal: 15/24 - 153 kHz; Vertical: 24-120 Hz

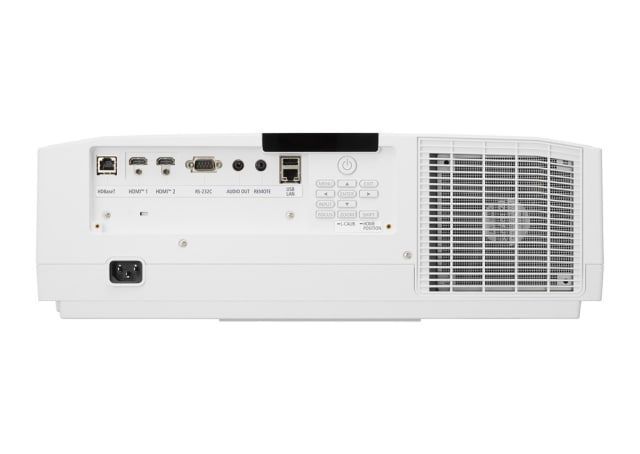

Connectivity

• Digital Input: 1 x HDBaseT; 2 x HDMI™ supporting HDCP
• Audio Input: 1 x HDBaseT audio support; 2 x HDMI audio support
• Audio Output: 1 x 3.5 mm Stereo Mini Jack
• Input Control: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet
• LAN: 1 x RJ45
• USB: 1 x Type A (USB 2.0 high speed)
• Remote Control: Audio Control; Digital Zoom; Geometric Correction; HDMI; ID Select; ID set; Keystone Correction; Picture Adjust; Picture Mute; Power; Shutter function; Source Select; Test Picture; Wired / Wireless Connection; Zoom/Focus and Lens Shift Control

Electrical

• Power Supply: 100-240 V AC; 50 - 60 Hz
• Power Consumption: 434.0 Normal / 403 Silent Mode / 2.0 Network Stand-by / 0.5 Stand-by

Environmental

• Operating Temperature: 0ºC to 40ºC
• Operating Humidity: 20% to 80%
• Storage Temperature: -10ºC to 50ºC
• Storage Humidity: 20% to 80%

Mechanical

• Dimensions (W x H x D) [mm]: 499 x 164 x 407 (without lens and feet)
• Weight [kg]: 11.2
• Fan Noise [dB (A)]: 40 / 31 (Normal / Silent)
• Colour Versions: White

Optional Accessories

• Optional Accessories: 5 optional bayonet lenses; Cable Cover (XP-13CV-W, XP-13CV-B)
• Lenses (Motorized): XP-40ZL/NP40ZL (0.79-1.11:1); XP-41ZL/NP41ZL (1.3-3.02:1); XP-43ZL/NP43ZL (2.99-5.93:1); XP-44ML-A/NP44ML-PA4 (0.32:1); XP-50ZL/NP50ZL (0.6-0.75:1)

Other Features

• Safety and Ergonomics: RCM, CE, EAC, ErP, RoHS
• Special Characteristics: AMX Beacon; Cinema Quality Picture (CQP) Processing for best image quality; Control ID Function; Crestron RoomView; DICOM simulation; Direct Power-Off Function; Edge Blending Function; Free Tilt; Geometric Correction; HDBaseT; High Altitude Mode; HTTP Browser Control; Keystone Correction (H=±30°, V=±30°); LAN control; Lens Memory; Lens Shift (vertical +0.5 max/-0.1 max, horizontal ± 0.2 max.); Light Source Adjustment; Manual Wall Color Correction; NaViSet Administrator 2; Optional User Logo; OSD with 27 languages; Password Security System; PJ LINK; Portrait Setting; Quick On/Off; RS-232 Control; Test Pattern; Up to 20,000 hrs Light Source Life

Shipping Content (Accessories)

• Power Cable, Projector, Quick Setup Guide, IR Remote Control
