Description
The AP106 is a 60W power amplifier with Hi-Z outputs capable of driving 70 V / 100 V audio systems. The built-in 2-band shelf EQ provides ± 6 dB boost / suppression of treble and bass control, offering subtle tone shaping and extra control versatility. With Class D efficiency, the amplifier comes in a smaller, lighter enclosure, yet runs cooler comparing with other classes of amplifiers with the same amount of power and features a fanless design.</description>
<parameter name="specification">60W mono Hi-Z power amplifier
Class D high efficiency design
Drives 70V/100V distributed audio systems
2-band shelf EQ (±6 dB treble/bass control)
Balanced and unbalanced line level inputs

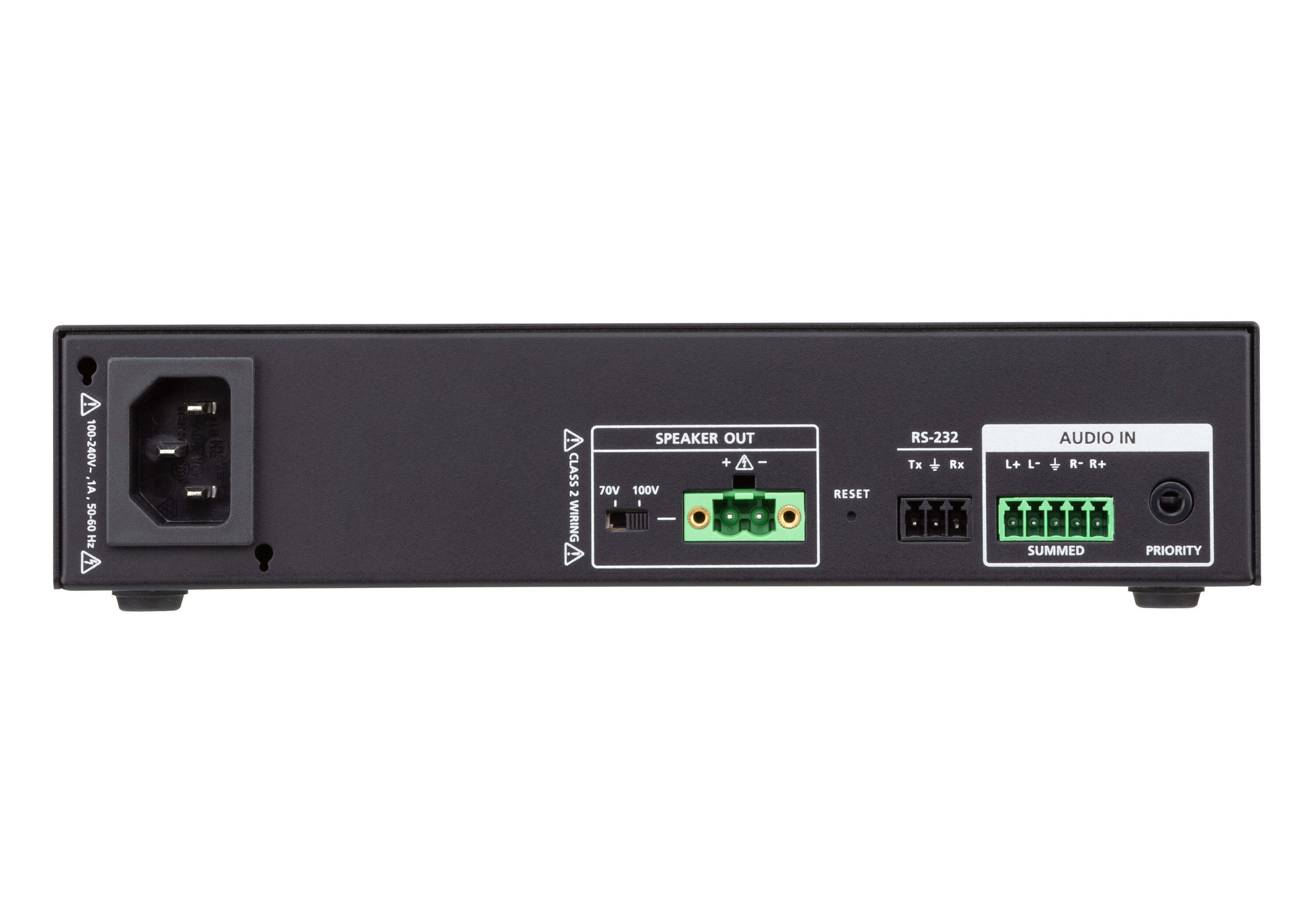

Euroblock and TRS jack connectors
Power Saving Mode (auto shutdown after 30 mins no signal)
Integrated protection circuits (short, over/under-voltage, overtemp, HF overload)
Fanless sealed casing design

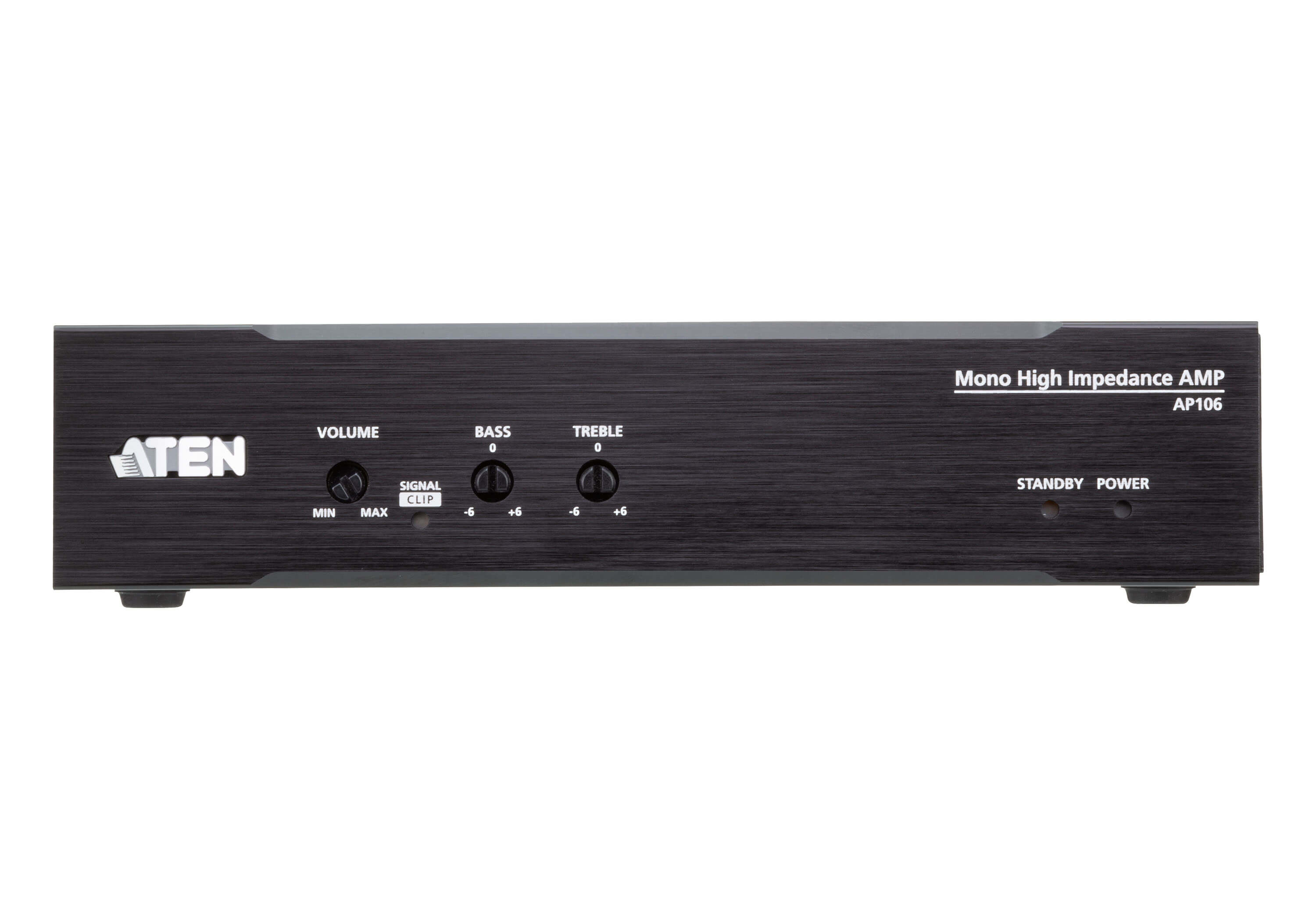

Front panel LED status indicators
Bi-directional RS-232 serial port for firmware upgrade and ATEN Control System integration
IEC power receptacle for overseas operation
Compact, sealed enclosure suitable for hidden placement
