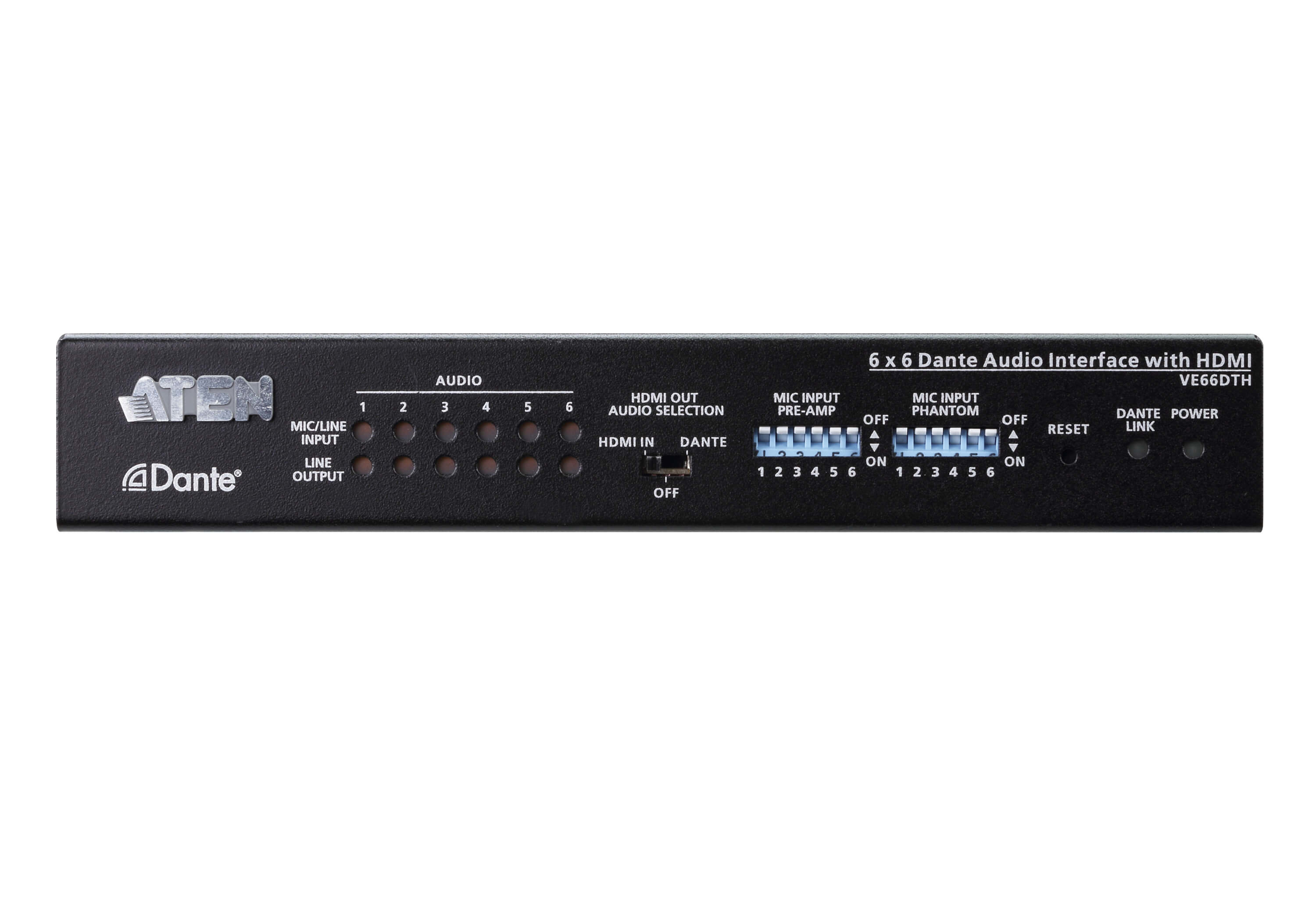

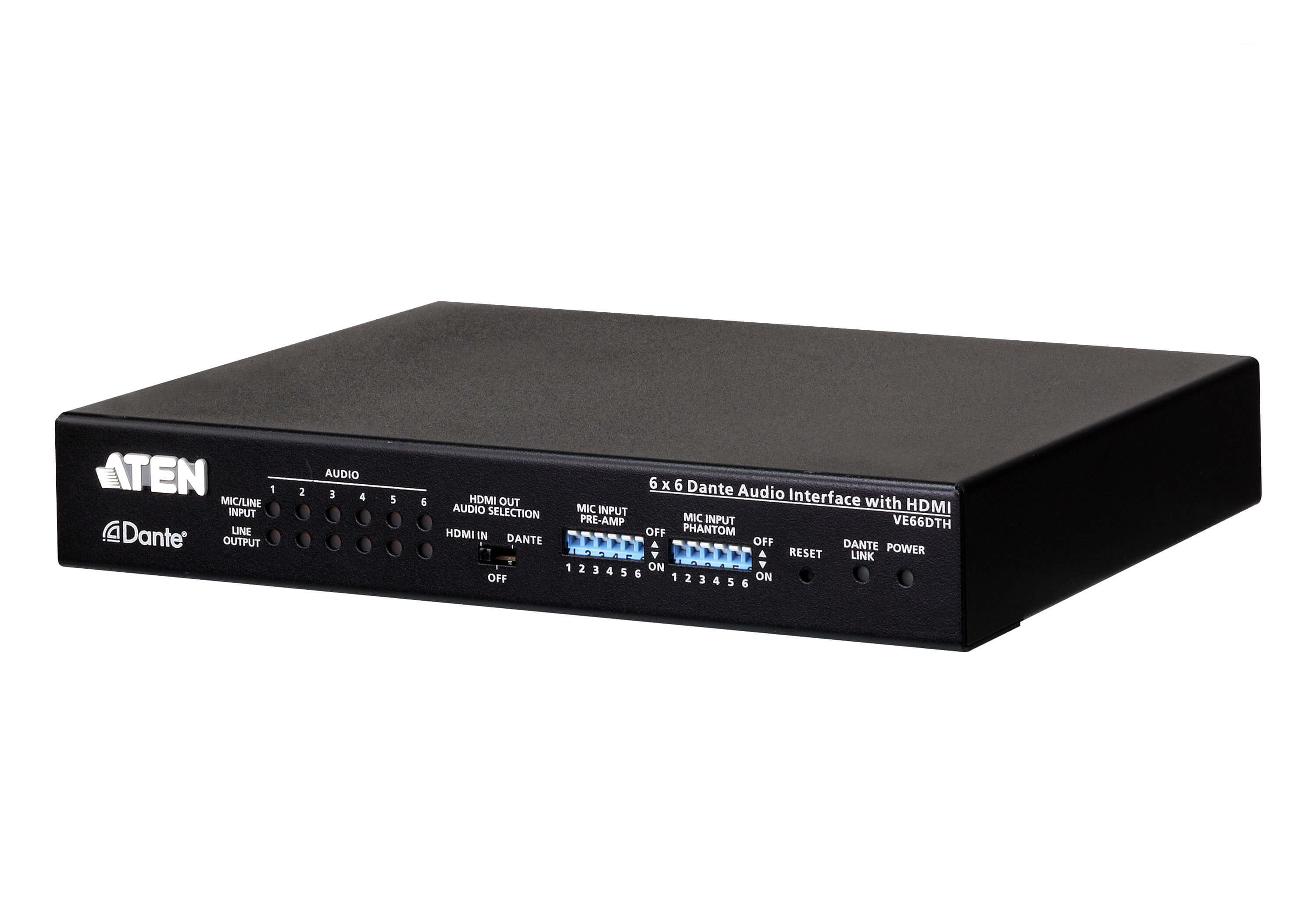

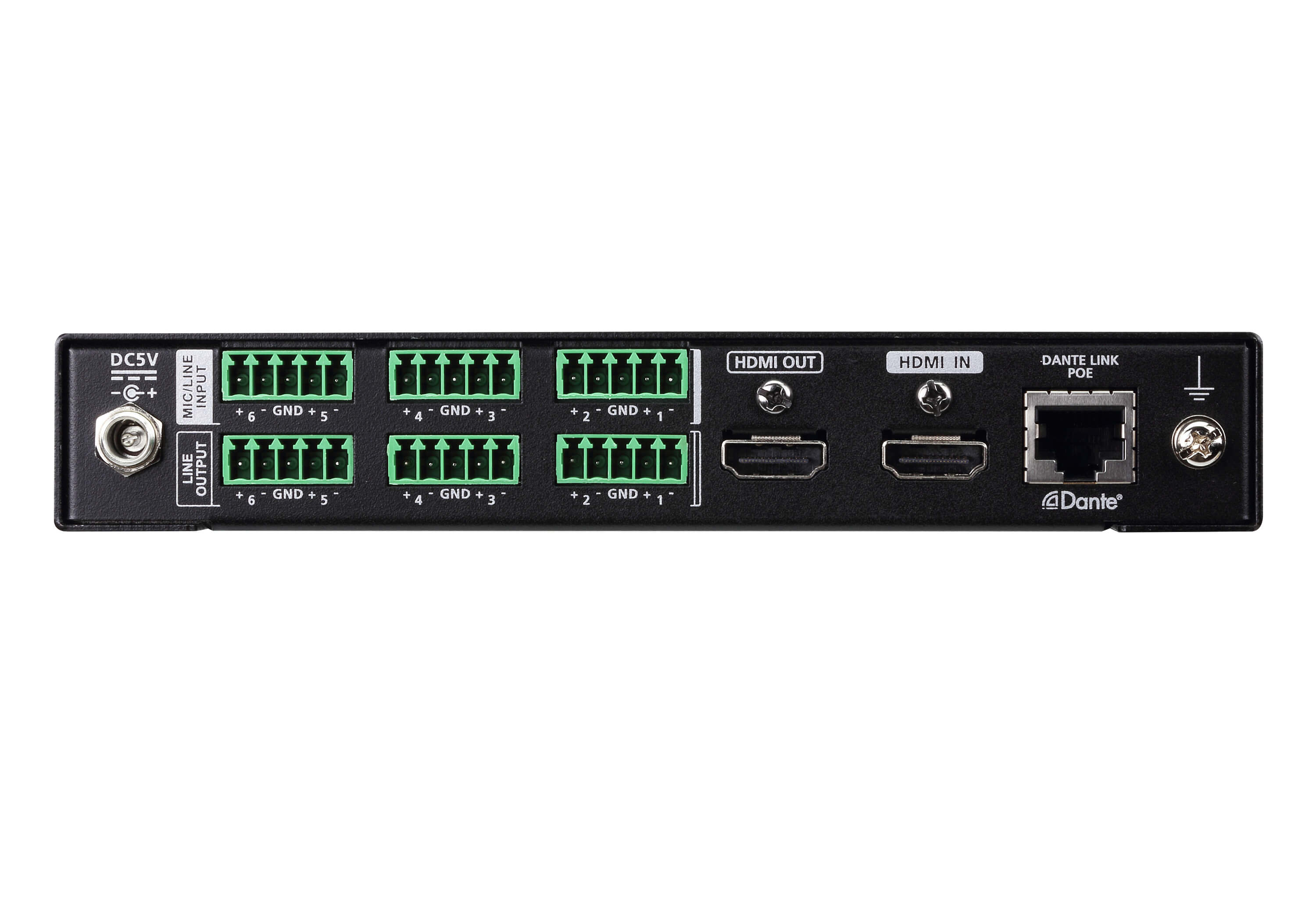

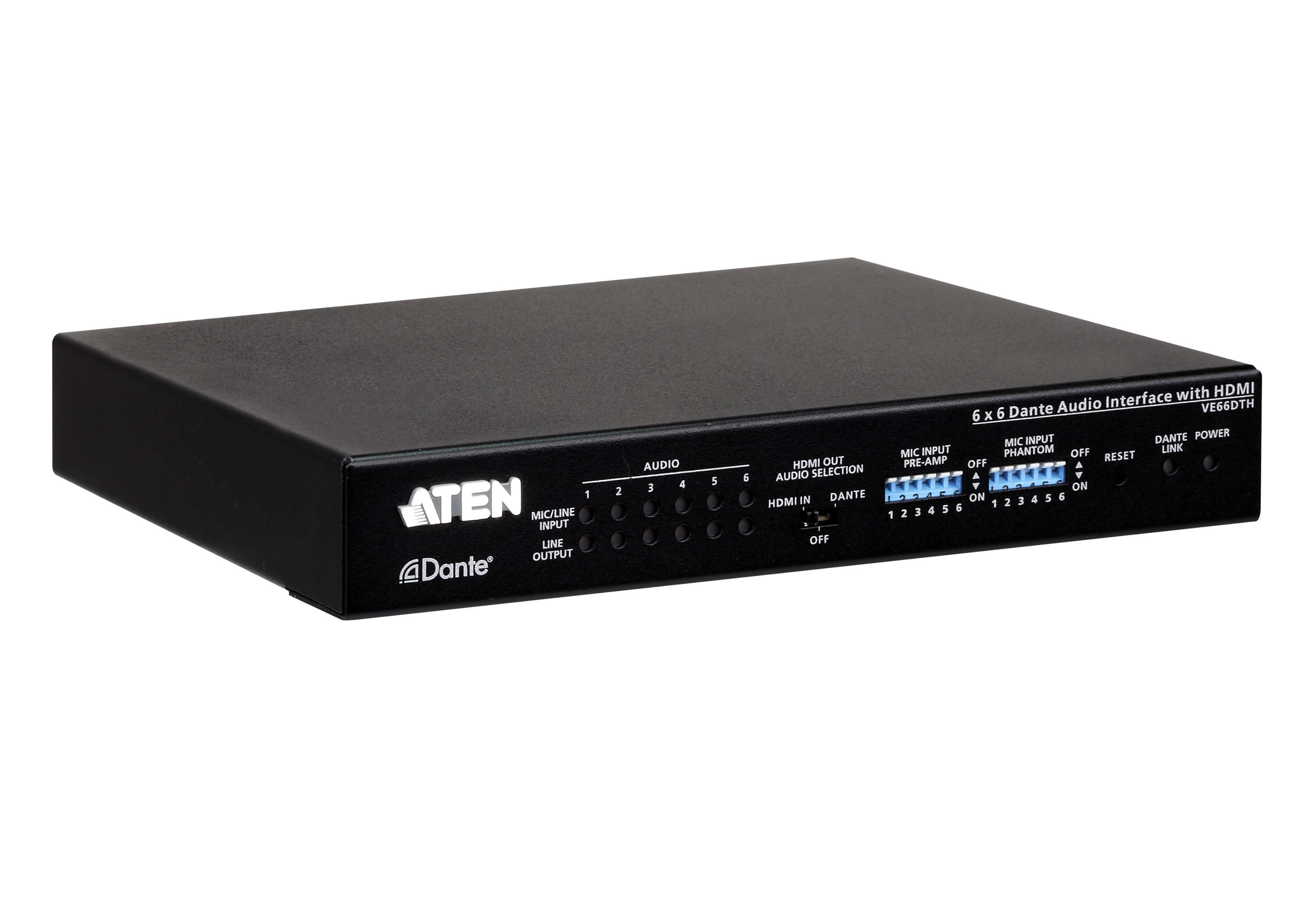

A Dante-enabled six-input/six-output audio interface with HDMI, capable of delivering uncompressed, close-to-zero latency digital audio signals across standard IP networks. The VE66DTH transmits and receives up to 6-channel of audio inputs and outputs via a Dante network.
Specification
6x6 Dante networked audio interface with HDMI
6-channel balanced mono audio Mic/Line inputs
6-channel balanced mono audio Line outputs
HDMI 2.0 input with HDCP 2.2 compliance
HDMI 2.0 local output
48V Phantom power for condenser microphones
Power over Ethernet (PoE) support
Audio de-embedding and embedding capability
Dante and AES67 support
Network transmission distance up to 100m (328 feet)
