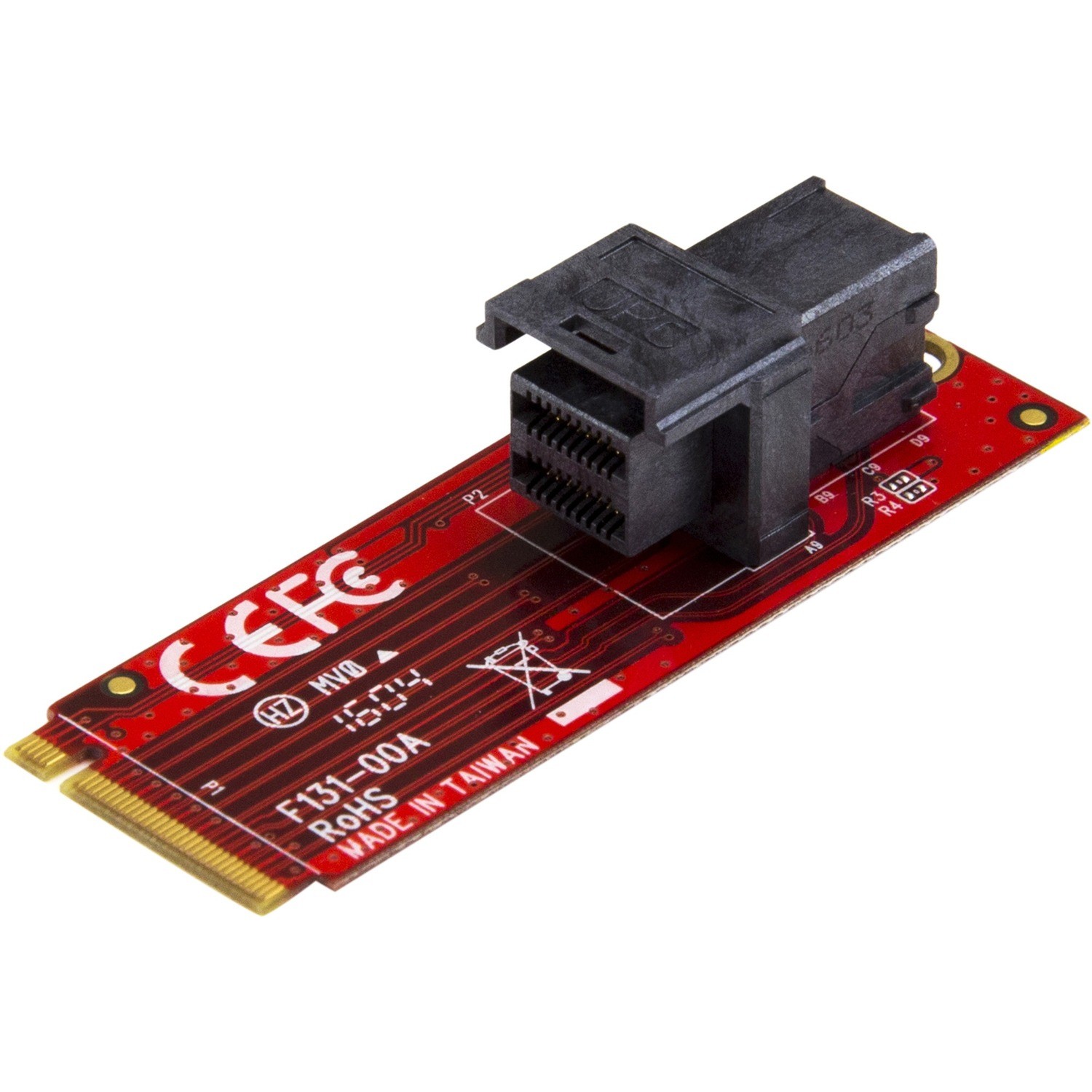

This PCI Express U.2 to M.2 adapter makes it easy to install a high-performance U.2 PCIe-NVMe SSD into your desktop PC or server and connect the drive through an M.2 PCIe x4 slot on your motherboard. The adapter card is OS independent, so there are no drivers or software required for installation.
Tech specs
Form factor
2.5-inch
Colour
red
Full specification
Adapter type: U.2 (SFF-8643) to M.2 PCIe x4
Compatible drive types: U.2 NVMe SSD (2.5-inch)
Host interface: M.2 PCIe x4 male
Drive connectors: 1x U.2 (SFF-8639, x4 PCIe, NVMe)
Number of supported drives: 1
Operating temperature: 0°C to 55°C
Storage temperature: -40°C to 85°C
Operating humidity: 15% to 90% RH
Color: Red
Dimensions: 64mm (L) x 0.6mm (H)
Warranty: 2-year with lifetime technical support
TAA compliant: Yes
