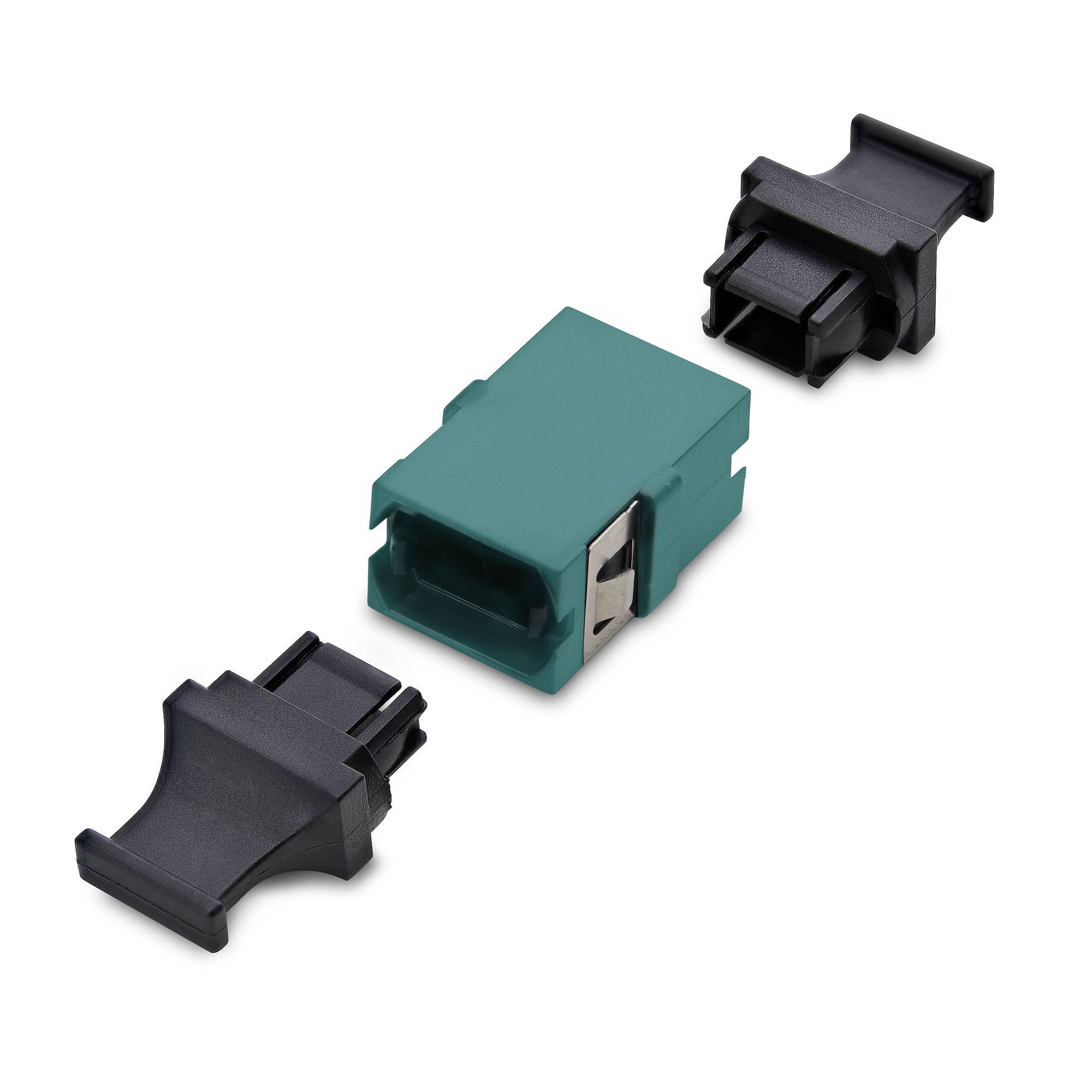

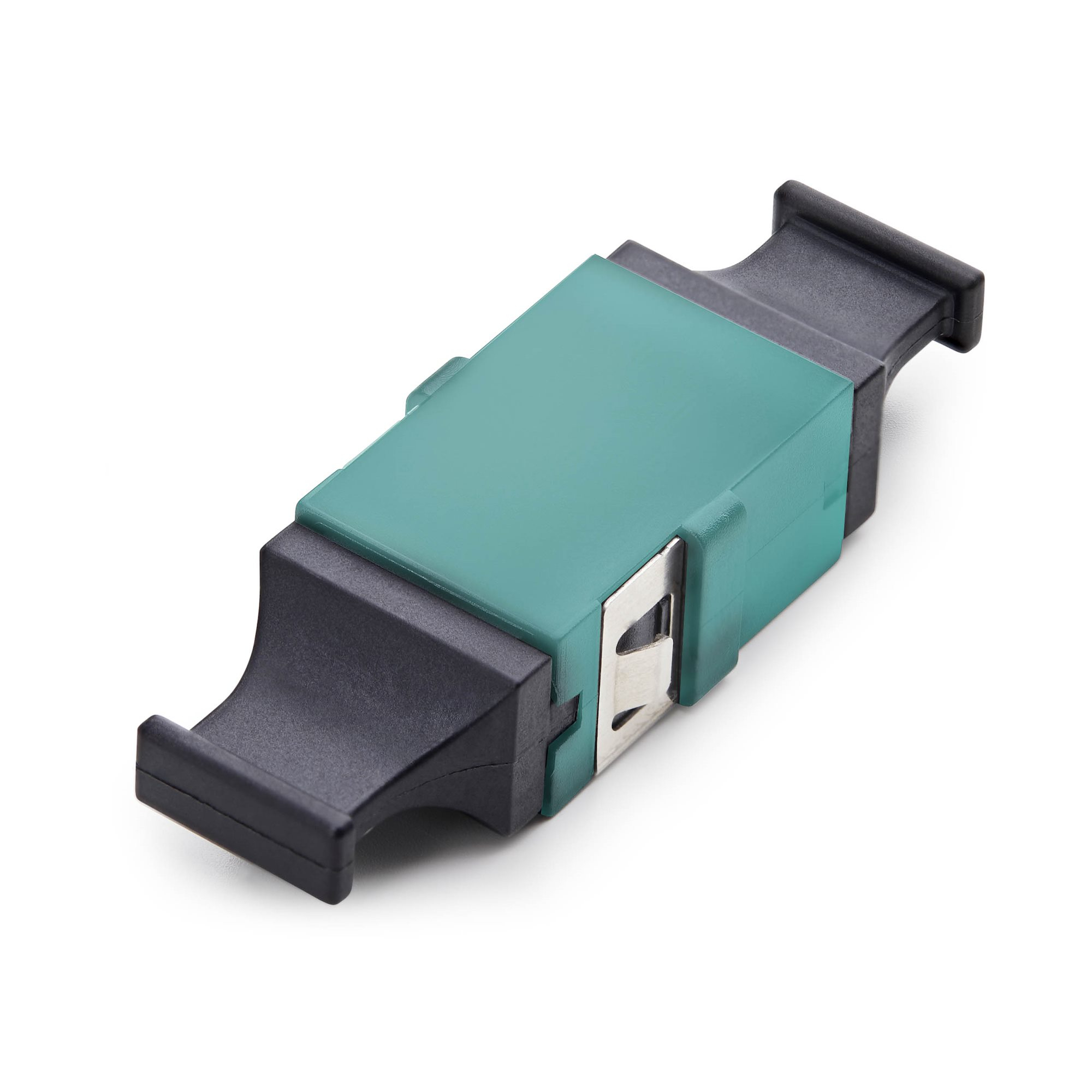

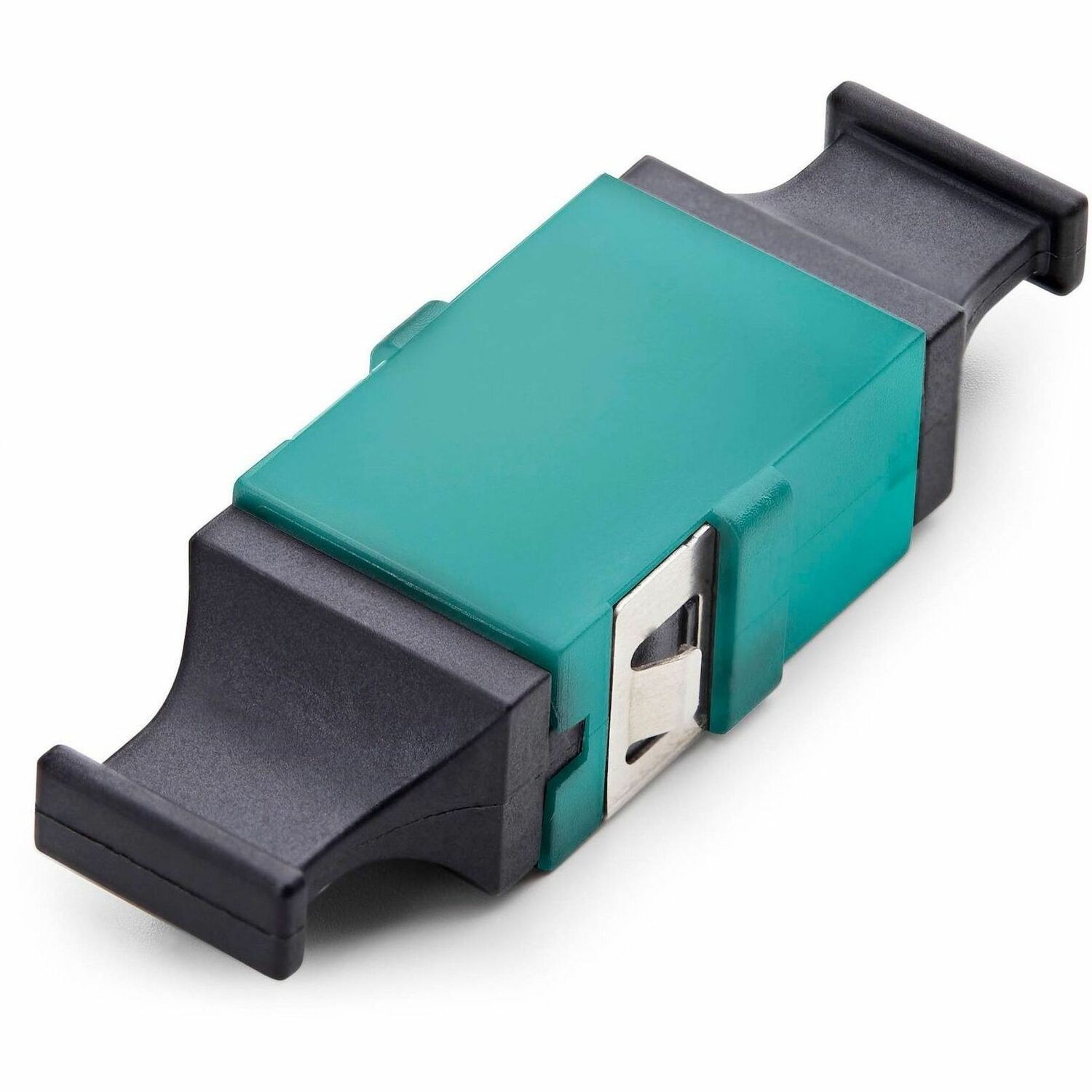

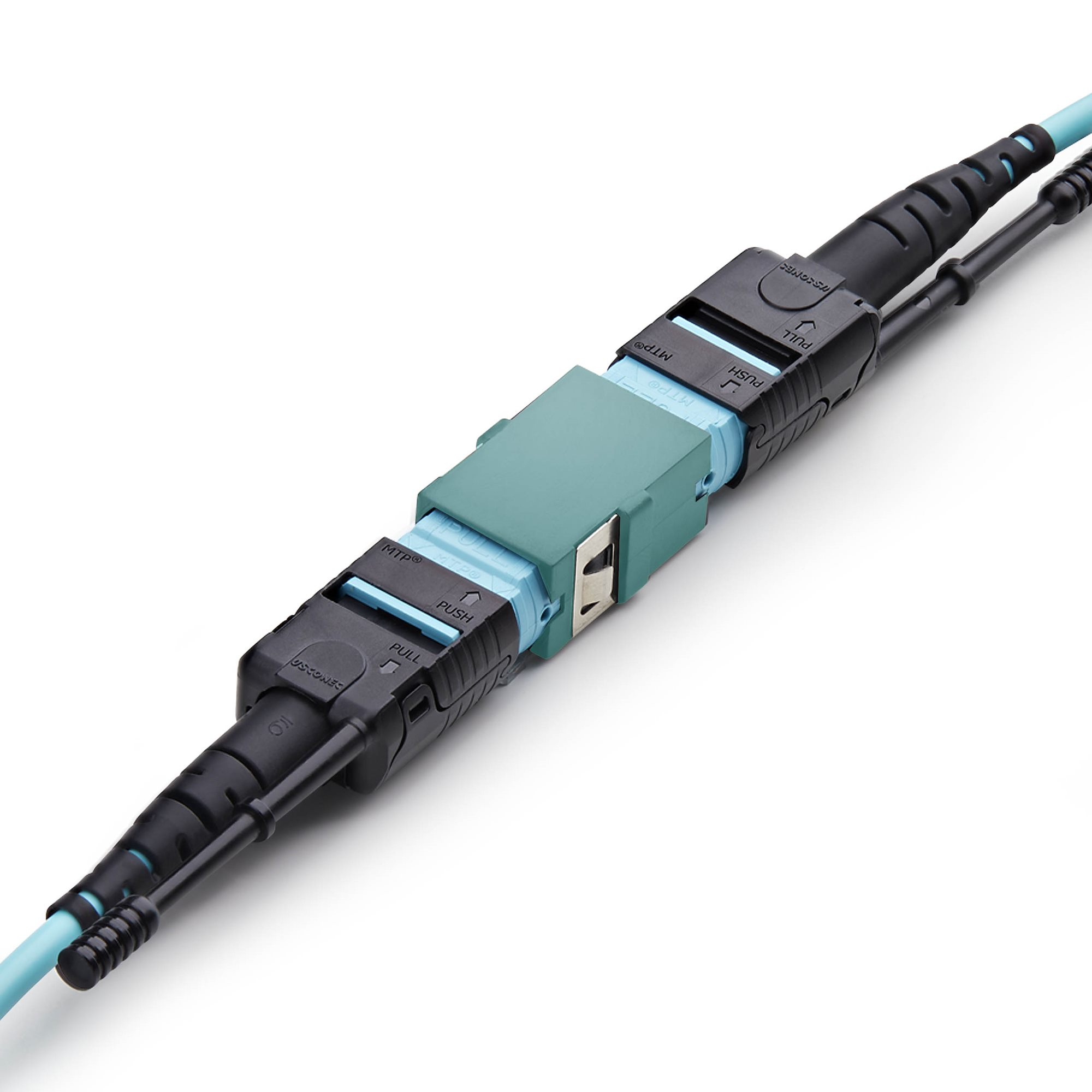

This MPO/MTP fiber coupler supports Multimode OM3/OM4 (50/125 µm) fiber cables with toolless setup to simplify installation into fiber patch panels and rackmount/wall enclosures. The female-to-female fiber coupler supports both male and female MPO/MTP connections, maintaining optimal signal integrity while achieving low insertion loss that exceeds industry standards.</description>
<parameter name="specification">Supports Multimode OM3/OM4 (50/125 µm) fiber cables
Insertion Loss: 0.2 dB (meets TIA-568.3-D standards)
Transmission speeds: 1/10/40/100 Gbps
Female-to-female MPO/MTP-PC connector (Key Up-Key Down)
Durable ABS housing with precision alignment structure
Toolless installation with metal mounting tabs
Color: Aqua
Compatible with VCSEL sources (850nm/1300nm wavelengths)
Operating temperature: -40°C to 85°C
Compliance: TAA, CE
