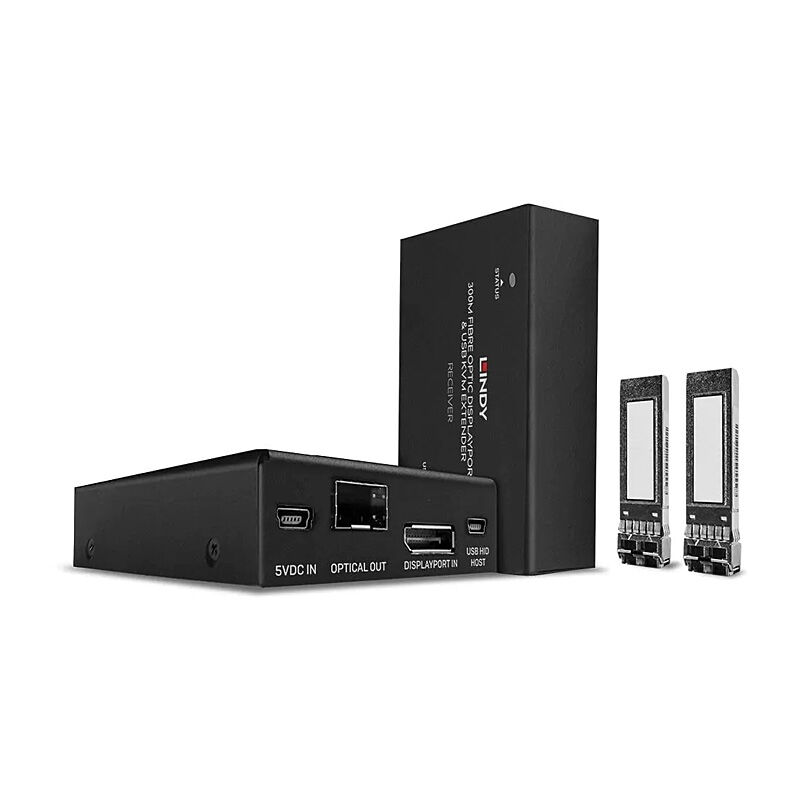

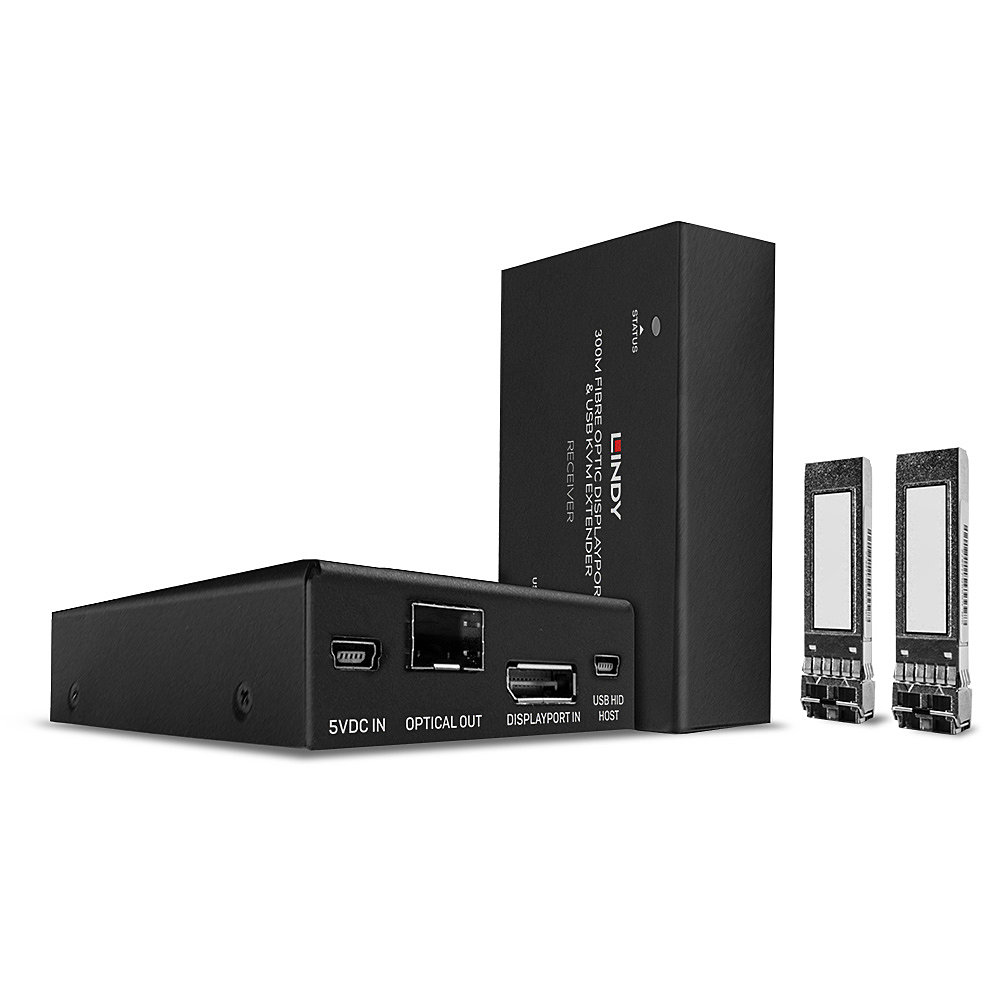

Lindy 300m DP KVM Extender

Features

• Extends 4K DisplayPort 1.2 & KM signals over 300m distances with LC fibre cable
• Supports resolutions up to 3840x2160@60Hz 4:4:4 8bit
• Three USB Type A ports for connecting Keyboards, Mice & other USB HIDs
• Automatic EDID functionality for seamless compatibility
• 2 year warranty

Specifications

• AV Interface: DisplayPort
• Console Interface: USB
• Interfaces Standard: DisplayPort 1.2, USB 2.0
• Supported Bandwidth: 21.6Gbps
• Maximum Distance: 300m (984.24ft)
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 1.3
• Supported Audio: Digital Audio Pass-through
• Separate Audio Ports: -
• Transmission Protocol: TMDS
• Transmission Medium: 1 x Duplex LC (50/125µm)
• Laser Class (only for Fibre): Class 1
• Wavelength (only for Fibre): 850nm
• Special Features: Automatic EDID Management

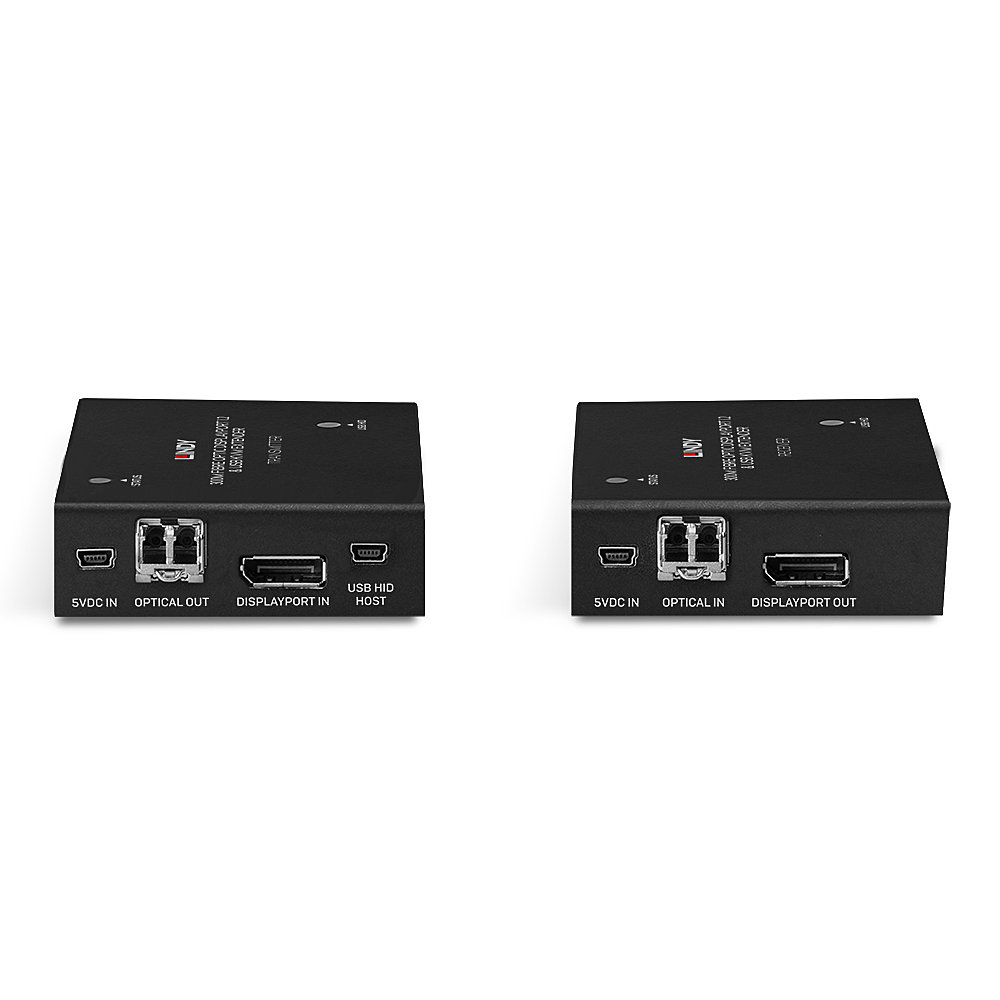

Connectors

• Transmitter KVM Interfaces: DisplayPort (Female), USB Type Mini-B (Female)
• Transmitter Extension Port: SFP Multi-Mode Duplex

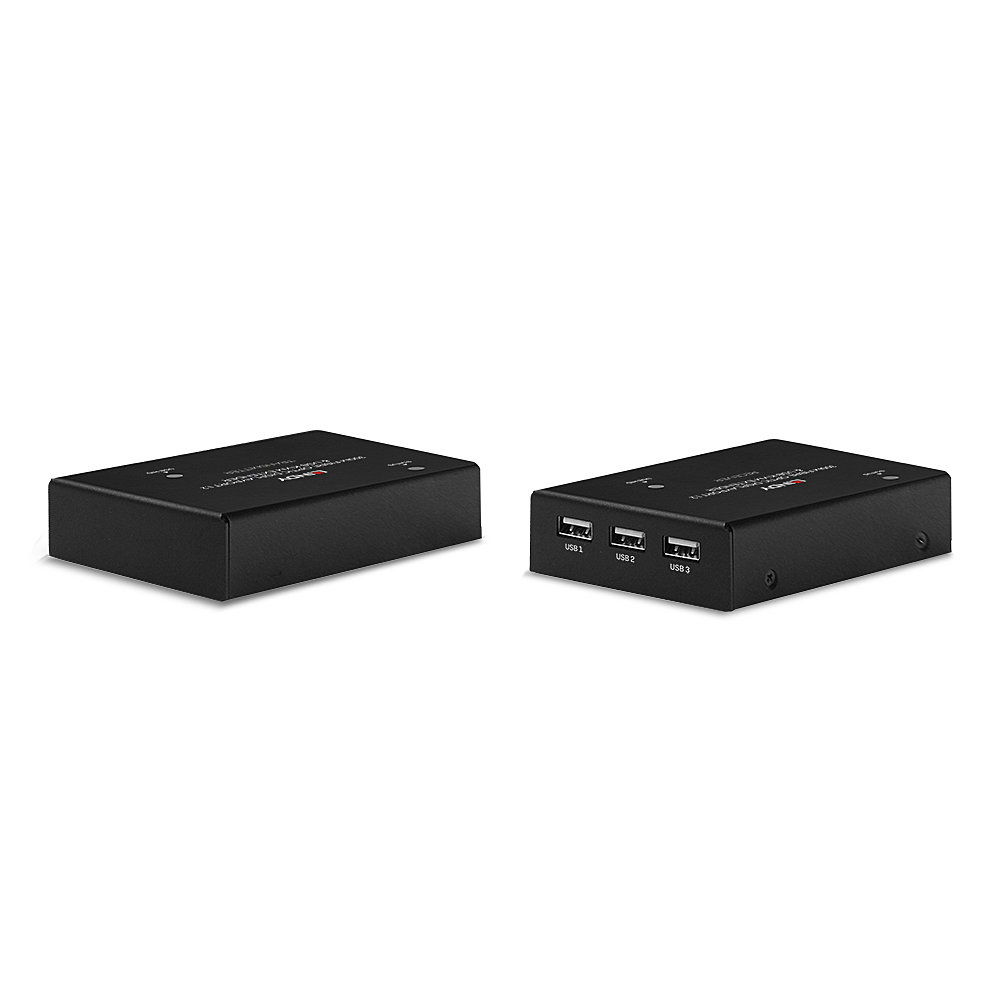

• Receiver Console Interface: DisplayPort (Female), 3 x USB Type A (Female)
• Receiver Extension Port: SFP Multi-Mode Duplex
• Bi-directional Ports: -
• Other Interfaces: -
• Power: USB Type Mini-B (Female)

Physical Properties

• Dimensions (approx.) WxDxH: 75x101x25mm (2.95x3.98x0.98in)
• Housing Material: Metal
• Net Weight: 1.05kg (2.31lb)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: -20°C - 80°C (-4°F - 176°F)
• Humidity: 0 - 90% RH (non-condensing)
• Power Requirements: 5VDC 2A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 175x306x74mm (6.89x12.05x2.91in)
• Gross Weight: 1.25kg (2.76lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS & REACH
