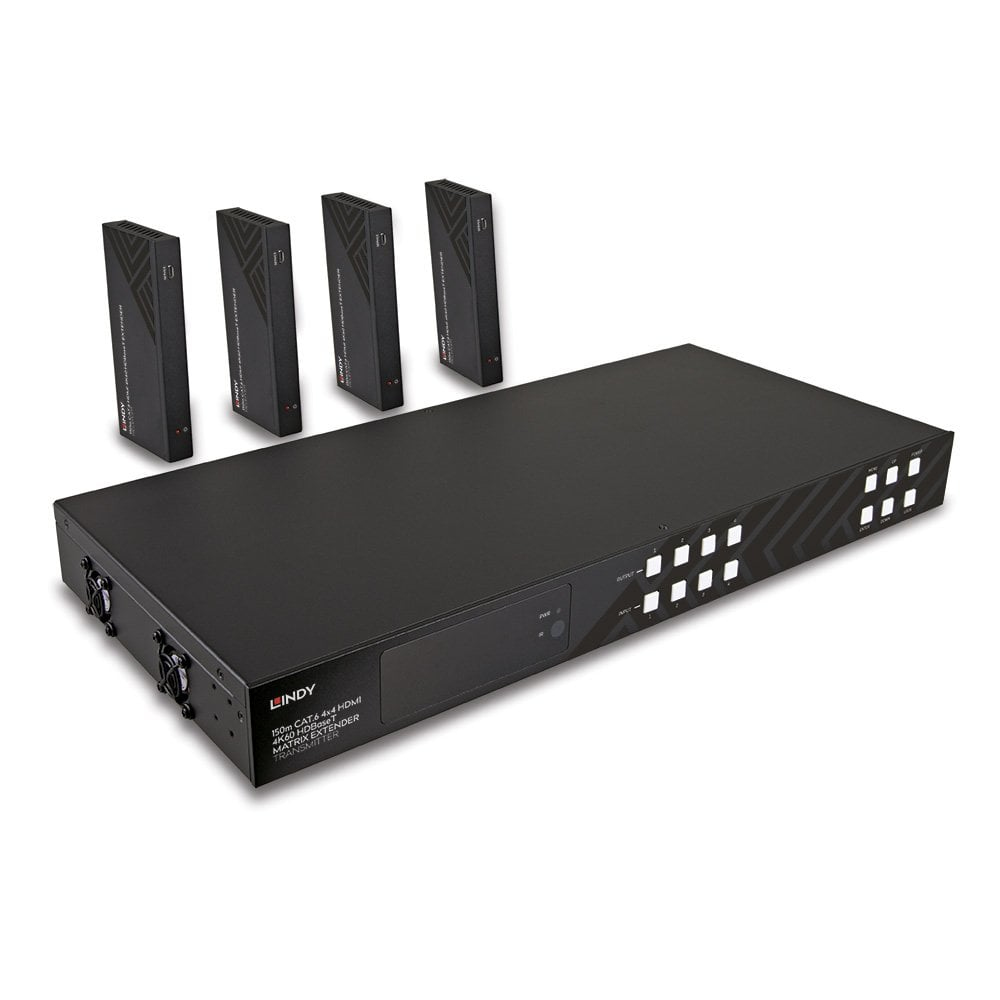

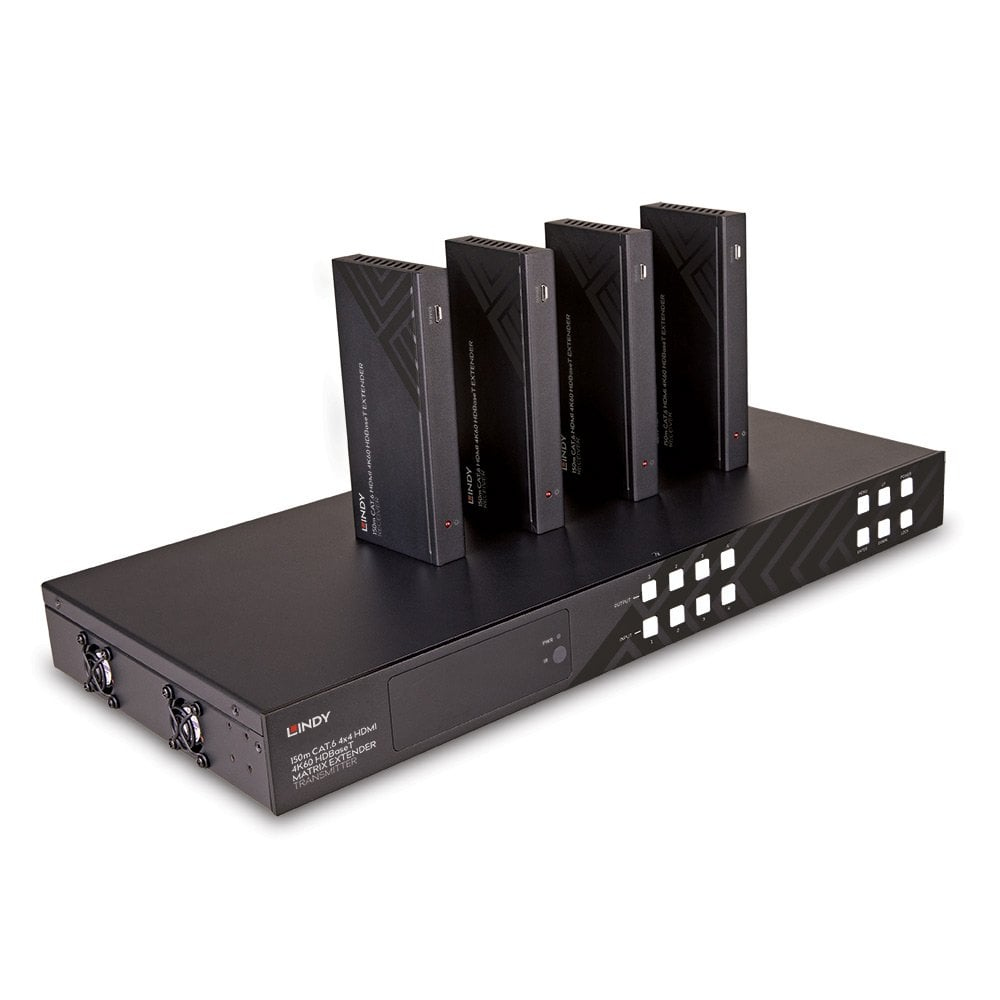

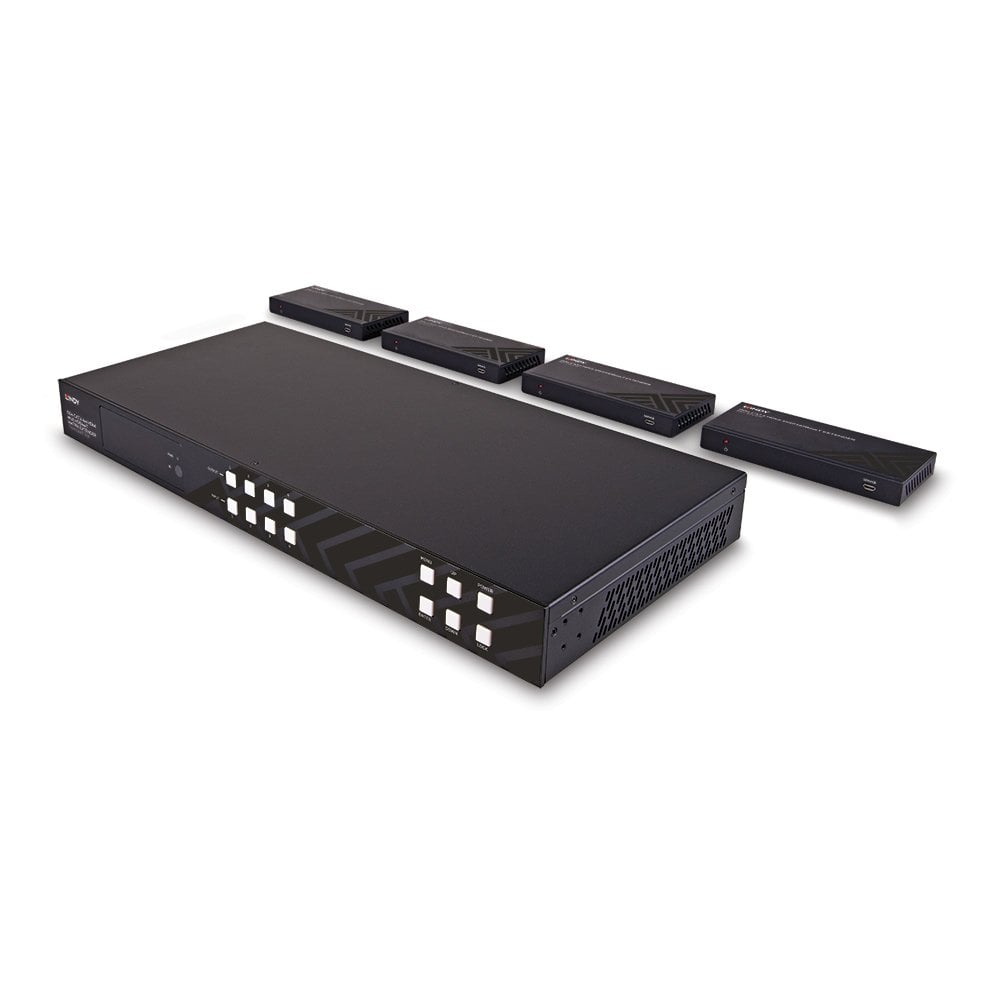

Lindy 150m CAT6 Matrix Extendr

Features

• HDBaseT Matrix Extender that extends and distributes HDMI, IR & RS-232 signals to 4 displays at distances of up to 150m
• Supports resolutions up to 4K60Hz with HDR
• Features loop-through HDMI outputs for local monitoring
• Supports power over Cable (PoC), EDID management, downscaler and Audio de-embedding functions
• 2 year warranty

Specifications

AV Interface

• AV Interface: HDMI
• Interfaces Standard: HDMI 2.0
• Supported Bandwidth: 18Gbps
• Maximum Distance:
• 120m (393.7ft) - 3840x2160@60Hz 4:4:4 8bit
• 150m (492.12ft) - 1920x1080@60Hz
• Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
• HDCP Support: 2.2
• EDID Pass Through: Presets, Cloning
• Supported Audio:
• HDMI Audio Pass-through
• Digital Audio up to 5.1Ch
• Analog Audio up to 2.0Ch
• Separate Audio Ports: Coax and balanced analog
• IR Support: 20 - 60KHz
• Serial Interface: RS-232
• Transmission Protocol: HDBaseT
• Transmission Medium: 4 x Cat.6
• Special Features: PoC (Power over Cable), HDMI Loop Out ports, 4K to 1080p downscaler

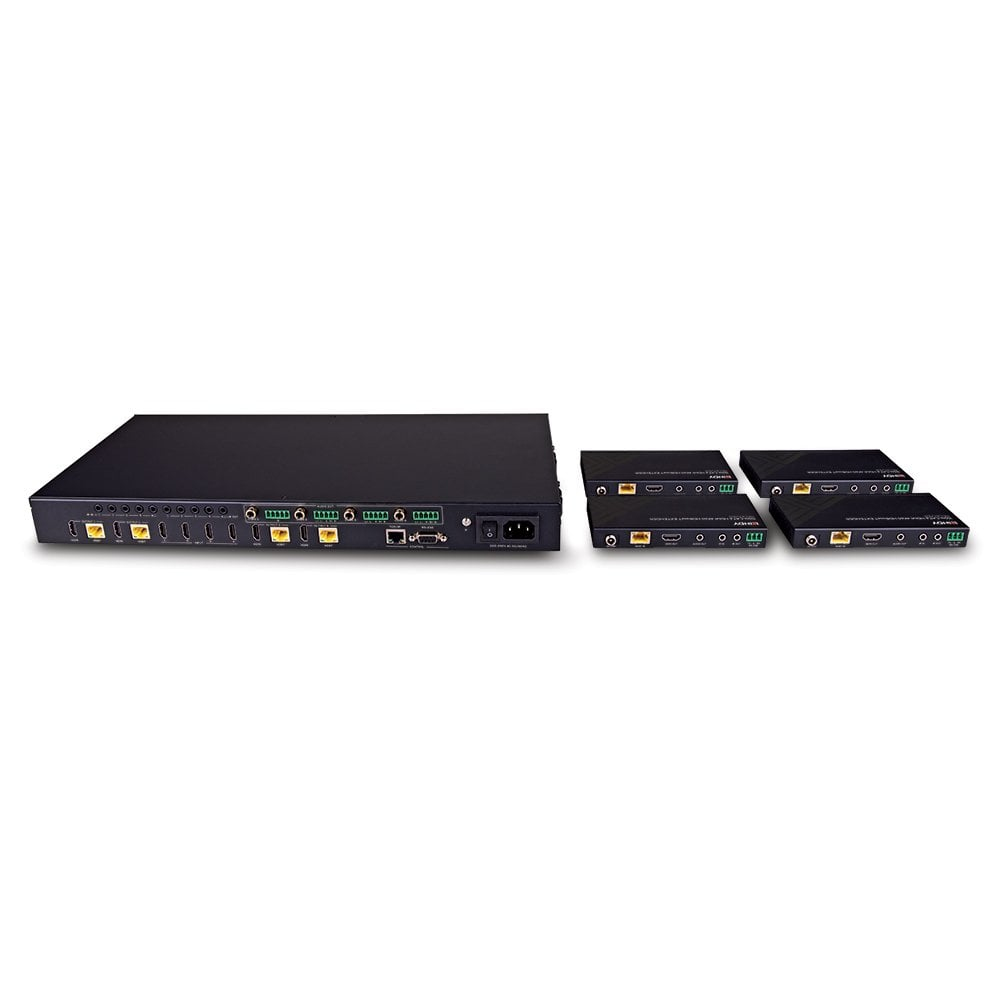

Connectors

• Transmitter Input: 4 x HDMI (Female), 5 x 3.5mm IR (Female)
• Transmitter Output: 4 x HDMI (Female), 4 x Coax RCA (Female), 4 x L/R Audio 5-pin phoenix, 5 x 3.5mm IR (Female), 4 x RJ45 HDBaseT (Female)
• Transmitter Bidirectional Ports: RS-232 9 pin (Female), RJ45 (Female)
• Transmitter Power: IEC C14
• Receiver Input: 3.5mm IR (Female), RJ45 HDBaseT (Female)
• Receiver Output: HDMI (Female), 3.5mm Audio (Female), 3.5mm IR (Female)
• Receiver Bidirectional Ports: RS-232 3 pin phoenix
• Receiver Power: 5.5/2.1mm

Physical Properties

• Dimensions:
• Matrix: 440x200x45mm (17.32x7.87x1.77in)
• Receivers: 140x65x18mm (5.51x2.56x0.71in)
• Housing Material: Metal
• Net Weight: 5.31Kg (11.71lb)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)
• Humidity: 20 - 90% RH (Non-condensing)
• Power Requirements: 60W
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 510x401x98mm (20.08x15.79x3.86in)
• Gross Weight: 6.33kg (13.96lb)
• Warranty: 2 years
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
