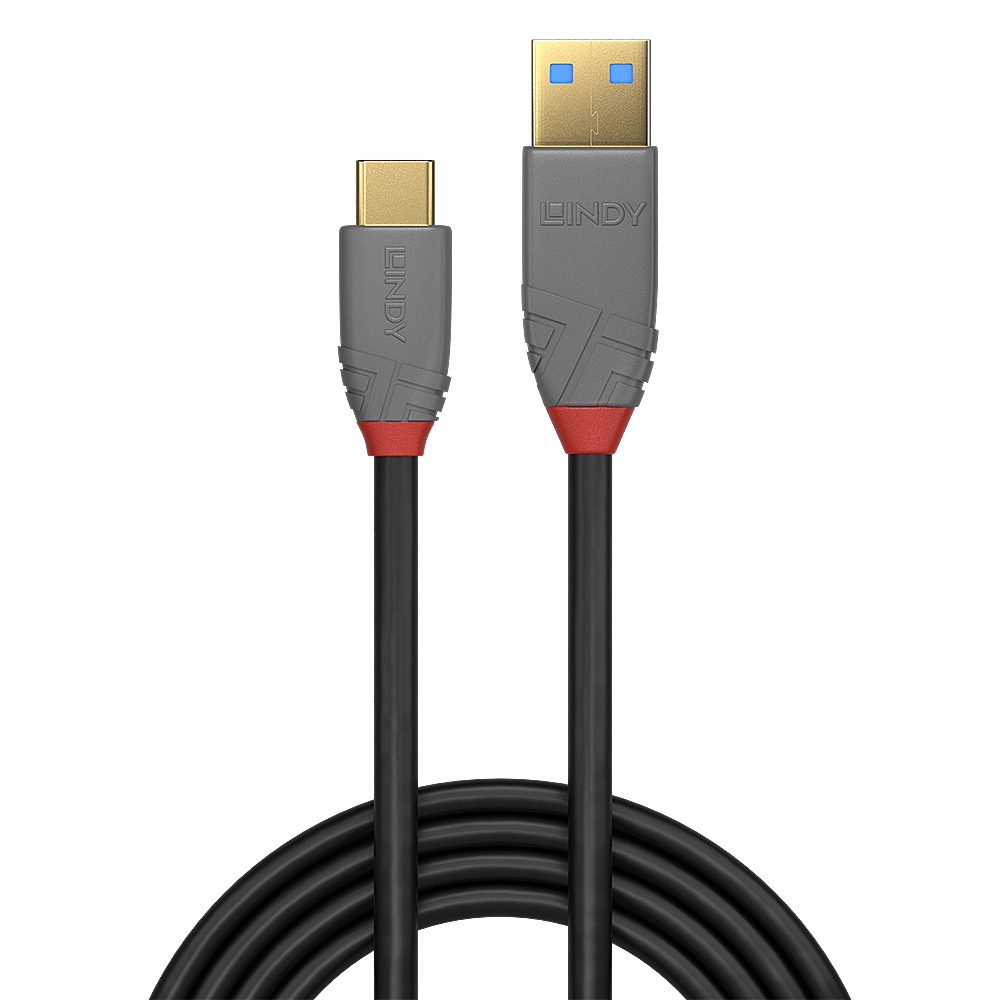

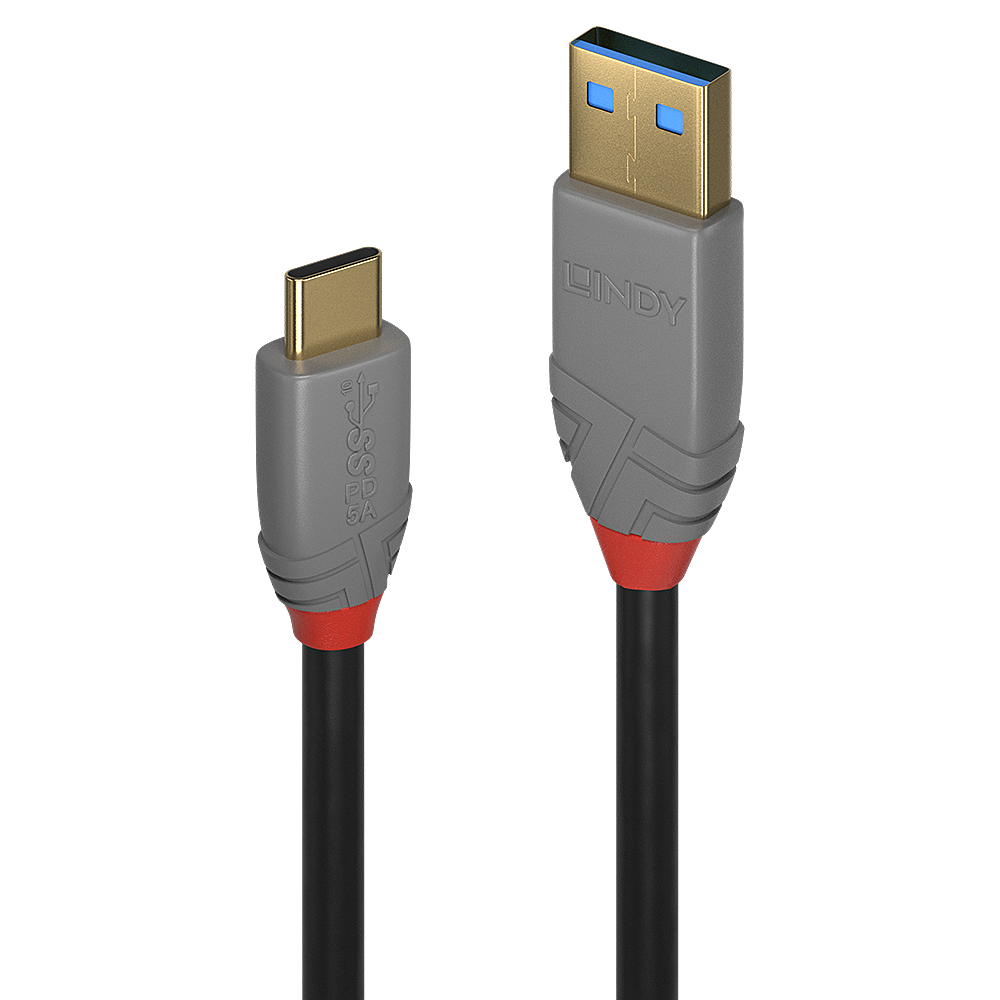

Lindy 0.5m USB 3.2 A to C Cbl

Features

• Professional choice USB 3.2 Gen 2 Type A to C cable for commercial and high performance AV and IT installations
• SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.2 Gen 2, USB 3.1 Gen 2, USB 3.1)
• Robust PVC housing, gold plated connectors and contacts
• Triple shielded cable, corrosion resistant tinned copper conductors
• 10 year warranty

Specifications

Connectors

• Connector A: USB 3.2 Type A Male
• Connector B: USB 3.2 Type C Male
• Housing Material: PVC
• Shielding in head shell: Copper foil
• Connector Plating: Gold
• Pin Construction:
• A: Brass
• C: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
• A: 15.5x35.1x7.8mm (0.61x1.38x0.31in)
• C: 12.7x30.8x7.3mm (0.5x1.21x0.29in)

Cable Construction

• Length: 0.5m (1.64ft)
• Standard: USB 3.2 Gen 2 (USB 3.1 Gen 2, USB 3.1)
• Power Delivery: 3
• Max. Power: 15W (5V 3A)
• Colour: Black
• Type: Round
• Jacket Diameter: 4.5mm (0.18in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 22AWG
• Conductor Gauge Data: 30AWG
• Shielding: Tinned Copper Braid 70%

Specifications

• Supported Bandwidth: 10Gbps
• Maximum Resolution: -
• Nominal Attenuation: 0.5Mhz-15Ghz < 40dB
• Minimum Bend Radius: 45mm (1.77in)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: 0°C - 70°C (32°F - 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, California Proposition 65 & UL
