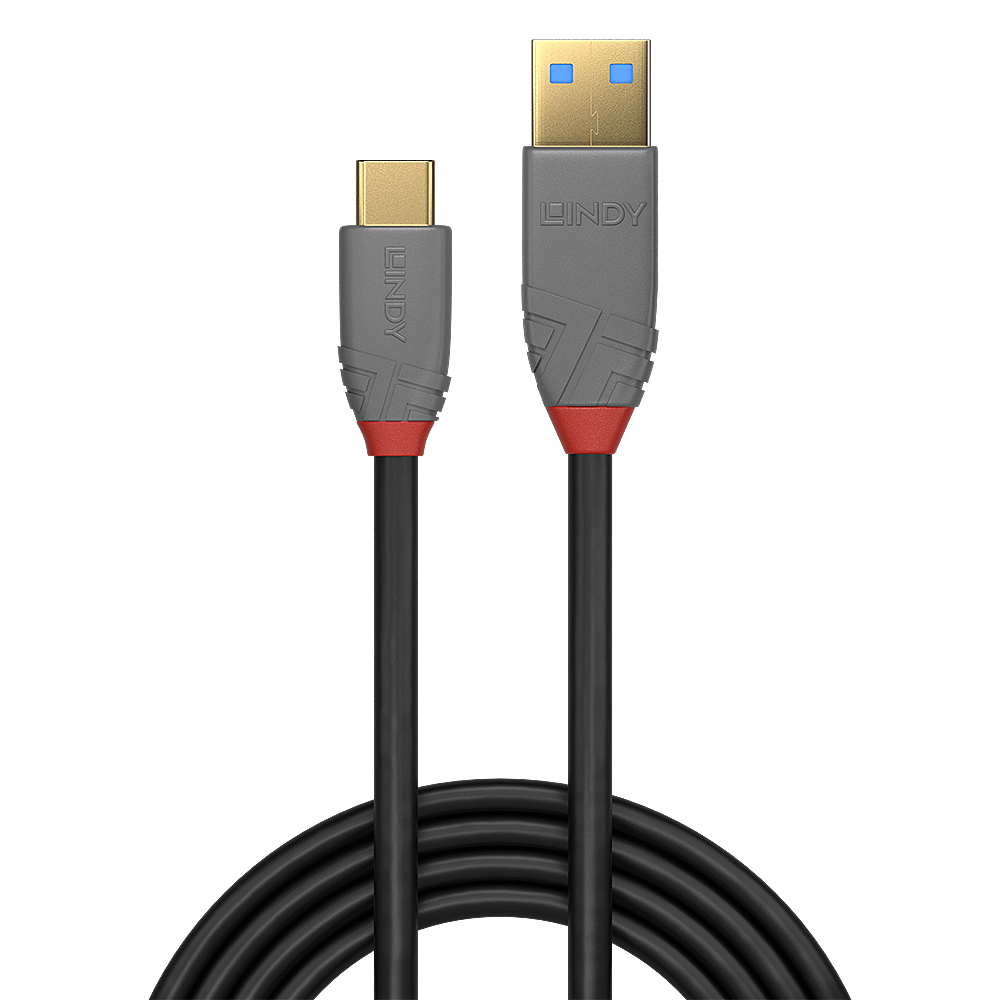

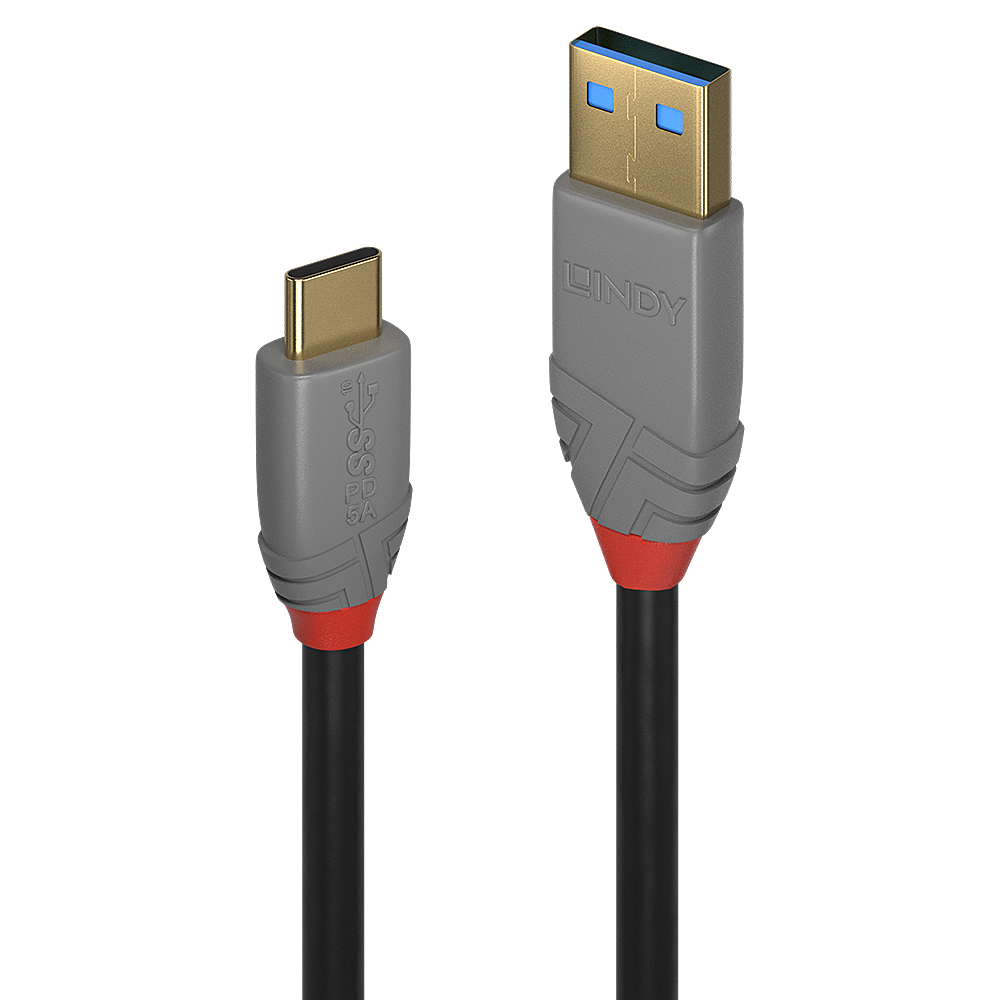

Lindy 2m USB 3.2 A to C Cbl

Features

• Professional choice USB 3.2 Gen 2 Type A to C cable for commercial and high performance AV and IT installations
• SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.2 Gen 2, USB 3.1 Gen 2, USB 3.1)
• Robust TPE housing, gold plated connectors and contacts
• Triple shielded cable, corrosion resistant tinned copper conductors
• 10 year warranty

Specifications

Connectors

• Connector A: USB 3.2 Type A Male
• Connector B: USB 3.2 Type C Male
• Housing Material: TPE
• Shielding in head shell: Copper Foil
• Connector Plating: Gold
• Pin Construction: Copper
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
• A: 16x47x8.8mm (0.63x1.85x0.35in)
• B: 13x41x7.75mm (0.51x1.61x0.31in)

Cable Construction

• Length: 2m (6.56ft)
• Standard: USB 3.2 Gen 2 (USB 3.1 Gen 2, USB 3.1)
• Power Delivery: -
• Max. Power: 15W (5V 3A)
• Colour: Black
• Type: Round
• Jacket Diameter: 5.2mm (0.2in)
• Jacket Material: TPE
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 22AWG
• Conductor Gauge Data: 28AWG/28AWG
• Shielding: Tinned Copper 65%

Specifications

• Supported Bandwidth: 10Gbps
• Maximum Resolution: -
• Nominal Attenuation: 0.5Mhz-15Ghz < 40dB
• Minimum Bend Radius: 26mm (1.02in)
• Operating Temperature: 0°C - 40°C (32°F - 104°F)
• Storage Temperature: -20°C - 60°C (-4°F - 140°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, California Proposition 65 & UL
