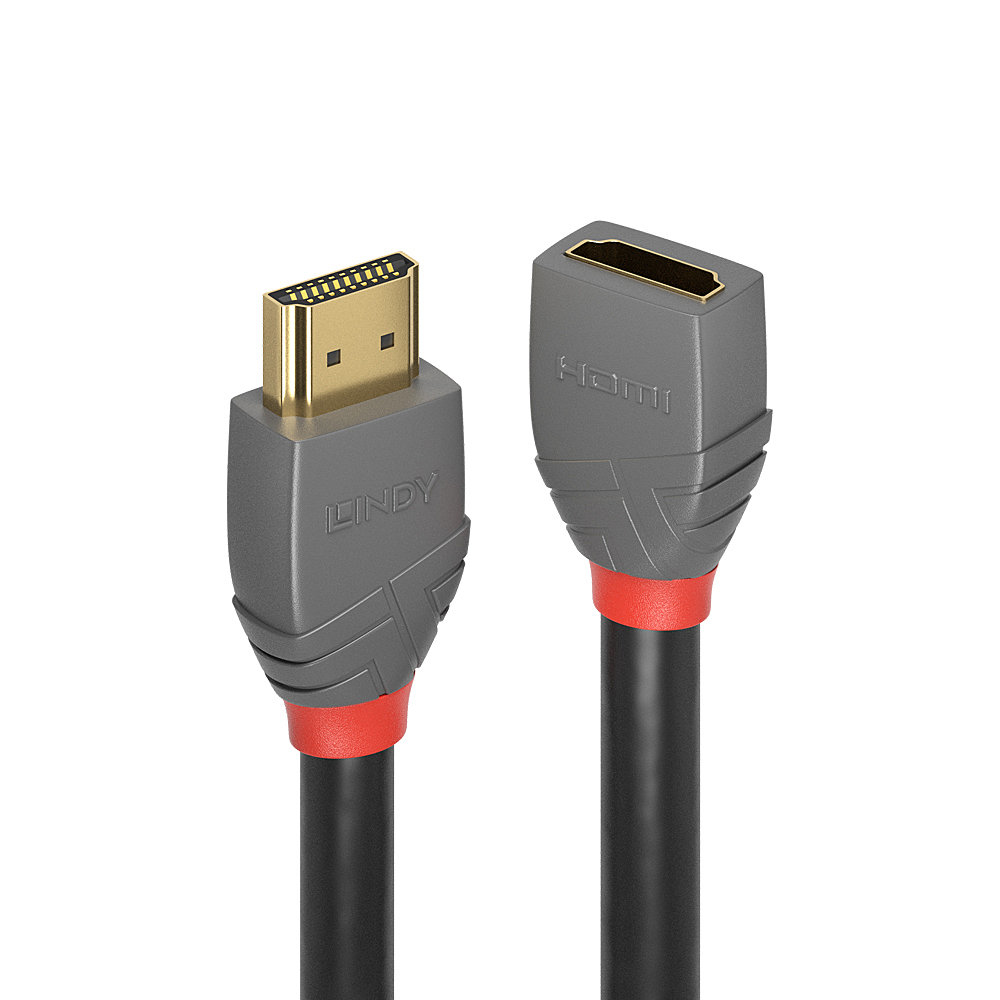

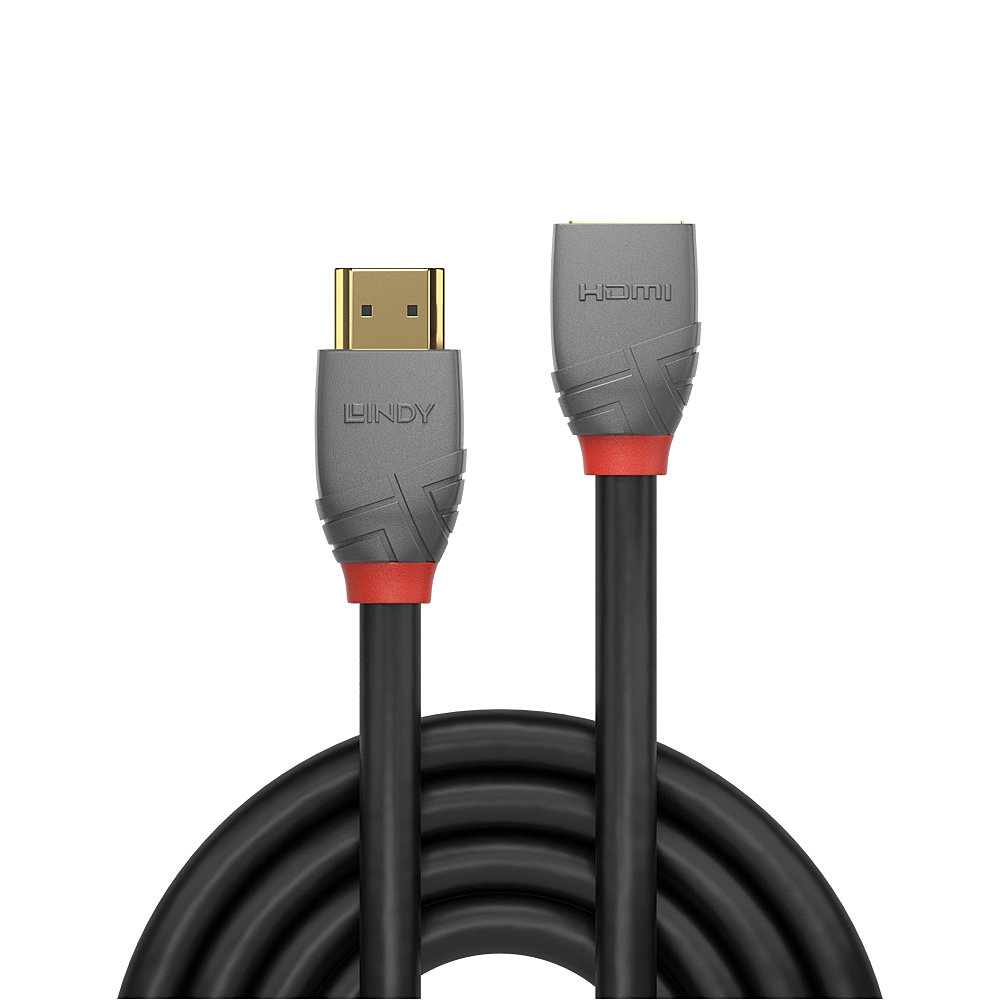

Lindy 2m HDMI Extension Cable

Features

• Superior performance and design High Speed HDMI 2.0 cable
• Supports UHD resolutions up to 4096x2160@60Hz 4:4:4 8bit
• Robust PVC housing, gold plated connectors and contacts
• Triple shielded cable, corrosion resistant bare copper 28AWG conductors
• HDMI 2.0 compliant: 3D, 4K, 18Gbps, HEC, ARC, CEC, Dolby® True HD, DTS-HD Master Audio
• 10 year warranty

Specifications

Connectors

• Connector A: HDMI Type A Male
• Connector B: HDMI Type A Female
• Housing Material: PVC
• Connector Plating: Gold
• Pin Construction: Copper Alloy
• Pin Plating: Gold
• Dimensions (approx.) WxDxH:
• M: 19.5x35.0x11.0mm (0.75x1.38x0.43in)
• F: 20.5x35.0x11.0mm (0.81x1.38x0.43in)

Cable Construction

• Standard: HDMI 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 7.0mm (0.28in)
• Jacket Material: PVC
• Conductor Material: Bare Copper Conductor
• Gauge: 28AWG
• Shielding: Aluminium Magnesium Alloy 85%

Specifications

• Supported Bandwidth: 18Gbps
• Maximum Resolution: 4096x2160@60Hz 4:4:4 8bit
• Nominal Attenuation:
• 1.35GHz > -5.5dB (HBR1)
• 2.7GHz > -8.5dB (HBR2)
• 4.05GHz > -11.0dB (HBR3)
• Minimum Bend Radius: 70mm (2.76in)
• Operating Temperature: -10°C - 80°C (14°F - 176°F)
• Storage Temperature: -20°C - 85°C (-4°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, CP65, UL
