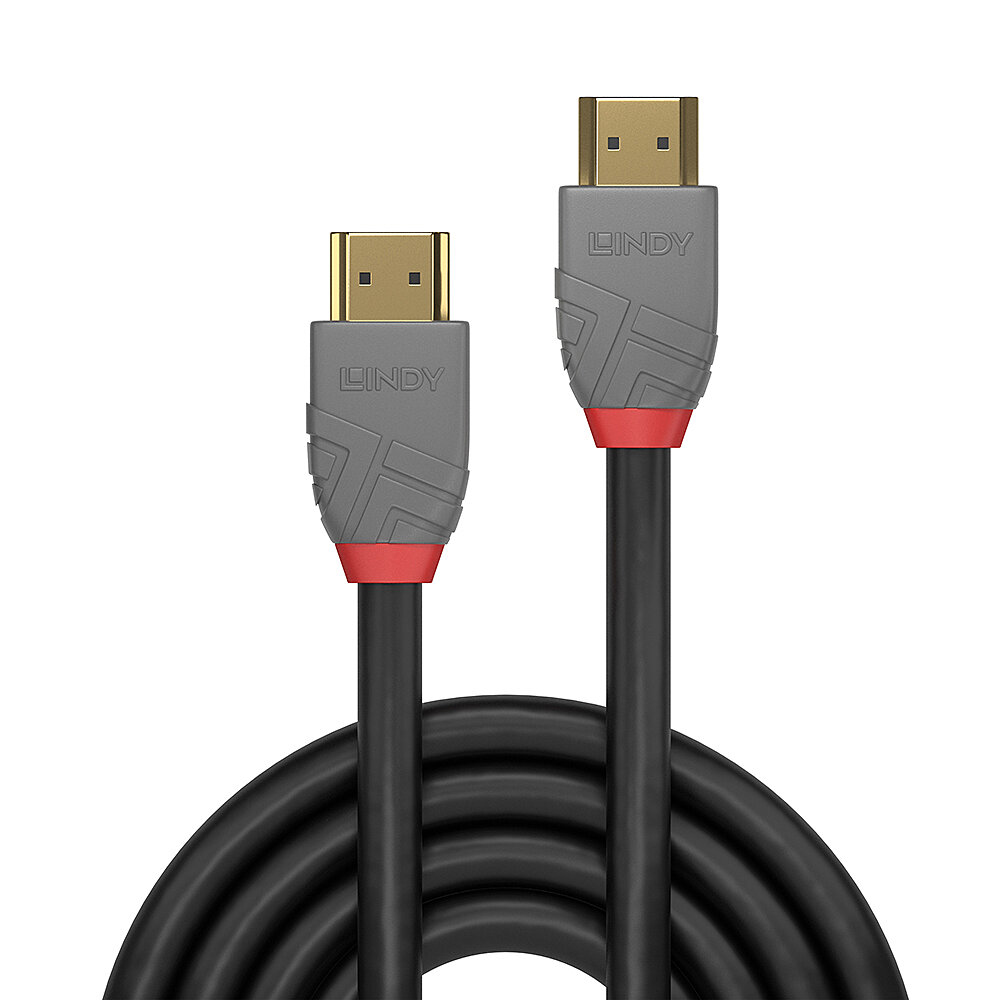

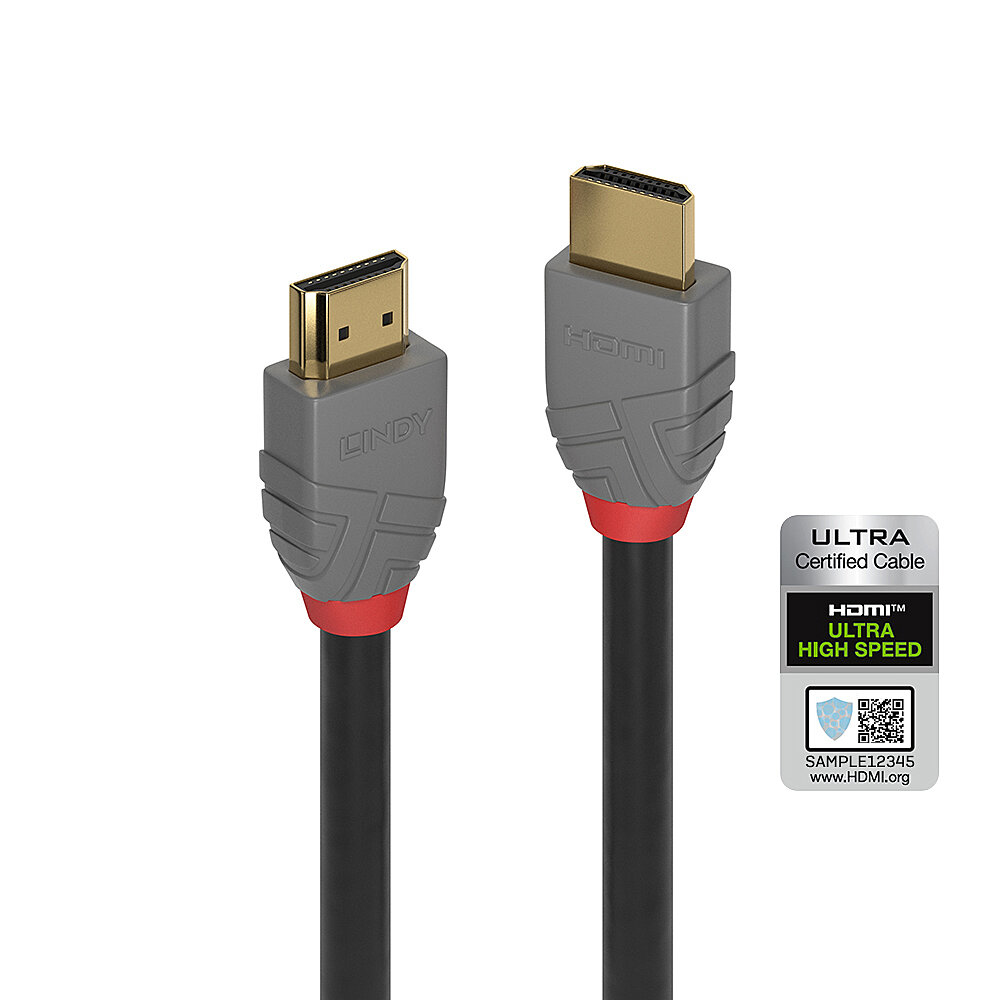

Lindy 1m HDMI 2.1 Cable

Features

• Professional choice Ultra High Speed HDMI 2.1 cable for commercial and high performance AV and IT installations
• Supports resolutions up to 10240x4320 4:2:0 12bit
• Robust PVC housing, 24K gold plated connectors and contacts
• Triple shielded cable, corrosion resistant tinned copper 30AWG conductors
• HDMI 2.1 Ultra High Speed Certified: 3D, 8K, 10K, 48Gbps, HEC, ARC, CEC, Dolby® True HD, Dolby® Atmos, DTS-HD Master Audio, DTS:X; HDMI ATC certified
• 10 year warranty

Specifications

Connectors

• Connector A: HDMI Type A Male
• Connector B: HDMI Type A Male
• Housing Material: PVC
• Connector Plating: 24K Gold 15µm
• Pin Construction: Phosphor Copper
• Pin Plating: 24K Gold 3µm
• Dimensions (approx.) WxDxH: 20x34.2x10.9mm (0.79x1.35x0.43in)

Cable Construction

• Standard: Certified Ultra High Speed HDMI
• Colour: Black
• Type: Round
• Jacket Diameter: 7.3mm (0.29in)
• Jacket Material: PVC
• Conductor Material: Copper
• Conductor Gauge: 30AWG
• Shielding: Aluminium Magnesium Alloy Braid, 85%

Specifications

• Supported Bandwidth: 48Gbps
• Maximum Resolution: 10240x4320@120Hz 4:2:0 12bit
• Nominal Attenuation:
• ≤ −5 dB from 0 GHz to 1 GHz
• −6.5 dB @ 2 GHz
• −9.2 dB @ 3 GHz
• −16.5 dB @ 6 GHz
• −29 dB @ 12 GHz
• Minimum Bend Radius: 80mm (3.15in)
• Operating Temperature: 0°C - 50°C (32°F - 122°F)
• Storage Temperature: 0°C - 50°C (32°F - 122°F)
• ATC Approved: Yes

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL, ATC
