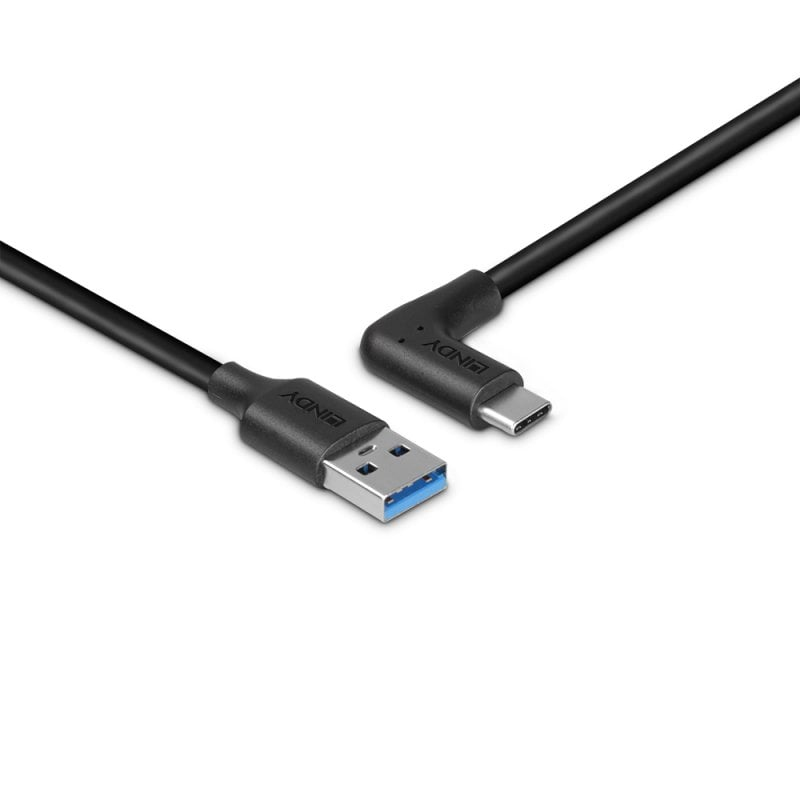

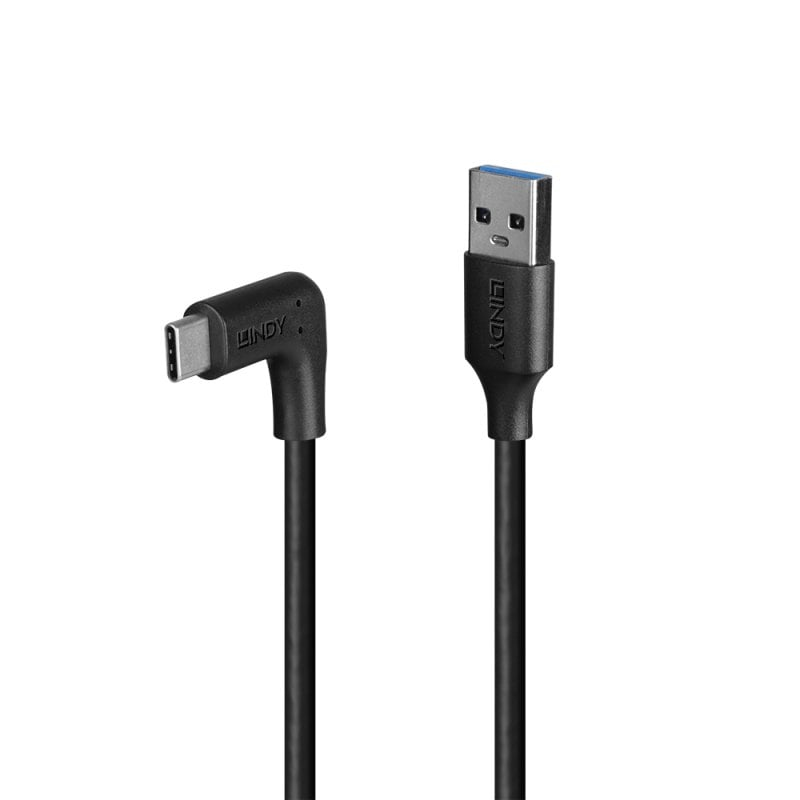

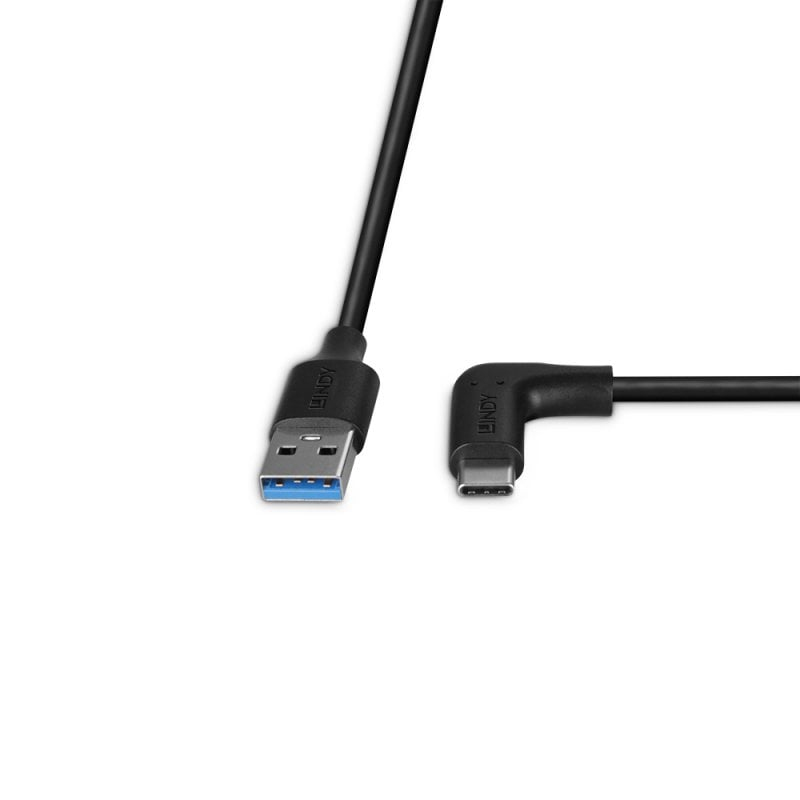

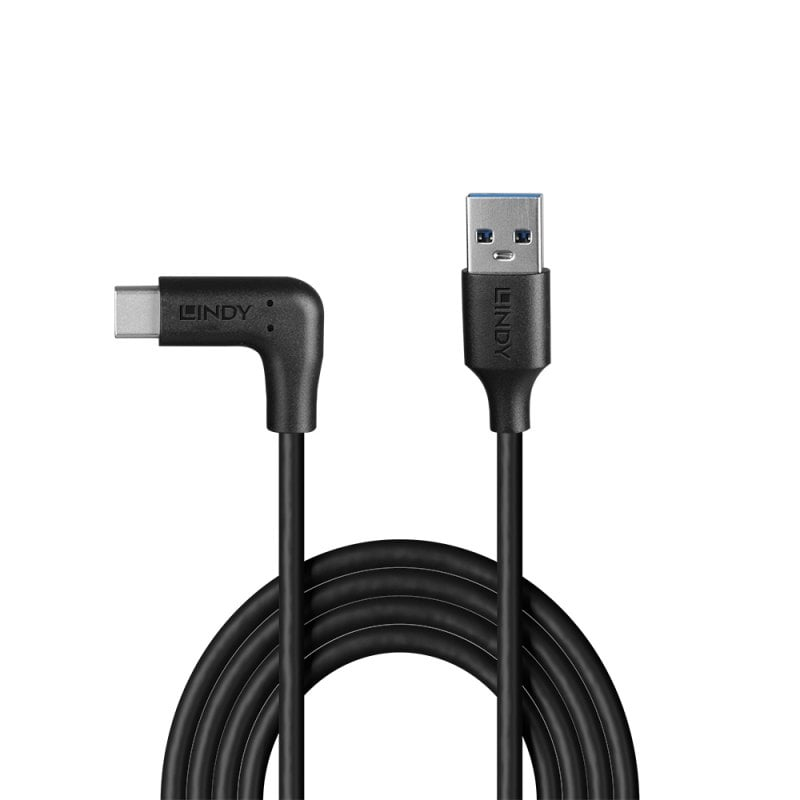

Lindy 1m USB 3.2 A to C R/A

Features

• Entry level USB 3.2 Gen 2 Type A to C cable for home and small office applications
• SuperSpeed USB 10Gbps - supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
• Robust PVC housing, nickel connectors, gold plated contacts
• Triple shielded cable, corrosion resistant tinned copper conductors
• 10 year warranty

Specifications

Connectors

• Connector A: USB 3.2 Type A Male
• Connector B: USB 3.2 Type C Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Phosphor Bronze
• Pin Plating: 24K Gold plated
• Dimensions (approx.) WxDxH:
• A: 15.5x35x7.8mm (0.61x1.38x0.31in)
• C: 11.0x25.0x7.3mm (0.43x0.98x0.29in)

Cable Construction

• Standard: USB 3.2
• Colour: Black
• Type: Round
• Jacket Diameter: 4.5mm (0.18in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 26/30/30AWG
• Shielding: Aluminium Magnesium Braid 85%

Specifications

• Supported Bandwidth: 10Gbps
• Nominal Attenuation: 0.5Mhz – 15Ghz < 40db
• Minimum Bend Radius: 45mm (1.77in)
• Operating Temperature: -20°C - 80°C (-4°F - 176°F)
• Storage Temperature: -25°C - 85°C (-13°F - 185°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL
