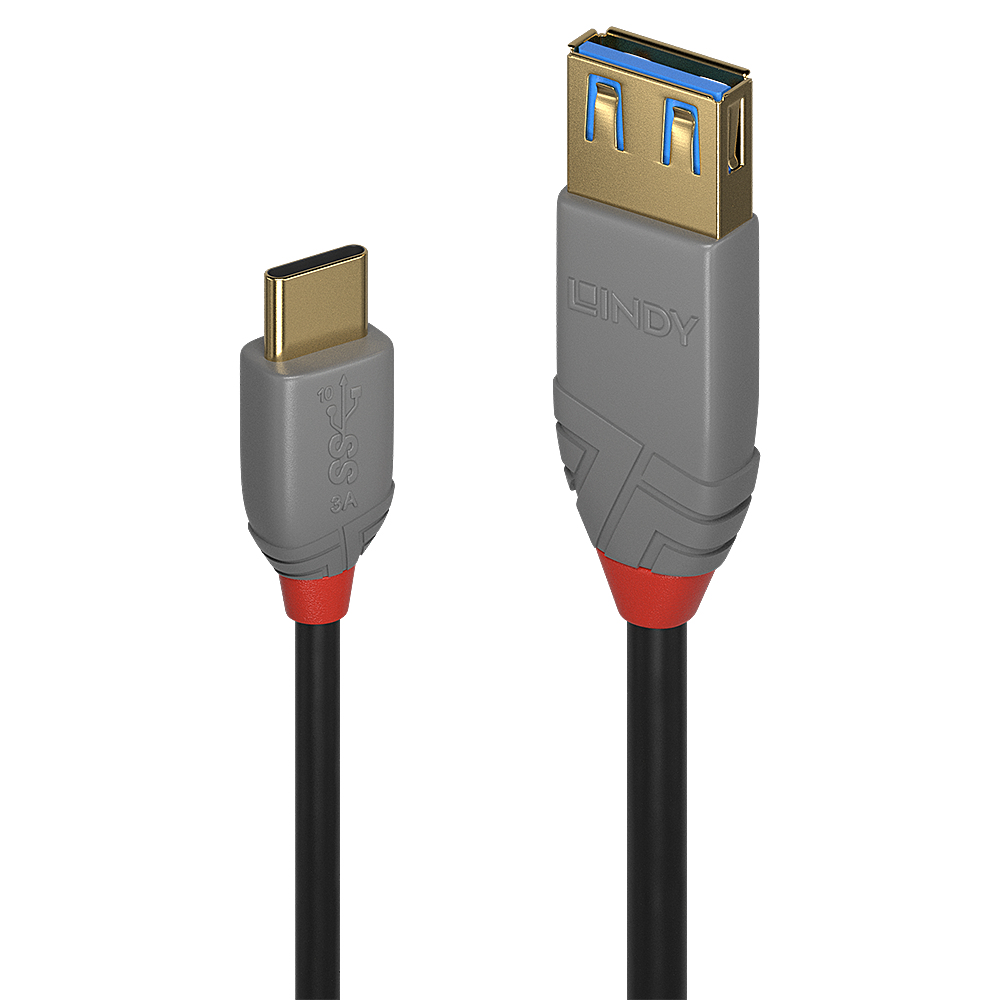

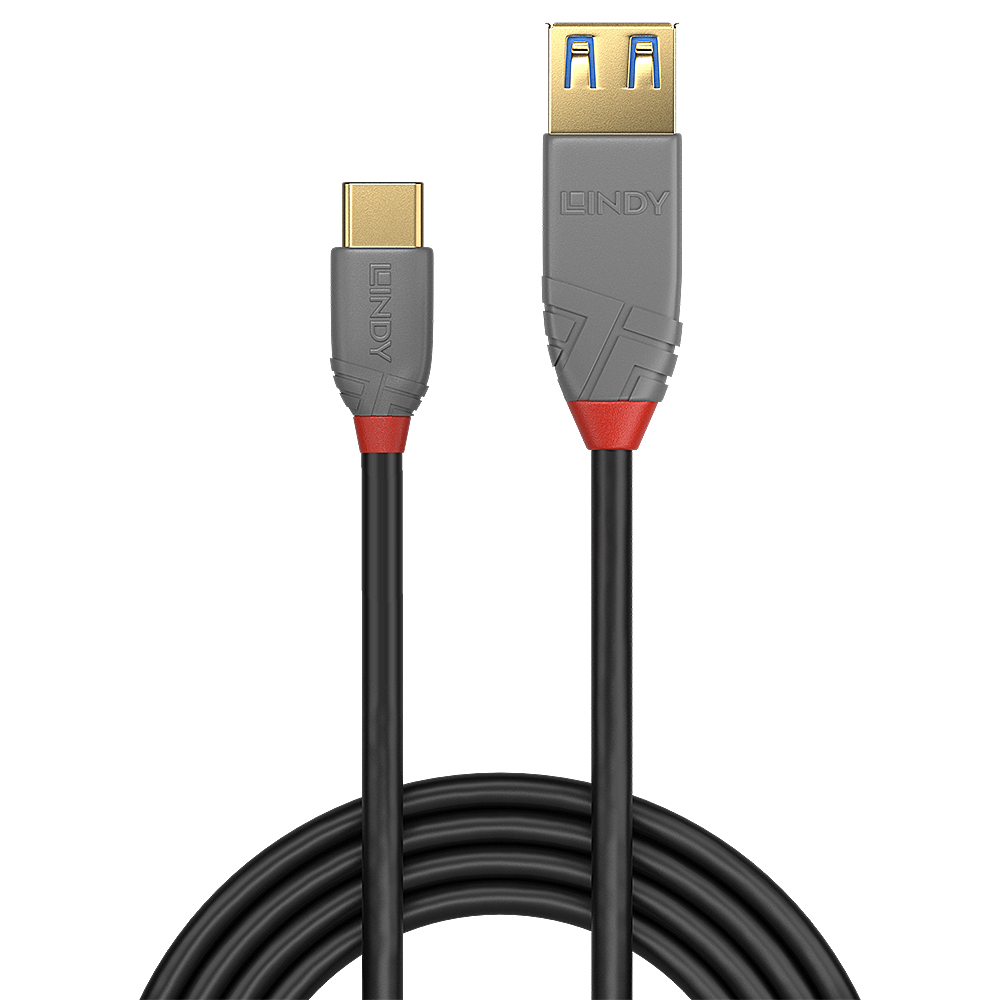

Lindy 0.15m USB 3.2 Cable

Features

• Professional choice USB 3.2 Gen 2 Type‑C to A adapter cable for commercial and high‑performance AV and IT installations
• SuperSpeed USB 10Gbps — supports data transfer speeds up to 10Gbps (USB 3.1, USB 3.1 Gen 2)
• Robust PVC housing, 24K gold‑plated connectors and contacts
• Triple‑shielded cable with corrosion‑resistant tinned copper conductors
• 10 year warranty

Specifications

Connectors

• Connector A: USB 3.2 Type C Male
• Connector B: USB 3.2 Type A Female
• Housing Material: PVC
• Shielding in Head Shell: Copper foil
• Connector Plating: Nickel
• Pin Construction: C: Copper, A: Brass
• Pin Plating: Gold

Dimensions (approx.) WxDxH

• C: 11.0 × 25.5 × 7.3 mm (0.43 × 1.00 × 0.29 in)
• A Female: 17.0 × 35.1 × 9.8 mm (0.67 × 1.38 × 0.39 in)

Cable Construction

• Length: 0.15 m (0.49 ft)
• Standard: USB 3.2 Gen 2 (USB 3.1 Gen 2, USB 3.1)
• Power Delivery: –
• Colour: Black
• Type: Round
• Jacket Diameter: 4.5 mm (0.18 in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge Power: 24 AWG
• Conductor Gauge Data: 30 AWG
• Shielding: Tinned Copper Braid 50%

Specifications

• Supported Bandwidth: 10 Gbps
• Maximum Resolution: –
• Nominal Attenuation: 0.5 MHz–15 GHz < 40 dB
• Minimum Bend Radius: 45 mm (1.77 in)
• Operating Temperature: 0°C – 40°C (32°F – 104°F)
• Storage Temperature: 0°C – 70°C (32°F – 158°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Product Compliance: RoHS, REACH, California Proposition 65 & UL
