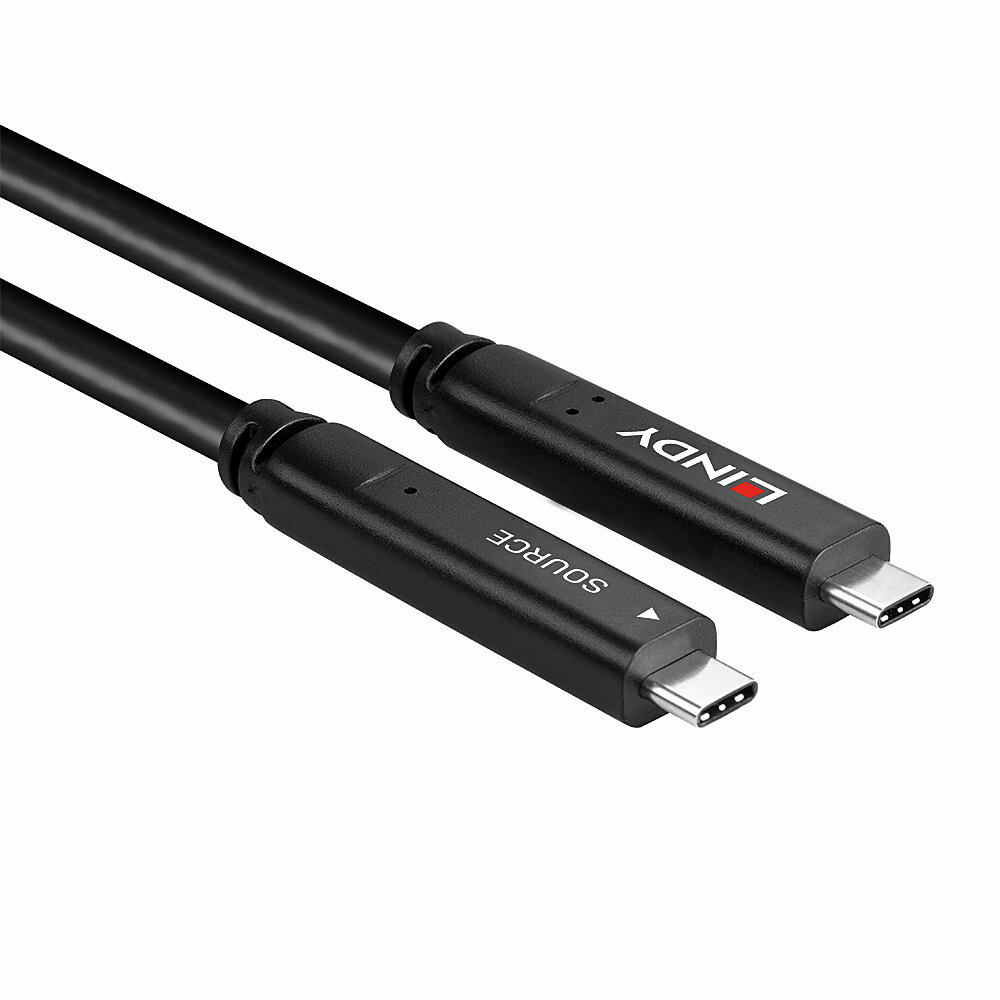

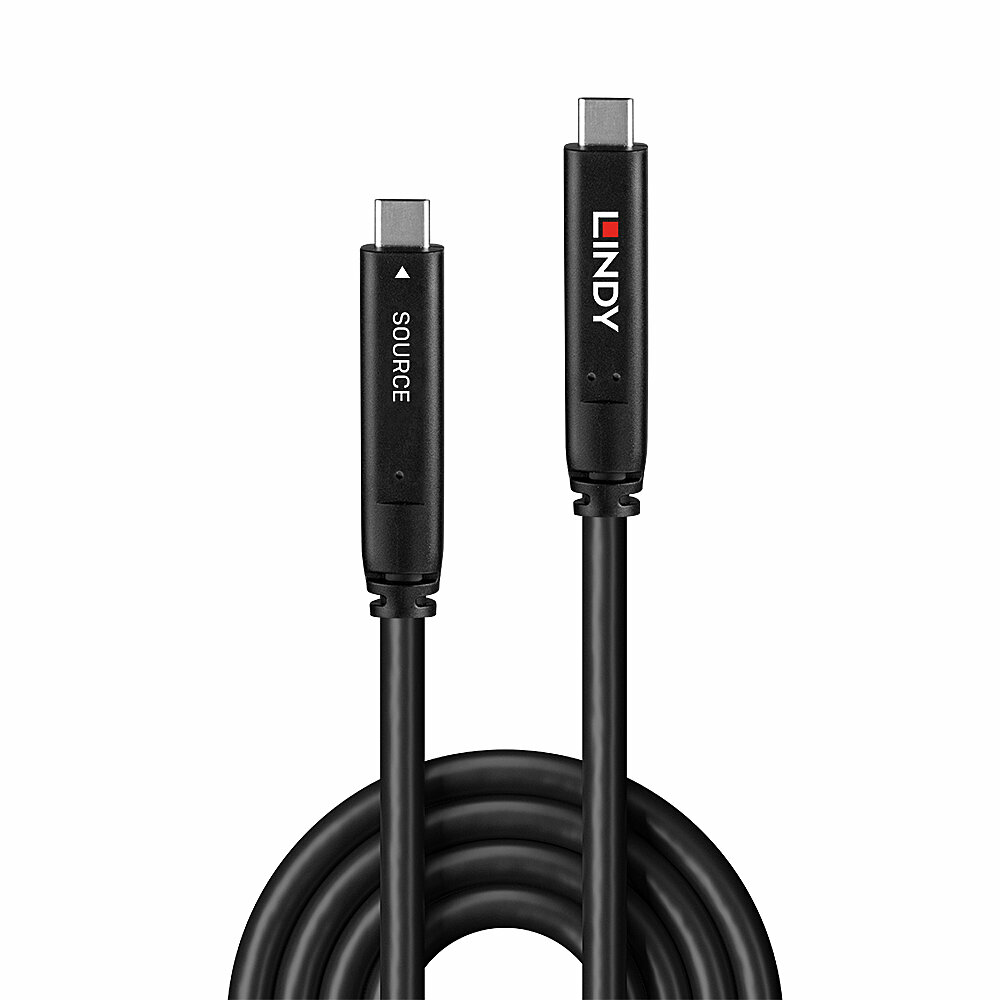

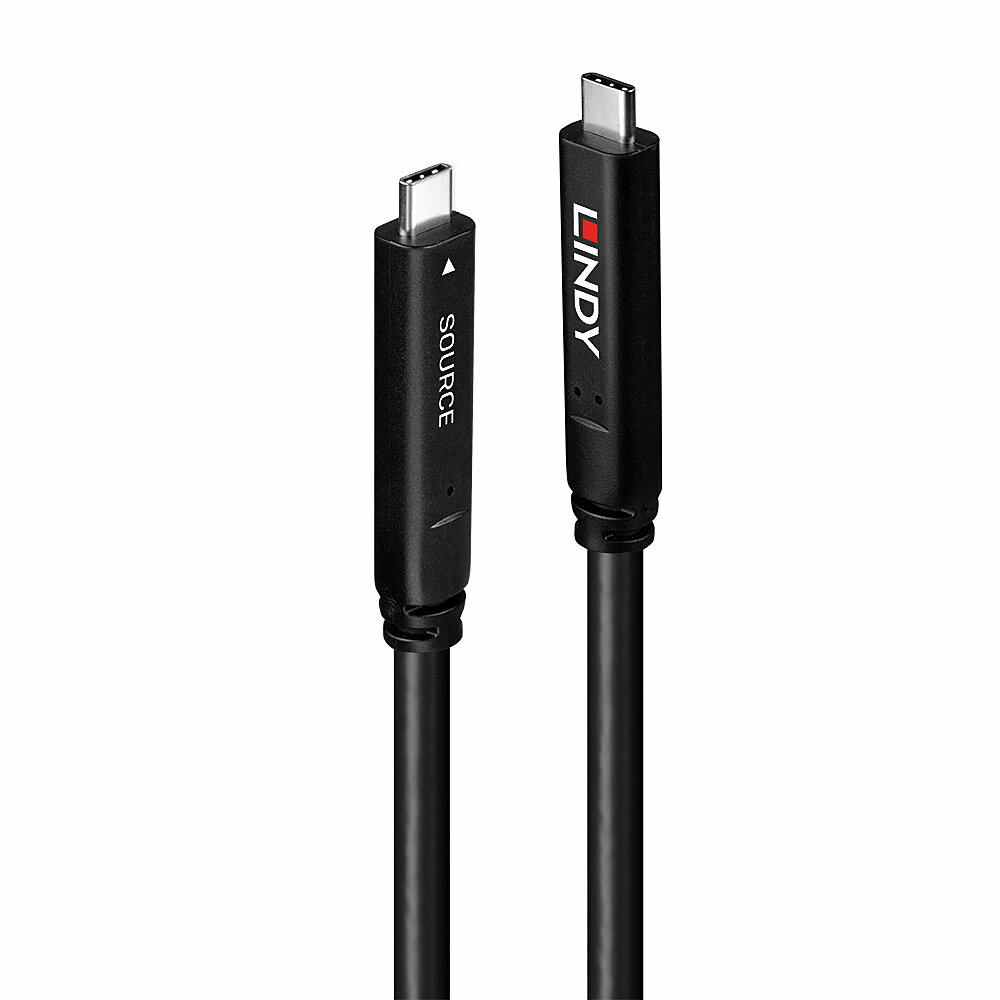

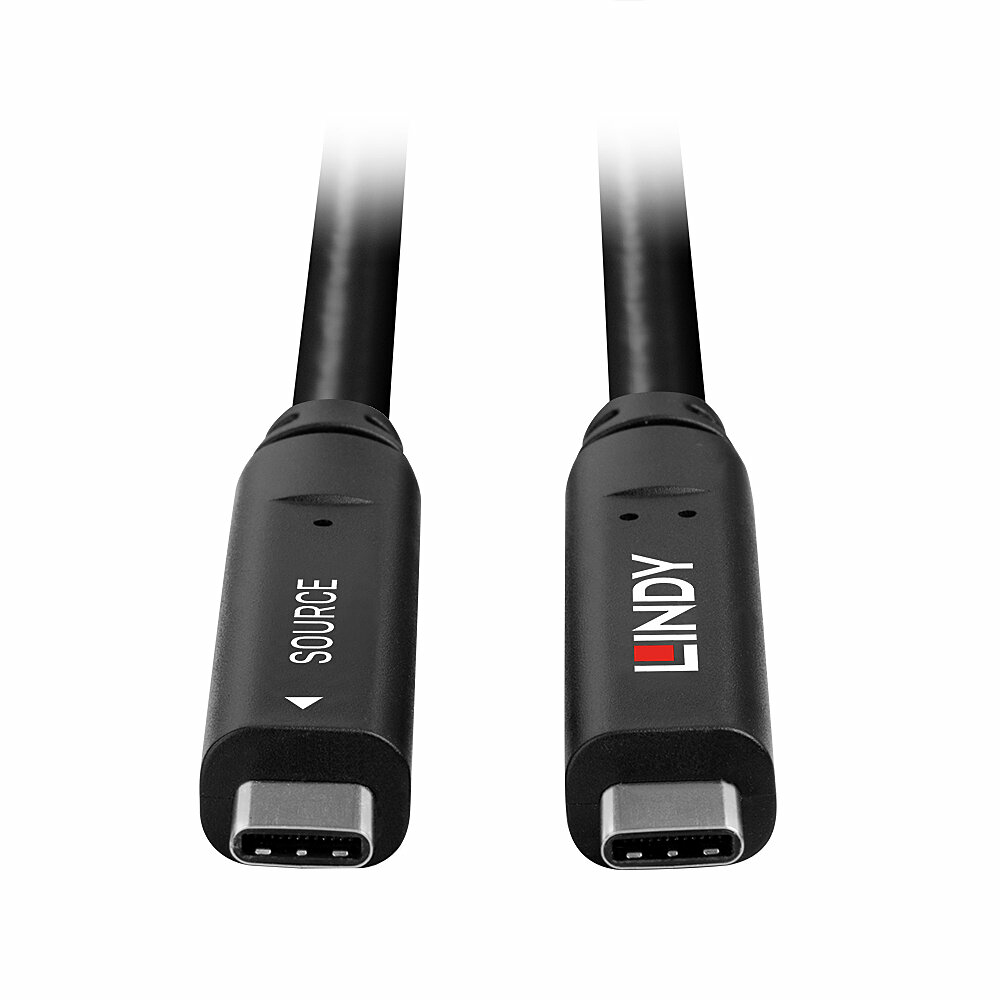

Lindy 10m USB 3.2 & DP Cable

Features

• 10m USB 3.2 Gen 2 & DP 1.4 Type C Hybrid Cable for data and video extension
• Data transfer rates up to 10Gbps
• Supports DisplayPort Alternate Mode and DP 1.4 (4 lanes) with video resolutions up to 4K 3840x2160@144Hz
• Supports Power Delivery up to 60W (20V 3A)
• 2 year warranty

Specifications

Connectors

• Connector A: USB Type C Male
• Connector B: USB Type C Male
• Power: PD 20V / 3A (60W)
• Housing Material: Plastic
• Connector Plating: Stainless Steel + Solder Nickel 50u" min.
• Pin Construction: Copper Alloy + Mating area Au
• Pin Plating: Mating area: 2µ" Au min.
• Dimensions (approx.) WxDxH: 55x9x12.35mm (2.17x0.35x0.49in)

Cable Construction

• Length: 10m (32.81ft)
• Standard: USB 3.2 / 3.1 Gen 2
• Colour: Black
• Type: Round
• Jacket Diameter: 6.5mm (0.26in)
• Jacket Material: PVC
• Conductor Material: -
• Conductor Gauge: 21AWG*3 (Power)
• Shielding: Tinned Copper

Specifications

• Supported Bandwidth: 10Gbps (USB 3.2 Gen 2), 32.4Gbps (DP 1.4, 4 lanes)
• Maximum Resolution: 4K 3840x2160@144Hz
• Nominal Attenuation: ?10dB/km@850nm, ?8dB/km@1300nm
• Minimum Bend Radius: Installation: 100mm; Operation: 50mm (IEC-60794-1-21)
• Maximum Tensile Load: Installation: 350N; Operation: 200N IEC-60794-1-21
• Operating Temperature: 5°C to 60°C (41°F - 140°F)
• Storage Temperature: -20°C to 80°C (-4°F - 176°F)
• Transmission Medium: Optical Fiber 62.5/125 Multimode Fiber
• Transmission Technology: 850nm Laser Optical

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 240x240x65mm (9.45x9.45x2.56in)
• Net Weight: 0.81kg (1.79lb)
• Gross Weight: 0.95kg (2.09lb)
• Warranty (Years): 2
• Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
