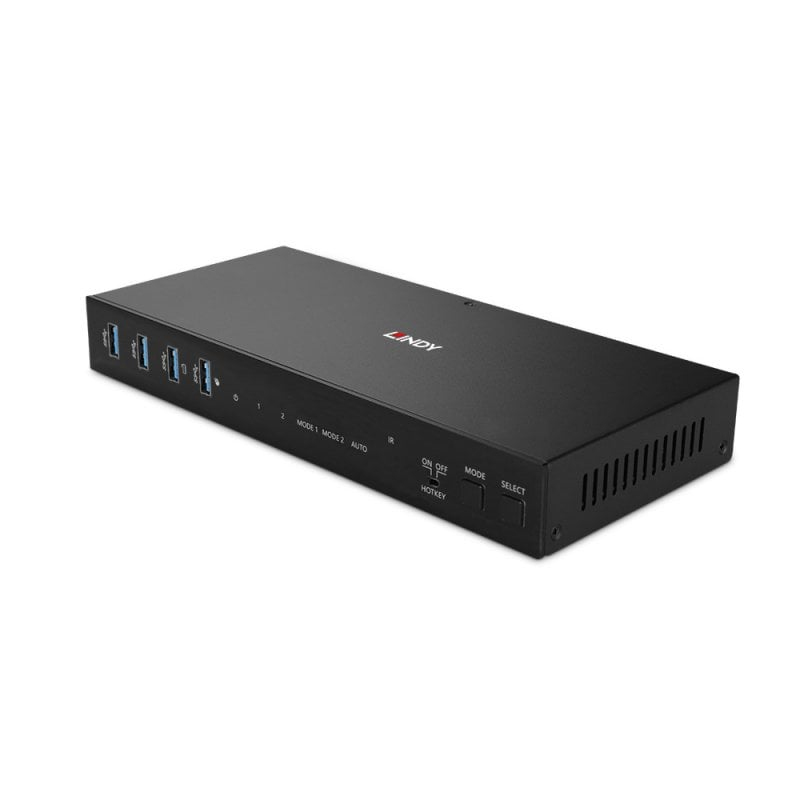

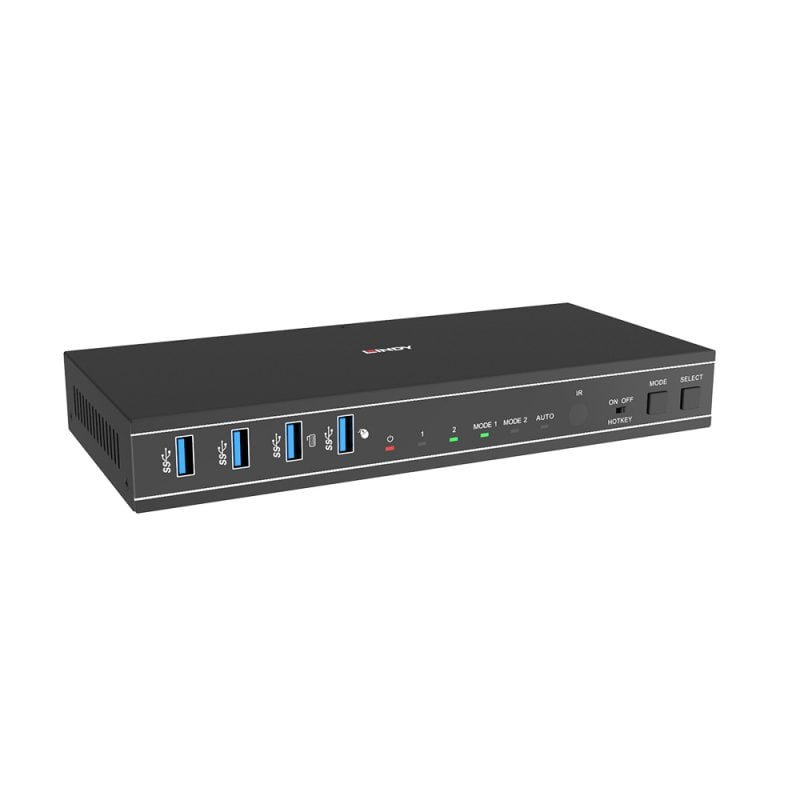

Lindy 2 Port USB KVM Switch

Features

• Controls two HDMI® equipped PCs from a single console with keyboard, mouse and two monitors
• Dual Head support with 2 modes, single and dual PC mode
• Supports HDMI® 18G resolutions up to 4K@60Hz 4:4:4 with HDR
• USB 3.0 and 3.5mm stereo audio port to connect additional USB devices, speakers or headphones
• 2 year warranty

Specifications

• AV Interface: HDMI®
• Console Interfaces: USB
• Interface Standard: HDMI® 2.0, USB 3.0
• Maximum Resolution: 4096×2160@60Hz 4:4:4 8Bit
• HDCP Support: 2.3
• Supported Audio: HDMI® Pass Through, Analogue Stereo
• Separate Audio Ports: 3.5mm (Female)
• Serial Interface: 3-pin Terminal Block
• Console Number: 1
• Max Number PC/Server: 2
• Cascadable: -
• Switching Method: Push Button, Mouse & Keyboard Hotkeys, IR Remote control, RS-232 commands
• 19" Rack Mountable: -
• Special Features: USB 3.0 device ports, dual head, active LED indicators

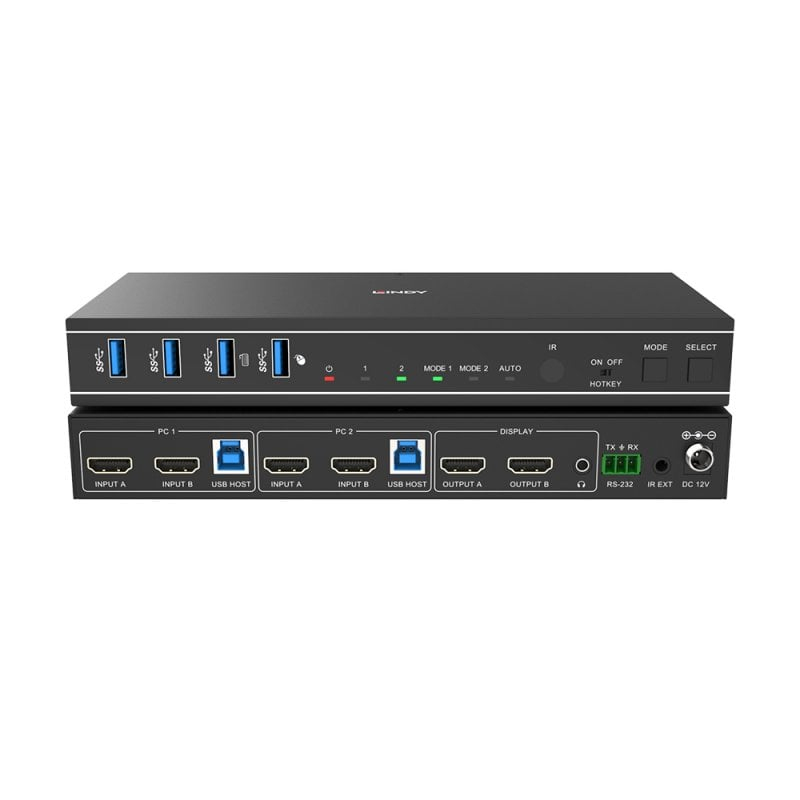

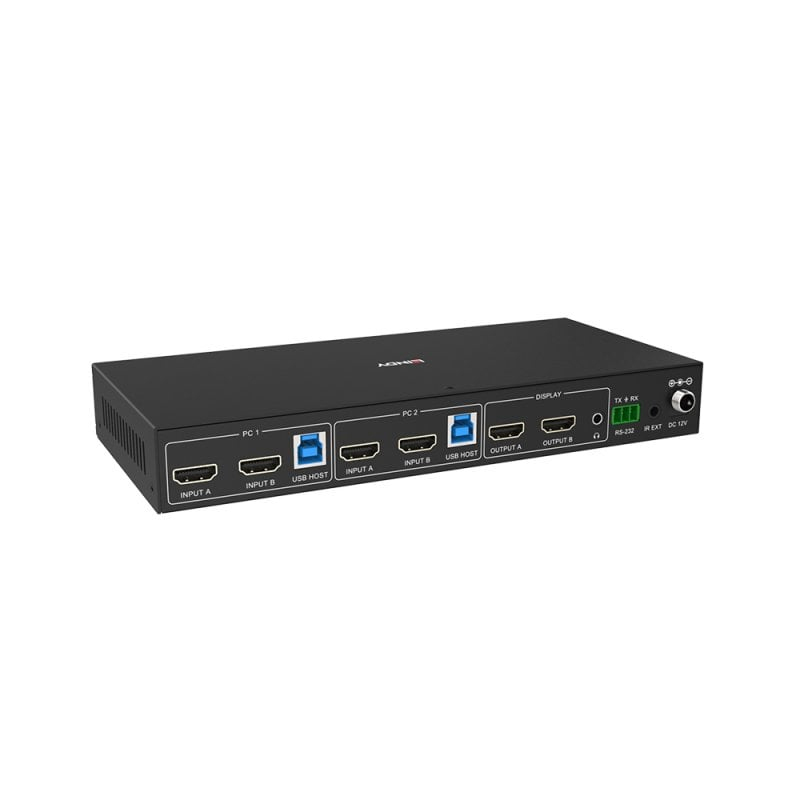

Connectors

• Console Interfaces: 2 × HDMI® Type A (Female), 4 × USB Type A (Female), 3.5mm (Female)
• PC/Server Interfaces: 4 × HDMI® Type A (Female), 2 × USB 3.0 Type B (Female)
• Other Interfaces: 3-Pin Terminal Block, 3.5mm IR (Female)
• Power: 5.5/2.1mm screw type DC socket

Physical Properties

• Dimensions (approx.) WxDxH: 220×100×30 mm (8.66×3.94×1.18 in)
• Housing Material: Metal
• Net Weight: 0.609 kg (1.34 lb)
• Operating Temperature: 0°C–40°C (32°F–104°F)
• Storage Temperature: -20°C–60°C (-4°F–140°F)
• Humidity: 20–90% RH (non-condensing)
• Power Requirements: 12V 1A
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 300×185×115 mm (11.81×7.28×4.53 in)
• Gross Weight: 1.611 kg (3.55 lb)
• Warranty (Years): 2
• Certificated: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
