LINDY 150m Cat6 KVM Ext
1 / 4
Lindy
LINDY 150m Cat6 KVM Ext
MPN:
39385
$779.00
Inc GST
Available to order
−
+
Buy it now
Add to cart
View other Lindy products →
Details
Specs
1
More information
Similar items
12
Description

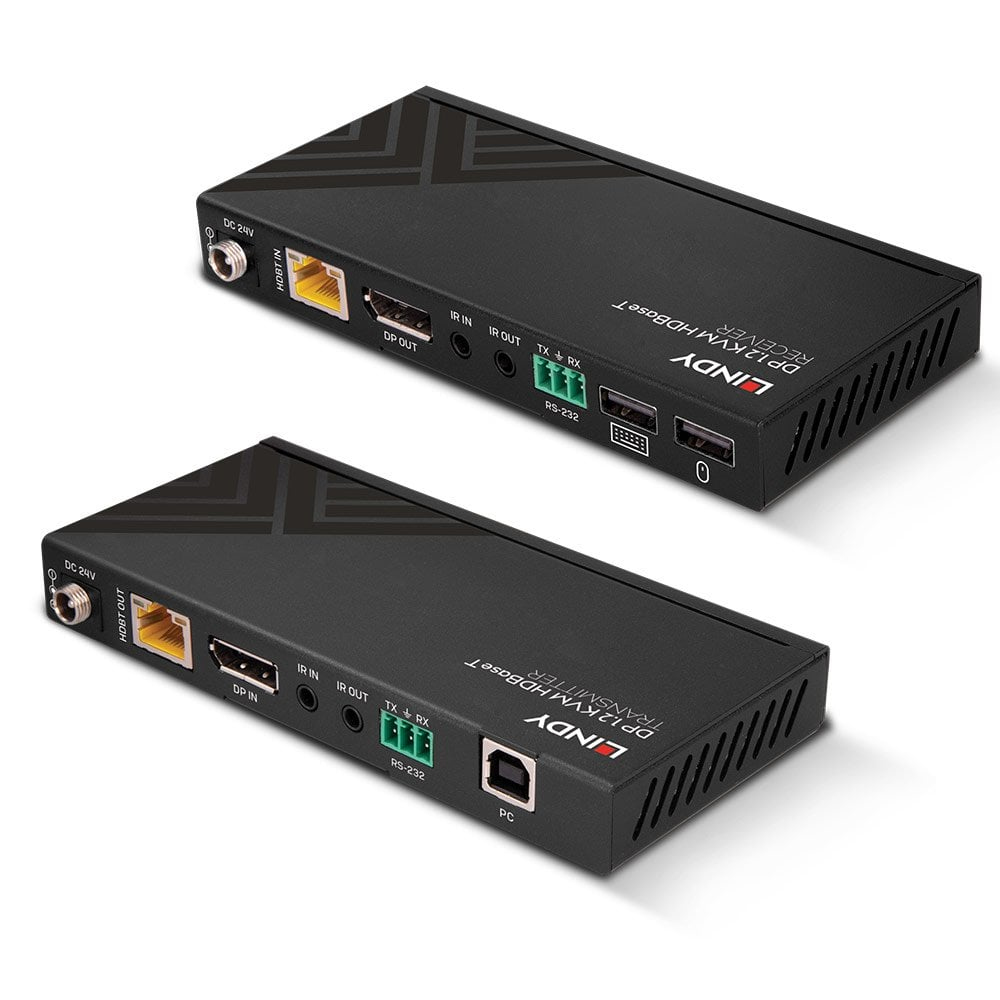

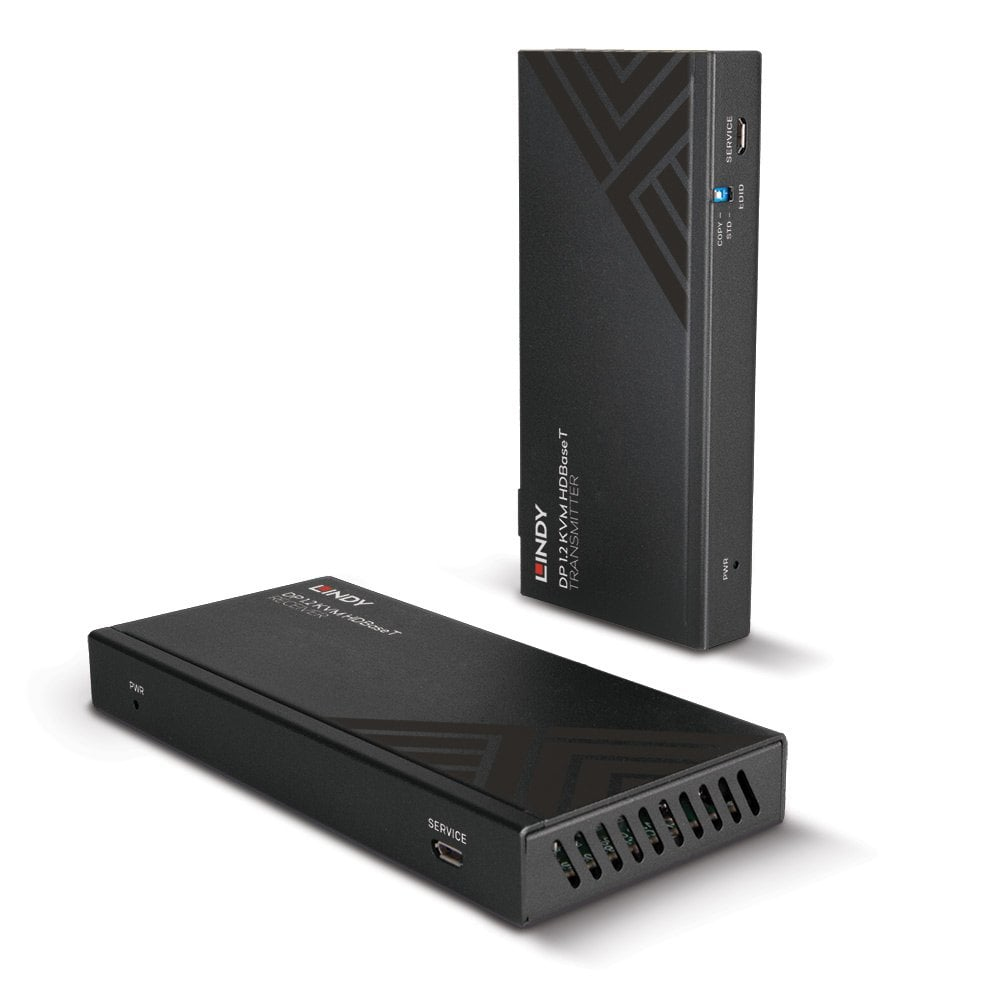

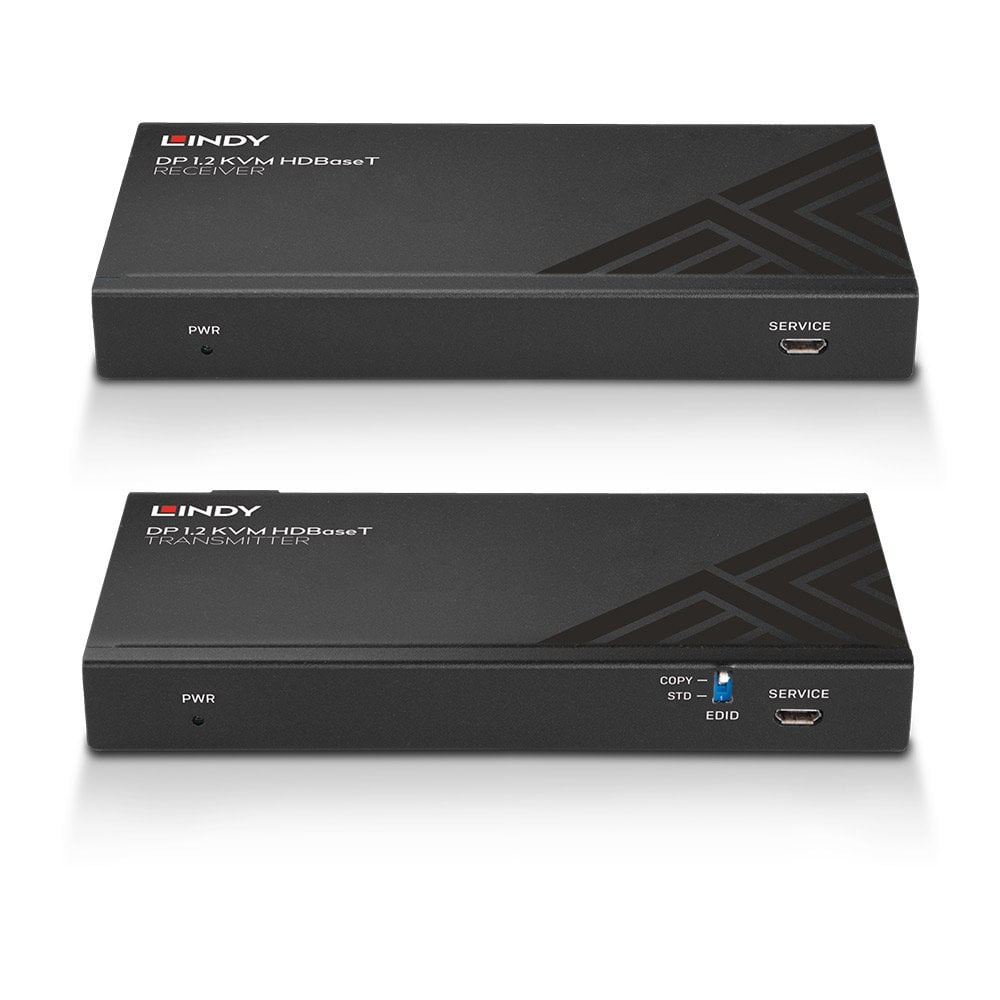

150m Cat.6 DisplayPort 1.2, USB, IR & RS-232 HDBaseT KVM Extender
Tech specs
Resolution
3840x2160
Full specification
Specifications:
AV Interface: DisplayPort
Interface Standard: DisplayPort 1.2, USB 1.1
Supported Bandwidth: 21.6Gbps
Maximum Distance: 150m
Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
HDCP Support: 2.2
EDID Pass-Through: Dip Switch with copy function
Supported Audio: Pass-Through
Separate Audio Ports: -
IR Support: 20 - 60KHz
CEC Support: -
Serial Interface: RS-232 Pass Through
Transmission Protocol: HDBaseT
Transmission Medium: Cat.6
Chipset: VS010-A0
Special Features: Bi-directional IR, RS-232 and PoC

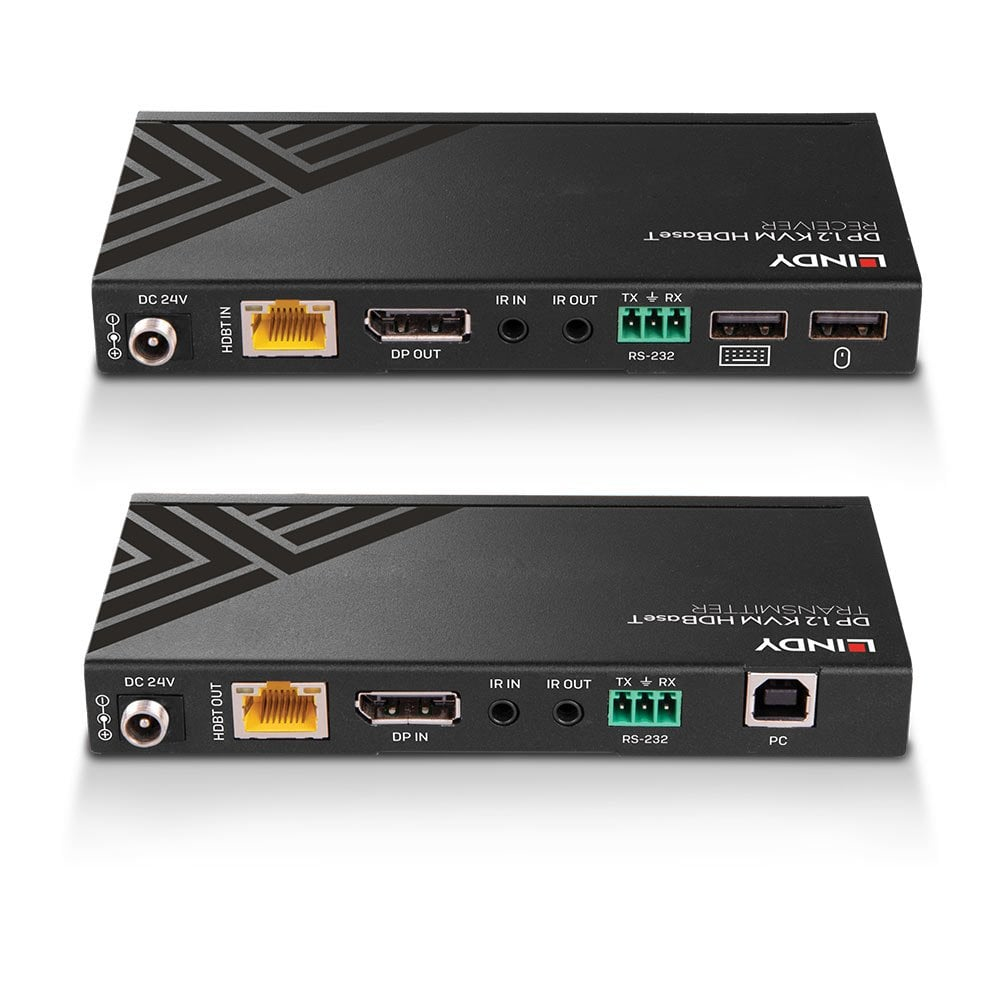

Transmitter Input: DP (Female), USB Type B (Female), 3.5mm IR (Female)
Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
Receiver Output: DP (Female), 2x USB Type A (Female), 3.5mm IR (Female)
Bi-directional Ports: RS-232 3-Pin Terminal Block
Power: 5.5/2.1mm
Dimensions: 140x65x18mm each unit
Housing Material: Metal
Net Weight: 0.8kg
Operating Temperature: 0C - 40C
Storage Temperature: -20C - 60C
Humidity: 20 - 90% RH (non-condensing)
Power Requirements: 24VDC 1A
Colour: Black
Packaging Type: Carton Box
Packaging Dimensions: 245x75x185mm
Gross Weight: 1.02kg
Warranty: 2-year
Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Features:
Extends DisplayPort signals up to 150m distances over Cat.6 network cable via HDBaseT technology
Supports resolutions up to 4K@60Hz 4:4:4
USB ports for mouse and keyboard connection
Bi-directional IR & RS-232 control and PoC (Power over Cable) function
2-year warranty
