Name: ONLINE SERIES 10000VA/RACK/TOWER UPS
Brand: CyberPower
SKU: 1999215
Price: 10287 AUD
Availability: InStock

Description

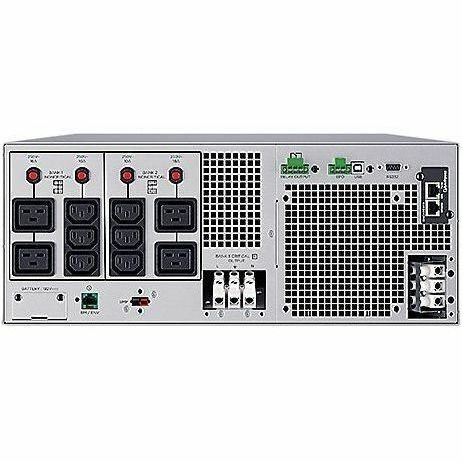

Online Series 10000VA/10000W Rack/Tower Online UPS - 4U - 12 12V/AH - 4x IEC C19 6x IEC C13 1x Hardwire Terminal Block - USB Combo Built-in SNMP Equalisation Module for battery life extension support

Tech specs

Power	10000VA

Full specification

Specifications:

Phase: Single Phase
Form Factor: Rackmount / Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: Online ECO Mode Efficiency > 98%
Active PFC Compatibility: Yes
Generator Compatibility: Yes
Input Voltage Range: 200 - 240v
Input Frequency: 50 ± 10 | 60 ± 10
Input Frequency Detection: Auto-sensing
Rated Input Current: 54a
Input Connector Type: Hardwire Terminal Block
Output Capacity (VA): 10000
Output Capacity (Watts): 10000
On Battery Waveform: Pure Sine Wave
Overload Protection: Internal Current Limiting / Circuit Breaker
Overload Protection (Line Mode): 105-125% Load for 1 min / 125-150% Load for 10 sec
Overload Protection (Battery Mode): 105-130% Load for 10 sec / 130-150% Load for 2 sec
Overload Protection (Bypass Mode): Circuit Breaker
Crest Factor: 3 : 1
No. of Outlets: 11
Battery Runtime at Half Load: 8.3 Mins
Battery Runtime at Full Load: 2.4 Mins
Typical Recharge Time: 4 Hours
Start On Battery: Yes
Smart Battery Management (SBM): Yes
Built-in Battery Management Module: Yes
User-replaceable: Yes - Qualified Personnel Only
Hot-swappable: Yes
Battery Type: Sealed Lead-acid
Replacement Battery Pack (RBP): RBP0159
Battery Voltage: 192v
Compatible Extended Battery Module (EBM): BPE192VL2U01 (Built-in Charger)
Surge Suppression: 2430 Joules
Serial Port: Combo (RS232 + Dry Contact)
SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included
Dimensions: 433 x 173 x 720mm
Weight: 71.2kg
Certifications: CE / EAC / RCM
RoHS: Yes
