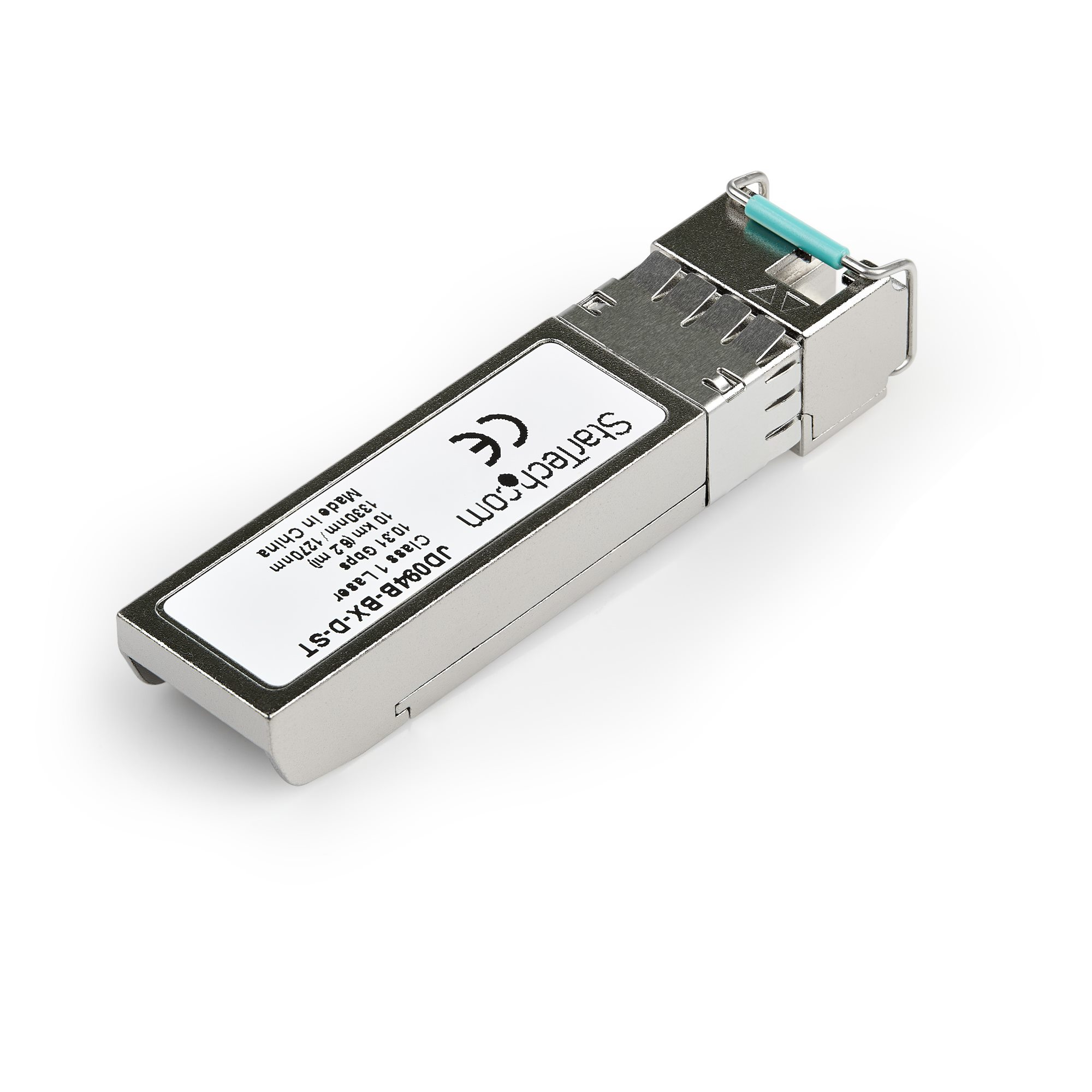

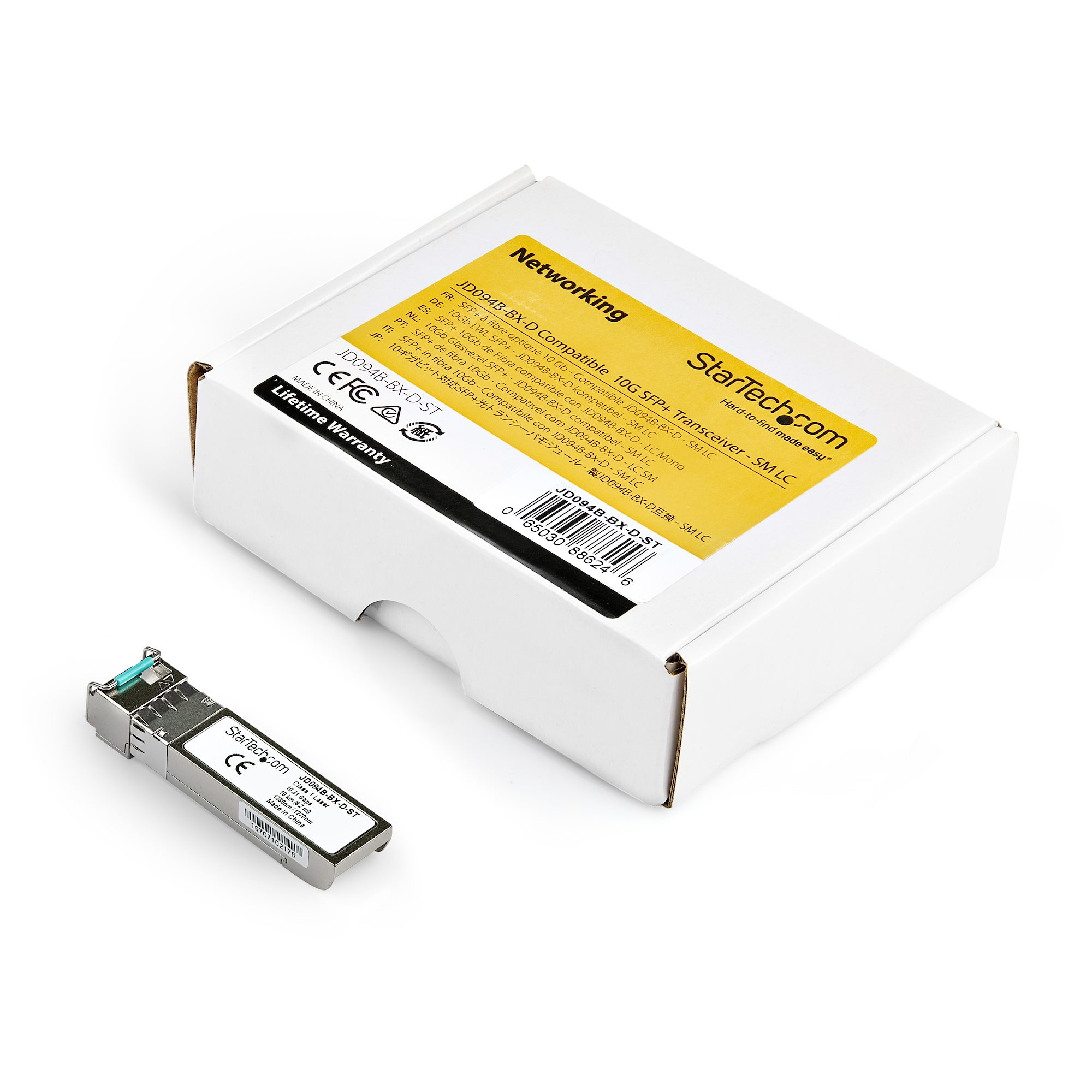

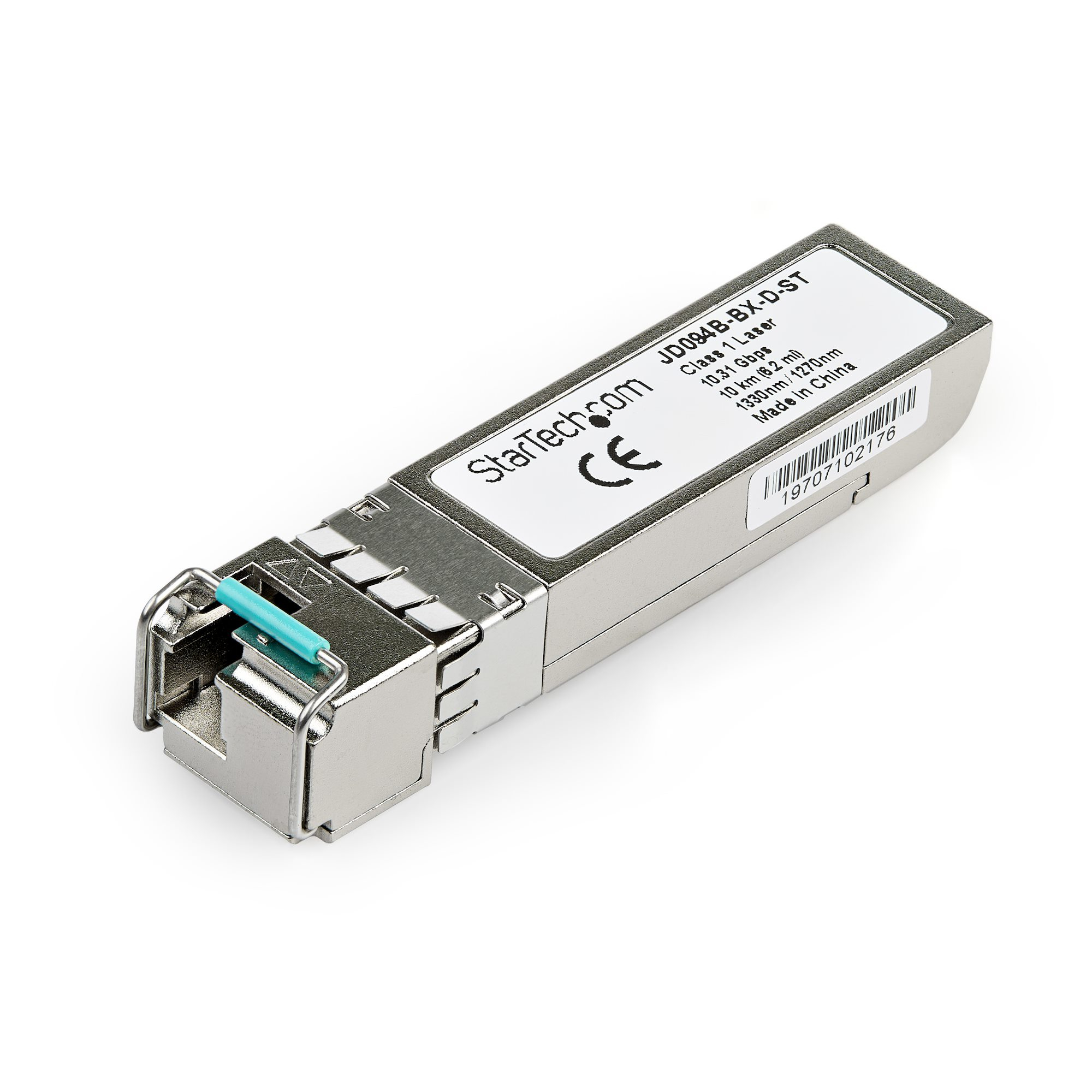

The JD094B-BX-D-ST is an HPE JD094B-BX-D compatible downstream fiber SFP+ transceiver which pairs with StarTech.com's JD094B-BX-U-ST. This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two, enabling 10 GbE connectivity over fiber cabling at distances of up to 10 km.
Specification
Data Transfer Rate: 10 Gbps
Interface: LC Connector
Standard: 10GBASE-BX Single-Mode Fiber (SMF)
Wavelength: 1330nm Tx / 1270nm Rx
Maximum Distance: 10 km (6.2 mi)
Power Consumption: Less than 1.3 watts
Digital Diagnostics Monitoring (DDM): Yes
Hot-Swappable: Yes
Warranty: Lifetime
Compliance: RoHS compliant, MSA compliant
