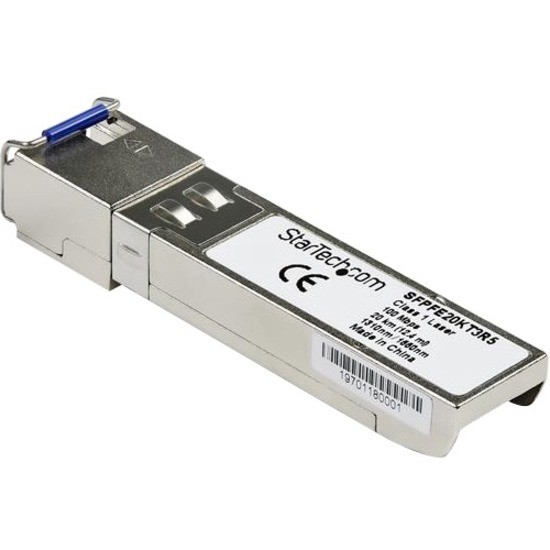

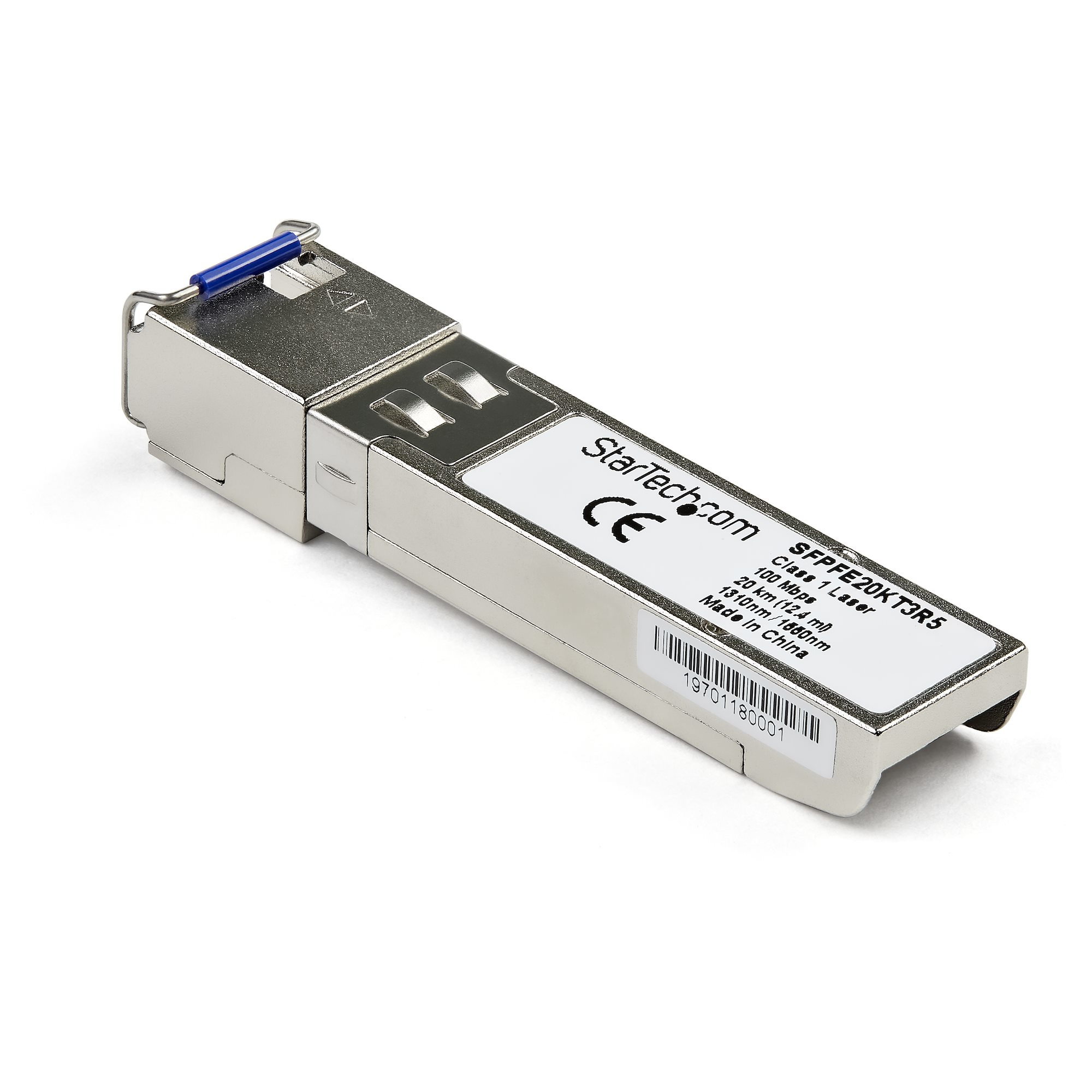

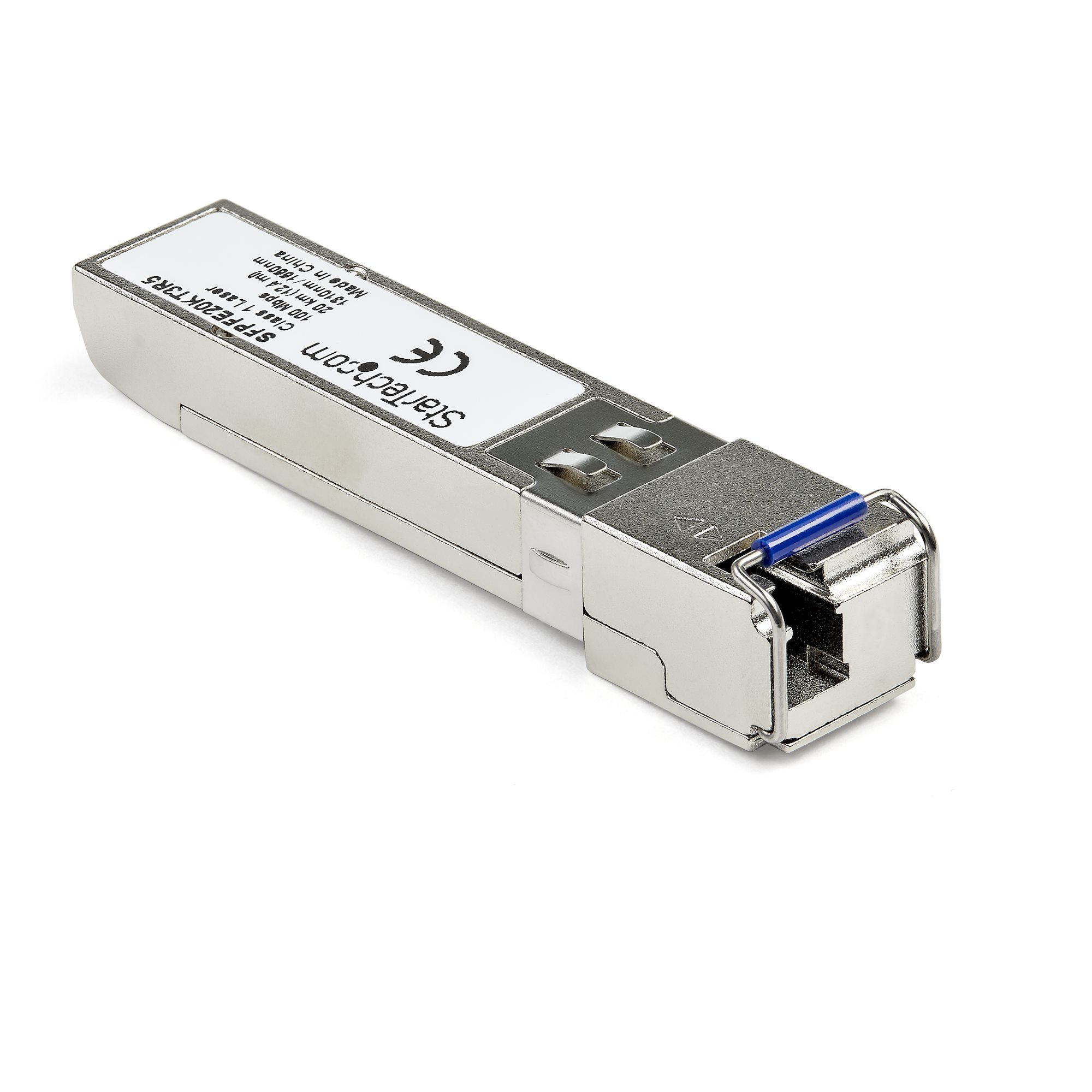

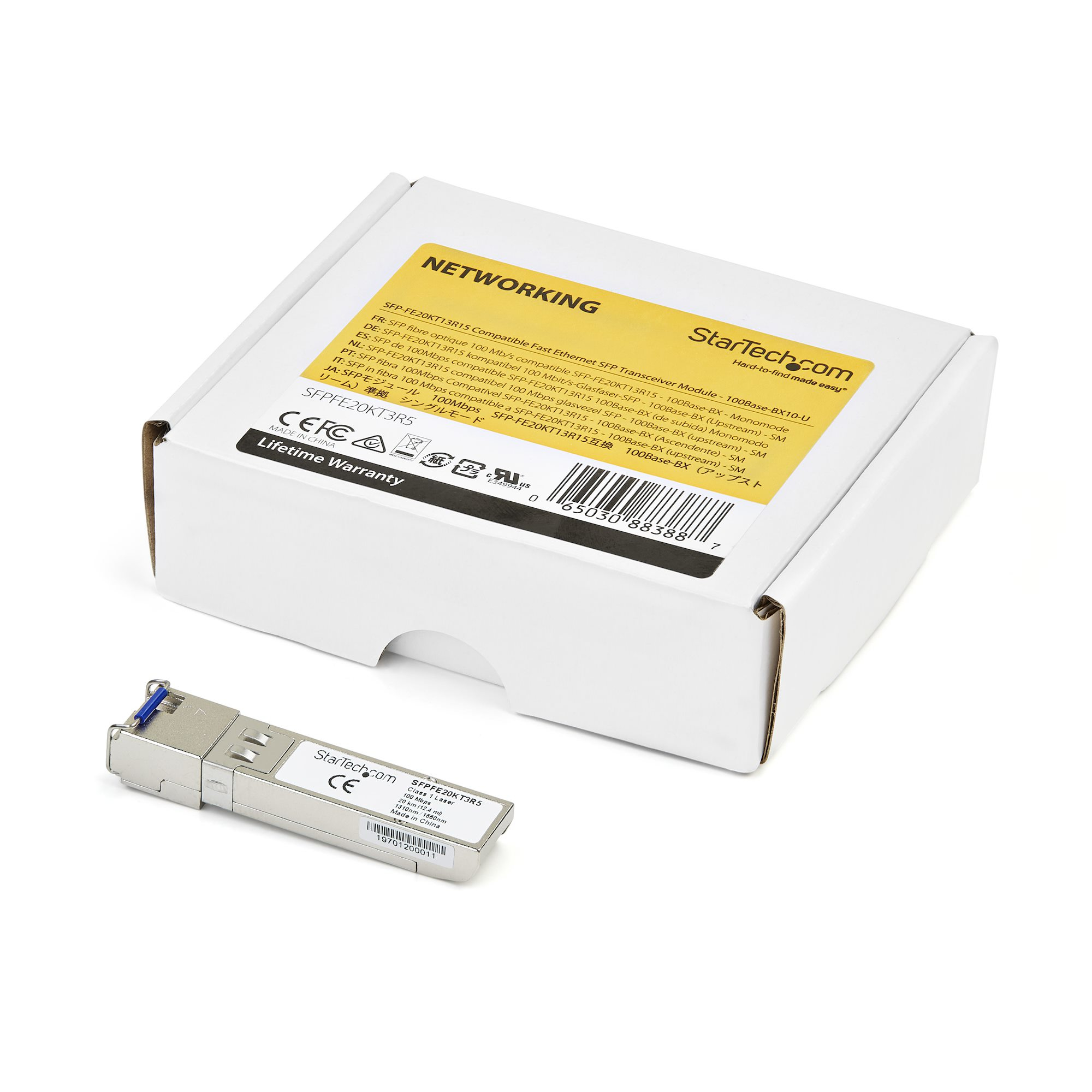

A Juniper-compatible SFP transceiver module providing 100 Mbps bi-directional fiber connectivity over a single strand using 100BASE-BX-U technology. Supports up to 20 km transmission distance with single-mode fiber and includes digital diagnostics monitoring (DDM).
100BASE-BX-U standard
100 Mbps data transfer rate
Single Mode Fiber (SMF) with LC connector
Wavelength: 1310nm Tx / 1550nm Rx (bi-directional)
Maximum transmission distance: 20 km (12.4 mi)
Digital Diagnostics Monitoring (DDM): Yes
MTBF: 3,713,222 hours
Hot-swappable form factor
MSA compliant
RoHS compliant
Full-duplex operation
Low power consumption
