Description
The Cisco MDS 9148S 16G Multilayer Fabric Switch is a compact 1RU switch that scales from 12 to 48 line-rate 16 Gbps Fibre Channel ports. It is a high-performance, enterprise-grade SAN switching solution designed for small to mid-sized data centers, combining high port density, ultra-low latency, and advanced SAN services with reliable, scalable Fibre Channel connectivity.</description>
<parameter name="specification">Up to 48 autosensing 16 Gbps Fibre Channel ports
Base model: 12 enabled ports with 8 additional 8G SFP+ transceivers included
Expandable to 24, 36, or 48 ports via licensing
768 Gbps switching bandwidth
384 Mpps forwarding rate
Sub-microsecond port-to-port latency
2x RJ-45 Gigabit Ethernet management ports
1RU rack-mountable form factor
Redundant hot-swappable power supplies and fan trays
Cisco NX-OS software support
In-Service Software Upgrades (ISSU) capable

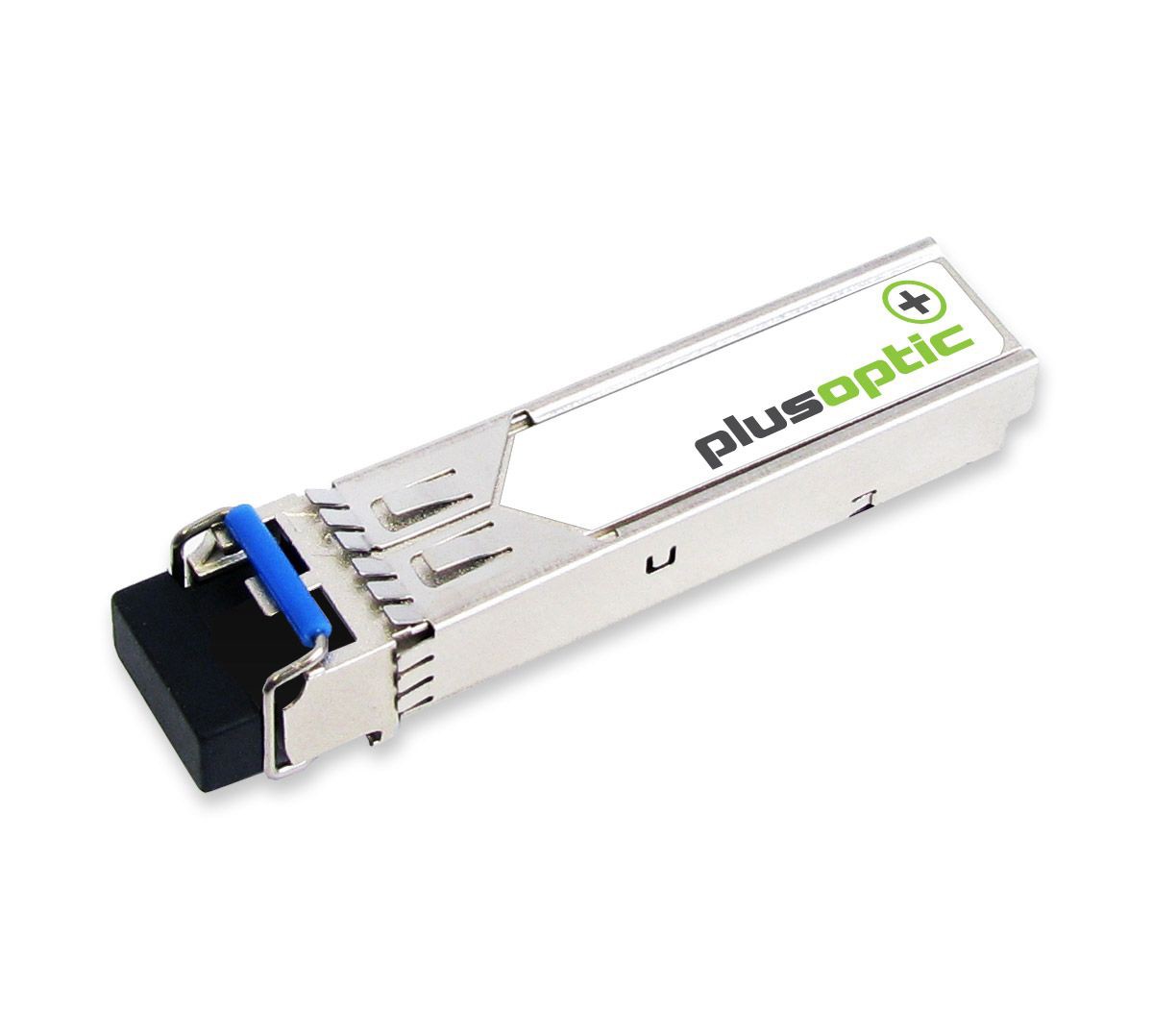

Cisco compatible (DS-SFP-FC8G-SW DS-SFP-FC-8G-SW DS-SFP-FC8G-SW-4) 8G, Fibre Channel SFP+, 850nm, 300M Transceiver, LC Connector for MMF with DOM8G SFP+ Fibre Channel Transceiver · $65.00
Cisco compatible (DS-SFP-FC16G-SW) 16G, Fibre Channel SFP+, 850nm, 100M Transceiver, LC Connector for MMF with DDM16G SFP+ Fibre Channel Transceiver · $266.00Cisco MDS 9148S Management Module
