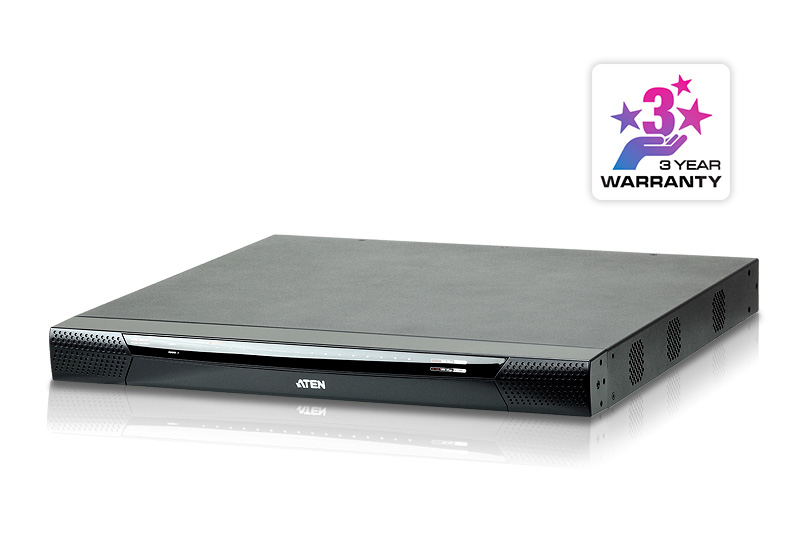

The KN4116VA is a 1-local/4-remote access 16-port multi-interface Cat 5 KVM over IP switch. It features superior video quality with Full HD resolution of 1920 x 1200, FIPS 140-2 with level 1 security standards and virtual media transmissions at twice the speed. The KN series provides local console and remote over IP access for users to monitor and access their entire data center over a network, and offers out-of-band access with external modem support for BIOS-level troubleshooting when the network is down.
Tech specs
Ports
16
Resolution
1920x1200
Form factor
1U rackmount
Full specification
16-port KVM over IP switch
1 local and 4 remote user access
Full HD resolution: 1920 x 1200 @ 60Hz
Console ports: DVI-D, USB A, VGA (D-Sub)
Keyboard/Mouse: USB, PS/2
24 x KVM/audio RJ-45 ports
2 x 1000Base-T Gigabit Ethernet ports
FIPS 140-2 Level 1 security
Virtual media support with 2x faster transmission
Dual power supplies
Dual on-board NICs
1U rackmount form factor
Cat 5/5e/6 cabling support
Support for 24-bit colour depth
Out-of-band (OOB) management capabilities
