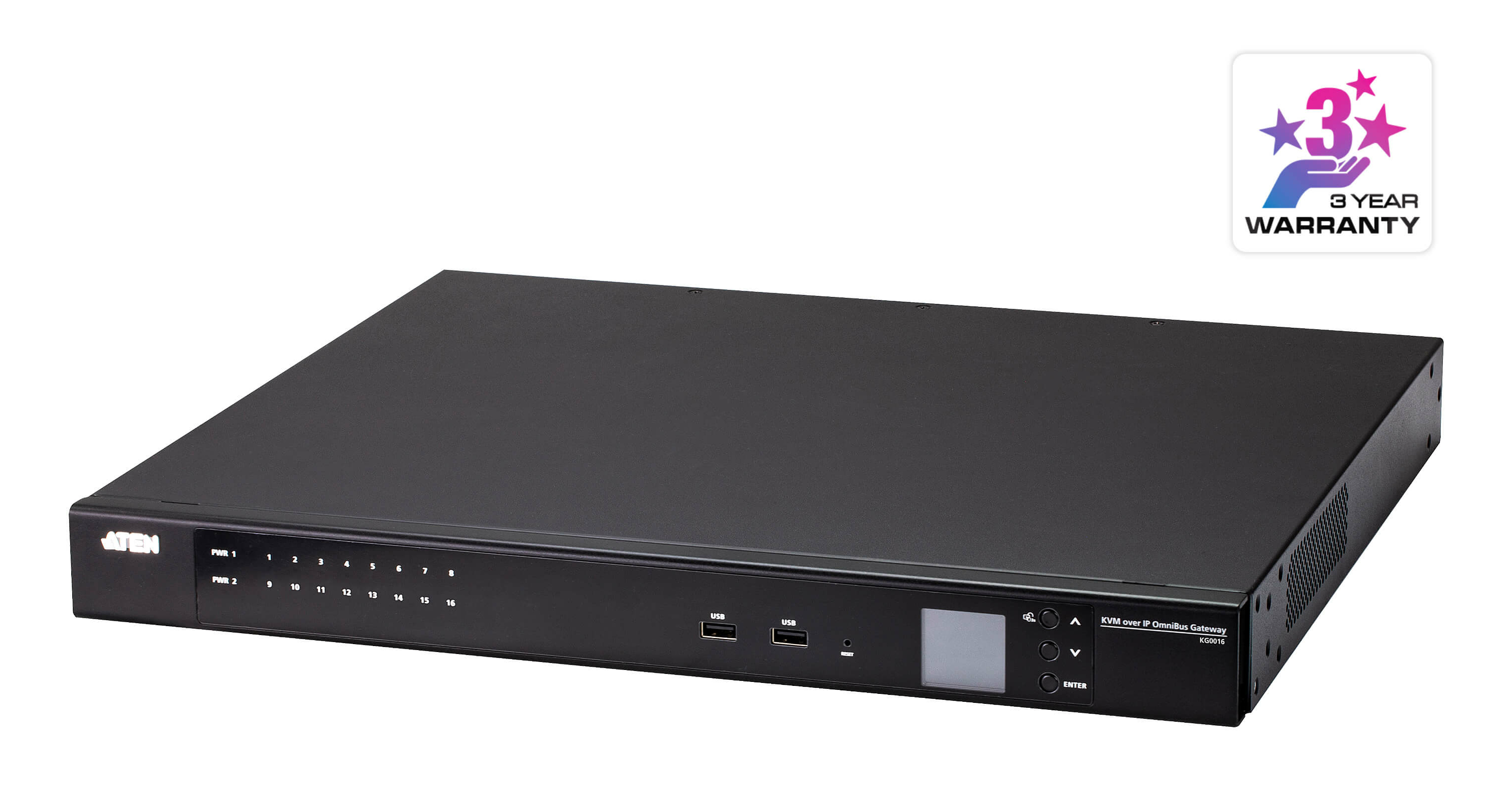

The ATEN 16-Port KVM over IP OmniBus Gateway (KG0016) provides remote over IP access to control up to 16 servers over a network with all-digital KVM architecture. It features dual 10G NICs for redundancy, real-time video monitoring up to 4K resolution, and independent remote connections supporting 16 concurrent users for efficient server management in data centers and server rooms.
16-port KVM over IP OmniBus Gateway
All-digital KVM over IP architecture
Dual 10G NICs for redundancy
16 independent remote concurrent user connections

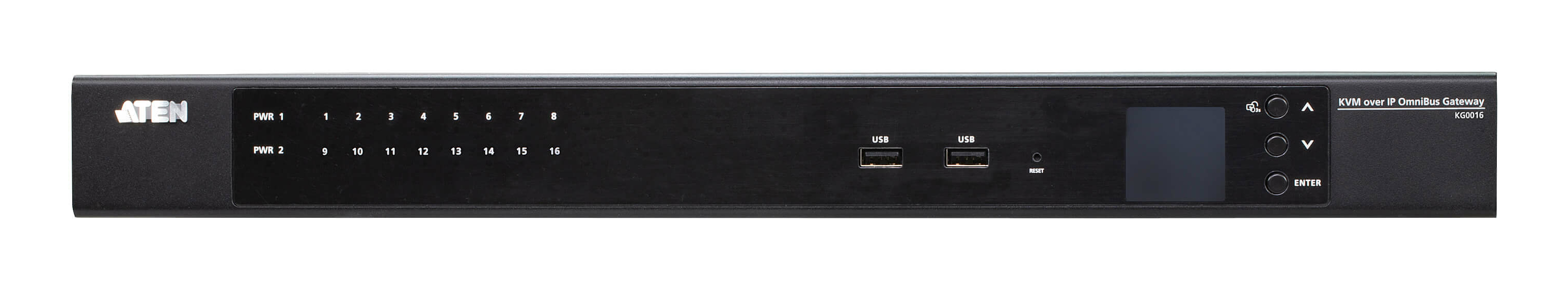

LCD front panel display (128x64 resolution)
Video resolution: up to 3840 x 2160 @ 30Hz
Remote video resolution: 1920 x 1200 @ 60Hz (maximum)
Data transfer rate: Read 265 Mbps, Write 188 Mbps
Extension: up to 100m via Cat 5e/6 cable
Panel Array Mode Live+ with up to 4x4 grid
1U housing
Power consumption: 34.1-34.6W (AC 110-220V)
Operating temperature: 0-40°C
Multi-platform support: Windows, Mac, Linux

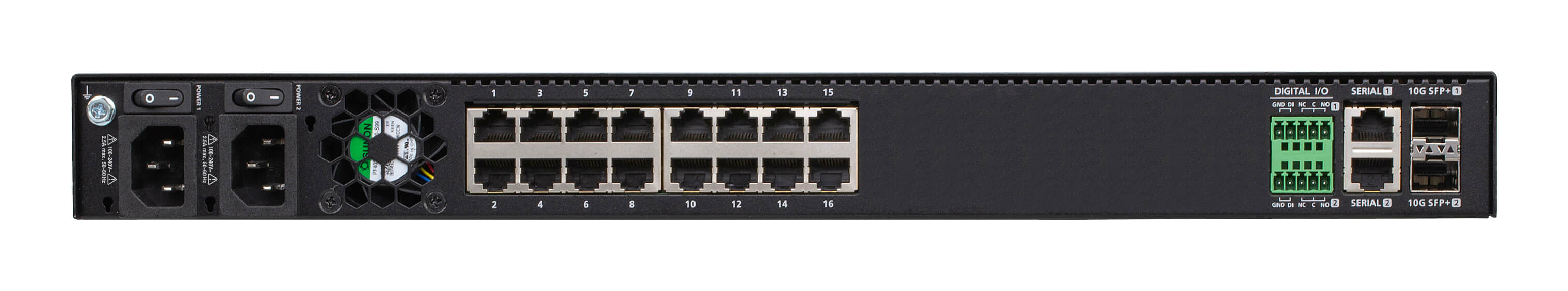

Dual power supplies (2x IEC 60320/C14)
Message Board, Panel Array Mode, Mouse DynaSync features
