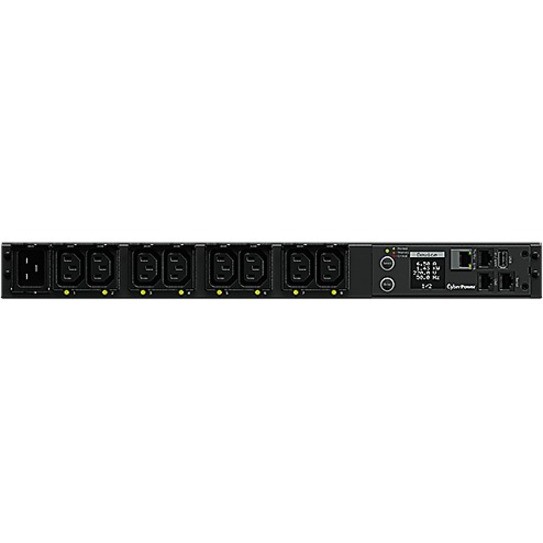

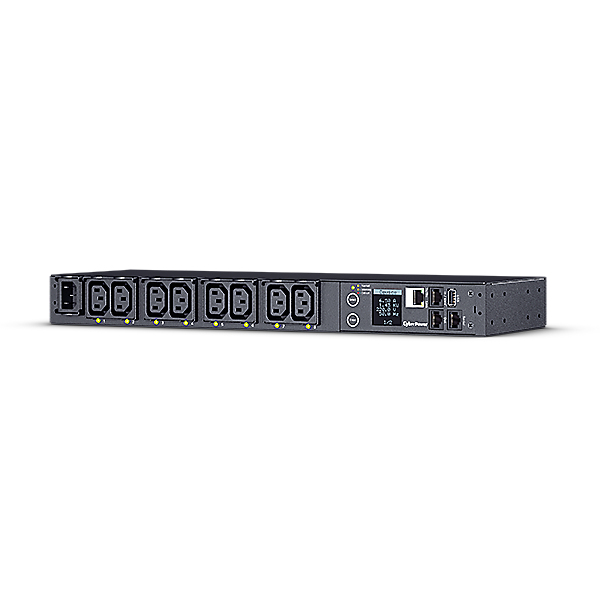

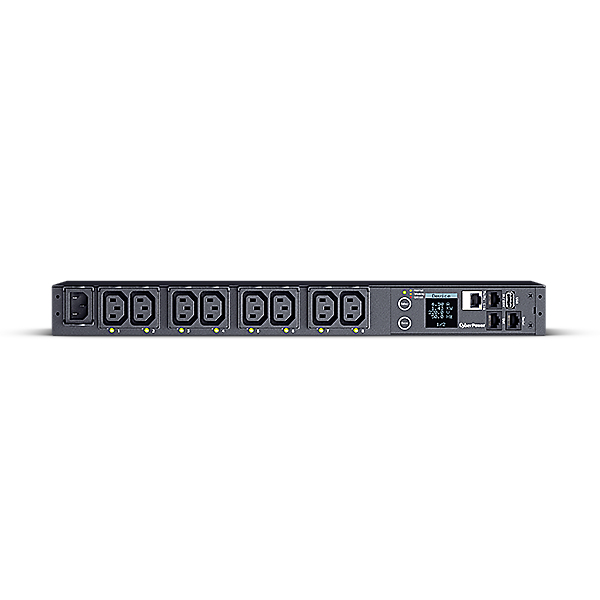

Name: CyberPower 1U Switched ePDU 16Amp input/output -(PDU41005)- 8x IEC-320 C13 outlet - 2 Yr WTY
Brand: CyberPower
SKU: 1180986
Price: 827 AUD
Availability: InStock

Description

General Type: Switched Phase: Single Phase Input Nominal Input Voltage (Vac): 100 ~ 240 Input Frequency (Hz): 50 / 60 Maximum Input Current (A): 16 Input Connector Type: IEC C20 x 1 Power Cord Length (ft.): 10 Power Cord Length (m.): 3.05 Output Output Voltage (V): Depends on Input Outlets - # of Bank(s) (Bank): 1 Outlet(s) - Total: 8 Outlet(s) - Front: 8 Outlet Type: IEC C13 x 8 Remote Individual Outlet Control: Yes Physical Installed Rack Height (U):1 Form Factor: 1U Vertical Rackmount , 1U Horizontal Rackmount Enclosure Construction: Steel Color: Black Cord Retention Tray: Yes IEC Receptacle Locking: Yes External Site Ground Pin: Yes Adjustable Mounting Brackets: 2 Set (L-short, L-long) Physical Size Dimensions (WxHxD) (mm.): 433 x 44 x 112 Weight (kg.): 2.1 Environmental High Temperature Operation: Yes Operating Temperature (Â°F): 32 ~ 131 Operating Temperature (Â°C): 0 ~ 55 Operating Relative Humidity (Non-condensing) (%): 0 ~ 95 Operating Elevation (feet/meters)

Tech specs

Form factor	1U

Full specification

Specifications:

Nominal Input Voltage ( Vac ): 100 - 240
Input Frequency ( Hz ): 50 / 60
Maximum Input Current ( A ): 16
Input Connector Type: IEC C20 x 1
Power Cord Length: 3.05m
Output Voltage ( V ): Depends on Input
Idle Power Consumption ( W ): < 5
Outlet(s) - Total: 8
Outlet Type: IEC C13 x 8
Remote Individual Outlet Control: Yes
LCD Information Display: Input Voltage (Volts), Input Frequency (Hz), Current Level (Amps), Power Consumption (Kilowatts), Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version
Hot-swappable LCD Module: Yes
Auto LCD Orientation: Yes
LCD Setting & Control: Outlet Control, LCD Settings, Reset / Reboot
LED Indicators: PDU Status, Tx/Rx, Link, Outlet
Outlet Metering Capability: ± 1%
A-type USB Port: Yes
Connectivity Port: RJ45, RJ45 (for Serial), RJ45 (for ENVIROSENSOR/ Daisy Chain (In)), RJ45 (for Daisy Chain (Out))
Environmental Sensor Supported: Yes
User-upgradeable Firmware: Yes
Power Management Software: PowerPanel Business (Recommended for small-medium scale management), PowerPanel Enterprise (Recommended for large scale management)
Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog
Authentication: RADIUS, LDAP, LDAPS, Windows AD
Installed Rack Height (U): 1
Form Factor: 1U Vertical Rackmount, 1U Horizontal Rackmount
Enclosure Construction: Steel
Cord Retention Tray: Yes
IEC Receptacle Locking: Yes
External Site Ground Pin: Yes
Adjustable Mounting Brackets: 2 Set (L-short | L-long)
Dimensions: 433 x 44 x 112mm
Weight: 2.1kg
Certifications: CE | FCC Class A | UL60950 | UL62368 | EN 55032 Class A
RoHS: Yes

Features:

Real-time Local/Remote Monitoring and Switching
Work under High Temperature
±1% Measurement Accuracy
Digital Real-time Load Display
Hot-swappable LCD Design
LED Status Indicator
Supports ENVIROSENSOR
PowerPanel Management Software
Cord Retention Tray
Controllable Receptacles with Power Sequencing
Ultra Low Power Consumption
Industrial-grade Metal Housing
User Configurable Color LCD
Rotatable LCD for Proper Display Orientation
Firmware Upgrade via USB
User-upgradeable Firmware
Adjustable Mounting Brackets
IEC Receptacle Locking
