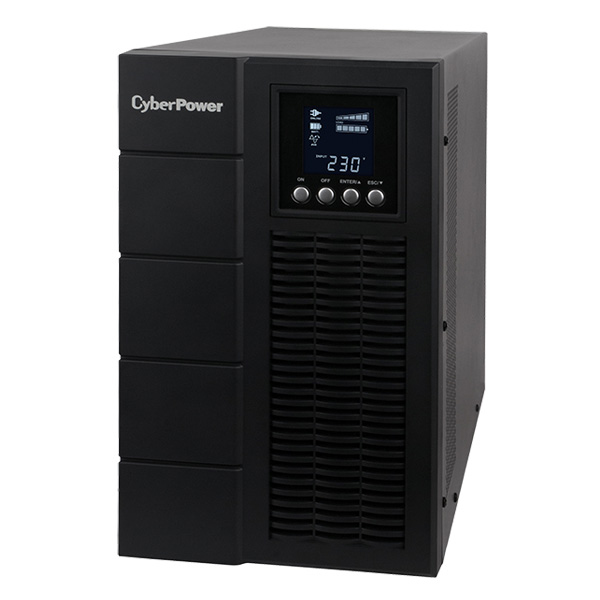

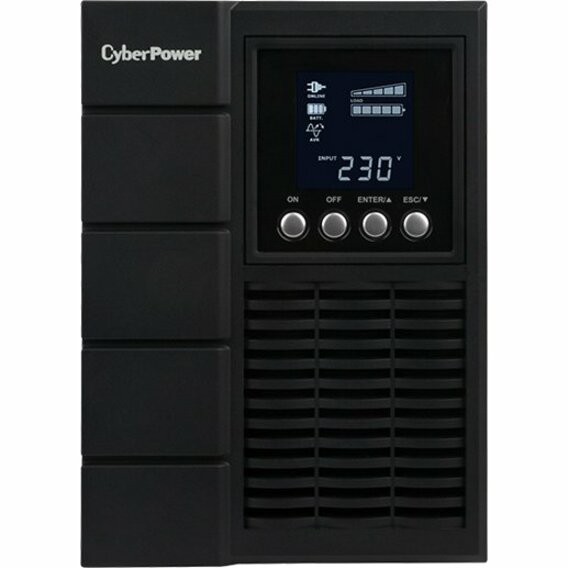

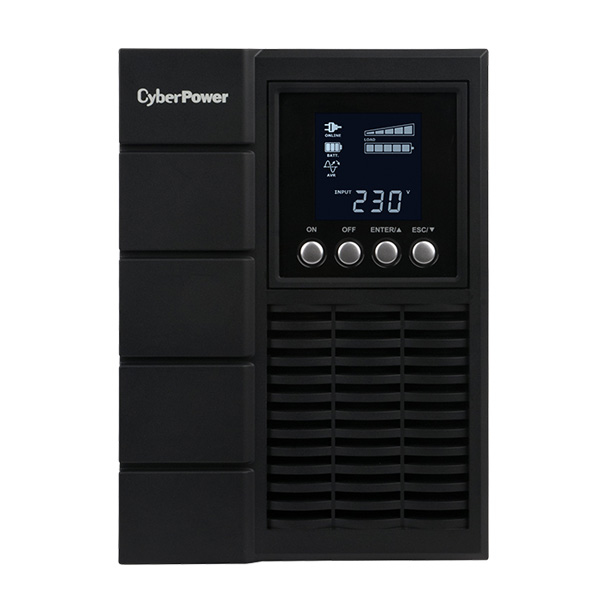

ONLINE S 1000VA/900W TWER UPS 2 YRS WTY

Specifications:

• Phase: Single Phase
• Form Factor: Tower
• UPS Topology: Online Double Conversion
• Energy Saving Technology: Online ECO Mode Efficiency > 95%
• Active PFC Compatibility: Yes
• Generator Compatibility: Yes
• Nominal Input Voltage ( Vac ): 230 ± 10%
• Input Voltage Range ( Vac ): 160 - 300
• Adjustable Voltage Range ( Vac ): 0-50% Load for 110 - 300 Vac | 0-60% Load for 120 - 300 Vac | 0-80% Load for 140 - 300 Vac | 0-100% Load for 160 - 300 Vac
• Input Frequency ( Hz ): 50 ± 10 | 60 ± 10
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 4.5
• Input Power Factor: 0.98
• Input Connector Type: IEC C14
• Power Cord Length (m.): 1.8
• Output Capacity (Watts): 900
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage(s) ( Vac ): 208 ± 1% | 220 ± 1% | 230 ± 1% | 240 ± 1%
• Output Voltage Setting: Configurable
• On Battery Frequency ( Hz ): 50 ± 0.5% | 60 ± 0.5%
• Output Frequency Setting: Configurable
• Power Factor: 0.9
• ECO Mode Voltage Tolerance: ± 15 %
• Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
• Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately
• Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately
• Overload Protection (Bypass Mode): >130% Load Immediately
• Crest Factor: 3 : 1
• Harmonic Distortion (Linear Load): THD 3%
• Harmonic Distortion (Non-linear Load): THD 5%
• Internal Bypass: Automatic Bypass, Manual Bypass
• Outlet(s) - Total: 4
• Outlet Type: IEC C13 x 4
• Outlet(s) - Battery & Surge Protected: 4
• Typical Transfer Time ( ms ): 0
• Runtime at Half Load ( min ): 15
• Runtime at Full Load ( min ): 5
• Typical Recharge Time ( Hours ): 5
• Maximum Charging Current ( A ): 1
• Start On Battery: Yes
• Smart Battery Management (SBM): Yes
• User-replaceable: No
• Battery Type: Sealed Lead-acid
• Compatible Extended Battery Module (EBM): BPSE36V45A
• Max. EBM Quantity ( pcs ): 3
• Surge Suppression ( Joules ): 440
• EMI/RFI Filtration: Yes
• Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
• LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
• LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting
• HID Compliant USB Port(s): 1
• Emergency Power Off (EPO) Port: Yes
• Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
• Management Cable ( pcs ): Power Cord x2, USB Cable x1, Phone Line x1
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• Enclosure Construction: Metal
• Dimensions: 151 x 225 x 394mm
• Weight: 13.1kg
• Certifications: CE, RCM

Features:

• Online (Double Conversion) UPS Topology
• Generator Compatible
• Zero Transfer Time
• Extended Battery Module (EBM)
• EMI and RFI Filtration
• LCD Status Display
• PowerPanel Management Software
• ECO Mode
• Overload Protection
• Smart Battery Management (SBM)
• Surge and Spike Protection
• Phone/Fax/Modem/DSL/Network Protection
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)
