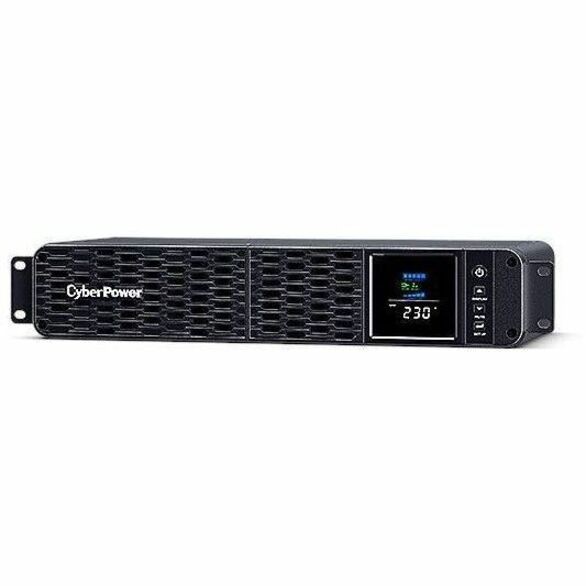

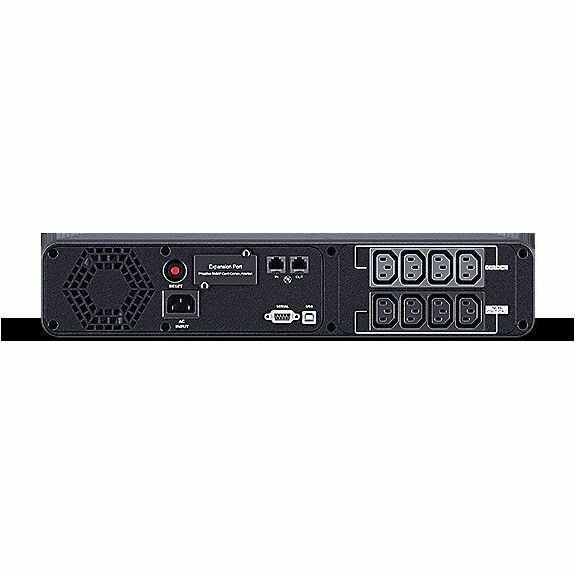

CyberPower PFC Sinewave Short-Depth Series 1200VA / 720W Rackmount - 2U -(CP1200EIPFCRM2U) 12V/7Ah*2, 6x IEC C13, 2 Yrs Adv. Rep. WTY Incl. internal Battery.

Features

• Line-interactive UPS Topology
• Active PFC Compatible
• Automatic Voltage Regulation (AVR)
• Critical/Non-critical Load Outlets
• Color LCD Panel
• USB Connectivity Port
• PowerPanel Management Software
• Surge and Spike Protection
• Network Protection
• Energy Saving Technology
• Pure Sine Wave Output
• Overload Protection
• Hot-swappable Batteries
• LED Status Indicator
• High-speed Ethernet Data Transmission
• SNMP/HTTP Remote Management Capability (Optional)
• EMI and RFI Filtration
• Short-depth Chassis Design

Specifications

General

• Phase: Single Phase
• Form Factor: Rackmount
• UPS Topology: Line-interactive
• Energy Saving Technology: GreenPower UPS™ Bypass Technology
• Active PFC Compatibility: Yes

Input

• Nominal Input Voltage: 230 Vac
• Input Voltage Range: 169 ~ 271 Vac
• Input Frequency: 50 ± 3 Hz / 60 ± 3 Hz (Auto-sensing)
• Rated Input Current: 10 A
• Input Connector Type: IEC C14
• Detachable Power Cord Plug Type: IEC C14 x1
• Power Cord Length: 6 ft (1.8 m)

Output

• Capacity: 1200 VA / 720 W
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage: 230 ± 5%
• On Battery Frequency: 50 ± 1% / 60 ± 1%
• Power Factor: 0.6
• Automatic Voltage Regulation: Single Boost
• Overload Protection: Internal Current Limiting, Circuit Breaker
• Outlets Total: 8 (IEC C13)
• Battery & Surge Protected: 8
• Surge-Only Protected: 0
• Critical Load (CL): 4
• Non-critical Load (NCL): 4

Battery

• Runtime at Half Load: 11.6 min
• Runtime at Full Load: 3.4 min
• Typical Recharge Time: 8 hours (90% recovery)
• User-replaceable: Yes
• Hot-swappable: Yes
• Battery Type: Sealed Lead-acid
• Battery Cartridge: RBP0181 (1 pc)

Surge Protection & Filtering

• Surge Suppression: 900 Joules
• EMI/RFI Filtration: Yes
• Network Protection RJ45: 1-in, 1-out

Management & Communications

• LCD Panel: Color LCD (Power, Battery, Load, Fault & Warning)
• LCD Settings: Alarm, Input & Output
• LED Indicators: Power On
• USB Port: 1 (HID Compliant)
• Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
• Management Cable: Power Cord x1, USB Cable x1
• Ethernet Data Transmission Speed: Up to 1Gbps
• Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Optional (RMCARD205)
• Cloud Service: PowerPanel (90 Days Free Trial)

Physical

• Enclosure: Plastic
• Color: Black
• Rackmount Ears: Yes
• Size (UPS Module): 433 x 86 x 274 mm
• Weight: 11.59 kg
• Shipping Dimensions: 523 x 162 x 374 mm
• Shipping Weight: 12.86 kg

Environmental

• Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
• Operating Humidity: 0 ~ 95% (Non-condensing)
• Operating Elevation: 0–3,000 m (0–9,843 ft)
• Storage Temperature: -15 ~ 45 °C (5 ~ 113 °F)
• Storage Humidity: 0 ~ 95% (Non-condensing)
• Storage Elevation: 0–15,000 m (0–49,213 ft)
• Online Thermal Dissipation: 17.1 BTU/hr

Certifications

• CE
• RoHS Compliant
