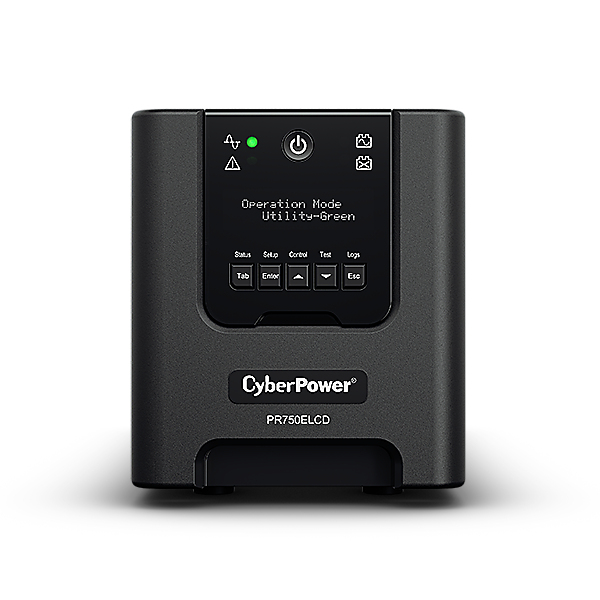

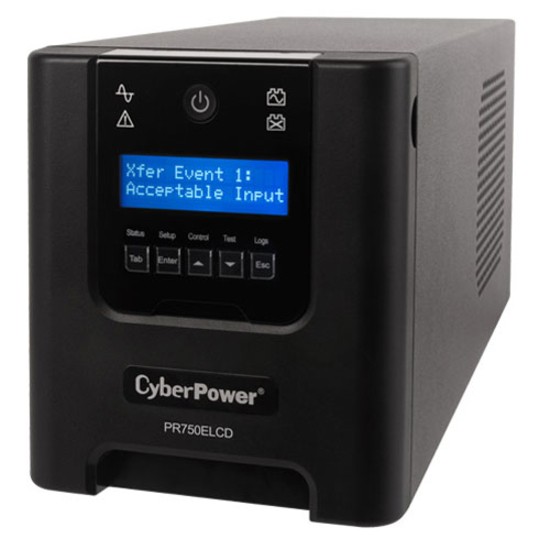

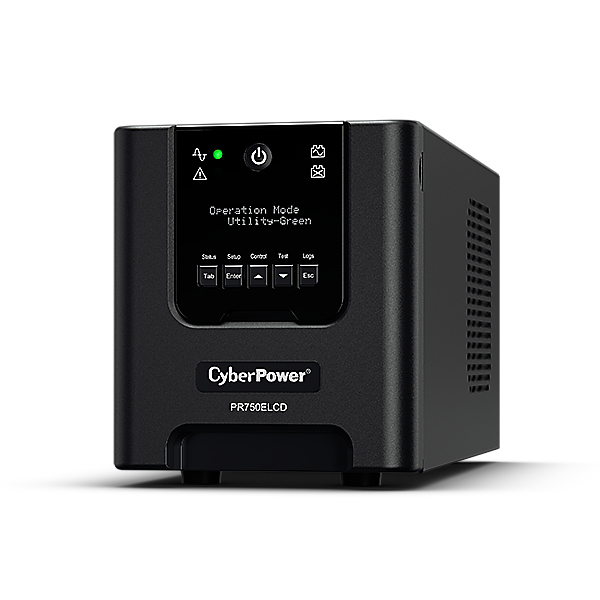

CP Smart App Tower 750VA UPS

Specifications:

• Phase: Single Phase
• Form Factor: Tower
• UPS Topology: Line-interactive
• Energy Saving Technology: GreenPower UPS Bypass Technology
• Energy Star Qualified: Yes
• Active PFC Compatibility: Yes
• Nominal Input Voltage ( Vac ): 230
• Input Voltage Range ( Vac ): 151 - 301
• Input Frequency ( Hz ): 50 ± 3 | 60 ± 3
• Input Frequency Detection: Auto-sensing
• Rated Input Current ( A ): 10
• Input Connector Type: IEC C14
• Detachable Power Cord Plug Type: AU x 1 | IEC C14 x 1
• Power Cord Length: 1.83m
• Capacity (VA): 750
• Capacity (Watts): 675
• On Battery Waveform: Pure Sine Wave
• On Battery Voltage(s) ( Vac ): 230 ± 5 %
• On Battery Frequency ( Hz ): 50 ± 1% | 60 ± 1%
• Power Factor: 0.9
• Automatic Voltage Regulation (AVR): Double Boost | Single Buck
• Overload Protection: Internal Current Limiting
• Outlet(s) - Total: 6
• Outlet Type: IEC C13 x 6
• Outlet(s) - Battery & Surge Protected: 6
• Typical Transfer Time ( ms ): 4
• Runtime at Half Load ( min ): 10.5
• Runtime at Full Load ( min ): 2.5
• Typical Recharge Time ( Hours ): 8
• Quick Recharge Time ( Hours ): 3
• Start On Battery: Yes
• User-replaceable: Yes
• Hot-swappable: Yes
• Battery Cartridge (RBP): RBP0014
• Battery Cartridge (RBP) Quantity ( pcs ): 1
• Surge Suppression ( Joules ): 405
• EMI/RFI Filtration: Yes

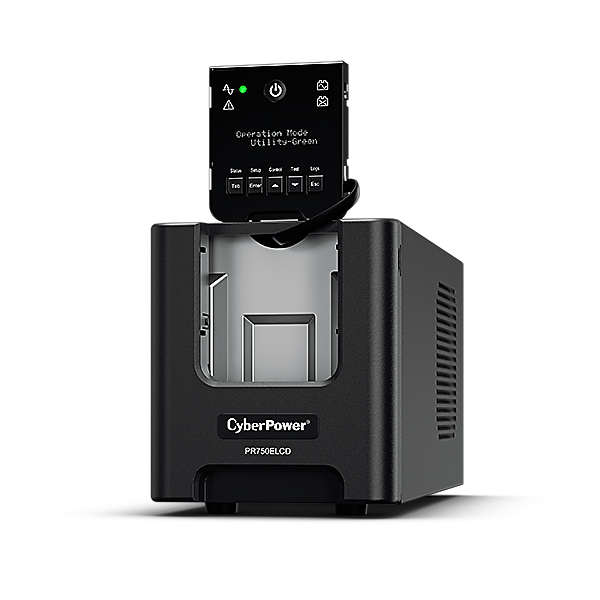

• LCD Type: Detachable LCD Panel
• LCD Information Display: Operation Type | Power Status | Battery Status | Load Status | Fault & Warning | Other Information | Event & Log
• LCD Setting & Control: Mode Setting | Alarm Setting | Input & Output | Battery Setting | Fault & Warning | Event & Log
• LED Indicators: Power On | Line Mode | Battery Mode | UPS Fault | Replace Battery
• HID Compliant USB Port(s): 1
• Emergency Power Off (EPO) Port: Yes
• Audible Alarms: Battery Mode | Low Battery | Overload | UPS Fault
• Management Cable ( pcs ): Power Cord x2 | USB Cable x1 | EPO Cable x1
• Power Management Software: PowerPanel Business (Recommended)
• SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
• Enclosure Construction: Metal
• Dimensions: 136 x 162 x 349mm
• Weight: 12.3kg
• Certifications: CE | EAC | RCM | RoHS
• Warranty: 3 Years

Features:

• Line-interactive UPS Topology
• Active PFC Compatible
• Automatic Voltage Regulation (AVR)
• Hot-swappable Batteries
• EMI and RFI Filtration
• Detachable LCD Panel
• Emergency Power Off (EPO) Port
• SNMP/HTTP Remote Management Capability (Optional)
• Energy Saving Technology
• Pure Sine Wave Output
• Overload Protection
• Surge and Spike Protection
• LCD Status Display
• USB Connectivity Port
• PowerPanel Management Software
• Tower Form Factor

What's in the box?

• 1 x PR750ELCD UPS
• 1 x Power Cord
• 1 x USB Cable
• 1 x EPO Cable
• 1 x User Manual
