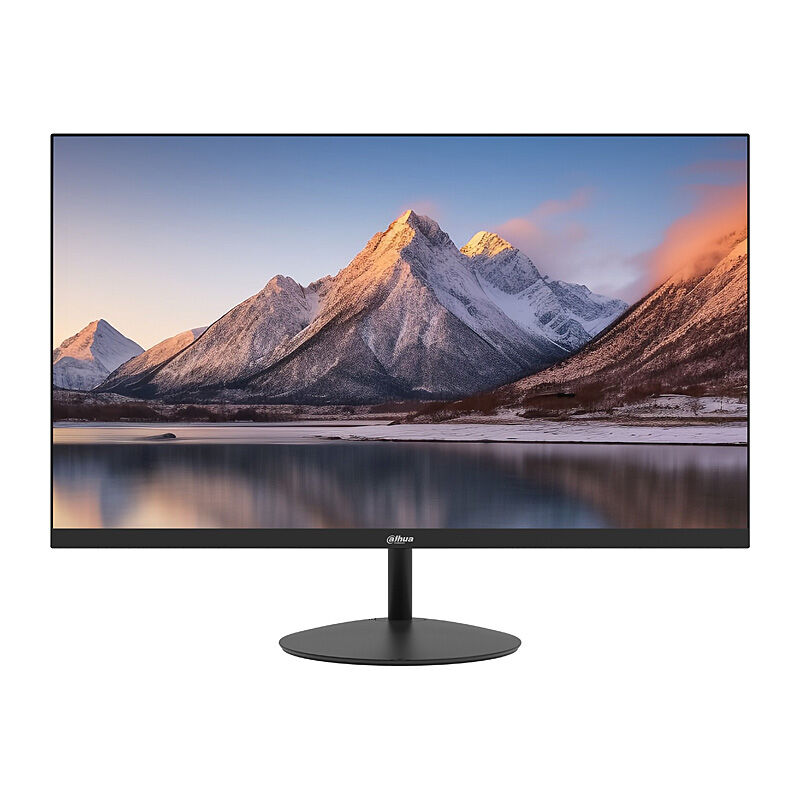

DAHUA A200Y 21.5'' VA Monitor

Features

• Ultra‑narrow bezel with an elegant, modern appearance and durable plastic base
• 178°H / 178°V extra‑wide viewing angle for superior overall visibility
• High‑fidelity digital processing delivers brilliant, vivid video performance
• Supports multiple signal inputs including HDMI and VGA
• 100Hz high refresh rate to eliminate picture lag and motion blur

Specifications

• Model: DHI-LM22-A200Y
• LCD Technology: VA panel with ELED backlight
• Screen Size: 21.45 inch
• Aspect Ratio: 16:9
• Viewing Size: 478.656 mm (H) × 260.28 mm (V)
• Viewing Angle: 178° (H) / 178° (V)
• Display Mode: Horizontal
• Pixel Pitch: 0.2493 mm × 0.241 mm
• Pixels Per Inch: 102.69
• Resolution: 1920 × 1080 (Full HD)
• Refresh Rate: 100 Hz
• Display Color: 8‑bit
• Color Gamut: 72% NTSC (typ.)
• Brightness: 250 cd/m²
• Contrast Ratio: 3000:1
• Response Time: 10 ms
• Lifespan: 30,000 hours

Device Ports

• 1 × VGA (1080p@60 Hz)
• 1 × HDMI 1.4 (1080p@100 Hz)

Power & Environmental Conditions

• Power Supply: 12 VDC, 2 A
• Power Type: External power adapter
• Power Consumption: 14 W (basic), 16 W (typ.), 16 W (max)
• Standby Power: <0.5 W
• Operating Temperature: 0 °C to +40 °C
• Operating Humidity: 10%–90% RH
• Storage Temperature: –20 °C to +60 °C
• Storage Humidity: 5%–90% RH

General

• Inclined Angle: -5°±2° / 15°±2°
• Product Dimensions (W × H × D): 492.7 mm × 284.0 mm × 41.2 mm (without wall mount)
• Package Size: 598 mm × 366 mm × 99 mm
• Unilateral Splicing (U/L/R/D): 3.3 mm / 3.3 mm / 3.3 mm / 15.2 mm
• Net Weight: 2.05 kg
• Gross Weight: 2.86 kg
• Casing Color: Black
• Control Mode: Five‑button
• Wall Mount VESA: 75 mm × 75 mm

Accessories

• Included: Power adapter, base, HDMI cable, user’s manual (QR code), legal & regulatory info
• Optional: Wall mount

Certification

• CE EMC
• CE LVD
• CE ERP
