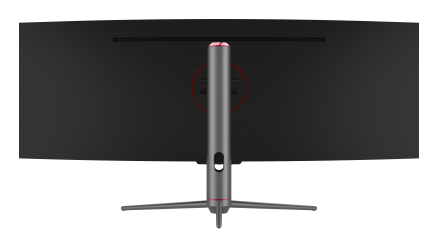

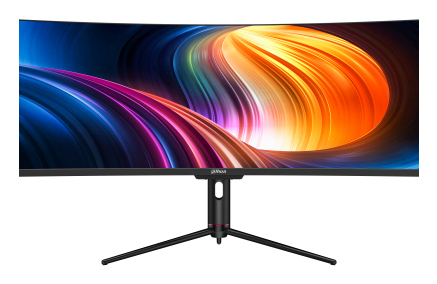

DAHUA EW410CA 49'' VA Monitor

Features

• DQHD resolution with a 32:9 ultra‑wide screen provides a broader field of view, ideal for displaying game maps and business reports
• 1800R curvature delivers an immersive visual experience with enhanced depth
• Wide color gamut with 99% sRGB and 85% NTSC, plus ?E < 2 color accuracy for rich, accurate visuals
• USB‑C port enables easy connection to laptops, smartphones, and tablets, supporting seamless screen sharing and up to 65 W power delivery
• RJ‑45 port supports network signal transmission for devices without Ethernet ports
• Picture‑by‑Picture (PBP) allows two input signals to be displayed simultaneously for multitasking and entertainment
• Blue light mode helps reduce eye strain for a more comfortable viewing experience
• Ergonomic stand supports horizontal adjustment and forward/backward tilt for personalized comfort

Specifications

• Model: DHI-LM49-EW410CA
• LCD Technology: VA
• Backlight: ELED
• Curved Screen: Yes
• Curvature: 1,800 R
• Screen Size: 49 inch
• Aspect Ratio: 32:9
• Viewing Size: 1,191.936 (H) × 335.232 (V) mm
• Screen-to-Body Ratio: ≥90%
• Viewing Angle: 178° (H) / 178° (V)
• Display Mode: Horizontal
• Pixel Pitch: 0.2382 mm × 0.2382 mm (0.01" × 0.01")
• Pixels Per Inch: 108.54
• Resolution: 5120 (H) × 1440 (V)
• Refresh Rate: 120 Hz
• Display Color: 8 bit
• Color Gamut: 85% NTSC
• Brightness: 400 cd/m² (max)
• Contrast Ratio: 3000:1
• Response Time: MPRT 1 ms
• Lifespan: 30,000 hrs
• Surface Treatment: Haze 25%, 3H
• Flicker-free Technology: Yes
• Low Blue Light: Yes
• HDR: Yes

Device Ports

• Input: 1 × DP 1.4 (5120 × 1440@120 Hz), 1 × HDMI 2.1 TMDS (5120 × 1440@60 Hz), 1 × Type‑C (5120 × 1440@120 Hz)
• Output: 1 × Audio out
• External Control: 1 × RJ‑45, 1 × USB 2.0‑B (Upstream), 2 × USB 2.0‑A (Downstream)
• Speaker: 2 × 3 W

Power & Environmental Conditions

• Power Supply: 100–240 VAC (±10%), 50/60 Hz
• Power Type: Built‑in Power
• Power Consumption: 42 W (basic), 72 W (typ.), 180 W (max)
• Standby Power Consumption: <0.5 W
• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Operating Humidity: 10%–85% RH
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Storage Humidity: 5%–90% RH, non‑condensing

General

• Inclined Angle: -5° ± 2° / 15° ± 2°
• Left and Right Rotation Angle: -15° / +15°
• Height Adjustment: 95 ± 5 mm (3.74" ± 0.20")
• Product Dimensions (W × H × D): 1,198.5 mm × 375.6 mm × 160.2 mm (47.19" × 14.79" × 6.31"), without wall‑mount bracket
• Package Size (W × H × D): 1,305 mm × 486 mm × 284 mm (51.38" × 19.13" × 11.18")
• Frame Width (U/L/R/D): 3.2 mm / 3.3 mm / 3.3 mm / 17.6 mm (0.13" / 0.13" / 0.13" / 0.69")
• Net Weight: 11.5 kg (25.35 lb)
• Gross Weight: 15.6 kg (34.39 lb)
• Casing Color: Black
• Control Mode: Five‑button
• Wall Mount VESA: 75 mm × 75 mm (2.95" × 2.95")

Accessory

• Base
• Power cord
• DP cable
• Type‑C cable
• User's manual (QR code)
• QSG
• Legal and regulatory information

Optional Accessory

• Wall mount

Certification

• CE EMC
• CE LVD
• CE ERP
