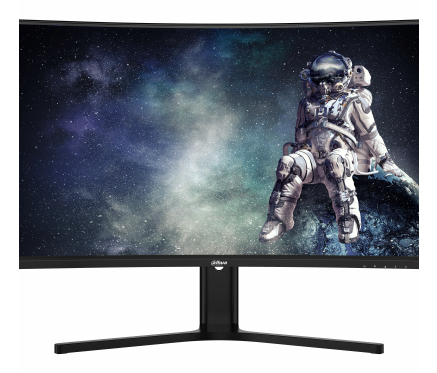

DAHUA E330CA 32'' VA Monitor

Features

• R1500 curved screen delivers a more immersive and impactful visual experience
• 180 Hz high refresh rate and 1 ms fast response time help capture every gaming moment and improve winning potential
• Adaptive Sync technology reduces image tearing and lag for smoother visuals
• Wide color gamut with 85% NTSC coverage, providing rich image texture suitable for designers
• 1 ms fast response time eliminates blurring and ghosting
• Adjustable angle design to meet different viewing needs

Specifications

• Model: DHI-LM32-E330CA
• LCD Technology: VA
• Backlight: ELED
• Curved Screen: Yes
• Curvature: 1,500 R
• Screen Size: 31.5 inch
• Aspect Ratio: 16:9
• Viewing Size: 697.344 (H) × 392.256 (V) mm
• Screen-to-Body Ratio: ≥85%
• Viewing Angle: 178° (H) / 178° (V)
• Display Mode: Horizontal
• Pixel Pitch: 0.2724 mm × 0.2724 mm
• Pixels Per Inch: 93.2
• Resolution: 2560 (H) × 1440 (V)
• Refresh Rate: 180 Hz
• Display Color: 8 bit
• Color Gamut: 85% NTSC
• Brightness: 300 cd/m² (typ.)
• Contrast Ratio: 3000:1
• Response Time: MPRT 1 ms
• Lifespan: 30,000 hrs
• Surface Treatment: Haze 40%, 3H
• Flicker-free Technology: Yes
• Low Blue Light: Software blue light protection
• HDR: HDR10

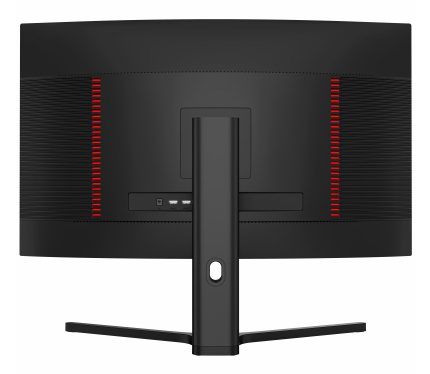

Device Ports

• Input: 2 × HDMI 2.0 (2560 × 1440@144 Hz), 2 × DP 1.4 (2560 × 1440@180 Hz)
• Output: 1 × Audio out

Power & Environmental Conditions

• Power Supply: 19 VDC, 3.42 A
• Power Type: Power adapter
• Power Consumption: 32 W (basic), 46.5 W (typ.), 72 W (max)
• Standby Power Consumption: <0.5 W
• Operating Temperature: 0 °C to +40 °C (+32 °F to +104 °F)
• Operating Humidity: 10%–85% RH
• Storage Temperature: –20 °C to +60 °C (–4 °F to +140 °F)
• Storage Humidity: 5%–90% RH

General

• Inclined Angle: –5° / 15°
• Left and Right Rotation Angle: -35° / +35°
• Height Adjustment: 100 mm
• Product Dimensions (W × H × D): 717.7 mm × 422.4 mm × 118.3 mm (28.26" × 16.63" × 4.66"), without base
• Package Size (W × H × D): 954 mm × 523 mm × 183 mm (37.56" × 20.59" × 7.2")
• Unilateral Splicing (U/L/R/D): 3.8 mm / 3.8 mm / 3.8 mm / 17.2 mm
• Net Weight: 7.0 kg (15.43 lb)
• Gross Weight: 9.1 kg (20.06 lb)
• Casing Color: Black
• Control Mode: Five‑button
• RGB Light Effect: Back Cover – Seven colors
• Status Indicator Light: Yes
• Wall Mount VESA: 100 mm × 100 mm (3.94" × 3.94")

Accessory

• Power adapter
• Wall‑mount bracket
• DP cable
• User's manual
• Legal and regulatory information

Optional Accessory

• Wall mount

Certification

• CE EMC
• CE LVD
• CE ERP
