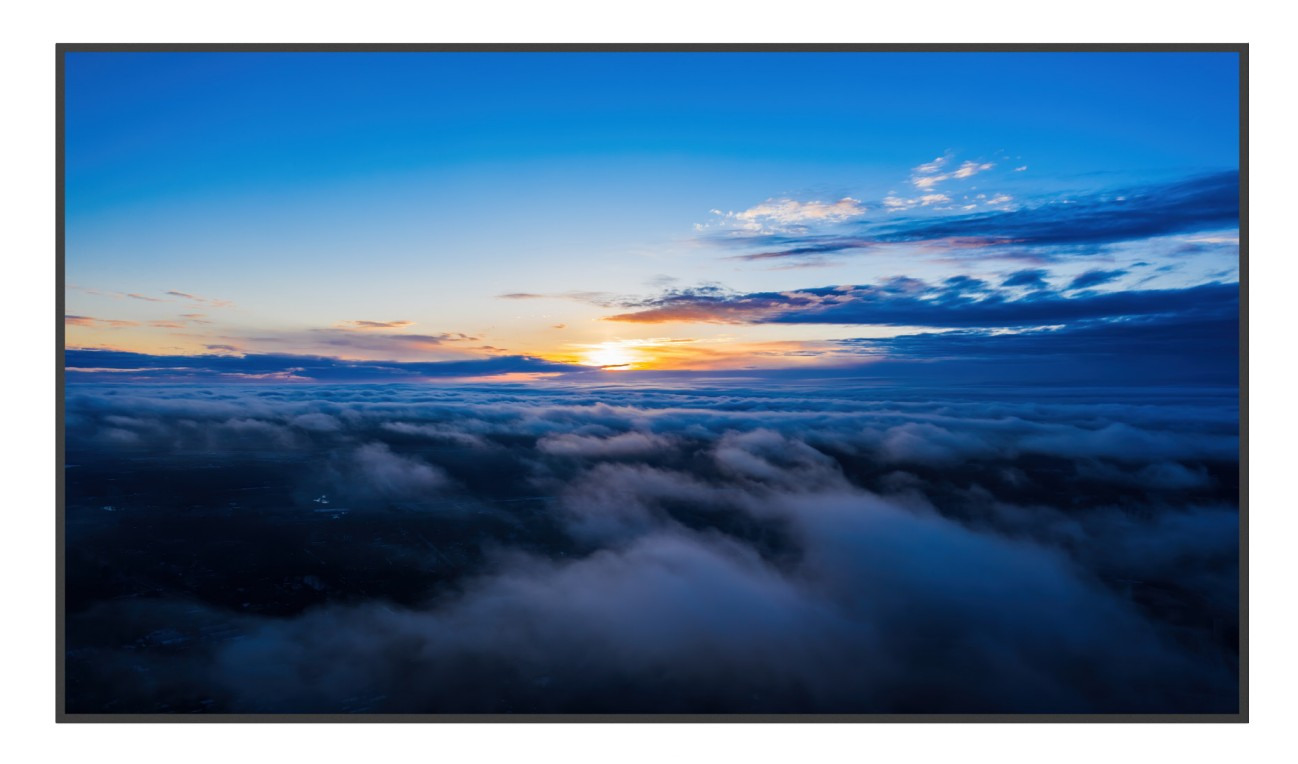

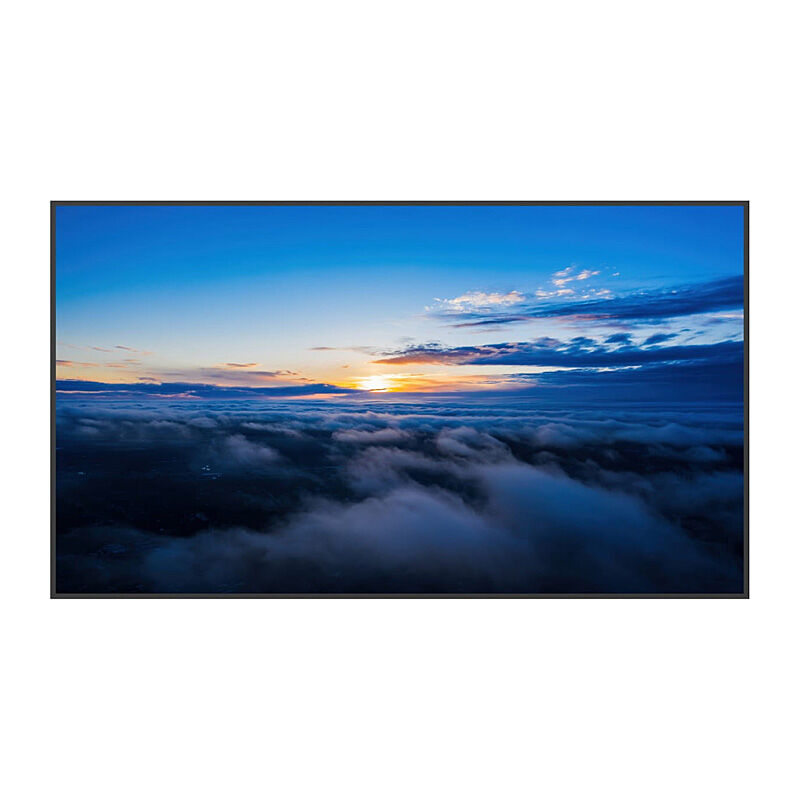

MAXHUB CMB Commercial 43''

Features

• 4K commercial‑grade display (43"–98") built for true 24/7 operation
• Ultra‑narrow bezel with durable, professional hardware for long‑term reliability
• Microsoft Teams Rooms–ready with seamless meeting‑room integration
• Instant BYOD sharing via USB‑C (65W) and wireless casting (AirPlay, Miracast, Chromecast)
• Professional color accuracy with 98% sRGB, HDR, and factory calibration
• Enterprise‑ready connectivity & control including triple HDMI, dual LAN, RS‑232, CEC, and Crestron/Extron/Q‑Sys certification

Specifications

Display

• Screen Size: 43"
• Aspect Ratio: 16:9
• Panel Type: ADS
• Brightness: 500 nits
• Haze: 25%
• Resolution: 3840 × 2160
• Refresh Rate: 60 Hz
• Contrast Ratio: 1,200:1
• Viewing Angle: 178° / 178°
• Color Gamut: 98% sRGB
• Display Orientation: Landscape / Portrait
• Operation Hour: 24/7
• Display Color: 1.07B (10‑bit)

Built‑in System

• Operating System: Android 14.0
• RAM: 4 GB
• ROM: 32 GB

Connectivity

• HDMI IN: ×3
• USB 2.0: ×1
• USB 3.0: ×1
• USB Type‑C: ×1
• Audio In: ×1
• Audio Out: ×1
• RS232: ×1
• RJ45 IN: ×1
• RJ45 OUT: ×1
• HDMI OUT: ×1
• SPDIF: ×1
• Wi‑Fi Module Slot: ×1
• Wi‑Fi: Wi‑Fi 6 supported
• Bluetooth: 5.2

Audio

• Sound Channel: 2.0
• Speaker Power: 2×12W (16W max)

Feature

• System OS: MAXHUB Signage OS V2

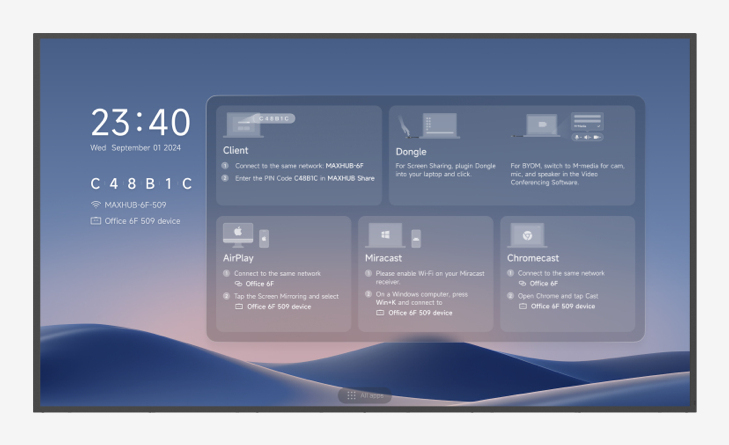

• Screen Share: MAXHUB Share, BYOD, Miracast, AirPlay, Chromecast
• Device Management: MAXHUB Pivot
• Special Features: Screen rotation; Auto input change; Play via URL; Wake on LAN; Color Calibration

Physical Specification

• Bezel Width: 9.9 mm
• Dimensions (W×H×D): 964.6 × 552.5 × 62 mm
• VESA: 200 × 200 mm

Power

• Energy Saving: 39 W
• Typical: 40 W
• Max: 105 W

Warranty

• 3 years
