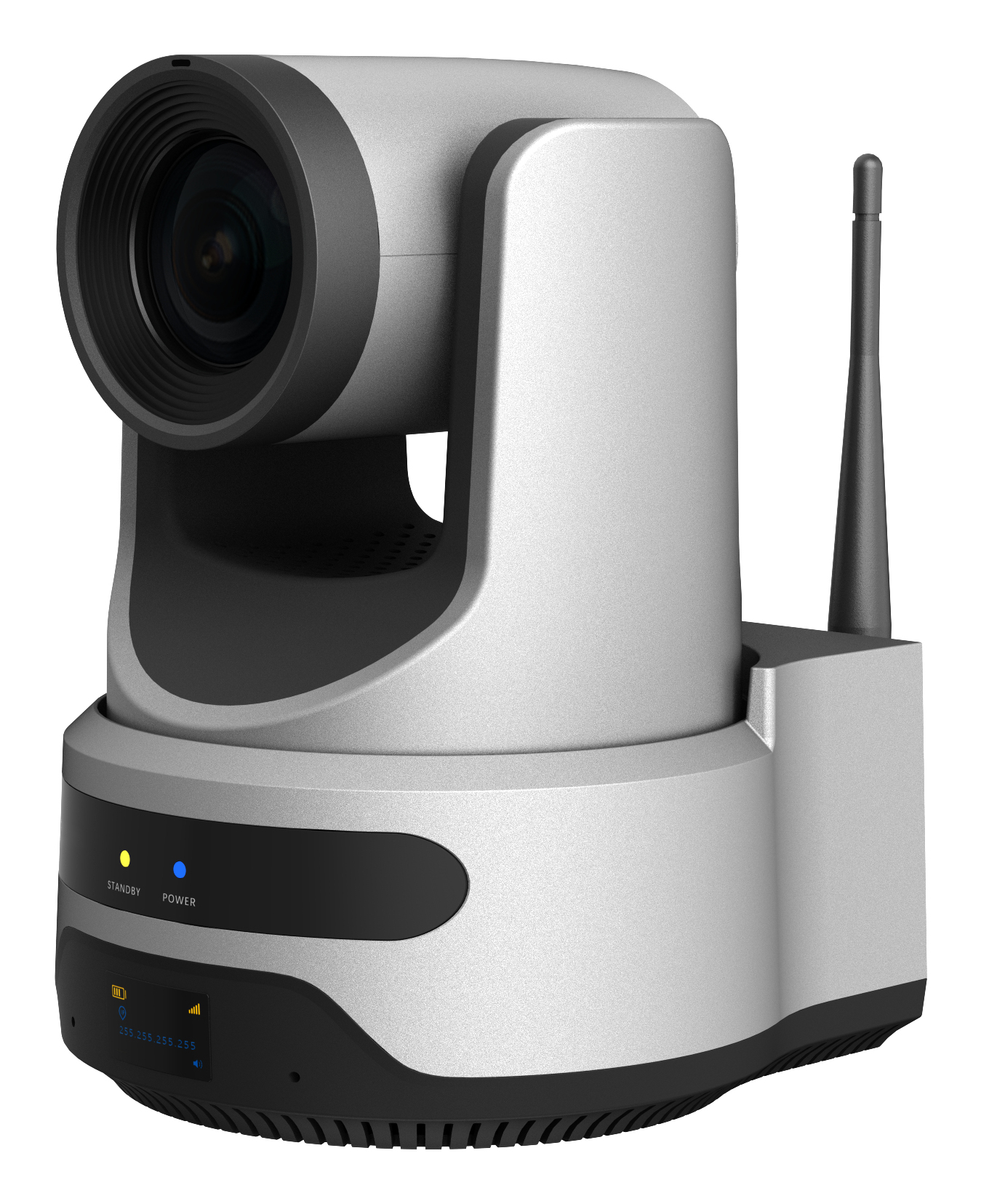

MAXHUB Mobile Capture PTZ

Features

• 40x Hybrid Zoom – Capture every detail clearly, even from a distance
• Long-lasting Battery Life – Designed for extended recording sessions
• Built-in Microphone – Integrated array microphone delivers clear, crisp audio within a 5 metre range
• Intelligent Presenter Tracking – Automatically follows the speaker to keep them in frame; simply click to select your target

Specifications

Camera

• Sensor Type: 1/2.8 inch, CMOS, 8.42 million pixels
• Scanning Method: Progressive
• Lens Focal Length: f = 6.25 mm ~ 125 mm, F1.58 ~ F3.95
• Auto Focus: Supported
• Zoom: 40x hybrid zoom, 20x optical zoom
• Minimum Illumination: 0.5 Lux @ (F1.8, AGC ON)
• Electronic Shutter: 1/30s ~ 1/10000s
• White Balance: Auto, indoor, outdoor, one-touch, manual, specified color temperature
• Digital Noise Reduction: 2D, 3D
• Signal to Noise Ratio: ≥ 55dB
• FOV: HFOV 60° ~ 3.5°, VFOV 35.7° ~ 2.0°
• Rotation Range: Horizontal ±170°, Vertical -30° ~ +90°
• Rotation Speed Range: Horizontal 2.7° ~ 35.7°/s, Vertical 2.7° ~ 31.5°/s
• Horizontal & Vertical Flip: Supported
• Features: Auto ICR, Backlight Compensation, Low Light Mode, Image Freeze
• Preset Positions: 255, Accuracy 0.1°

USB Features

• Supported Operating Systems: Windows7/8/10/11, Mac OS X, Linux, Android
• Color Space: YUY2 / MJPEG / H.264
• Video Format: YUY2 (2560×1440@30fps), MJPEG (3840×2160@30fps), H.264 AVC (3840×2160@30fps)
• USB Audio: Supported
• USB Video Communication Protocol: UVC 1.1
• UVC PTZ Control: Supported

Network Features

• Video Coding Standard: H.264 / H.265 / MJPEG
• Video Stream: First, Second Stream
• First Stream Resolution: 3840×2160, 1920×1080, 1280×720, 1024×576, 960×540, 640×480, 640×360
• Second Stream Resolution: 1920×1080, 1280×720, 1024×576, 720×576, 720×480, 720×408, 640×360, 480×270, 320×240, 320×180
• Video Bitrate: 32 Kbps ~ 102400 Kbps
• Bitrate Control: Variable Bitrate, Fixed Bitrate
• Frame Rate: 50Hz: 1–25 fps, 60Hz: 1–30 fps
• Audio Compression Standard: AAC
• Audio Bitrate: 96 Kbps, 128 Kbps, 256 Kbps
• Protocol Support: TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, UDP, etc.

I/O Port

• USB Type-C × 1
• USB 3.0
• HDMI Out × 1 (HDMI 1.4b)
• RJ45 × 1 — 10M/100M adaptive ethernet port
• Line In × 1 — 3.5 mm audio interface
• RS485 × 1 — 3-pin Phoenix connector, maximum distance: 1200 meters, VISCA/Pelco-D/Pelco-P protocol
• Power Port × 1 — JEITA type (DC In 12V)
• Button × 2 — Reset button, Power button

Electrical Parameters

• Input Voltage: DC 12V
• Input Current: 3.0A
• Battery: 9480 mAH (typ.)
• Power Consumption: 12W (max)

Physical Parameters

• Product Dimension (W × D × H): 295 × 245 × 254 mm
• Shipping Dimension (L × W × H):
  • 1 pc: 295 × 245 × 254 mm
  • 4 pcs: 615 × 515 × 273 mm
• Net Weight: 1.9 Kg
• Gross Weight:
  • 1 pc: 2.94 Kg
  • 4 pcs: 13.24 Kg

Accessories

• Power Adapter × 1
• Power Cable × 1
• Quick Start Guide × 1

Environmental Conditions

• Operating Temperature: -10°C ~ 40°C
• Storage Temperature: -40°C ~ 60°C
• Operating Humidity: 10% ~ 90% RH
• Storage Humidity: 10% ~ 90% RH
• Altitude: Below 5000 meters
