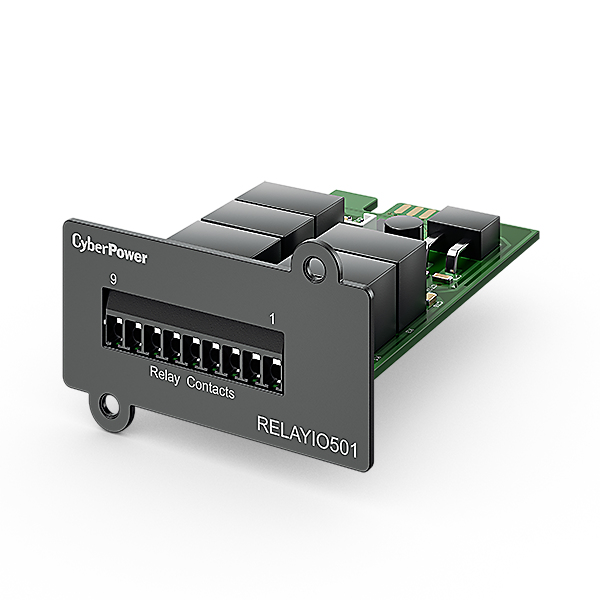

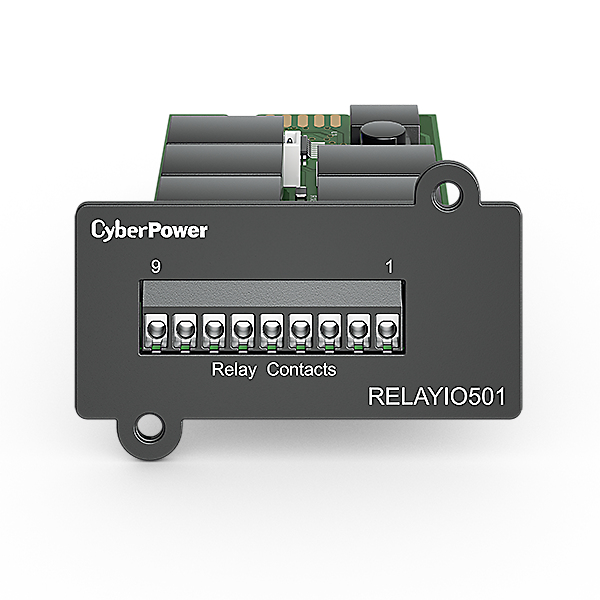

Relay control card with dry contact outputs
Multiple alert execution for power issues, UPS failures, overloads, over temperature
One input contact for remote UPS shutdown in battery mode
Dimensions: 54mm (W) x 76.5mm (D) x 36.1mm (H)
Weight: 52g
Power Dissipation: 1.35W max (12V input)
External S/D Voltage: 7.5V – 12V
Output Relay Rating: 30VDC / 125VAC, 3A per relay
Operating Temperature: 0°C – 40°C
Operating Humidity: 0% – 95% (non-condensing)
Certification: FCC B
Hot-swappable design
Installation via UPS expansion port
