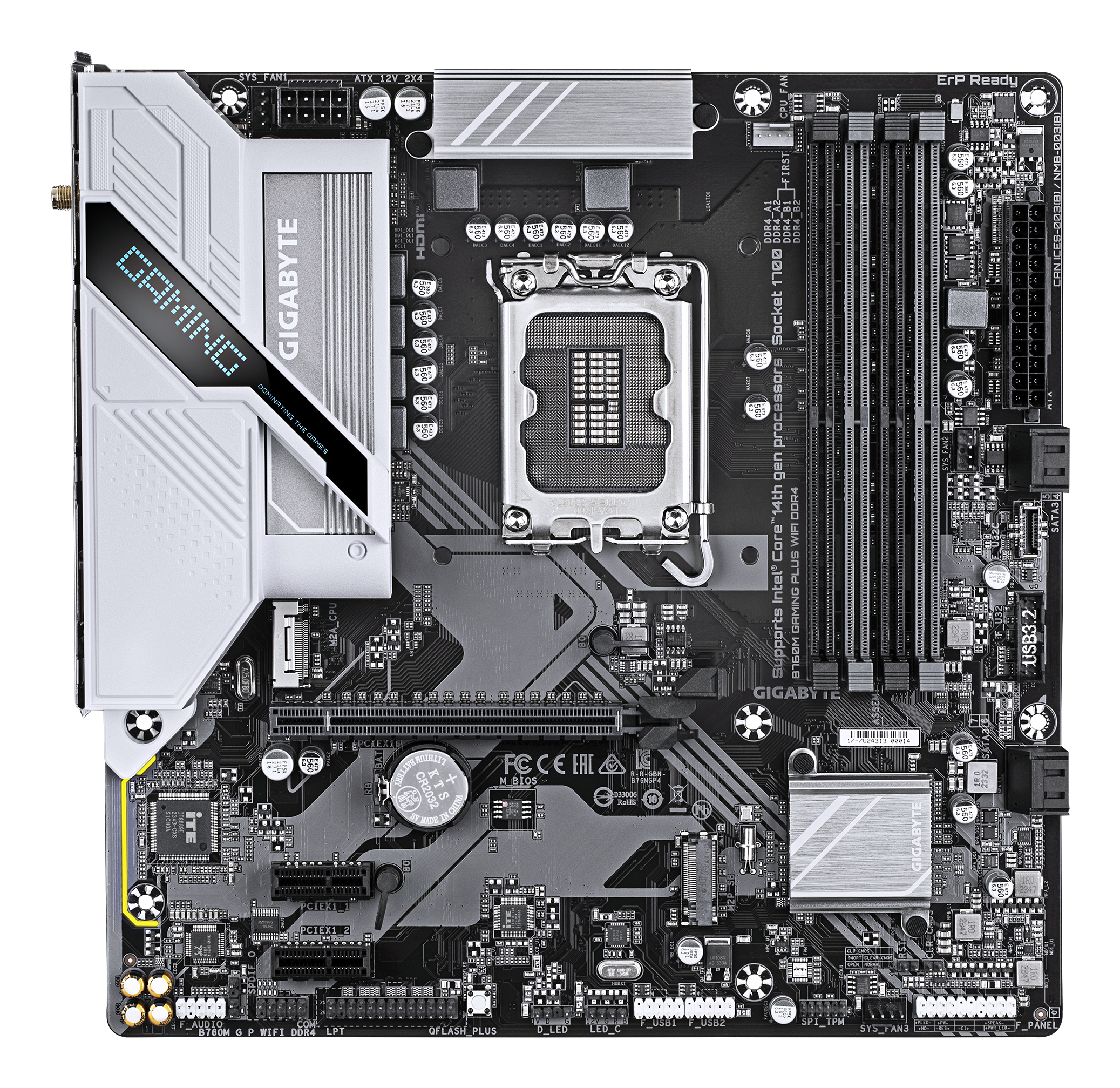

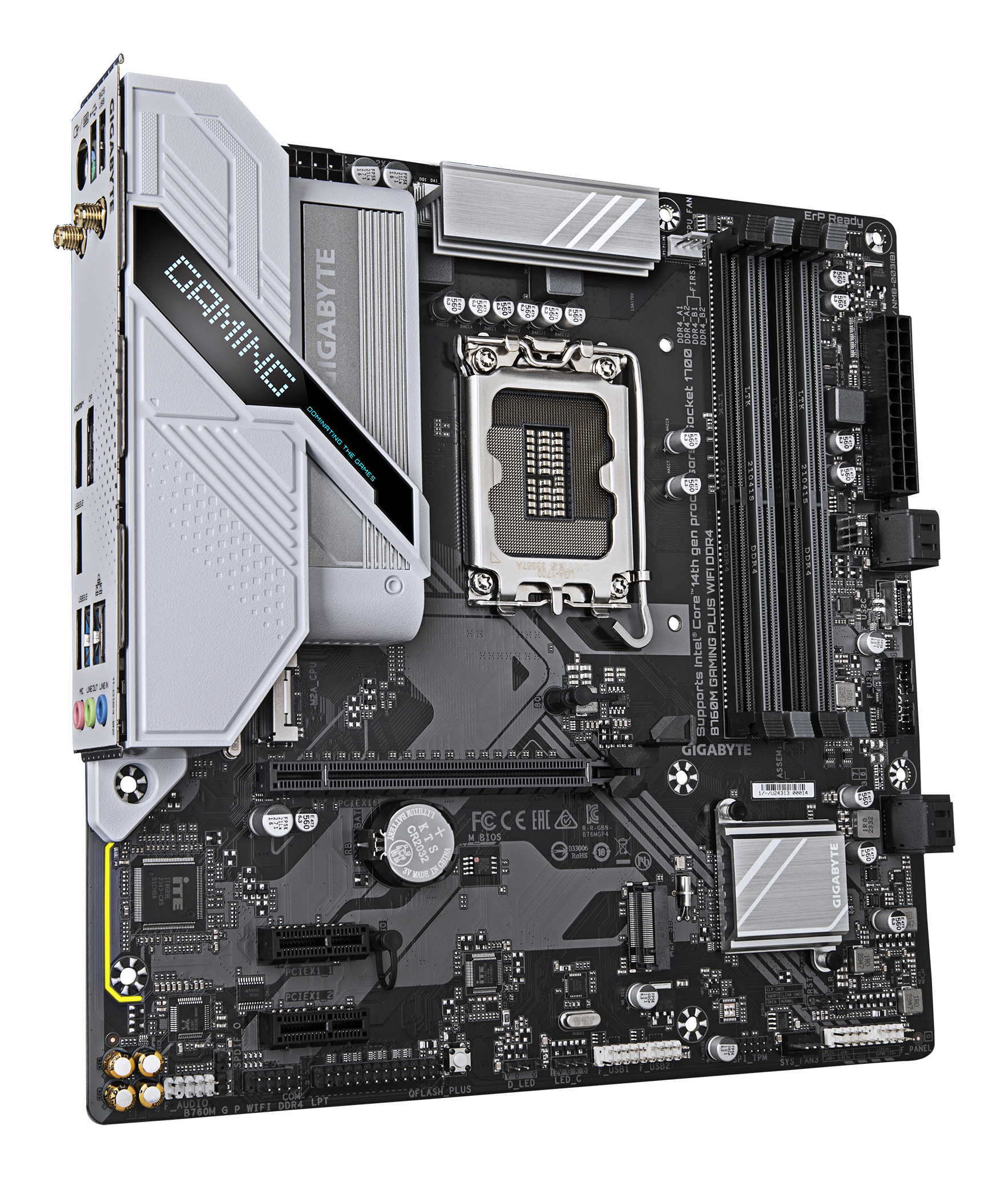

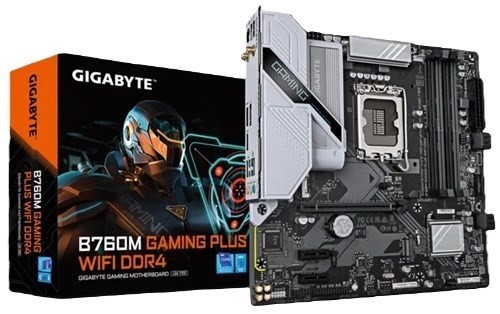

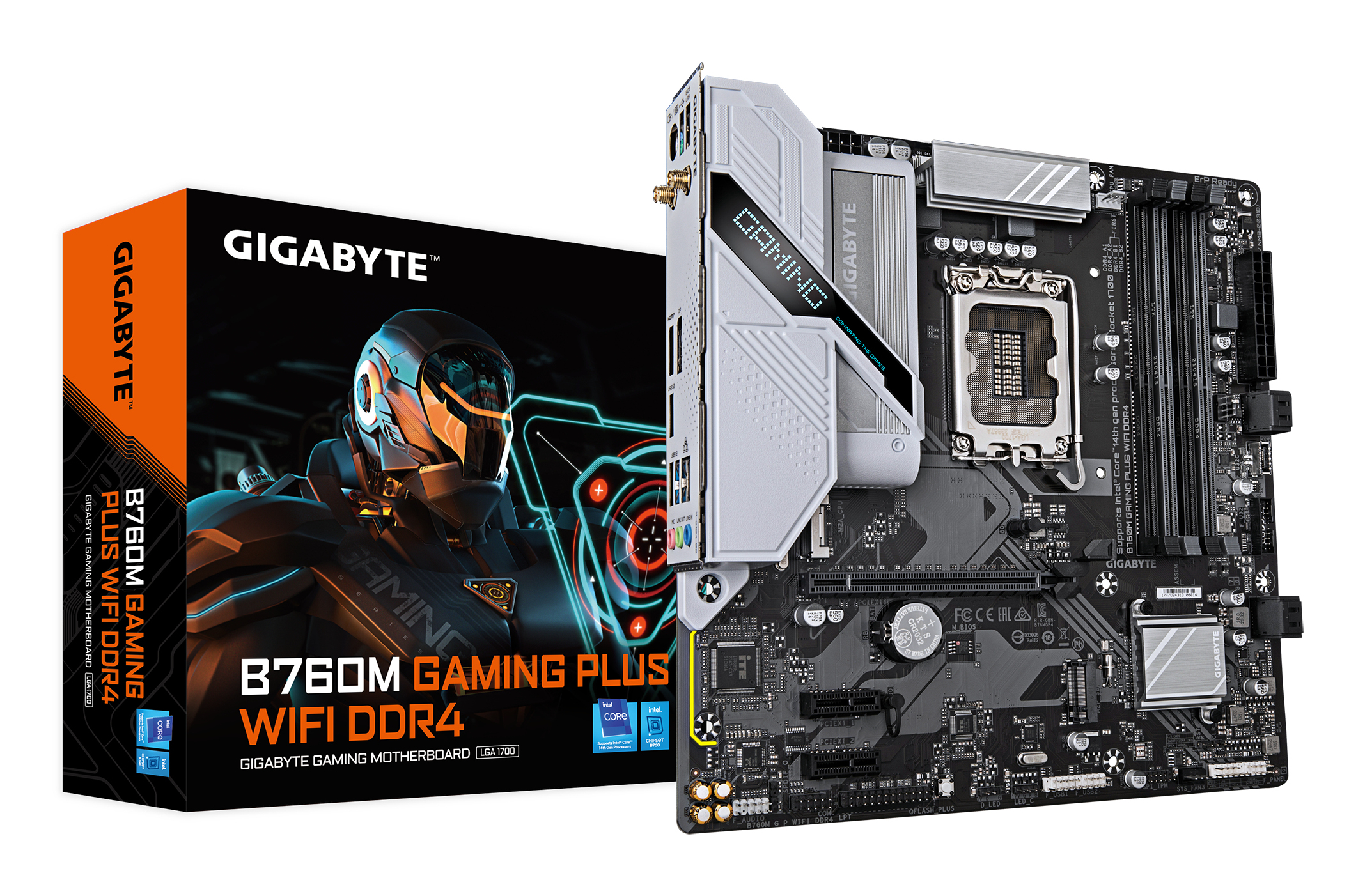

Gigabyte B760M GAMING PLUS WIFI DDR4, Intel B760, LGA1700 12th–14th Gen, DDR4 128GB, PCIe 4.0 x16, Wi-Fi 6, mATX

Gigabyte B760M GAMING PLUS WIFI DDR4, Intel B760, LGA1700 12th–14th Gen, DDR4 128GB, PCIe 4.0 x16, Wi-Fi 6, mATX Specification: CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU Chipset Intel® B760 Express Chipset Memory Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/3200/3000/2933/2666/2400/2133 MT/s memory modules 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Onboard Graphics Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support for native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 Audio Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out LAN Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) Expansion Slots CPU: - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 * The PCIEX16 slot can only support a graphics card or an NVMe SSD. Chipset: - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 Storage Interface CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) - 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices Unique Features Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Bundled Software Norton® Internet Security (OEM version) LAN bandwidth management software Operating System Support for Windows 11 64-bit Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Socket: LGA1700 (supports 12th, 13th, 14th Gen Intel Core/Pentium/Celeron) Chipset: Intel B760 Express Memory: 4x DDR4 DIMM slots, up to 128GB, supports DDR4-2133 to DDR4-5333 (O.C.), XMP compatible Graphics: Integrated Intel HD Graphics via HDMI (4096x2160@60Hz) and DisplayPort (4096x2304@60Hz) Audio: Realtek HD Audio, 2/4/5.1/7.1-channel, S/PDIF Out LAN: Realtek GbE (1 Gbps/100 Mbps/10 Mbps) Wi-Fi: Realtek Wi-Fi 6 RTL8851BE (802.11ax, 2.4/5 GHz, Bluetooth 5.3) Storage: 1x M.2 (CPU, PCIe 4.0 x4/x2), 1x M.2 (Chipset, PCIe 4.0 x4/x2), 4x SATA 6Gb/s (RAID 0/1/5/10) Expansion: 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1 slots Form Factor: Micro ATX (24.4cm x 24.4cm) I/O: HDMI, DisplayPort, USB 3.2 Gen 1 Type-C, 3x USB 3.2 Gen 1 (rear), PS/2, RJ-45, audio jacks Features: Smart Fan 6, Q-Flash Plus, GIGABYTE Control Center OS Support: Windows 10/11 64-bit
