D-LINK MULTI-WAN 2.5G POE SMART OFFICE SERIES VPN ROUTER

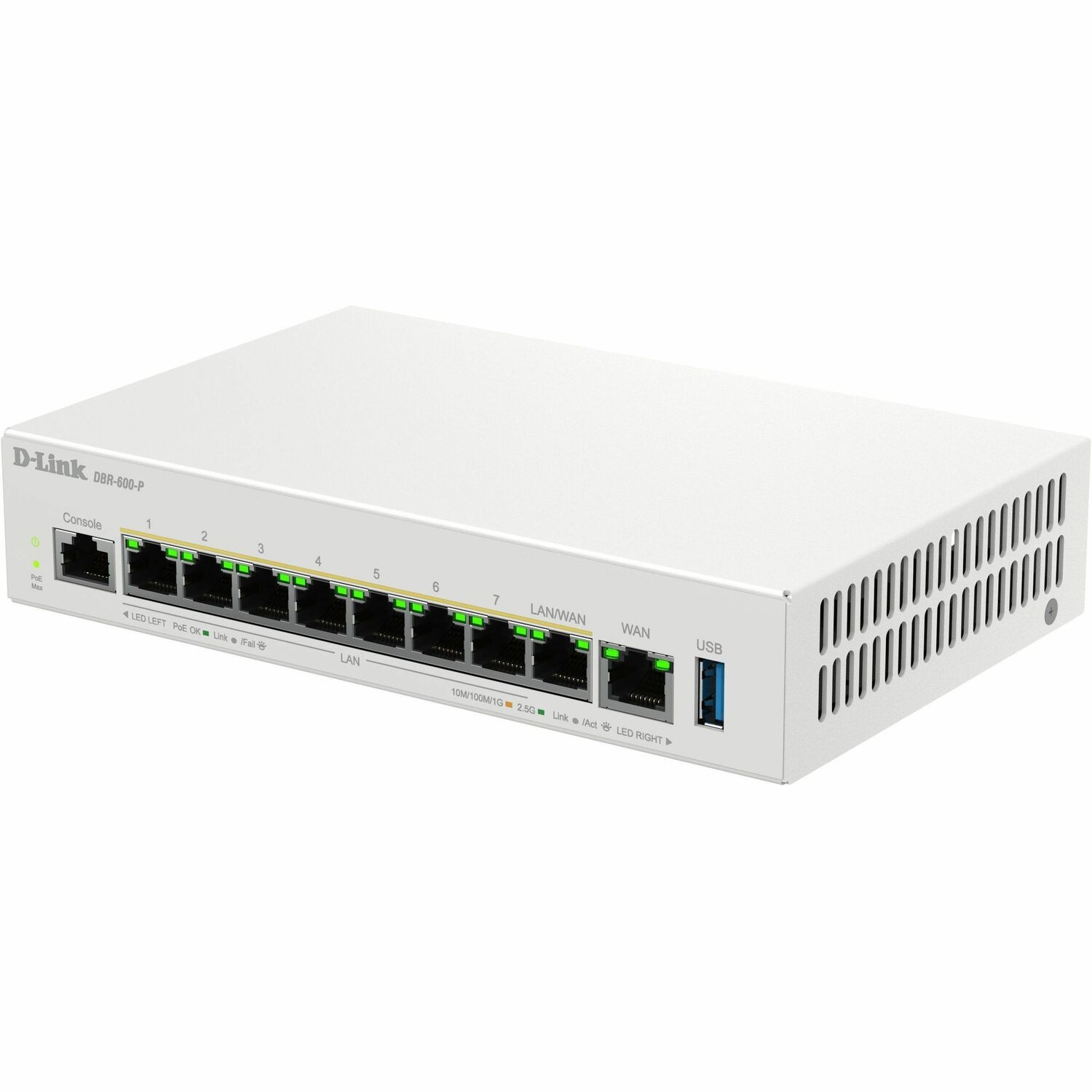

D-Link DBR-600-P Multi-WAN 2.5G PoE Smart Office Series VPN Router
* Multi WAN, 4G LTE (via USB), Ethernet, 5G (via USB)
* Up to 2 WAN Ports
* 2.5 Gigabit LAN Port
* Controller for up to 10 Smart Access Points
* Limited Lifetime Warranty

Features

• 1 x 2.5G WAN port delivers high-speed connections
• Up to 8 x 2.5G PoE LAN ports, 123W power budget
• USB 3.0 integrates with the D-Link 4G/5G dongle
• Multi-WAN enables steady and balanced connectivity
• Advanced firewall protect the network against threats
• Comprehensive network functionality cover all needs
• Manage up to 10 D-Link Smart Access Point series
• Bandwidth management optimizes service priority
• Easy Web GUI for central monitoring and management
• Made In Taiwan

Specifications

General Device Interfaces

• 1 x 10/100/1000/2.5G WAN port
• 1 x 10/100/1000/2.5G WAN/LAN Configurable ports
• 7 x 10/100/1000/2.5G LAN port
• 1 x USB 3.0
• 1 x Reset Button
• 1 x Power Connector
• 1 x Console Port (Debugging purposes only)

PoE

• 802.3at PoE output
• Up to 120 W total PoE budget

Ether-WAN Type

• Dynamic IP
• PPPoE
• L2TP
• Static IP
• PPTP

WAN Failover

• Dual Ether-WAN Failover
• USB LTE Dongle - Ether-WAN Failover

WAN Load Balance

• Dual Ether-WAN Load Balance
• USB LTE Dongle - Ether-WAN Load Balance

Network LAN & VLAN

• DHCP Server/Relay
• Port/Tag based VLAN

Network Port Forward

• DMZ
• VPN Pass-through
• Virtual Server
• DDNS

Network Routing

• Static
• RIPv1/v2
• Dynamic

VPN Tunnel

• PPTP
• IPSec
• L2TP
• WireGuard
• OpenVPN
• GRE

Security

• IPS/IDS
• MAC/IP Filtering
• SPI Firewall
• URL Blocking

AP Management

• Manage Up to 10 DBR-X3000-AP

Wi-Fi SSID

• SSID Name
• VLAN Tag

Wi-Fi Security

• WPA/WPA2/WPA3 Personal
• WPA/WPA2/WPA3 Enterprise

Captive Portal

• Click-through
• Internal database
• RADIUS

Monitoring Feature

• Clients IP/MAC
• Clients Status and Statistics

Device Firmware

• Firmware Upgrade

Physical & Environment

• Power Input 54 V/2.7 A
• Dimensions 120 x 190 x 38 mm
• Operating Temperature 0 to 40 °C (32 to 104 °F)
• Storage Temperature -10 to 70 °C (14 to 158 °F)
• Operating Humidity 10% to 90% non-condensing
• Storage Humidity 0% to 95% non-condensing
