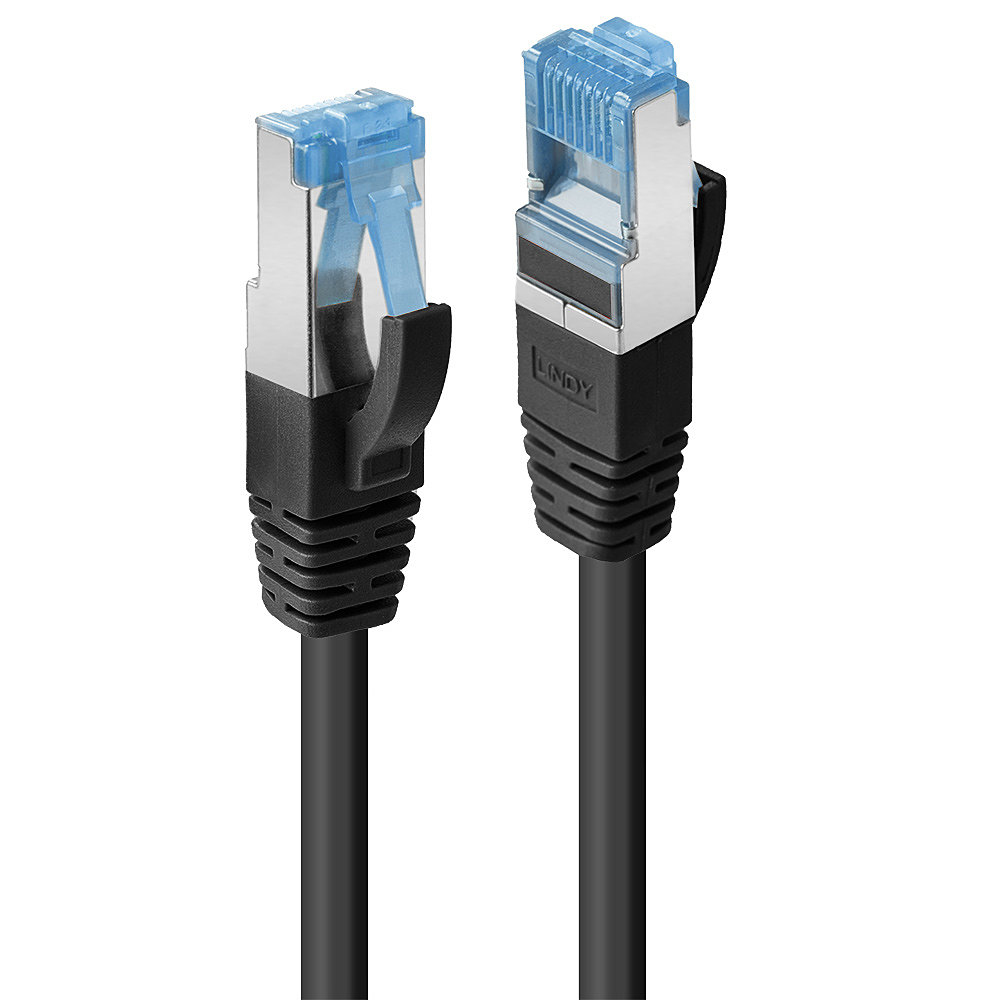

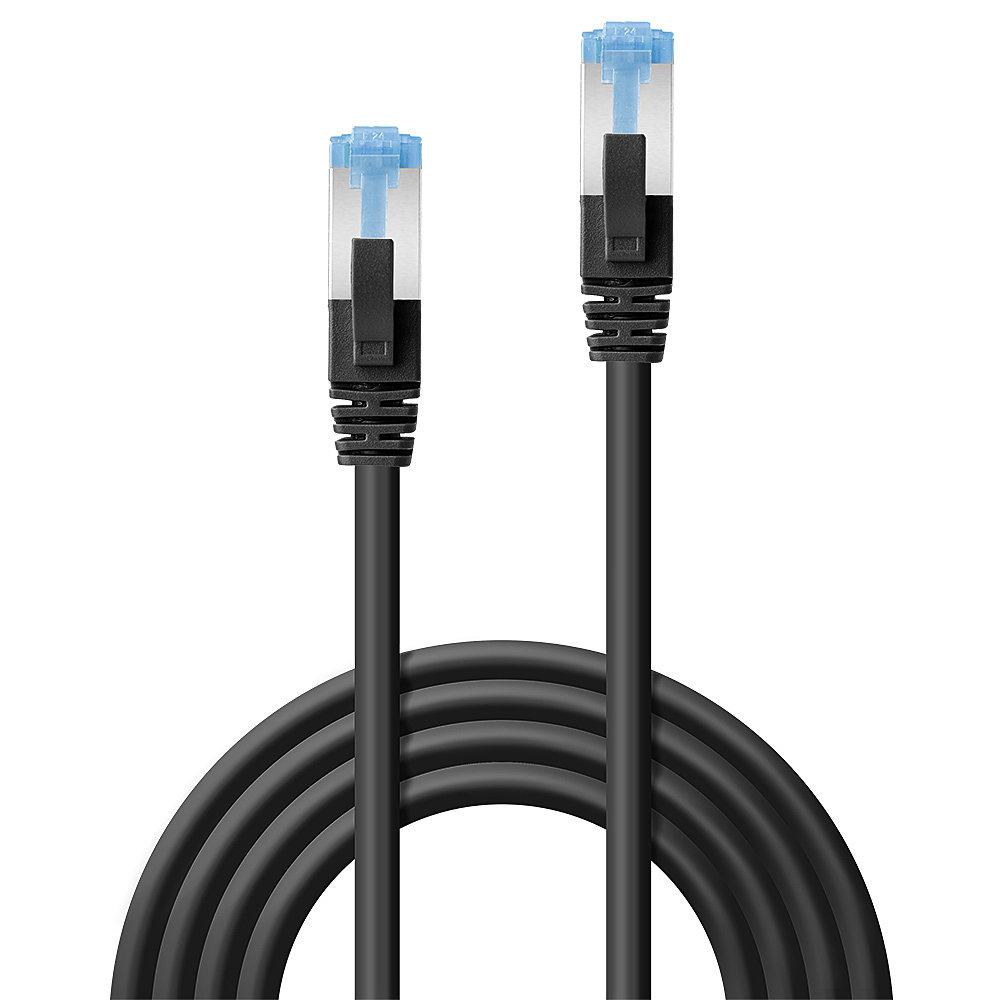

Lindy 0.3m CAT.6A S/FTP LSZH

Features

• Twisted Pair Patch Cable with RJ45 connectors
• Cat.6A S/FTP PIMF, LSZH
• Integrated snagless connector for latch protection
• Gold plated pins for better conductivity and elimination of signal loss
• 10 year warranty

Specifications

Cable Construction

• Colour: Black
• Type: Cat.6A
• Jacket Diameter: 6.0mm (0.24in)
• Jacket Material: LSZH
• Conductor Material: Copper
• Conductor Gauge: 27AWG
• Shielding: Aluminium Braid

Specifications

• Supported Bandwidth: 500MHz
• Nominal Attenuation: 49.3dB/100m @ 500MHz
• Minimum Bend Radius: 72mm (2.84in)
• Operating Temperature: -10°C - 60°C (14°F - 140°F)
• Storage Temperature: -20°C - 75°C (-4°F - 167°F)

Miscellaneous

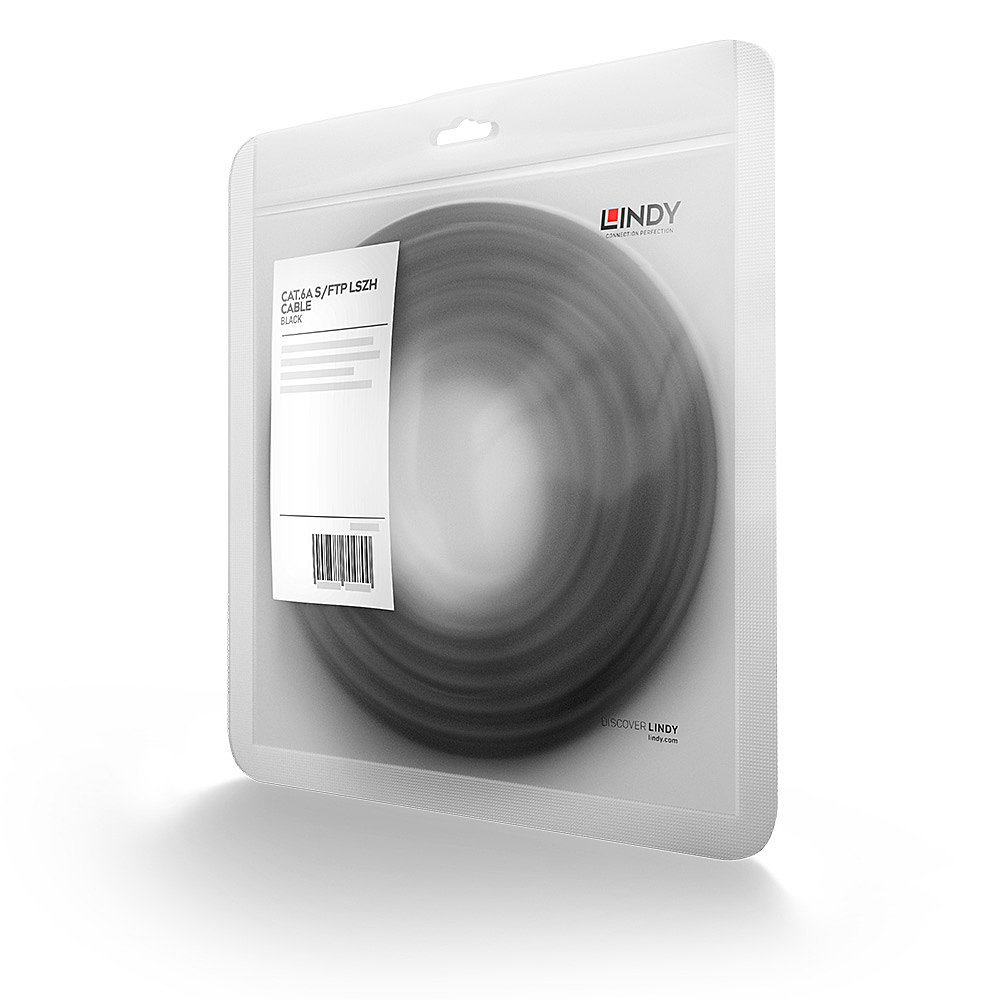

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL, California Proposition 65

Available Lengths

• 47175 - 0.3m (0.98ft)
• 47176 - 0.5m (1.64ft)
• 47177 - 1m (3.28ft)
• 47178 - 1.5m (4.92ft)
• 47179 - 2m (6.56ft)
• 47180 - 3m (9.84ft)
• 47181 - 5m (16.44ft)
• 47182 - 7.5m (24.61ft)
• 47183 - 10m (32.81ft)
• 47184 - 15m (49.21ft)
• 47185 - 20m (65.62ft)
• 47186 - 30m (98.43ft)
