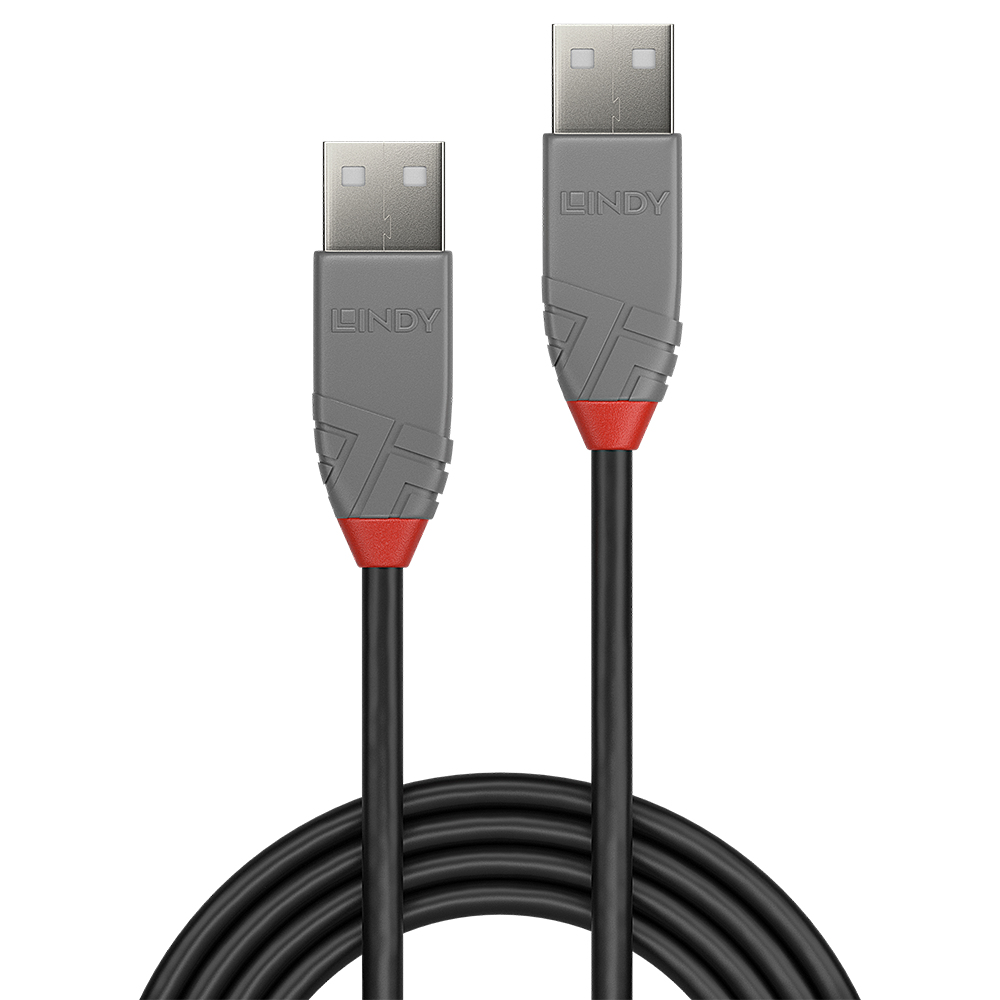

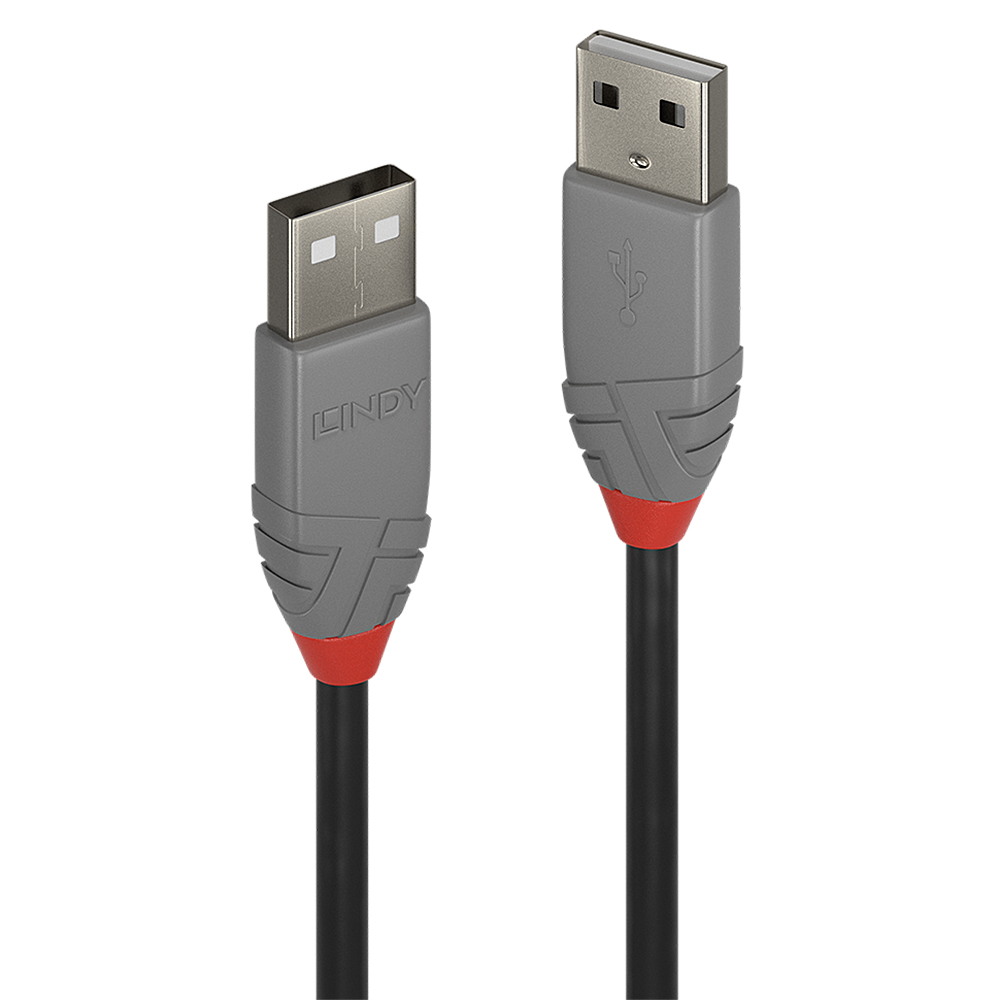

Lindy 0.2m USB 2.0 A to A Cbl

Features

• Professional choice USB 2.0 Type A to A cable for commercial and high performance AV and IT installations
• Supports data transfer speeds up to 480Mbps
• Robust PVC housing, nickel connectors and gold plated contacts
• Double shielded cable, corrosion resistant tinned copper conductors
• USB 2.0, 480Mbps; 10 year warranty

Specifications

Connectors

• Connector A: USB 2.0 Type A Male
• Connector B: USB 2.0 Type A Male
• Housing Material: PVC
• Connector Plating: Nickel
• Pin Construction: Copper
• Pin Plating: 24K Gold
• Dimensions, USB A Male (approx.) WxDxH: 12.0x4.5x36mm (0.47x0.18x1.42in)
• Dimensions, USB A Male (approx.) WxDxH: 12.0x4.5x36mm (0.47x0.18x1.42in)

Cable Construction

• Standard: USB 2.0
• Colour: Black
• Type: Round
• Jacket Diameter: 4.4mm (0.17in)
• Jacket Material: PVC
• Conductor Material: Tinned Copper
• Conductor Gauge: 26/28AWG
• Shielding: Aluminium Magnesium Braid

Specifications

• Supported Bandwidth: 480Mbps
• Maximum Resolution: -
• Nominal Attenuation: 5.8db/km
• Minimum Bend Radius: 16mm (0.63in)
• Operating Temperature: 0°C - 60°C (32°F - 140°F)
• Storage Temperature: 0°C - 60°C (32°F - 140°F)

Miscellaneous

• Packaging Type: Polybag
• Warranty (Years): 10
• Certificated: RoHS, REACH, UL
