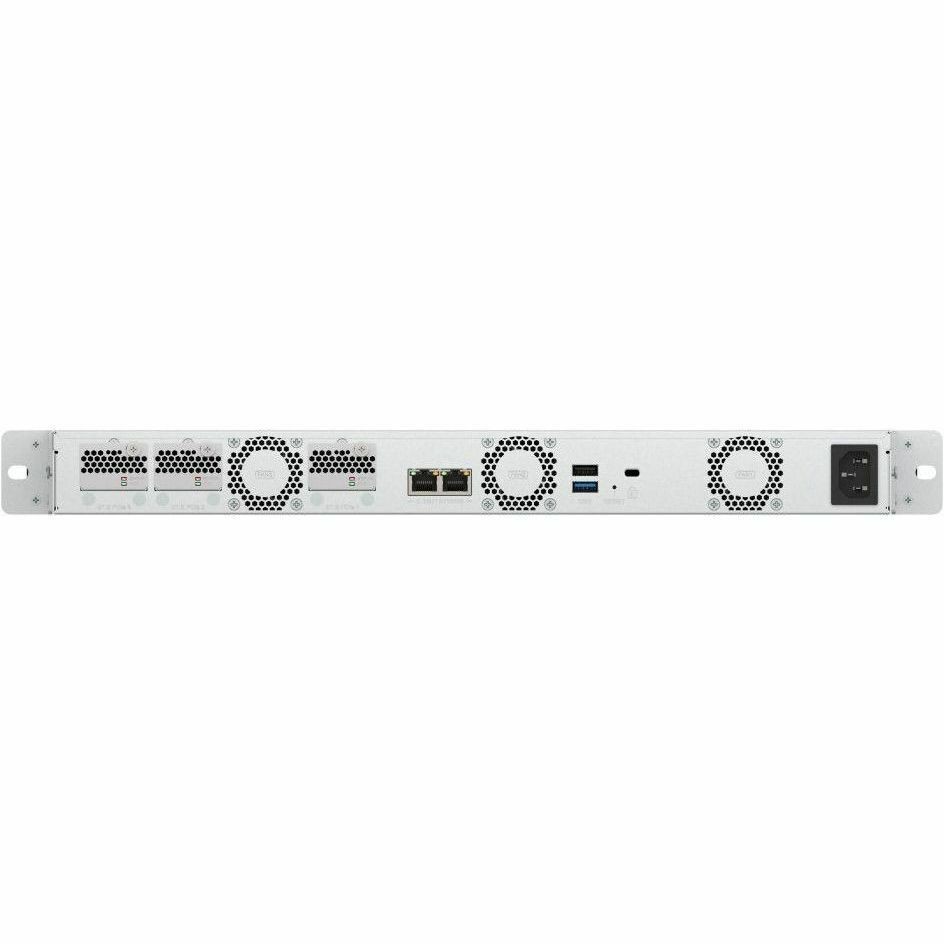

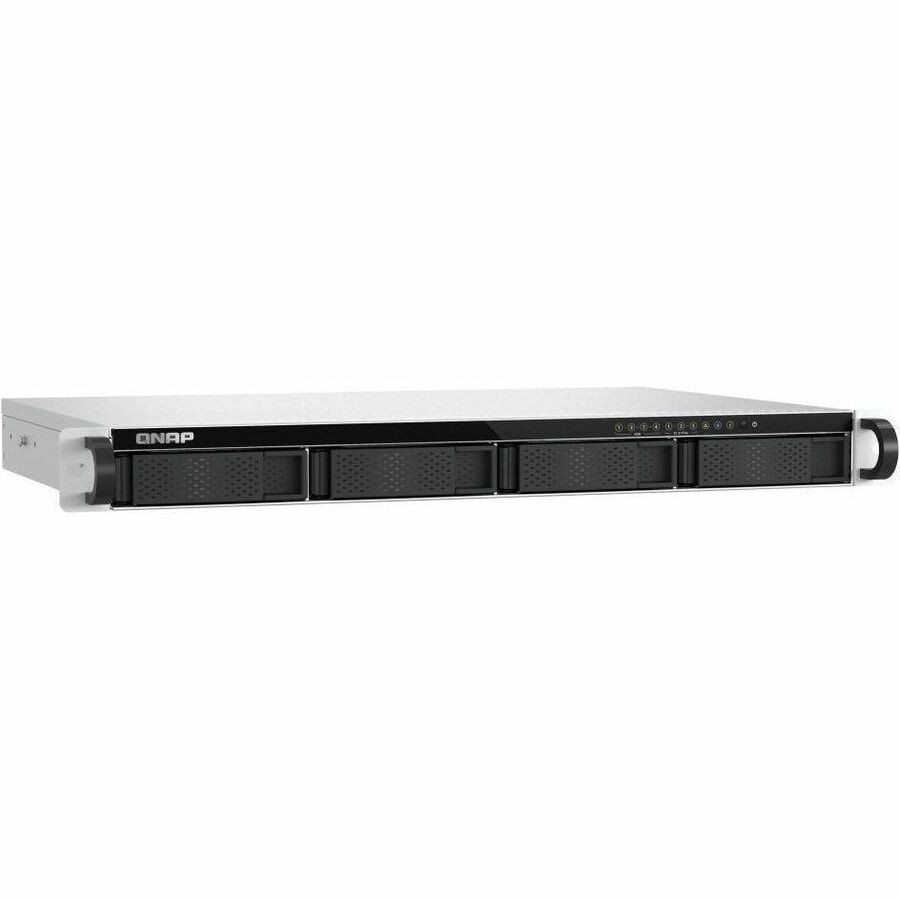

The 1U short-depth rackmount TS-h765eU is designed for space-constrained environments, offering an efficient and reliable storage solution for various needs. It features the latest Intel Atom x7000C Series processor, supports built-in 8GB DDR5 RAM, upgradable to 16GB (In-Band ECC), has dual 2.5GbE ports, and provides four 3.5-inch SATA drive bays and three E1.S/M.2 PCIe NVMe slots.
Intel Atom x7405C 4-core 2.2GHz processor (up to 3.4 GHz)
8GB DDR5 non-ECC RAM (In-Band ECC supported), expandable up to 16GB
4x 3.5-inch/2.5-inch SATA 6Gbps HDD/SSD slots
3x E1.S/M.2 2280 PCIe NVMe SSD slots
2x 2.5GbE RJ45 ports
1x USB 3.2 Gen 1 (5 Gbps) Type-A port; 1x USB 2.0 port
1U short depth of only 292.1mm (12 inches)
ZFS-based QuTS hero operating system
Long-term support and availability until 2031
