Description
This Active High Speed HDMI 2.0 Cable routes through office plenum spaces for long distance transmission of 4K 60Hz video and high quality audio. The integrated active chipset boosts the HDMI signal without requiring external power, facilitating 4K 60Hz video and full HDMI 2.0 capabilities. It features a Communications Multipurpose Plenum (CMP)-rated cable jacket with low-smoke characteristics and is ideal for use in the plenum spaces of buildings (e.g., dropped ceilings and in-wall installations).</description>
<parameter name="specification">Length: 15m (50ft / 49.2ft)
Bandwidth: 18Gbps
Video Resolution: 4K 60Hz, 1080p/1440p 120Hz
HDMI Version: 2.0
Connector Type: HDMI Type A (19-pin)
Active Chipset: Yes (no external power required)
HDR Support: HDR10 with 10-bit processing
Audio: 7.1 and 32-channel audio with ARC
Security: HDCP 2.2
Cable Rating: CMP (Plenum Rated), Low-smoke
Connectors: Gold-plated, rated beyond 10,000 insertions
Cable Jacket: 9mm (0.35in) O.D.
Wire: 24/28AWG bare copper
Durability: Tested beyond 1,000 bending cycles at ±60°

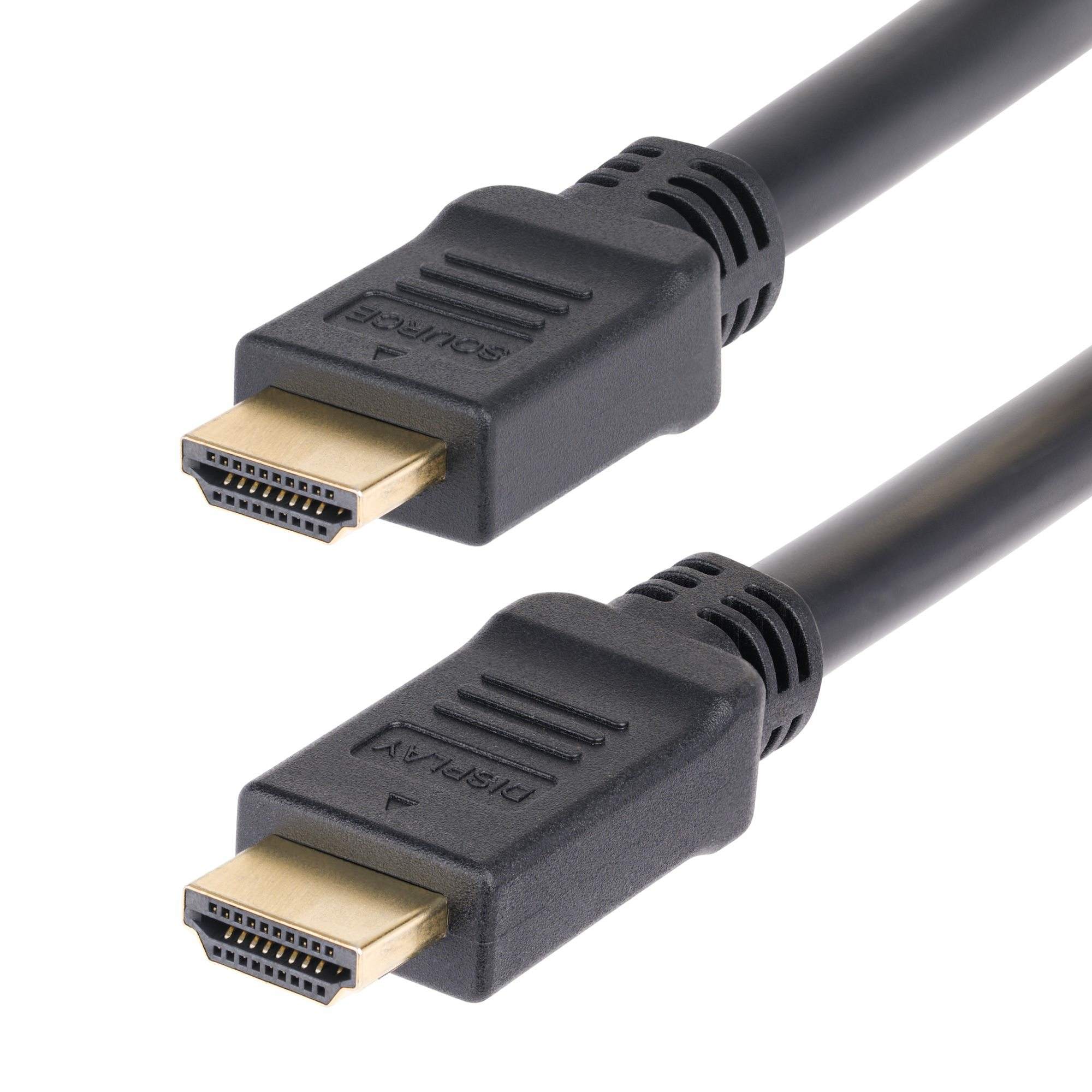

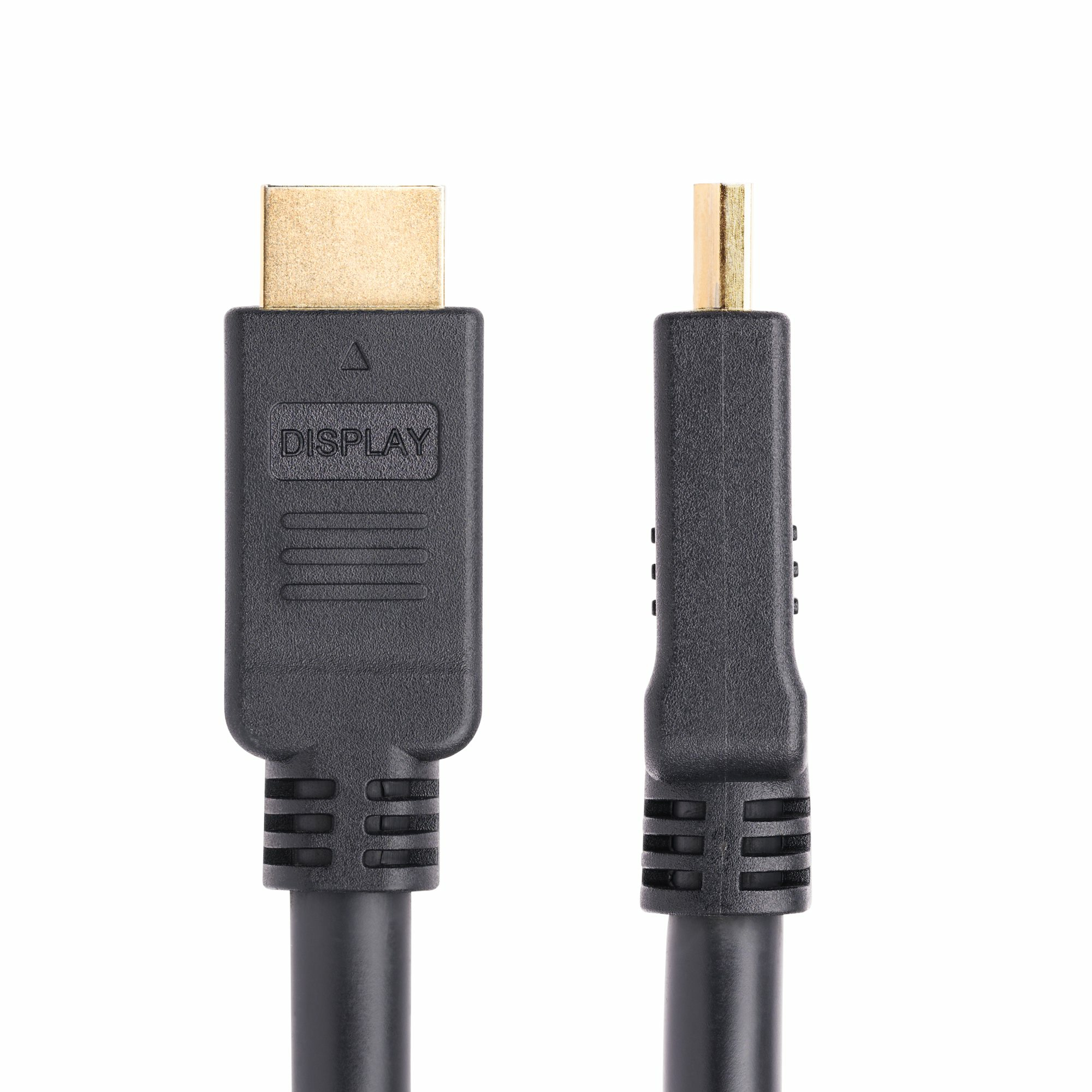

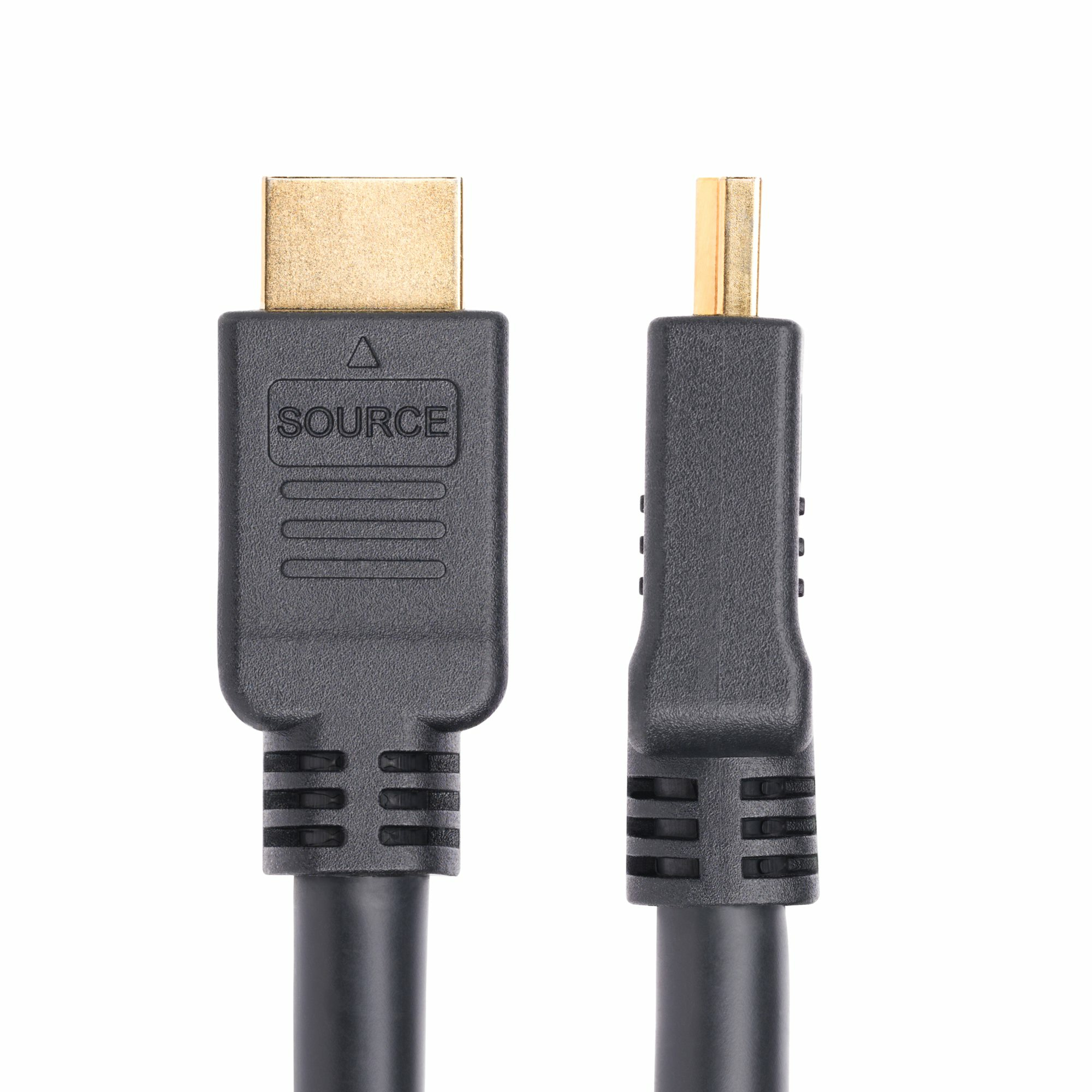

Direction: Unidirectional (labeled SOURCE/DISPLAY)
Features: Strain relief, Variable Refresh Rate (VRR), Dual Video Streams
Color: Black
