Specification

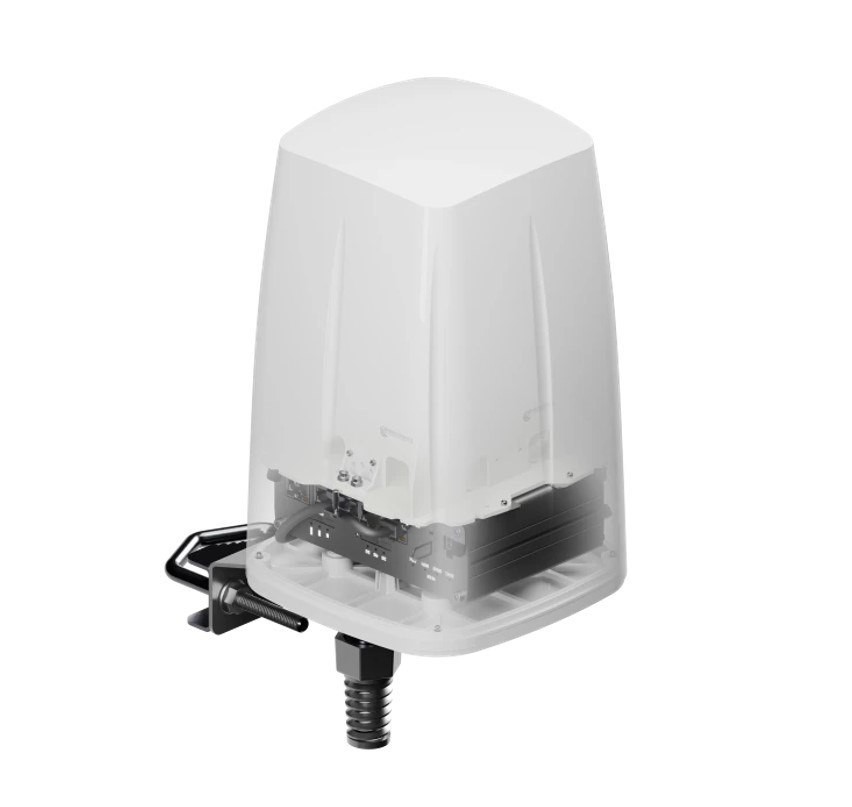

Type: Outdoor omnidirectional antenna with integrated enclosure
Frequency ranges: 5G 617–4300 MHz, Wi-Fi 2400–6000 MHz, GNSS 1560–1610 MHz
Gain: 5G/LTE 4.5 dBi max, Wi-Fi 7.5 dBi, GNSS 28 dBi
Connectors: 4x SMA male (5G/LTE/Wi-Fi), 1x SMA male (GNSS)
Cables: 6x RG316, 1x RG174
Mounting: Wall, ceiling, mast options
IP Rating: IP67
Temperature range: -40°C to 75°C
Weight: 1500g
Impedance: 50 Ω
Radiation pattern: Omnidirectional
