Description

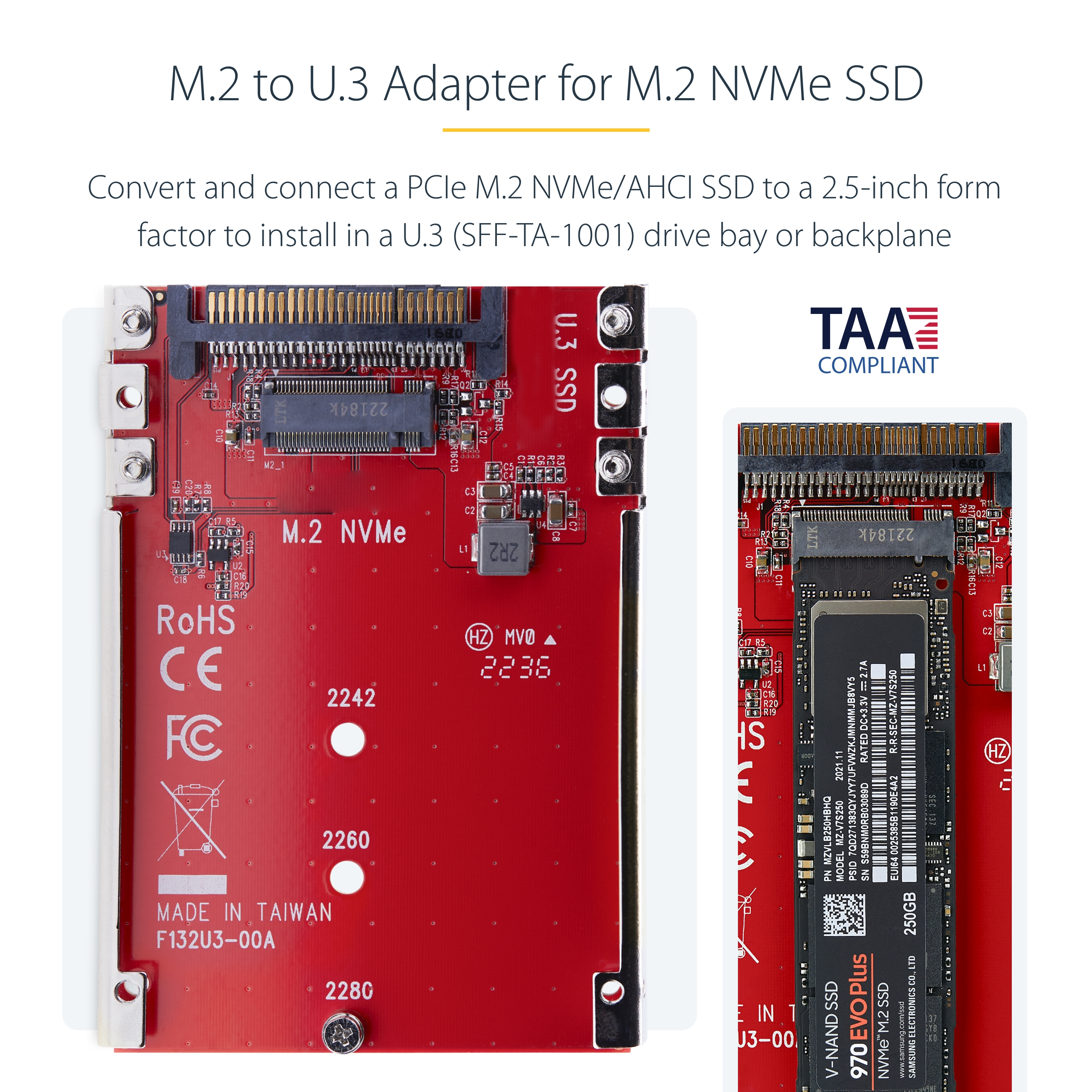

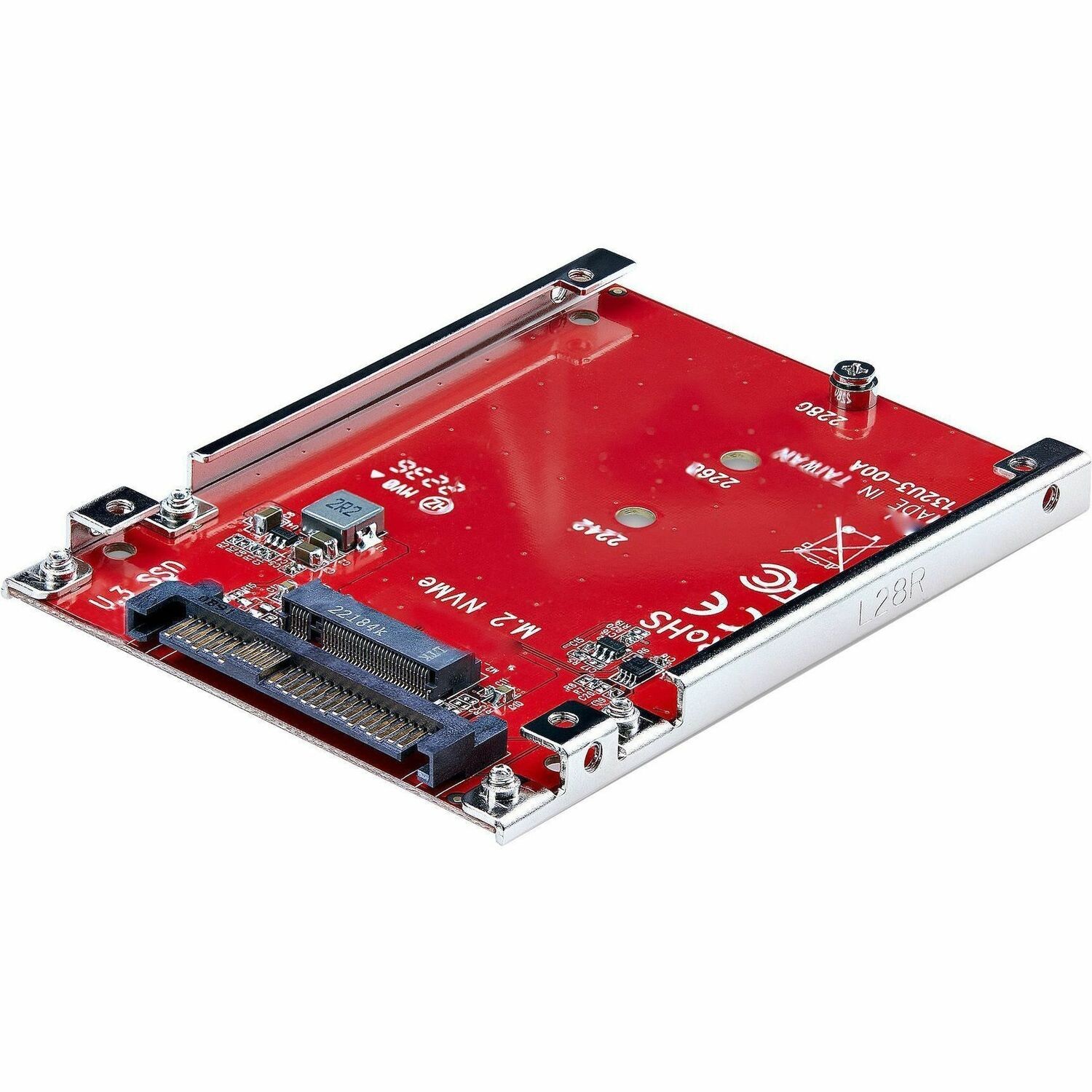

Convert and connect a PCIe M.2 NVMe/AHCI SSD to a 2.5" form factor to install in U.3 drive bays/backplanes. Change the form factor of a 2242, 2260, or 2280 M.2 NVMe drive while preserving the read and write speeds. No chipset design ensures no loss in performance when adapting to 2.5".</description>
<parameter name="specification">Interface: M.2 NVMe to U.3 (SFF-TA-1001) adapter
Form Factor: 2.5-inch U.3
Supported M.2 Sizes: 2242, 2260, 2280
Protocol: PCIe 4.0 (supports Gen 4 and lower)
No chipset design for full performance passthrough
Compatible with Windows, macOS, and Linux
TAA Compliant
No drivers or software required
Includes mounting screws for M.2 drive and U.3 adapter

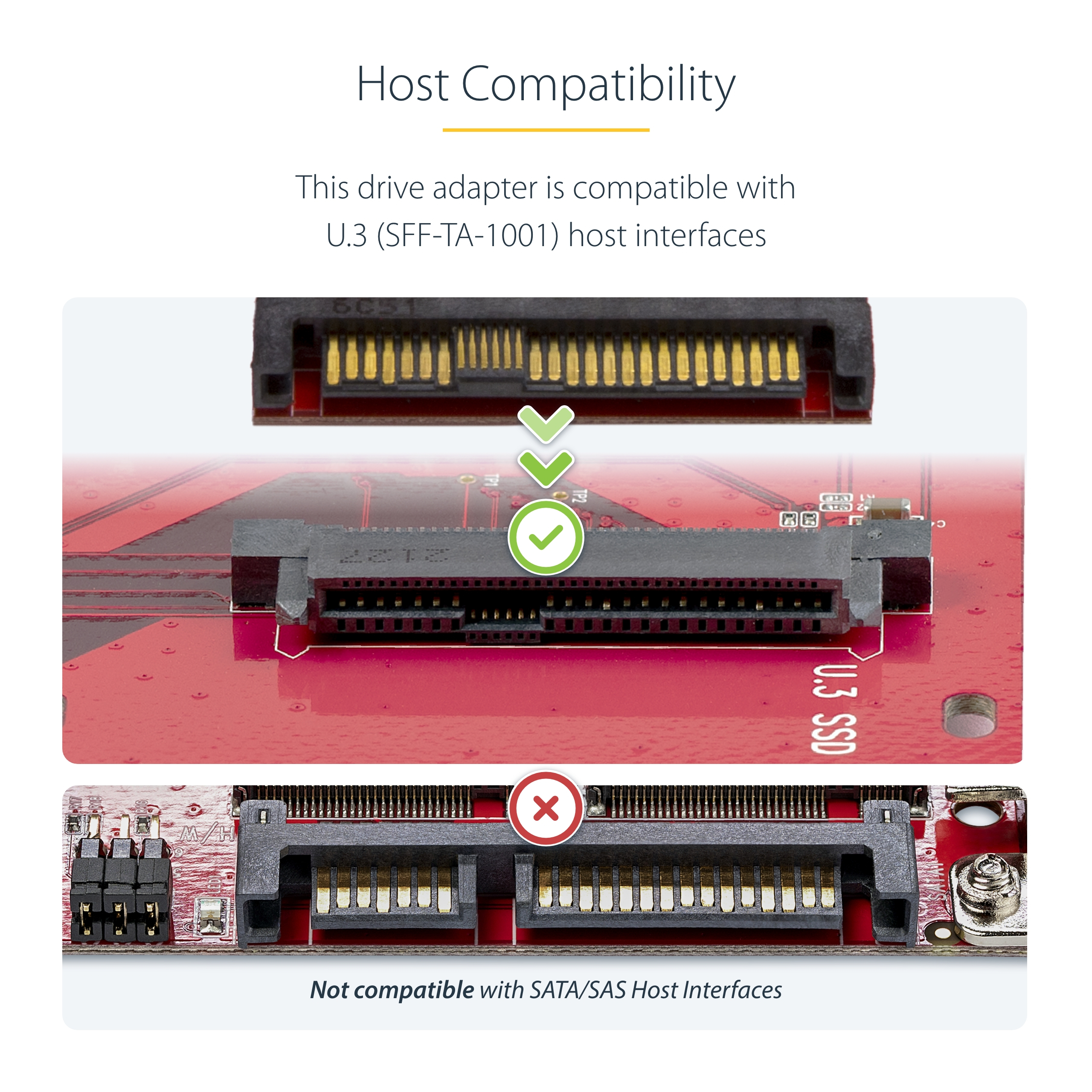

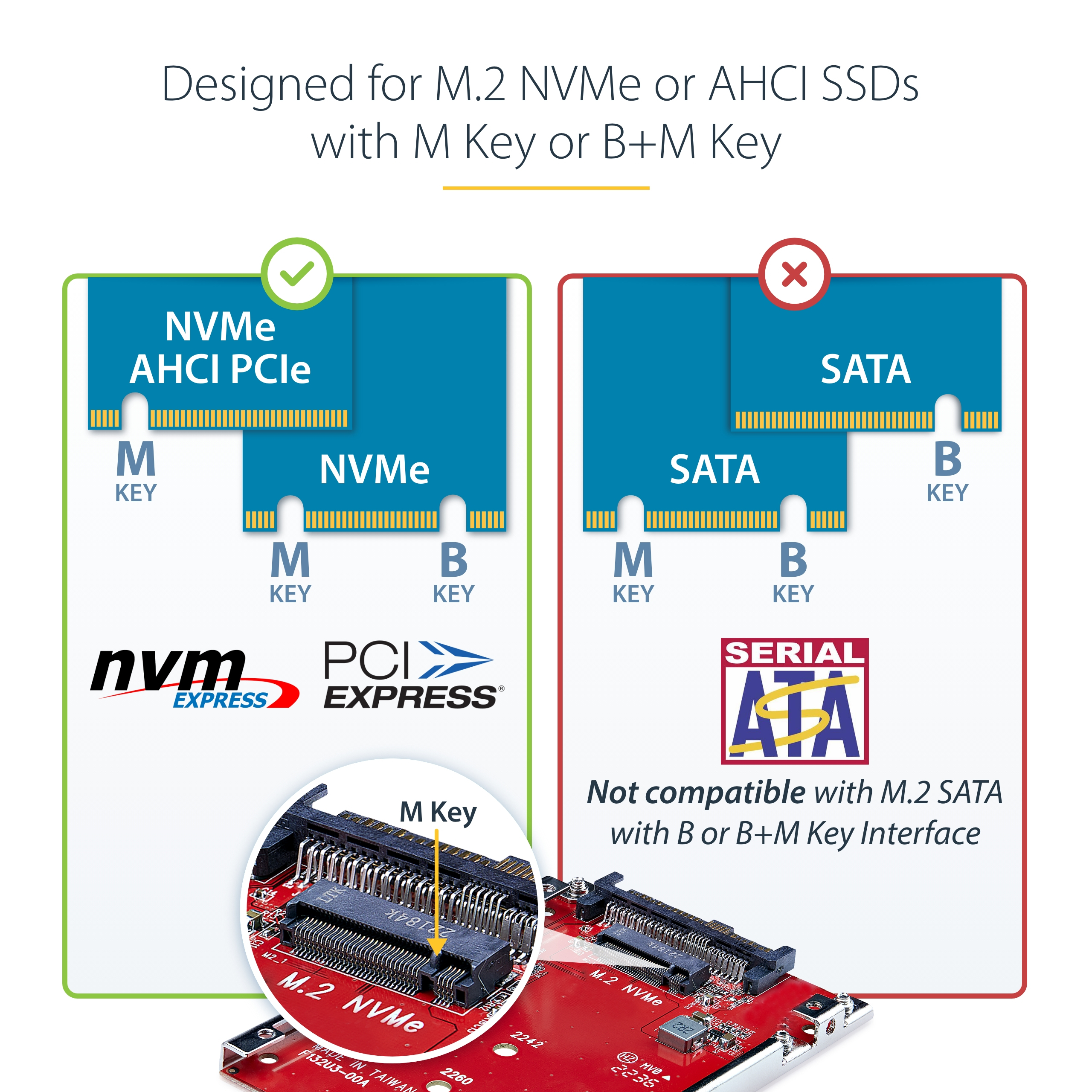

Not compatible with SATA/SAS controllers, SATA M.2 SSDs, or U.2 interfaces
SMART technology support
Mean time between failures: 12,368,734 hours
Dimensions: 100mm (L) x 70mm (W) x 7mm (H)
Weight: 37g (device), 100g (packaged)
