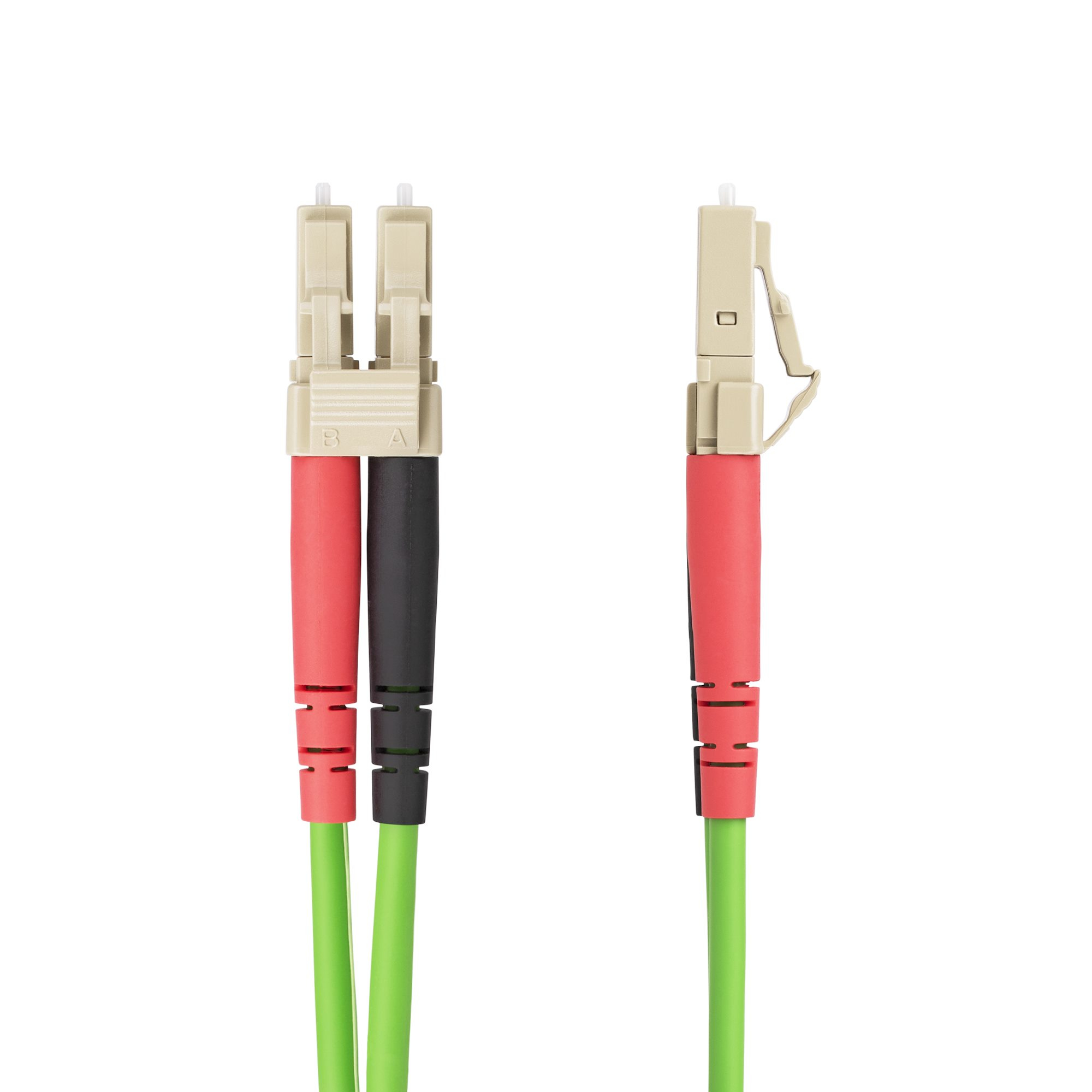

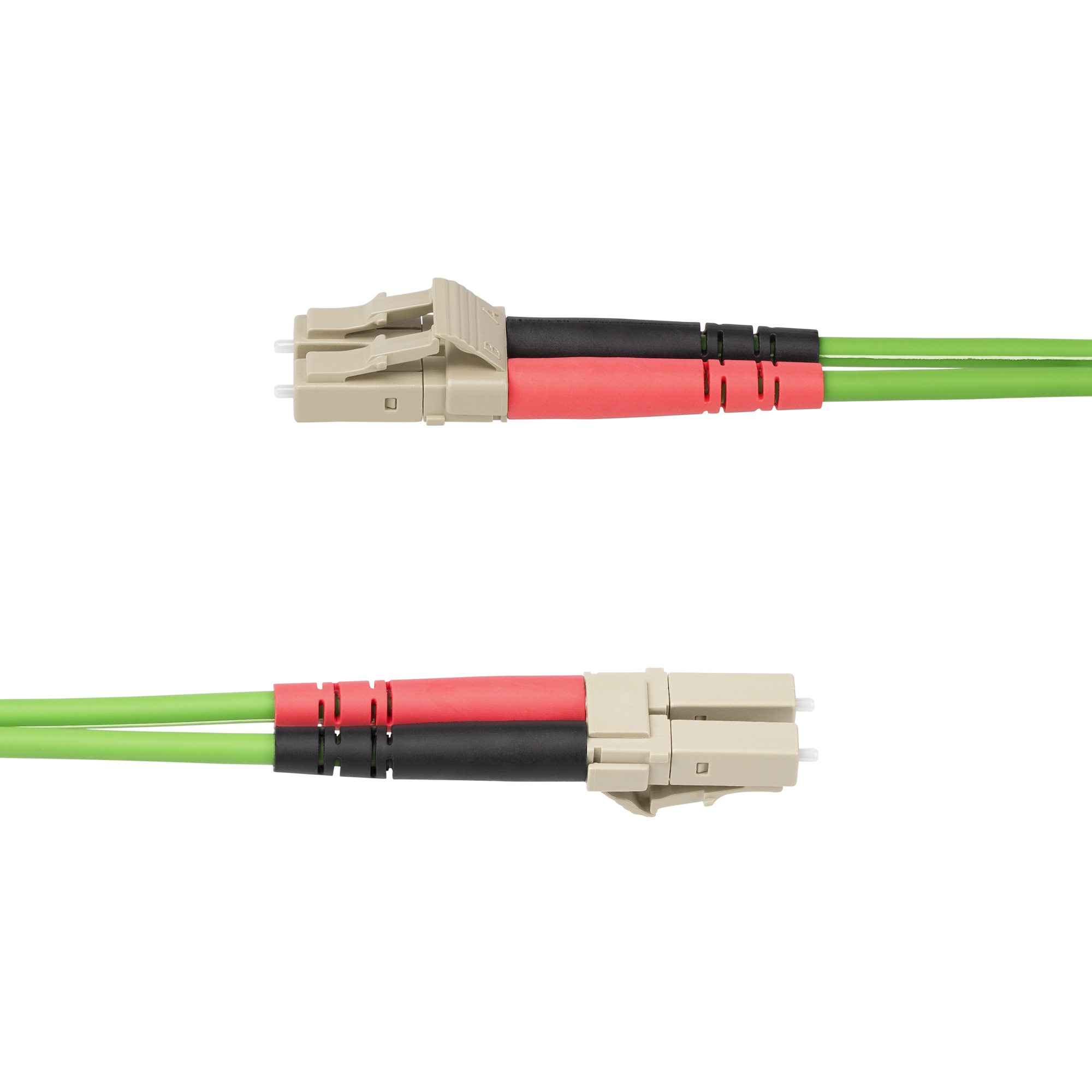

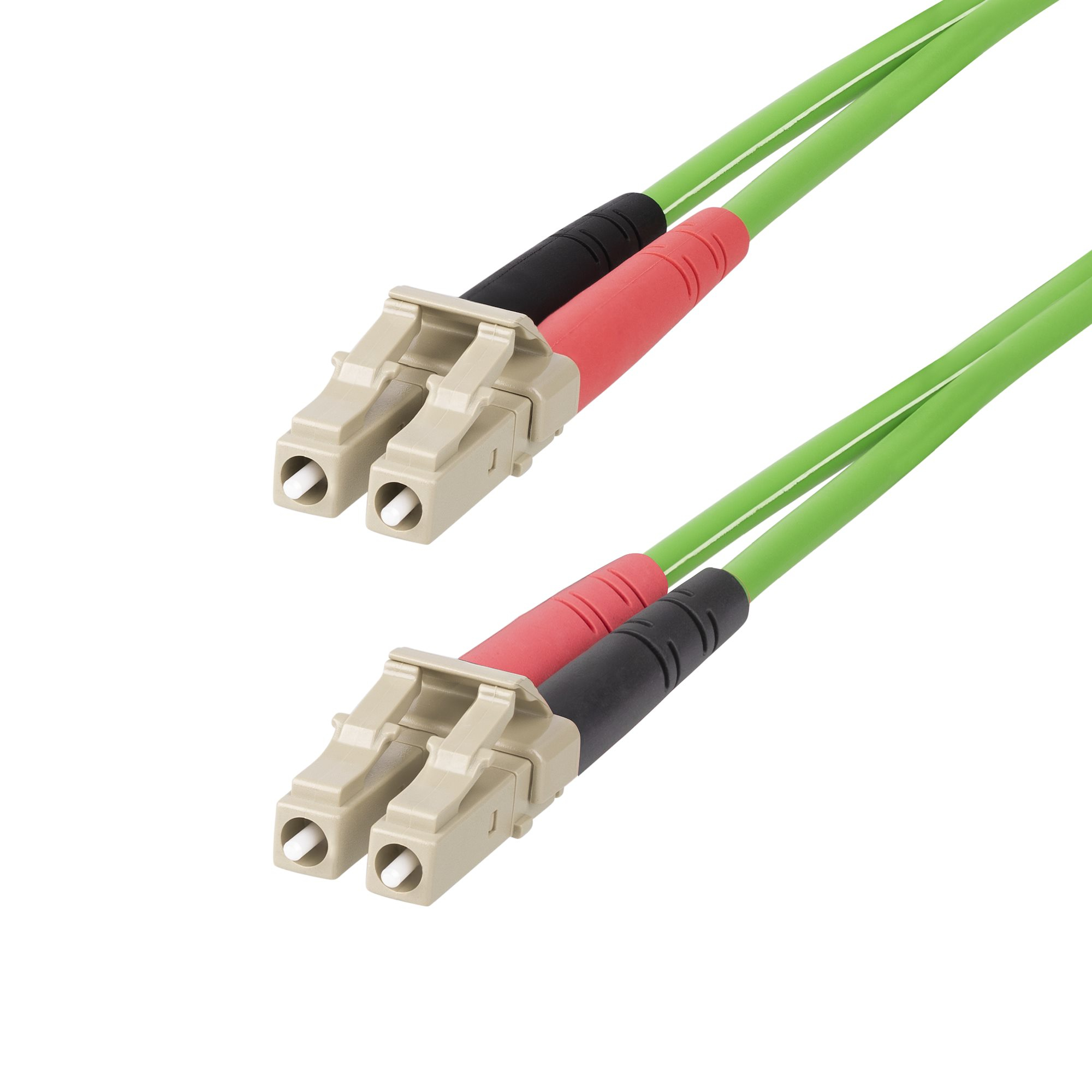

STARTECH.COM 25M LC TO LC (UPC) OM5 MULTIMODE FIBER OPTIC CABLE, LTW

OM5 LC to LC Multimode Duplex Fiber Optic Patch cable facilitates connectivity across 40G and 100G networks. With precision-manufactured ceramic ferrules and a LSZH flame-retardant jacket, this fibre optic cable ensures reliability in high-density network applications.

Cable length: 25m (82ft) Fiber type: OM5 LOMMF (Laser-Optimized Multimode Fiber) Connectors: LC to LC (UPC polish) Core/Cladding diameter: 50/125µm Duplex configuration: Full duplex Wavelength support: 850–953nm VCSEL, 1300nm LED Modal bandwidth: 4700MHz·km @ 850nm, 2470MHz·km @ 953nm Insertion loss: ≤0.3dB Return loss: ≥30dB Attenuation: <2.4dB/km Cable OD: 2.9mm Bend radius: 6cm (loaded), 3cm (unloaded) Jacket: LSZH (Low-Smoke, Zero-Halogen) Design: Zipcord with color-coded connectors Compatibility: 10G/40G/100G networks; backward compatible with OM4 and OM3
