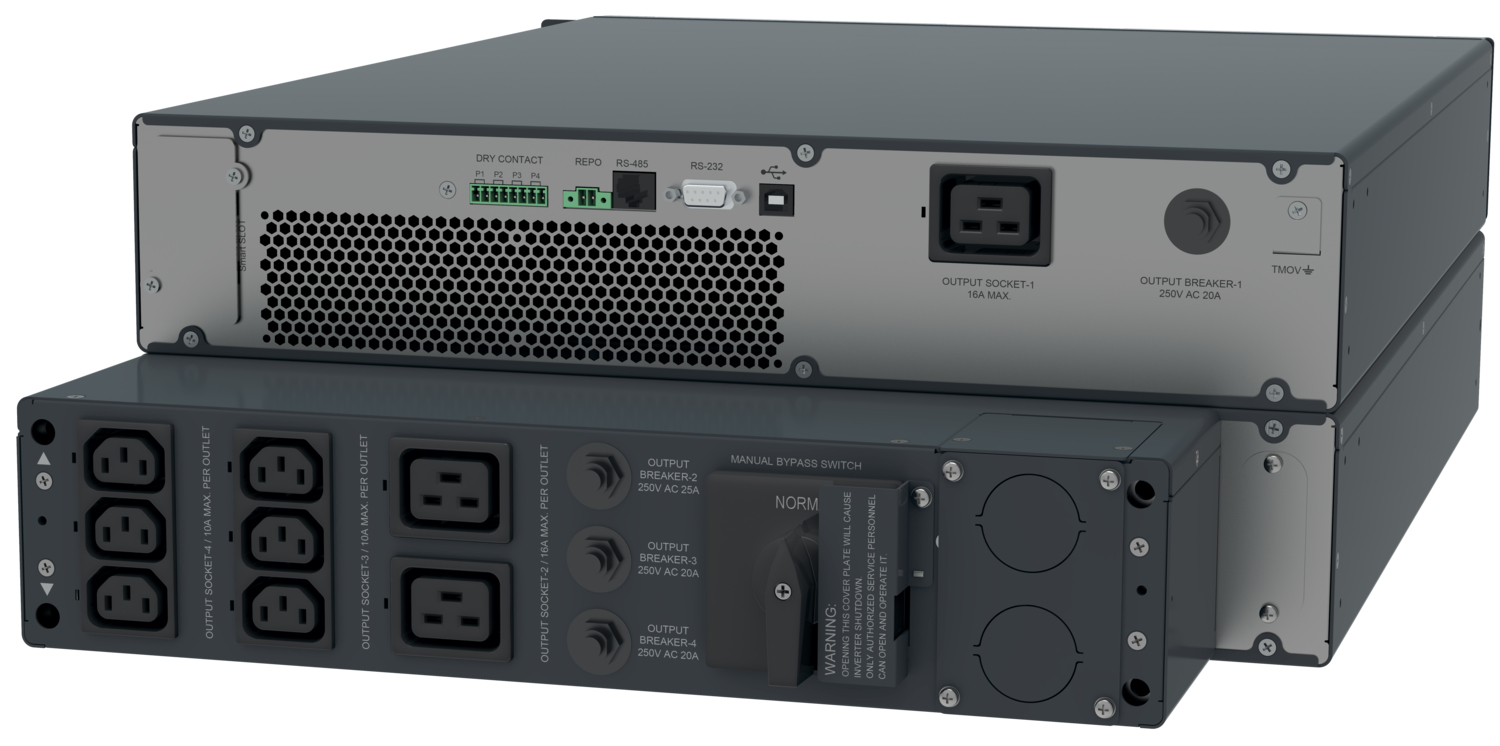

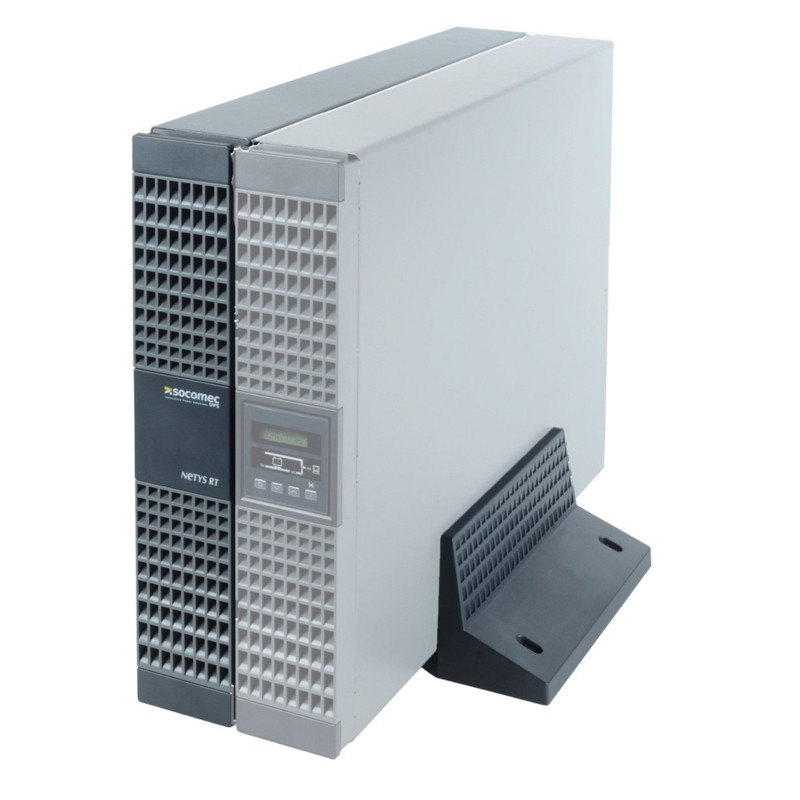

The Socomec NeTYS RT NRT3-11000MBP is an 11kVA/10kW online double-conversion UPS with integrated hot-swap battery module and manual bypass, designed for rack or tower installation. Features 6U rack form factor with included rail kit and supports N+1 parallel redundancy for maximum IT infrastructure availability.
Tech specs
Form factor
6U Rack/Tower
Full specification
Architecture: Online Double Conversion VFI with input PFC
Power Rating: 11kVA / 10kW
Input Voltage: 230V single-phase (120-280V operating range)
Output Voltage: 230V ± 3%
Battery: Included hot-swap VRLA battery module
Outlets: 6 × 10A IEC, 2 × 16A IEC
Form Factor: Tower/6U Rack mount with rails included
Communications: USB port, SNMP card slot (optional)
Topology: Single-phase with integrated manual bypass
Standards Compliance: IEC 62040-1, IEC 62040-2, IEC 62040-3
